1. Introduction
This manual provides instructions for the safe and effective use of your SSKFHGI Pressure Washer Gun. This device is designed to transform a standard garden hose into a versatile cleaning tool, suitable for various outdoor tasks.
The pressure washer gun features a durable stainless steel construction and a 360-degree rotating nozzle, offering three distinct spray modes for adaptable cleaning. It is designed for universal compatibility with most standard garden hoses.
2. Safety Information
Please read all safety instructions carefully before operating the pressure washer gun. Failure to follow these instructions may result in injury or damage to the product.
- Always wear appropriate eye protection when operating the pressure washer gun.
- Do not point the spray nozzle at people, pets, or electrical outlets.
- Ensure all connections are secure before turning on the water supply.
- Do not leave the pressure washer gun unattended while connected to a water source.
- Disconnect the water supply and relieve pressure when the gun is not in use or before performing any maintenance.
- Keep children and pets away from the operating area.
3. Package Contents
Verify that all items are present upon unpacking:
- 1 x SSKFHGI Pressure Washer Gun
4. Product Features
The SSKFHGI Pressure Washer Gun is engineered with several features to enhance your cleaning experience:
- High-Pressure Capability: Converts a standard garden hose into a powerful stream for effective cleaning.
- Three Spray Modes: Easily switch between Jet, Fan, and Spray modes to suit different cleaning tasks.
- Extended Reach: Provides sufficient pressure and range for cleaning elevated areas like second-story windows or tall trees from the ground.
- Universal Compatibility: Equipped with a quick-connect system compatible with most standard garden hoses.
- Ergonomic Design: The handle is designed for a comfortable grip, reducing fatigue during prolonged use.
- Durable Construction: Crafted from high-grade metal and plastic components, featuring an electroplating nozzle for anti-rust and wear-resistant properties.
Figure 4.1: Key features of the SSKFHGI Pressure Washer Gun.
Figure 4.2: Components of the Pressure Washer Gun.
5. Setup
Follow these steps to set up your pressure washer gun:
- Connect to Water Source: Attach the hose connector of the pressure washer gun to a standard garden hose. Ensure the connection is tight to prevent leaks.
- Secure Hose: Make sure the garden hose is securely connected to your water spigot.
- Turn on Water: Slowly turn on the water supply to the garden hose. Check for any leaks at the connections.

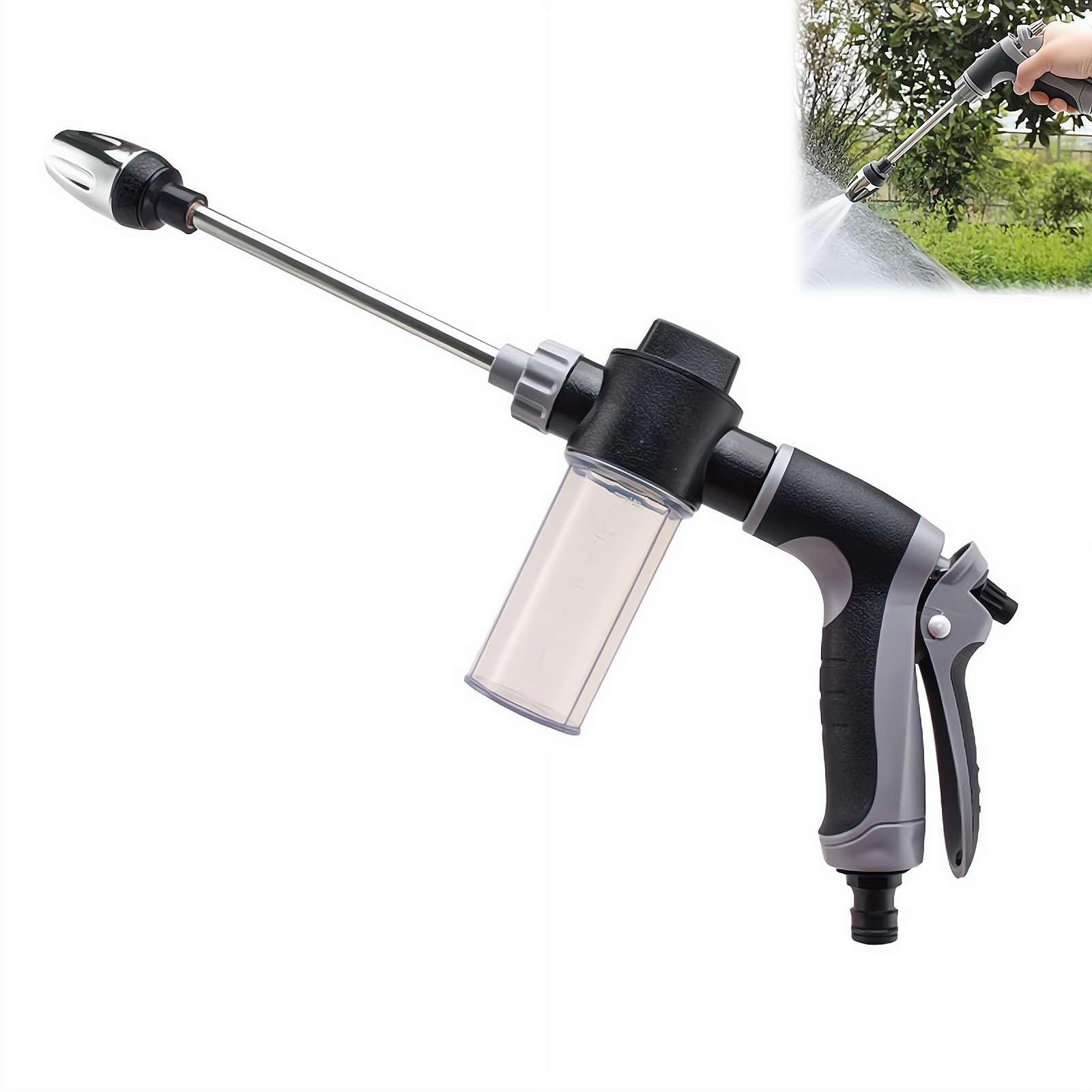

Figure 5.1: Pressure Washer Gun connected to a garden hose and in operation.
6. Operating Instructions
The pressure washer gun is designed for ease of use. Follow these instructions for optimal performance:
- Activate Spray: Squeeze the trigger on the handle to begin spraying water.
- Adjust Spray Mode: Rotate the nozzle at the end of the gun to switch between the three available spray modes: Straight type (Thin Water Column), Shower type (Water Spray), and Spray type (Scattering Shape).
- Continuous Spray (Effort-saving buckle): For extended use, engage the effort-saving buckle on the handle to maintain continuous water flow without constantly pressing the trigger. To disengage, simply squeeze the trigger again.
Figure 6.1: Rotating the nozzle adjusts different water splashes.
Figure 6.2: Nozzle rotation for spray mode selection.
Figure 6.3: Effort-saving buckle for continuous operation.
Applications: The versatile spray modes make this tool suitable for various cleaning and watering tasks:
- Watering plants and flowers.
- Cleaning windows and screens.
- Washing cars, motorcycles, and bicycles.
- Cleaning patios, driveways, and outdoor floors.
Figure 6.4: Versatile applications of the pressure washer gun.
Figure 6.5: Example of cleaning effectiveness on a brick pathway.
Video 6.1: Demonstration of the pressure washer gun in use, showing various spray patterns and car washing.
7. Maintenance
Proper maintenance ensures the longevity and performance of your pressure washer gun:
- Cleaning: After each use, rinse the gun thoroughly with clean water to remove any dirt or debris.
- Storage: Store the pressure washer gun in a dry, cool place, away from direct sunlight and freezing temperatures.
- Inspection: Periodically inspect the hose connections and nozzle for any signs of wear or damage. Replace worn parts as necessary.
8. Troubleshooting
If you encounter issues with your pressure washer gun, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water pressure | Insufficient water supply; Kinked hose; Clogged nozzle | Ensure full water supply; Straighten hose; Clean nozzle thoroughly |
| Water leaks at connections | Loose connections; Worn O-rings/washers | Tighten all connections; Replace O-rings or washers if damaged |
| No water spray | Water supply off; Nozzle completely blocked | Turn on water supply; Clear any blockage from the nozzle |
9. Specifications
Detailed specifications for the SSKFHGI Pressure Washer Gun:
- Model Number: SSKFHGI505258
- Material: High-grade metal and plastic components
- Standard Model Dimensions: Approximately 36cm x 16cm (14.17" x 6.3")
- Model with Integrated Dispenser Dimensions: Approximately 41cm x 14cm (16.14" x 5.51")
- Weight (Model with Integrated Dispenser): Approximately 277.8g (0.61 lbs)
- Spray Modes: Jet (Thin Water Column), Fan (Water Spray), Spray (Scattering Shape)
- Compatibility: Universal quick-connect for most standard garden hoses
- Batteries Required: No
Figure 9.1: Product dimensions for standard and dispenser models.
10. Warranty and Support
Specific warranty information and customer support details are not provided in the product data. For warranty claims or technical assistance, please contact the manufacturer, SSKFHGI, directly through their official channels or the retailer from whom the product was purchased.
