Feonase Floating Queen Bed Frame

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Feonase Floating Queen Bed Frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Safety Information

WARNING: Failure to follow these safety guidelines may result in injury or damage to the product.

• Do not exceed the maximum weight capacity of 1011 lbs (459 kg).
• Exercise caution around sharp edges during assembly and use.
• Always unplug the charging station and LED lights before making any adjustments, moving the bed, or cleaning.
• Follow all assembly instructions precisely to prevent instability or collapse.
• Keep all electrical components dry and away from heat sources.

Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• 1 x Wooden Queen Bed Frame (various components)
• 1 x Charging Station (pre-installed in headboard)
• 1 x Remote Control for LED Lights
• 1 x LED Light Strip (pre-installed)
• Installation Manual (this document)
• Assembly Tools (included)

Assembly Instructions

Assembly is designed to be straightforward with innovative snap-fit connections. It is recommended to have two people for assembly.

1. Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches.

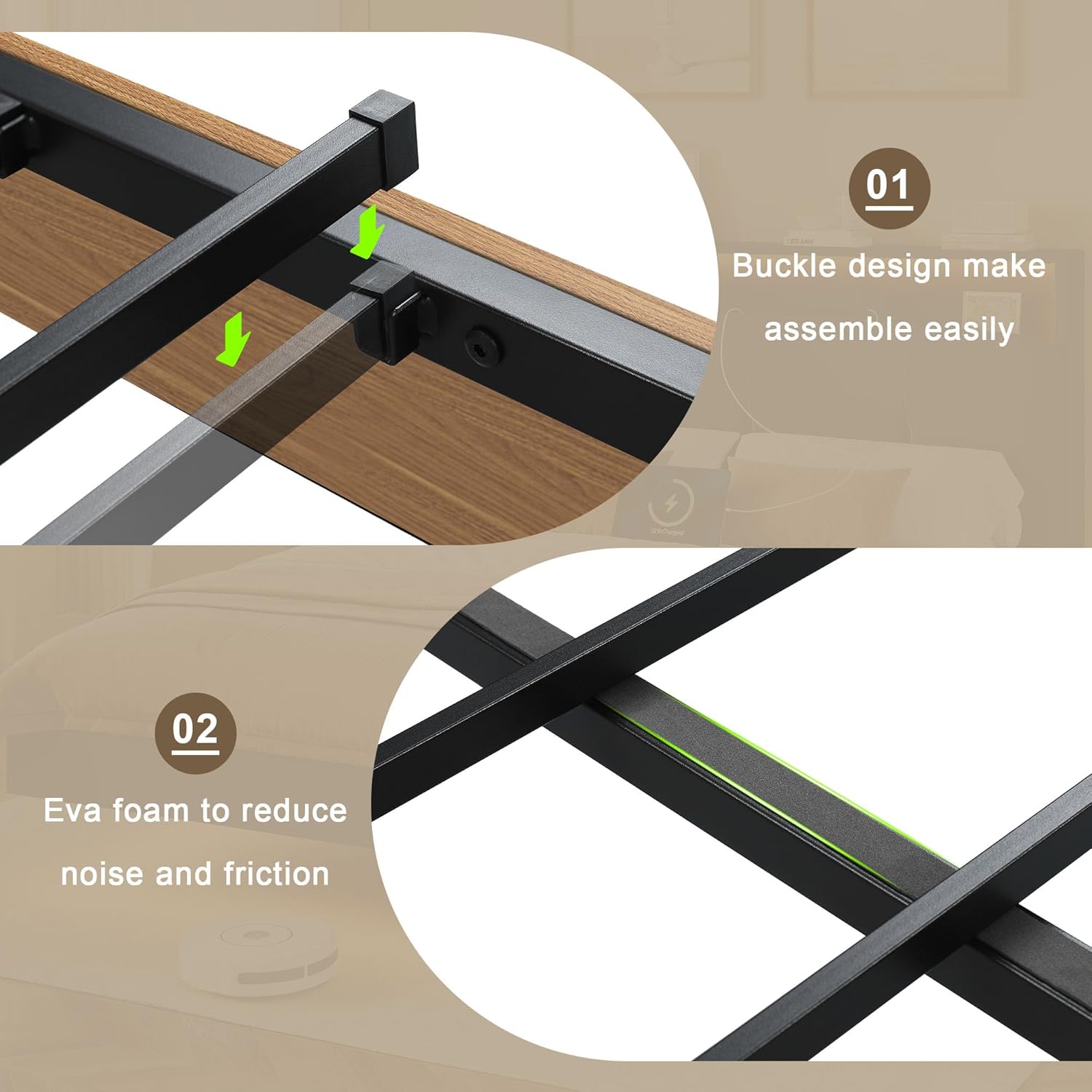

2. Assemble the Frame: Follow the detailed diagrams in the included paper manual to connect the main frame components. Utilize the buckle design for easy and secure connections. Ensure all connections are firm.
3. Install Slats: Place the heavy-duty metal slats onto the frame. The triangular reinforcement design ensures stability. Ensure the EVA sound-absorbing foam is properly positioned between slats to minimize noise.
4. Attach Headboard: Secure the upholstered headboard to the assembled frame. The headboard features a two-tier storage shelf.
5. Connect Electrical Components: The charging station and LED light strip are pre-installed. Connect the power strip to a wall outlet.

Operating Instructions

LED Light System

The integrated LED light strips offer customizable ambiance for your bedroom.

• Remote Control: Use the included remote control to turn the lights on/off, adjust brightness, change colors (over 60,000 options), and select various modes (e.g., music mode, mic mode, timing function).
• App Control: Download the designated mobile application (refer to the separate LED light manual for app details) to control the LED lights from your smartphone. The app offers advanced customization options.

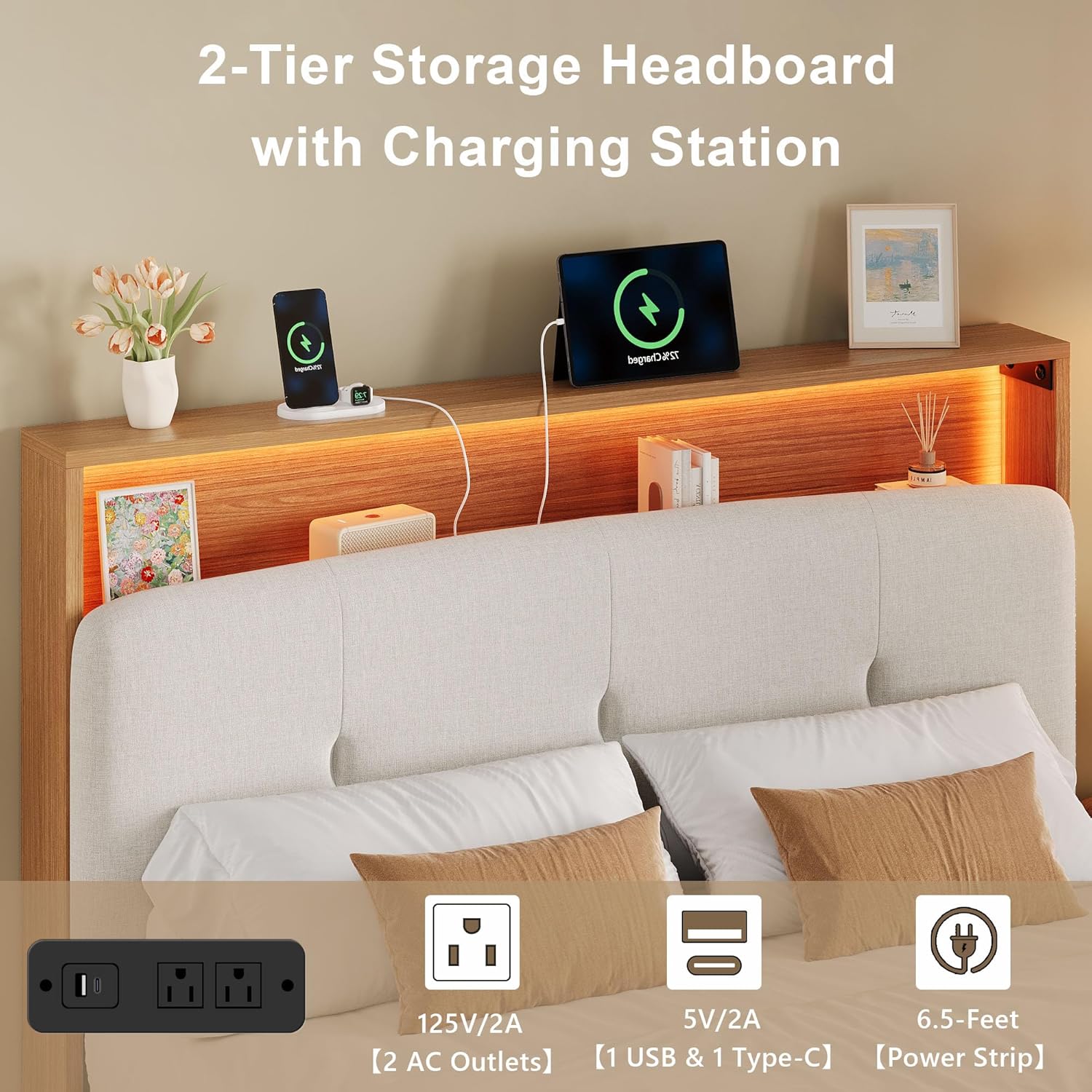

Charging Station

The headboard features a convenient charging station to power your devices.

• AC Outlets: Two 125V/2A AC outlets are available for standard electrical devices.
• USB Ports: One USB-A (5V/2A) and one USB-C (5V/2A) port are provided for charging smartphones, tablets, and other compatible devices.
• Power: Ensure the bed frame's power cord is securely plugged into a functional wall outlet for the charging station to operate.

Maintenance

• Headboard: The upholstered linen headboard should be dry cleaned only. Do not use liquid cleaners or abrasive materials.
• Frame: Wipe the wooden and metal frame surfaces with a soft, damp cloth. Avoid harsh chemicals.
• Electrical Components: Keep the charging station and LED lights free from dust. Ensure they remain dry.
• Regular Checks: Periodically check all bolts and connections to ensure they remain tight. Retighten if necessary.

Troubleshooting

• Bed Frame Noise: If the bed frame produces noise, check all slat connections and ensure the EVA sound-absorbing foam is correctly positioned. Verify all frame bolts are tightened.
• LED Lights Not Working: Ensure the power cord is securely plugged in. Check the remote control battery. If using app control, ensure Bluetooth/Wi-Fi connection is active and the app is updated.
• Charging Station Not Functioning: Confirm the bed frame's power cord is plugged into a live wall outlet. Test with a different device or outlet to rule out device or outlet issues.
• Instability: Re-check all assembly connections and ensure all bolts are fully tightened. Ensure the bed is on a flat, level surface.

Specifications

Official Product Video

Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your purchase or contact Feonase customer service directly. Contact details can typically be found on the manufacturer's website or on your purchase receipt.

For additional information, you may visit the Feonase Store on Amazon.
