1. Introduction
The AGSHOME F-15pack Wireless Home Alarm System provides comprehensive security for your home or apartment. This kit is designed for easy installation and offers advanced features such as app alerts, a 120 dB siren, and smart home integration. There are no monthly fees or contracts required.
The system operates on a 2.4G Wi-Fi network and is scalable, allowing for expansion with additional sensors and accessories to meet your specific security needs.
2. Package Contents
The AGSHOME F-15pack includes the following components:
- 1 x Base Station (Hub)
- 1 x Keypad
- 10 x Door/Window Contact Sensors
- 1 x Motion Detector
- 2 x Remote Controls
- 1 x Charger (for Base Station)

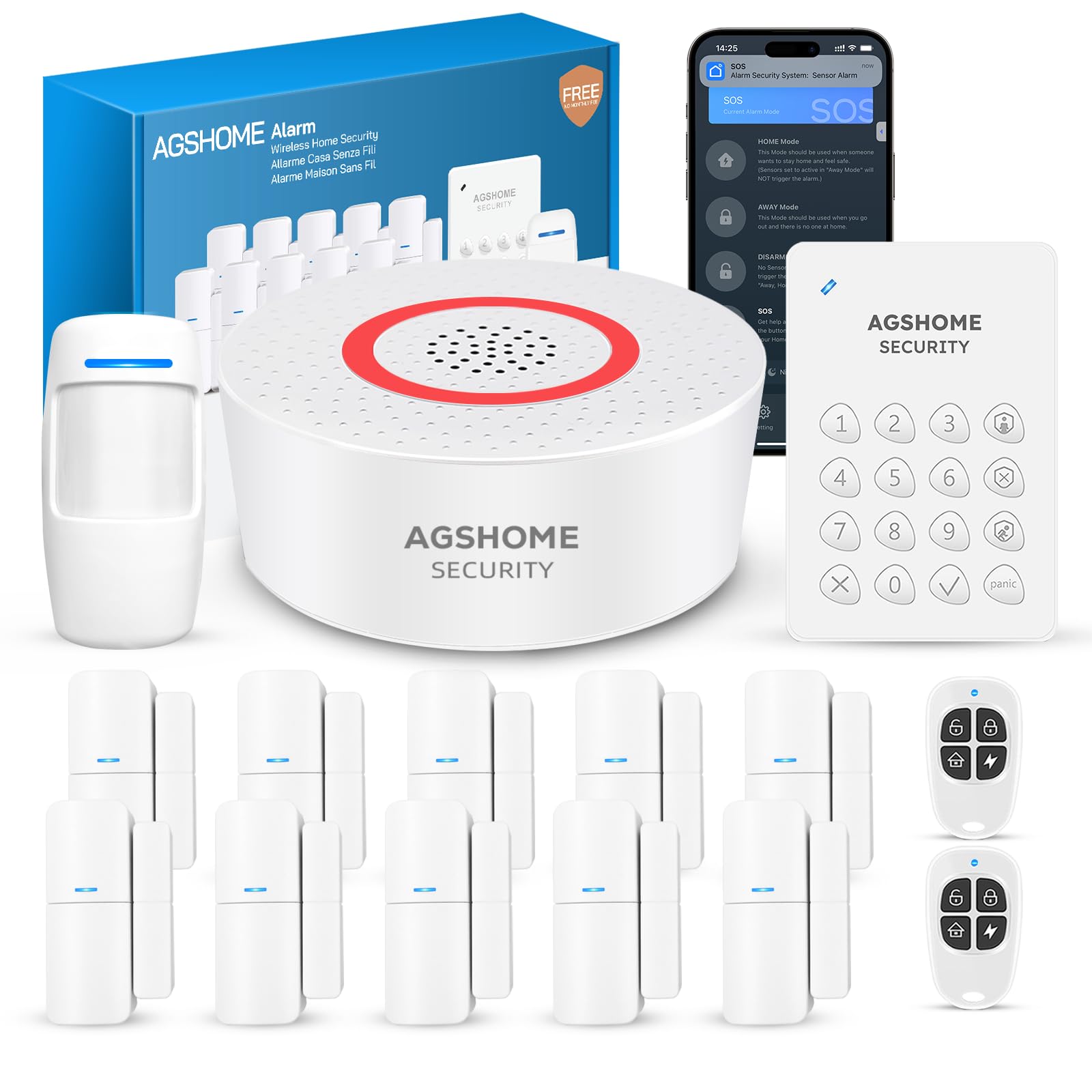

Image: All components included in the AGSHOME F-15pack Wireless Home Alarm System.
3. Product Overview
3.1 Base Station (Hub)
The central unit of the alarm system. It connects to your Wi-Fi network and communicates with all sensors and accessories. It features a 120 dB siren to deter intruders.
Image: The AGSHOME Base Station (Hub) with its 120dB alarm capability.
3.2 Keypad
Allows for arming and disarming the system using a PIN code. Can also be used to trigger an SOS alarm.
Image: The AGSHOME Security Keypad.
3.3 Door/Window Contact Sensors
These two-part sensors detect when a door or window is opened. They are designed for easy, tool-free installation.
Image: AGSHOME Door/Window Contact Sensors.
3.4 Motion Detector
Detects movement within its field of view, triggering an alarm if the system is armed.
Image: AGSHOME Motion Detectors.
3.5 Remote Controls
Compact devices for convenient arming, disarming, and SOS alarm activation from a distance.
Image: AGSHOME Remote Controls.
4. Setup Instructions
The AGSHOME F-15pack is designed for easy, tool-free installation with pre-connected wireless accessories.
- Power On the Base Station: Connect the base station to a power source using the provided charger.
- Download the App: Download and install the "Smart Life" app on your smartphone.
- Connect to Wi-Fi: Open the Smart Life app and follow the on-screen instructions to connect the base station to your home's 2.4G Wi-Fi network. Note: 5G/6G networks are not supported.
- Install Sensors: Place the door/window sensors and motion detector in desired locations. The accessories are pre-connected, simplifying the setup process. Ensure sensors are placed securely and within range of the base station.
- Test the System: After installation, test each sensor and the alarm functionality through the Smart Life app to ensure proper operation.
Image: Example of sensor installation.
5. Operating Instructions
5.1 Arming and Disarming
You can arm or disarm your alarm system using the keypad, remote controls, or the Smart Life app. The app also allows for setting entry/exit delays and scheduling arm/disarm times.
Image: Smart Life app interface for alarm control.
5.2 App Alerts and Notifications
Receive real-time alerts and notifications on your smartphone when the alarm is triggered or when a sensor detects activity. This allows you to monitor your home from anywhere.
Image: Smartphone displaying an alarm notification.
5.3 Voice Control Integration
The system is compatible with voice assistants like Alexa, allowing you to arm and disarm your system using voice commands.
Image: Voice control integration with a smart assistant.
5.4 System Expansion
The system supports flexible expansion up to 20 sensors (including door/window contacts, motion sensors) and up to 5 combined remote controls and/or keypads. You can also connect up to 5 external 130 dB sirens for enhanced security.
6. Maintenance
- Battery Replacement: Regularly check the battery status of your wireless sensors and remote controls via the Smart Life app. Replace batteries as needed to ensure continuous operation.
- Cleaning: Clean the surfaces of the base station, keypad, and sensors with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
- Firmware Updates: Ensure your Smart Life app and alarm system firmware are up to date for optimal performance and security features. Check the app for available updates.
- Wi-Fi Connection: Periodically verify the Wi-Fi connection of your base station to ensure stable communication.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| System not connecting to Wi-Fi | Incorrect Wi-Fi password; Router is 5G/6G only; Base station too far from router. | Ensure correct 2.4G Wi-Fi password. Verify your router supports 2.4G. Move base station closer to the router. Restart router and base station. |
| Sensors not triggering alarm | Sensor battery low; Sensor out of range; Sensor not properly installed/paired. | Check/replace sensor batteries. Relocate sensor closer to base station. Re-pair sensor with the base station via the app. Ensure proper alignment for door/window sensors. |
| Alarm siren is too quiet | Internal siren volume setting; Expectation of external siren volume. | The internal siren is 120 dB. If you require a louder alarm, consider adding an external 130 dB siren (sold separately) to your system. Check app settings for any volume controls. |
| App notifications not received | App permissions disabled; Phone's notification settings; Internet connectivity issues. | Ensure Smart Life app has notification permissions enabled on your smartphone. Check phone's general notification settings. Verify stable internet connection for both phone and base station. |
8. Specifications
- Brand: AGSHOME
- Model: F-15pack
- Power Source: Wired Electric (Base Station)
- Compatible Devices: Smartphone
- Dimensions (LxWxH): 26 x 20 x 6 cm
- Connectivity Technology: Wireless (2.4G Wi-Fi)
- Alarm Type: Audio and Motion
- Control Method: App
- Maximum Range: 15 Meters (approximate, depends on environment)
- Average Battery Life (Sensors/Remotes): 8 Hours (for base station backup, individual sensor battery life varies)
- Acoustic Level: 120 Decibels (Base Station Siren)
- Sensor Technology: IR (Motion Sensor), Contact (Door/Window Sensors)
- Analog RGB Input: USB Type C (for power)
- Installation Method: Self-installation (Hybrid)
- Battery Composition (Base Station): Lithium Ion
9. Warranty and Support
For specific warranty information regarding your AGSHOME F-15pack Wireless Home Alarm System, please refer to the documentation included with your purchase or visit the official AGSHOME website. Warranty terms may vary by region and retailer.
For technical support, troubleshooting assistance, or further inquiries, please contact AGSHOME customer service through their official channels. You can typically find contact information on the AGSHOME website or within the Smart Life application.
