AMYET V9-G60 Electric Bike User Manual

1. Important Safety Information

Read this manual thoroughly before operating your AMYET V9-G60 Electric Bike. Failure to follow instructions and safety guidelines may result in serious injury or property damage. Keep this manual for future reference.

• Always wear a helmet and appropriate safety gear when riding.
• Ensure all components are correctly assembled and secured before each ride.
• Familiarize yourself with local laws and regulations regarding electric bike usage.
• Do not operate the bike under the influence of alcohol or drugs.
• Perform regular maintenance checks as outlined in this manual.
• This product is UL 2849 Certified for electrical safety.

2. Package Contents and Initial Setup

Your AMYET V9-G60 Electric Bike comes 90% pre-assembled. The following components are included in the package:

• AMYET V9-G60 Electric Bike (main frame, wheels, motor)
• Removable 48V 20Ah Battery
• Battery Charger
• Kickstand
• Tool Kit for assembly
• User Manual

2.1 Assembly Steps

1. Unpack the Bike: Carefully remove all packaging materials and inspect the bike for any shipping damage.
2. Install the Front Wheel: Attach the front wheel to the fork using the quick-release mechanism or axle nuts provided. Ensure it is securely fastened.
3. Attach the Handlebars: Mount the handlebars to the stem and tighten the bolts evenly. Adjust the angle for comfortable riding.
4. Install the Pedals: Identify the left (L) and right (R) pedals. Thread them into the crank arms by hand, then tighten securely with a wrench. Note that the left pedal has a reverse thread.
5. Install the Seat Post: Insert the seat post into the frame and adjust the height. Secure it with the quick-release lever or bolt.
6. Install the Kickstand: Attach the kickstand to the designated mounting point on the frame.
7. Charge the Battery: Before first use, fully charge the 48V 20Ah battery. Connect the charger to the battery and then to a power outlet. The charging time is approximately 7-8 hours.
8. Perform a Safety Check: Before your first ride, check tire pressure, brake function, and ensure all bolts and quick releases are tight.

Image: The AMYET V9-G60 Electric Bike with its removable 48V 20Ah battery being charged. The image highlights the battery's IP65 waterproof rating, UL2849 certification, and BMS protection, along with a 5-8 hour charging time.

3. Operating Instructions

3.1 Powering On and Off

• To Power On: Insert the fully charged battery into its compartment and ensure it is locked. Press and hold the power button on the handlebar display.
• To Power Off: Press and hold the power button on the display until it shuts down.

3.2 Digital LCD Display

The integrated LCD display provides real-time information:

• Speed: Current riding speed.
• Battery Level: Indicates remaining battery charge.
• Assist Level: Shows the current pedal-assist level.
• Odometer/Trip Meter: Tracks total distance or current trip distance.

3.3 Riding Modes

The AMYET V9-G60 offers three distinct riding modes:

1. Pure Electric Mode: Engage the throttle for motor-only propulsion. Range: 18-28 miles.
2. Pedal-Assist Mode: The motor provides assistance as you pedal. Adjust assist levels via the display. Range: 55-65 miles.
3. Pure Pedal Mode: Ride the bike like a traditional bicycle with no motor assistance. Unlimited range.

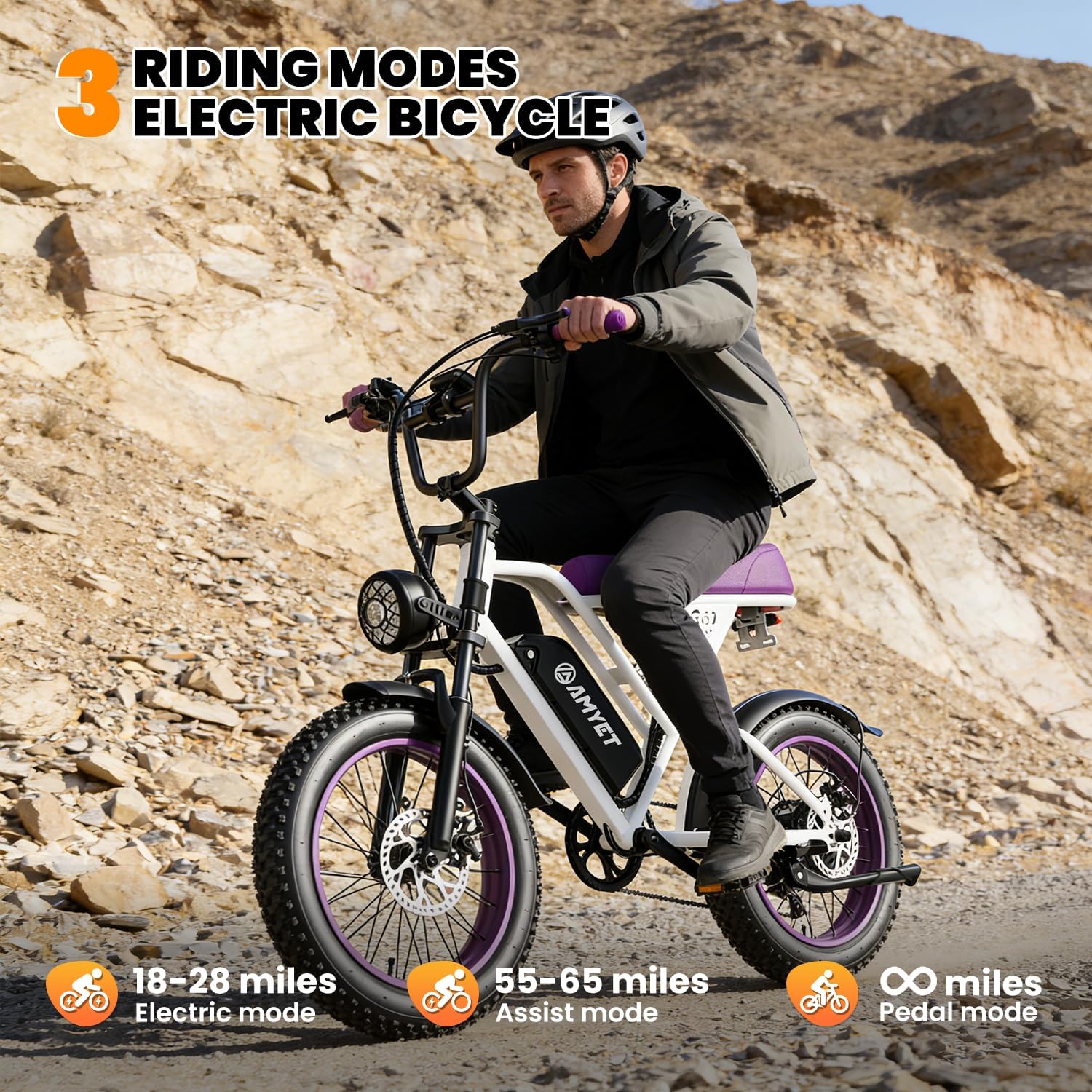

Image: A rider on the AMYET V9-G60 Electric Bike demonstrating the three riding modes: pure electric, pedal-assist, and pure pedal, with their respective approximate ranges.

3.4 Gear Shifting and Braking

• 7-Speed Gears: Use the gear shifter on the handlebars to select appropriate gears for varying terrain and speed.
• Dual Disc Brakes: The bike is equipped with front and rear disc brakes for reliable stopping power. Apply both brakes smoothly and evenly.

3.5 Motor and Performance

The V9-G60 features a 1000W brushless motor with a peak output of 1500W, allowing for speeds up to 30 MPH. The bike is designed to handle various terrains with its 20-inch by 4-inch fat tires and dual suspension system.

Image: A rider on the AMYET V9-G60 Electric Bike on a dirt path, illustrating the bike's 1500W peak powerful motor, 28 MPH max speed, 65-mile maximum range, 7-speed Shimano gears, 30-degree climb capability, and hydraulic disc brakes.

Image: The AMYET V9-G60 Electric Bike being ridden on rocky terrain, showcasing its 20"x4" fat tires designed for various terrains including highway, sand, snow, and mountains.

Image: A rider on the AMYET V9-G60 Electric Bike on a sandy slope, highlighting the full suspension system for a smooth ride, with insets showing the front fork and rear shock absorber.

4. Maintenance

Regular maintenance ensures the longevity and safe operation of your electric bike.

4.1 Battery Care

• Charge the battery fully after each ride, or at least once a month if not in use.
• Do not expose the battery to extreme temperatures. Store it in a cool, dry place.
• Use only the original charger provided.
• Avoid completely draining the battery to prolong its lifespan.

4.2 Tire Maintenance

• Check tire pressure before each ride. Maintain pressure within the recommended range printed on the tire sidewall.
• Inspect tires for wear, cuts, or punctures regularly.

4.3 Brake System

• Regularly check brake levers for proper tension and responsiveness.
• Inspect brake pads for wear and replace them when necessary.
• Ensure brake rotors are clean and free from oil or grease.

4.4 General Cleaning and Inspection

• Clean the bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
• Lubricate the chain periodically to ensure smooth operation.
• Check all bolts and fasteners for tightness before each ride.

5. Troubleshooting

This section addresses common issues you might encounter with your AMYET V9-G60 Electric Bike.

5.1 Bike Not Powering On

• Check Battery: Ensure the battery is fully charged and correctly inserted and locked into the frame.
• Check Connections: Verify all electrical connections are secure.
• Power Button: Confirm the power button on the display is pressed and held correctly.

5.2 Motor Not Engaging

• Check Riding Mode: Ensure you are in Pure Electric or Pedal-Assist mode.
• Battery Level: Verify the battery has sufficient charge.
• Brake Levers: Some e-bikes have safety cut-offs. Ensure brake levers are not partially engaged.
• Display Errors: Check the LCD display for any error codes and refer to the display manual (if separate) for interpretation.

5.3 Brakes Squealing or Ineffective

• Clean Rotors: Clean disc brake rotors with a clean cloth and isopropyl alcohol to remove contaminants.
• Brake Pad Wear: Inspect brake pads for wear; replace if worn down.
• Brake Adjustment: If brakes feel spongy, they may need adjustment or bleeding. Consult a professional bike mechanic.

For issues not covered here, please contact AMYET customer support.

6. Specifications

Image: The AMYET V9-G60 Electric Bike with key dimensions and specifications including recommended height (5'2"-6'5"), bicycle weight (83.77 LBS), and load capacity (330 LBS).

7. Warranty Information

The AMYET V9-G60 Electric Bike comes with a 1-Year Warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. It does not cover damage due to misuse, accidents, normal wear and tear, or unauthorized modifications.

Please retain your proof of purchase for warranty claims.

8. Customer Support

For any questions, technical assistance, or warranty claims, please contact AMYET customer support:

• Service Email: support@amyet.com
• Online Store: Visit the AMYET Store on Amazon for more information and products.

Image: AMYET After-sales Service contact information, including the service email address.
