Strongway Garden Hose Reel Cart User Manual

1. Introduction

Thank you for choosing the Strongway Garden Hose Reel Cart. This manual provides essential information for the safe assembly, operation, and maintenance of your hose reel cart. Please read this manual thoroughly before using the product and retain it for future reference.

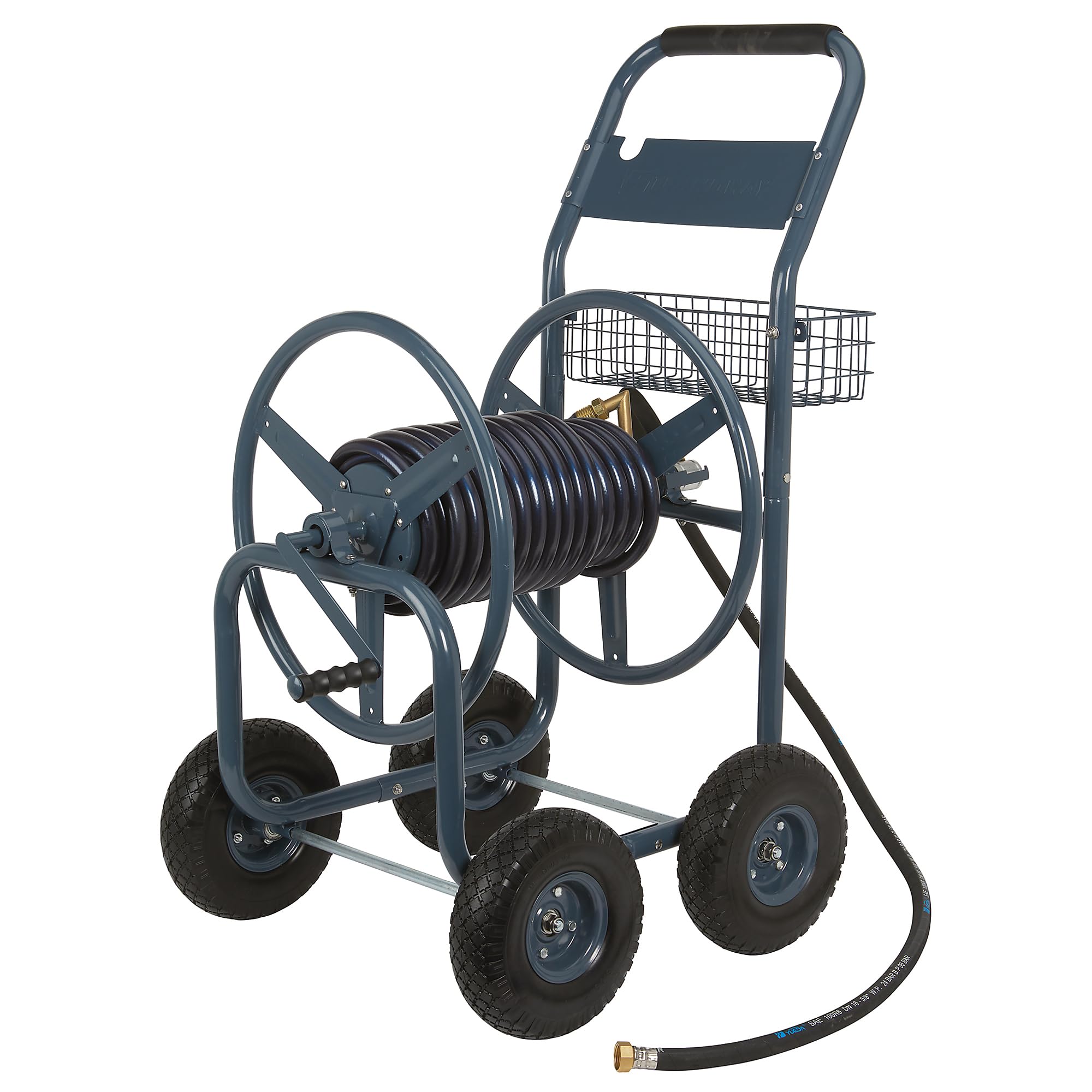

This hose reel cart is designed to efficiently store and manage up to 400 feet of 5/8-inch garden hose (hose not included). Its robust construction ensures durability and ease of use in various outdoor environments.

2. Safety Information

Always observe basic safety precautions when using this product to reduce the risk of injury or damage.

• Read and understand all instructions before assembly and operation.
• Keep children and pets away from the product during assembly and operation.
• Ensure all connections are secure before applying water pressure.
• Do not exceed the recommended hose capacity (400ft of 5/8in. hose).
• Use caution when moving the cart on uneven terrain to prevent tipping.
• Inspect the cart for any damage before each use. Do not operate if damaged.
• Wear appropriate personal protective equipment, such as gloves, if necessary during assembly or maintenance.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer service.

• Main Frame Assembly
• Hose Reel Drum
• Handle with Swivel Grip
• 10-inch Flat-Free Tires (2)
• Axle and Hardware Kit (bolts, washers, nuts)
• Inlet Hose/Leader Hose
• Accessory Basket

4. Assembly and Setup

Follow these steps to assemble your Strongway Garden Hose Reel Cart.

1. Attach Wheels: Insert the axle through the designated holes in the main frame. Secure the 10-inch flat-free tires onto the axle using the provided washers and nuts. Ensure wheels spin freely.
2. Assemble Frame Components: Connect any separate frame sections if applicable, using the provided bolts and nuts. Ensure all connections are tight and secure.
3. Install Hose Reel Drum: Slide the hose reel drum onto its central shaft within the main frame. Secure it according to the hardware instructions, ensuring it rotates smoothly.
4. Attach Handle: Secure the welded handle with swivel grip to the main frame using the appropriate bolts. The swivel grip should allow for comfortable hose winding.
5. Install Accessory Basket: Attach the integrated accessory basket to its designated location on the frame, typically near the handle, using the provided fasteners.
6. Connect Leader Hose: Attach the short leader hose (inlet hose) from the reel's internal connection to the external water inlet connection point on the cart. Ensure brass fittings are tightened securely by hand, then a quarter turn with a wrench.
7. Attach Garden Hose: Connect your garden hose (not included) to the reel's internal connection point. Begin winding the hose onto the reel, ensuring it lays flat and evenly.

5. Operation

Operating your Strongway Garden Hose Reel Cart is straightforward.

• Connecting to Water Source: Connect the leader hose from the cart to your outdoor spigot. Ensure a tight connection to prevent leaks.
• Unwinding the Hose: Pull the desired length of hose from the reel. The reel is designed to unwind smoothly. Avoid pulling too quickly or at sharp angles to prevent kinking.
• Winding the Hose: After use, turn off the water supply and relieve pressure from the hose. Use the welded handle with swivel grip to rotate the reel and wind the hose back onto the drum. Guide the hose evenly across the reel to prevent tangling and ensure maximum capacity.
• Mobility: Utilize the solid steel axles and 10-inch flat-free tires to easily transport the cart around your garden or yard.

6. Maintenance

Regular maintenance will extend the life of your hose reel cart.

• Cleaning: Clean the cart periodically with mild soap and water. Rinse thoroughly and dry to prevent water spots or mineral buildup. The industrial powder-coat finish is corrosion-resistant.
• Inspecting Connections: Regularly check all brass fittings and hose connections for leaks or wear. Tighten as needed. Replace worn washers or O-rings to maintain a watertight seal.
• Frame Inspection: Periodically inspect the tubular steel frame for any signs of damage, rust, or loose fasteners. Tighten any loose bolts.
• Tire Maintenance: The 10-inch flat-free tires require no inflation. Inspect them for any damage or debris that might impede movement.
• Storage: During winter months or extended periods of non-use, drain all water from the hose and cart. Store the hose reel cart in a dry, protected area to prevent damage from freezing temperatures or prolonged exposure to harsh weather.

7. Troubleshooting

Here are solutions to common issues you might encounter.

• Leaks at Connections:
  Solution: Ensure all brass fittings are tightened securely. Check for worn rubber washers inside the hose connections and replace if necessary.
• Difficulty Winding/Unwinding Hose:
  Solution: Ensure the hose is not kinked or tangled. Check if the reel drum is obstructed or if the hose is wound unevenly. Lubricate the reel's axle if rotation feels stiff.
• Cart Tipping Over:
  Solution: Ensure the cart is on a level surface. Avoid pulling the hose at extreme angles that could destabilize the cart.
• Water Flow Restriction:
  Solution: Check the hose for kinks or blockages. Ensure the spigot is fully open. Inspect the leader hose for any obstructions.

8. Specifications

9. Warranty and Support

This Strongway Garden Hose Reel Cart is backed by the manufacturer's warranty. Please refer to the warranty information provided at the time of purchase or visit the official Strongway website for details regarding warranty coverage, terms, and conditions.

For technical assistance, replacement parts, or any questions not covered in this manual, please contact Strongway customer support. Keep your purchase receipt and product model information handy when contacting support.

Online Support: Visit the Strongway official website for FAQs and support resources.

Contact Information: Refer to your product packaging or the Strongway website for the most current customer service contact details.
