Introduction
Thank you for choosing the ASKGO Electric Scooter GT12. This manual contains important information regarding the safe operation, assembly, maintenance, and troubleshooting of your new electric scooter. Please read it thoroughly before your first ride and keep it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your scooter.

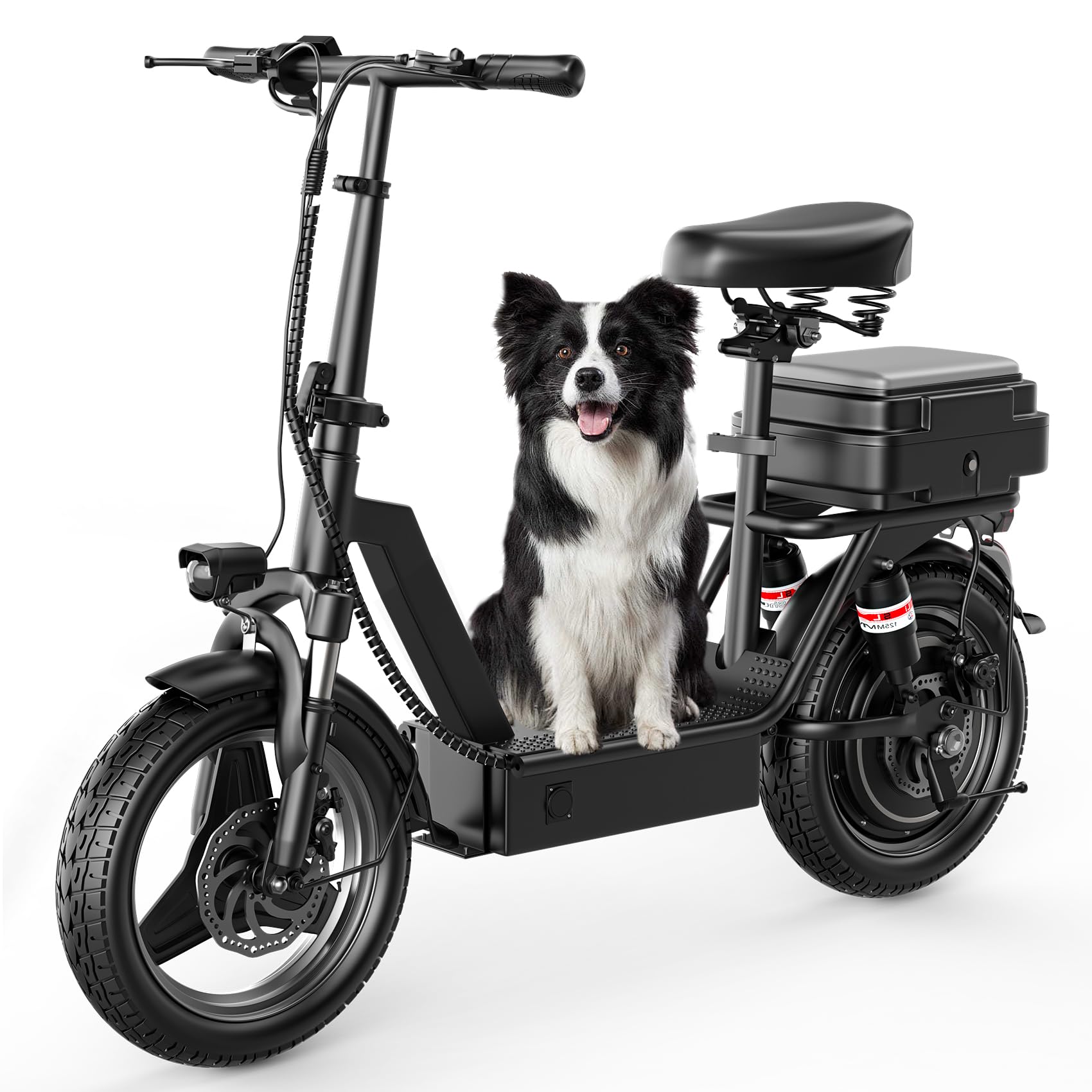

Figure 1: The ASKGO Electric Scooter GT12, a foldable electric scooter designed for adults, featuring a seat and a rear storage basket.
Safety Information
Your safety is paramount. Always wear a helmet and appropriate protective gear (gloves, knee pads, elbow pads) when riding. Familiarize yourself with local regulations regarding electric scooter use. Do not ride under the influence of alcohol or drugs. Avoid riding in heavy rain, on slippery surfaces, or at night without proper lighting. Always check the brakes and tires before each ride.
- Wear a Helmet: Always wear a certified helmet.
- Check Before Riding: Ensure brakes, tires, and battery are in good condition.
- Observe Traffic Laws: Follow all local traffic laws and regulations.
- Avoid Hazardous Conditions: Do not ride in adverse weather or on uneven terrain.
- Weight Limit: Do not exceed the maximum weight limit of 300 pounds.
Setup
1. Unboxing and Initial Inspection
Carefully remove the scooter and all accessories from the packaging. Inspect for any signs of damage during transit. The package should include one scooter and any additional accessories as listed.
2. Assembly (Minor)
Your ASKGO GT12 scooter comes largely pre-assembled. You may need to:
- Unfold the Scooter: Release the folding mechanism and lock the handlebar stem into place.
- Adjust Handlebars: Adjust the handlebar height to a comfortable position and secure it.
- Install Seat and Basket: Attach the seat and rear storage basket if they are not already installed. Ensure all bolts are tightened securely.
3. Initial Battery Charge
Before your first ride, fully charge the scooter's battery. Connect the charger to the charging port and then to a power outlet. The indicator light on the charger will change when charging is complete.
Figure 2: The scooter features a 48V 15AH high-capacity battery, providing a range of up to 35 miles on a single charge.
Operating Instructions
- Turn on the Battery Switch: Locate the battery switch button, usually on the underside or side of the scooter's main body. Press this button to turn on the power supply to the scooter.
- Turn on the Display: Press the display switch on the handlebar to activate the LCD display. The display will show current speed, battery level, and other ride information.
- Turn on/off the Light: Press the 'Menu' button once to toggle the front light on or off.
- Switch Gears/Speed Modes: Press the 'Menu' button twice continuously to cycle through the available speed gears (modes). The scooter offers three speed modes for varying riding conditions.
- Accelerate: Use the throttle on the handlebar to accelerate. Gradually apply pressure for smooth acceleration.
- Braking: The scooter is equipped with dual braking system (front and rear). Apply both brakes gently and evenly to slow down or stop.

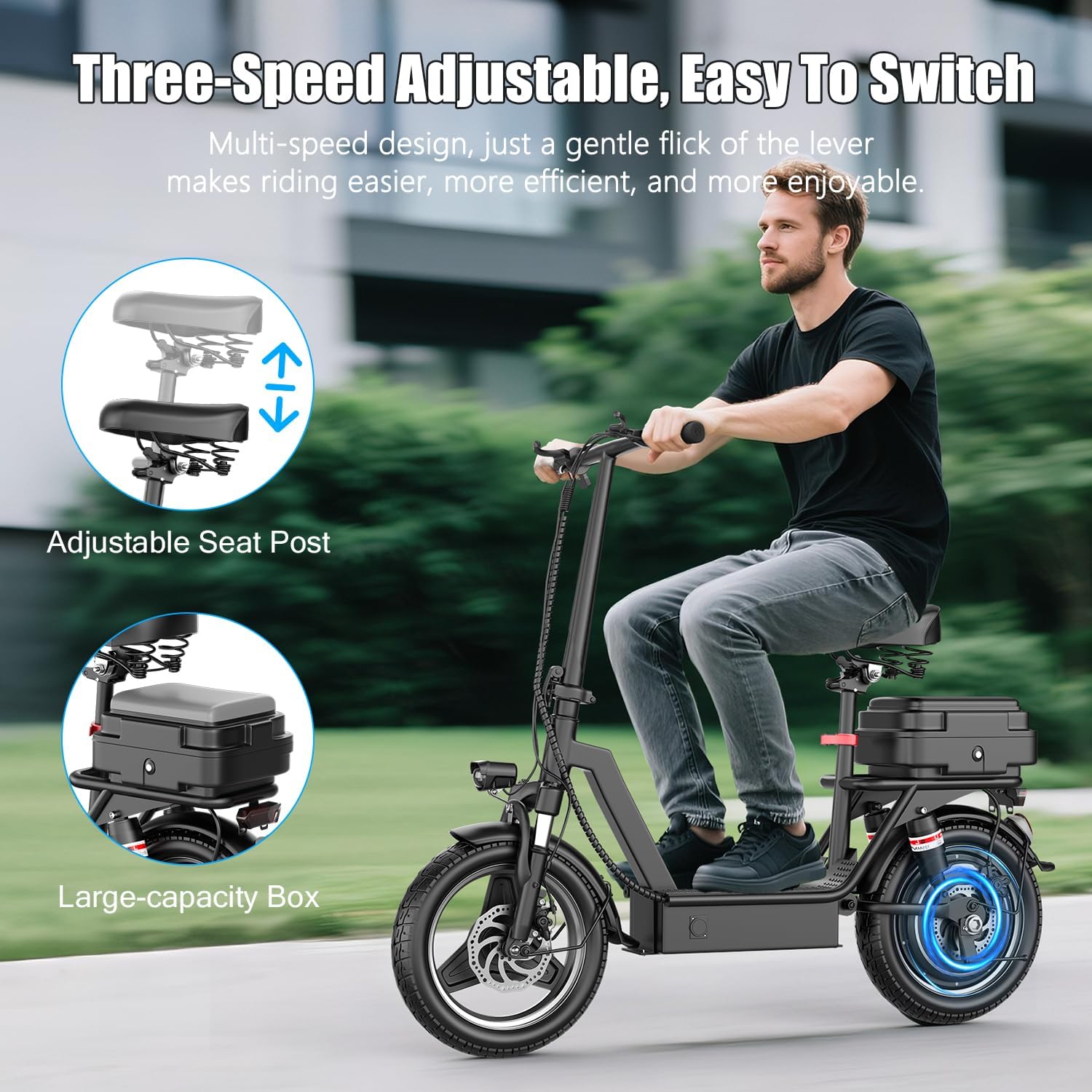

Figure 3: The scooter features an adjustable seat post for rider comfort and a large-capacity rear basket for carrying items.
Folding the Scooter
The ASKGO GT12 features a foldable design for easy storage and transport.
- Ensure the scooter is powered off.
- Locate the folding mechanism on the stem.
- Follow the instructions specific to your model to release the latch and fold the stem down towards the deck.
- Ensure the folding mechanism is securely latched in the folded position before lifting or transporting.
Figure 4: The foldable design allows for convenient storage in car trunks or tight spaces.
Maintenance
- Battery Care: If you do not use the scooter for a long time, turn off the battery switch to disconnect the power supply and increase battery life. Store the scooter in a cool, dry place. Charge the battery at least once every three months if not in use.
- Tire Pressure: Regularly check the tire pressure of the 14-inch pneumatic tires. Maintain recommended pressure for optimal performance and safety.
- Brake System: Periodically inspect the front and rear brakes for wear and proper function. Adjust or replace brake components as needed.
- Suspension: Check the dual suspension system for any signs of damage or reduced effectiveness.
- Cleaning: Clean the scooter with a damp cloth. Avoid using high-pressure water jets or harsh chemicals that could damage electronic components.
- Fasteners: Periodically check all bolts and fasteners to ensure they are tight.
Figure 5: The front and rear hydraulic damping system provides a smooth and stable ride, requiring occasional inspection.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on. | Battery switch is off. | Press the battery switch button to turn on the power. |
| Scooter does not power on. | Low or depleted battery. | Charge the battery fully. |
| Motor not engaging. | Throttle issue or motor connection. | Check throttle connection. If issue persists, contact support. |
| Reduced range or speed. | Low tire pressure, battery degradation, or heavy load. | Check tire pressure. Ensure battery is fully charged. Reduce load if possible. |
| Brakes feel weak. | Brake pads worn or cable loose. | Inspect brake pads and cables. Adjust or replace as necessary. |
Specifications
| Feature | Detail |
|---|---|
| Brand | ASKGO |
| Model Name | GT12 |
| Motor | 1000W/1400W Peak |
| Top Speed | 25 Mph |
| Range | 35-45 Miles |
| Battery | 720Wh High-Capacity (48V 15AH) |
| Charging Time | 5-6 Hours |
| Tire Size | 14 Inches (Pneumatic) |
| Suspension | Dual Suspension |
| Brake Style | Front Braking, Rear Braking |
| Weight Limit | 300 Pounds |
| Special Features | Digital Display, Dual Braking System, Foldable, Lockable, Wide Platform, Adjustable Seat, Rear Storage Basket |
Figure 6: Key dimensions of the ASKGO Electric Scooter GT12, including seat height, scooter length, and handle height.
Warranty and Support
Warranty Information
The ASKGO Electric Scooter GT12 comes with a 1 Year Manufacturer Limited Warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty card included with your product or contact customer support.
Customer Support
If you have any questions, require assistance with assembly, operation, or troubleshooting, or need to make a warranty claim, please contact ASKGO customer support. Contact details can typically be found on the product packaging, the official ASKGO website, or through your retailer.
