Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your T4TREAM Fluted Makeup Vanity Desk. Please read this manual thoroughly before use to ensure proper functionality and longevity of your product.
Safety Information
- Ensure all components are securely fastened during assembly.
- Do not overload drawers or shelves beyond their weight capacity.
- Keep electrical components (charging station) away from liquids.
- Use only the provided power cord and avoid using damaged cords.
- Place the vanity on a stable, level surface to prevent tipping.
- Keep small parts away from children during assembly.
Package Contents
Your T4TREAM Fluted Makeup Vanity Desk package includes the following components. Please verify all parts are present before beginning assembly.
- Vanity Desk Frame (MDF, P2 engineered wood)
- 3-Way Mirror with Integrated Lighting
- Tempered Glass Tabletop
- 3 Drawers (2 top, 1 middle)
- 2 Storage Cabinets with Adjustable Shelves
- Gold Metal Handles
- Charging Station (2 AC outlets, 1 USB port, 1 Type-C charger)
- Assembly Hardware and Tools (screws, Allen wrench, etc.)
- Instruction Manual
Setup and Assembly
Assembly of the T4TREAM Fluted Makeup Vanity Desk is required. It is recommended to have two people for certain steps, particularly when positioning the tabletops and mirror sections. The assembly process typically takes several hours. Each component is meticulously labeled with serial numbers to assist with the user-friendly instructions provided in the separate assembly guide.
- Unpack and Identify Parts: Carefully unpack all components and lay them out. Refer to the parts list in the separate assembly guide to ensure all pieces are present and undamaged.
- Assemble Base Structure: Follow the step-by-step diagrams to construct the main frame of the vanity, including the side cabinets and central desk area.
- Install Drawers: Assemble and install the three drawers into their designated slots. Ensure smooth operation of the metal rails.
- Attach Tabletop and Mirror Section: Carefully place the tempered glass tabletop and the mirror unit onto the assembled base. This step may require assistance to prevent damage.
- Connect Electrical Components: Integrate the charging station and connect the mirror lighting power supply as per the instructions.
- Final Adjustments: Ensure all screws are tightened, and the vanity is stable. Adjust shelves in the side cabinets as needed.
Figure 1: Overview of the T4TREAM Fluted Makeup Vanity Desk, showcasing its various features and storage options.
Operating Instructions
3-Way Mirror and Lighting
The vanity features a three-way mirror system with two 12-inch side mirrors and a 23-inch center mirror, providing comprehensive viewing angles. The integrated lighting system offers adjustable brightness and color modes.
- Power On/Off: Locate the touch-sensitive power button on the mirror. Tap once to turn the lights on or off.
- Adjust Brightness: Press and hold the power button to cycle through brightness levels (0% to 100%). Release when the desired brightness is reached.
- Change Color Mode: Tap the color mode button (usually adjacent to the power button) to switch between Cool Daylight, Neutral Light, and Warm Light settings.
Figure 2: Mirror touch controls for adjusting brightness and switching between three lighting modes.
Charging Station
A built-in charging station is located on the vanity top, providing convenient power access for your devices.
- AC Outlets: Two 125V/12A AC outlets are available for hair dryers, curling irons, or other small appliances.
- USB/Type-C Ports: One 5V/2A USB port and one Type-C charger are provided for charging smartphones, tablets, and other compatible electronic devices.
Storage Features
The vanity offers extensive storage solutions to keep your beauty essentials organized.
- Glass Top Display: The transparent tempered glass tabletop allows for visible storage of frequently used items or decorative pieces.
- Drawers: Two top drawers and one 28-inch wide middle drawer provide concealed storage. These drawers feature smooth metal rails for easy opening and closing.
- Side Cabinets: Dual storage cabinets on either side of the seating area include adjustable shelves for customizable storage of larger items like lotions, hair products, or towels.
- Semi-Open Cubbies: Additional semi-open cubby spaces offer quick access storage.
Figure 3: The spacious tempered glass tabletop and a drawer, ideal for organizing cosmetics.
Figure 4: The 28-inch wide middle drawer with fluted panel and the versatile side cabinets.
Maintenance
- Cleaning: Wipe the vanity surfaces with a soft, dry cloth. For stubborn marks, a slightly damp cloth with mild soap can be used, followed by immediate drying. Avoid harsh chemicals or abrasive cleaners.
- Glass Care: Clean the tempered glass tabletop with a glass cleaner and a lint-free cloth.
- Mirror Care: Clean the mirror surfaces with a non-ammonia glass cleaner to prevent streaks.
- Hardware: Periodically check and tighten any loose screws or fittings to maintain stability.
- Electrical Components: Ensure the charging station is kept dry and free from dust. Do not attempt to repair electrical components yourself.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Mirror lights not turning on. | Power cord not connected, outlet not working, or touch sensor issue. | Ensure the power cord is securely plugged into a functional outlet. Try tapping the touch sensor multiple times. |
| Drawers are stiff or difficult to open/close. | Misalignment during assembly or debris in the rails. | Check drawer alignment and ensure all screws are properly tightened. Clean the drawer rails of any obstructions. |
| Charging station not working. | Power cord not connected, device not compatible, or faulty outlet. | Verify the vanity's power cord is plugged in. Test with a different device or a different outlet. |
| Vanity feels unstable. | Loose connections or uneven placement. | Check all assembly screws and tighten as necessary. Ensure the vanity is placed on a flat, level surface. |
Specifications
- Model: FPSC48CVD-DKA
- Dimensions (Overall): 48" W x 21.44" D x 56" H
- Item Weight: 130 pounds
- Frame Material: Engineered Wood (MDF, P2)
- Tabletop Material: Tempered Glass
- Color: Dark Alder
- Mirror Features: 3-Way, Touch-Controlled LED Lighting (Cool Daylight, Neutral Light, Warm Light)
- Charging Station: 2 AC Outlets (125V/12A), 1 USB Port (5V/2A), 1 Type-C Charger
- Storage: 2 Top Drawers, 1 Middle Drawer (28" wide), 2 Side Cabinets with Adjustable Shelves, Semi-Open Cubbies
- Assembly: Required

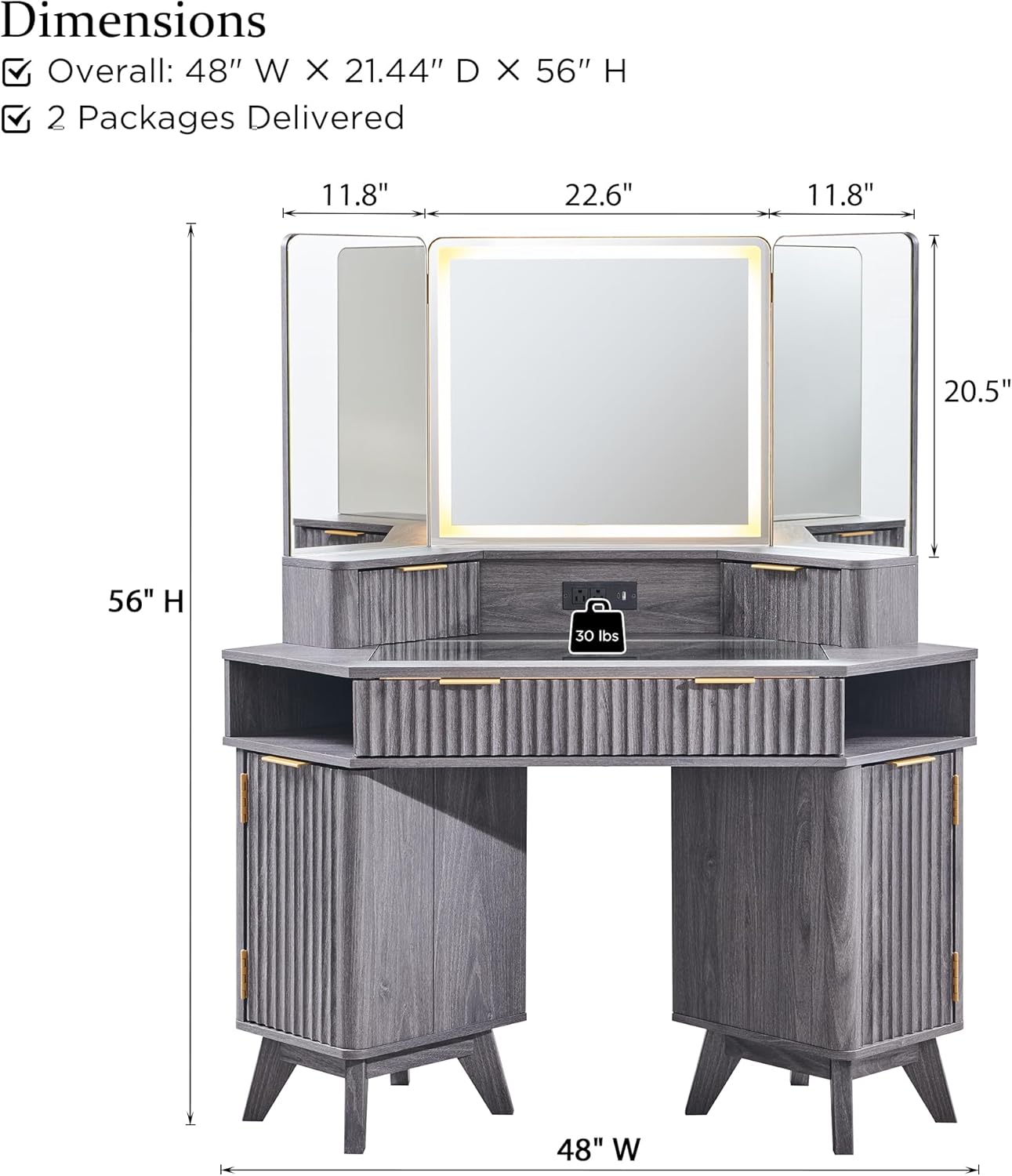

Figure 5: Key dimensions of the vanity desk for placement and planning.
Warranty and Support
T4TREAM products are designed for quality and durability. For any questions regarding assembly, missing parts, or product functionality, please contact T4TREAM customer support. Refer to your purchase documentation or the manufacturer's website for specific warranty details and contact information.
Manufacturer: T4TREAM
