COMHOMA 6'x4' Brown Metal Outdoor Storage Shed Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your COMHOMA 6'x4' Brown Metal Outdoor Storage Shed. Please read all instructions carefully before beginning assembly or use to ensure safe and proper functionality.

The COMHOMA outdoor storage shed is constructed from high-quality galvanized steel with a powder-coated finish, designed for durability and resistance to harsh weather conditions. Its features include a sloping roof for efficient water drainage, lockable doors for security, and integrated air vents for optimal airflow, preventing odors and maintaining a cool interior.

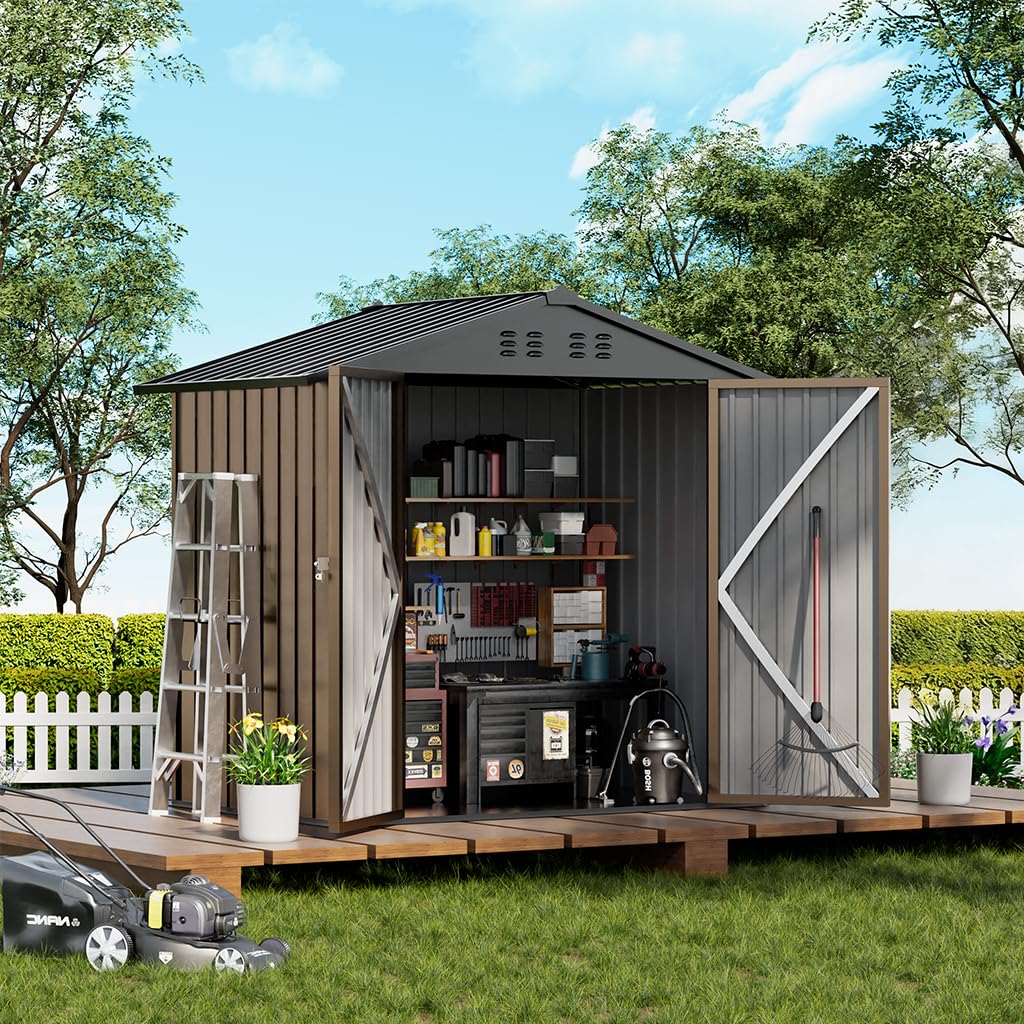

Image 1.1: The COMHOMA 6'x4' Brown Metal Outdoor Storage Shed.

2. Safety Information

WARNING: Always follow the assembly instructions carefully. This shed is heavy and requires proper handling and assembly. It may not be safe for everyone to assemble or use without assistance. Keep the shed locked when not in use to prevent unauthorized access. Do not exceed the weight limit of the shed.

• Ensure the assembly area is clear of obstructions and hazards.
• Wear appropriate personal protective equipment, including gloves and eye protection, during assembly.
• Two to three individuals are recommended for safe and efficient assembly.
• Securely anchor the shed to a level, stable surface to prevent tipping in high winds.
• Do not store flammable liquids or hazardous materials inside the shed unless properly contained and ventilated.
• Regularly inspect the shed for any signs of damage or wear, and address them promptly.

3. Setup and Assembly Instructions

Your COMHOMA storage shed is designed for straightforward assembly. All components are labeled with part numbers, and a comprehensive step-by-step manual is included. Installation gloves are also provided for your convenience. Please note that the assembly process may necessitate the assistance of 2-3 individuals.

Assembly Steps Overview:

1. Steps 1 & 2: Assemble the Base Frame and Corner Panels. Begin by assembling the base frame. Work with 2 people to attach the 4 corner panels securely to the base.
2. Steps 3 & 4: Secure the Roof Frame and Side Panels. Once the base and corners are in place, secure the roof frame. Then, fasten all side panels to the frame using the provided screws.
3. Steps 5 & 6: Attach the Roof Panels. Working together (2 people recommended), securely attach the roof panels to the roof frame.
4. Steps 7 & 8: Install the Doors. Install the shed doors, ensuring they are firmly secured to the shed using screws and operate smoothly.
5. Step 9: Apply Protective Caps. Finally, screw on the plastic protective caps to cover exposed screws and prevent scratches or injuries.

Image 3.1: Visual guide for the 9-step assembly process.

Assembly Video Guide:

Video 3.2: Detailed assembly process for the COMHOMA Storage Shed.

Video 3.3: Assembly and feature overview of the COMHOMA Lockable Doors Tool Shed with Sloping Roof.

4. Operating Instructions

4.1. Using the Lockable Doors

The shed features double hinged, lockable doors to secure your stored items. To lock the shed, slide the metal latch into the receiving bracket and attach a padlock (not included) through the designated hole. Ensure the doors are fully closed and the latch is engaged before locking.

Image 4.1: Detail of the lockable door mechanism.

4.2. Ventilation System

The shed is equipped with two top vents to facilitate air circulation. These vents help to keep the interior cool and prevent the buildup of odors or excessive humidity. Ensure these vents remain unobstructed for optimal performance.

Image 4.2: The shed's ventilation design (top right detail).

5. Maintenance

• Cleaning: Clean the exterior of the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish.
• Inspection: Regularly check all screws, bolts, and connections to ensure they remain tight. Tighten any loose fasteners as needed.
• Drainage: Ensure the area around the shed's base and the sloping roof remains clear of debris to allow for proper water drainage.
• Rust Prevention: Although made of galvanized steel with a powder-coated finish, inspect for any scratches or chips in the paint that could expose the metal to moisture and lead to rust. Touch up any damaged areas promptly.

Image 5.1: The shed's weather resistance features, including waterproof and snowproof design.

6. Troubleshooting

• Difficulty with Door Closure: Check if the shed is on a level surface. Uneven ground can cause doors to misalign. Adjust the shed's position or add shims as necessary. Ensure hinges are properly lubricated.
• Water Leakage: Verify that all roof panels are correctly installed and sealed. Check for any gaps or loose screws on the roof or walls. Ensure the sloping roof is clear of debris to allow water to run off effectively.
• Poor Ventilation: Ensure the top vents are not blocked by debris, snow, or other obstructions. Clear any blockages to restore proper airflow.
• Rust Spots: Clean the affected area thoroughly and apply a rust-inhibiting primer followed by a matching exterior paint to prevent further corrosion.

7. Specifications

Image 7.1: Detailed product dimensions.

8. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your product packaging or visit the official COMHOMA website. Keep your purchase receipt as proof of purchase for any warranty claims.

If you encounter any issues during assembly or operation that are not covered in this manual, please contact COMHOMA customer service for assistance. Contact details can typically be found on the product packaging or the brand's official website.
