Hasuit LBB-03 Low Bunk Bed Twin Over Twin Instruction Manual

1. Product Overview

The Hasuit LBB-03 Low Bunk Bed is designed for children and teens, offering a twin-over-twin sleeping arrangement with integrated storage and an L-shaped play area. This bed features a heavy-duty metal frame, LED lighting, and multiple safety elements.

Key Features:

• L-Shaped Sleep & Play Design: The lower level includes a dedicated play area, suitable for various activities.
• RGB Mood Lighting: Under-bed LED lights offer adjustable colors and brightness for reading or ambiance.
• Integrated Storage: Features 9 easy-slide fabric drawers and open cubbies for organization.
• Safety Features: Includes a 13.4-inch guardrail, full-wrap edge protection, anti-tip kit, and soft-padded ladder steps.
• Durable Construction: Built with a heavy-duty metal frame and embedded slats for stability.

Image 1: Overall dimensions and recommended mattress thickness for the Hasuit LBB-03 Low Bunk Bed. Top bunk requires a 4-6 inch mattress, lower bunk 4-12 inches. Maximum weight capacity is 450 lbs.

2. Safety Information

Please read and understand all safety warnings and instructions before assembly and use of the bunk bed. Failure to follow these instructions may result in serious injury.

• Ladder Safety: Use caution when climbing the ladder. Ensure secure footing and hand placement.
• Sharp Edges: Be aware of any sharp edges during assembly and use to prevent injury.
• Guardrails: The top bunk is equipped with a 13.4-inch guardrail and full-wrap edge protection. Always ensure guardrails are properly installed and secured.
• Anti-Toppling Device: An anti-toppling device is included to secure the bed to the wall, preventing accidental tipping. Install this device as instructed during assembly.
• Weight Capacity: Do not exceed the maximum weight recommendation of 450 pounds for the entire bed structure.
• Mattress Thickness: For the top bunk, use a mattress with a thickness of 4-6 inches. For the lower bunk, a mattress of 4-12 inches is recommended. Ensure the mattress on the top bunk is below the top edge of the guardrail.
• Children's Use: Bunk beds are not recommended for children under 6 years of age on the upper bunk.

Image 2: Close-up view of the full enclosed safety fence and surrounding guardrails, highlighting the 13.4-inch height for the top bunk.

Image 3: Details of the soft-padded ladder steps for comfortable climbing and the anti-toppling device for enhanced stability and safety.

3. Setup and Assembly

The Hasuit LBB-03 bunk bed is designed for easy and quick assembly with a snap-together frame design. A detailed installation manual is included with your product. Please refer to this manual for step-by-step instructions, component identification, and hardware details.

General Assembly Guidelines:

1. Unpack all components and verify against the parts list in the included manual.
2. Assemble the bed frame on a soft, clean surface to prevent scratches.
3. Ensure all bolts and fasteners are securely tightened, but do not overtighten until instructed.
4. Install the anti-toppling device as specified in the manual to secure the bed to a wall.
5. Once assembled, double-check all connections for stability and safety.

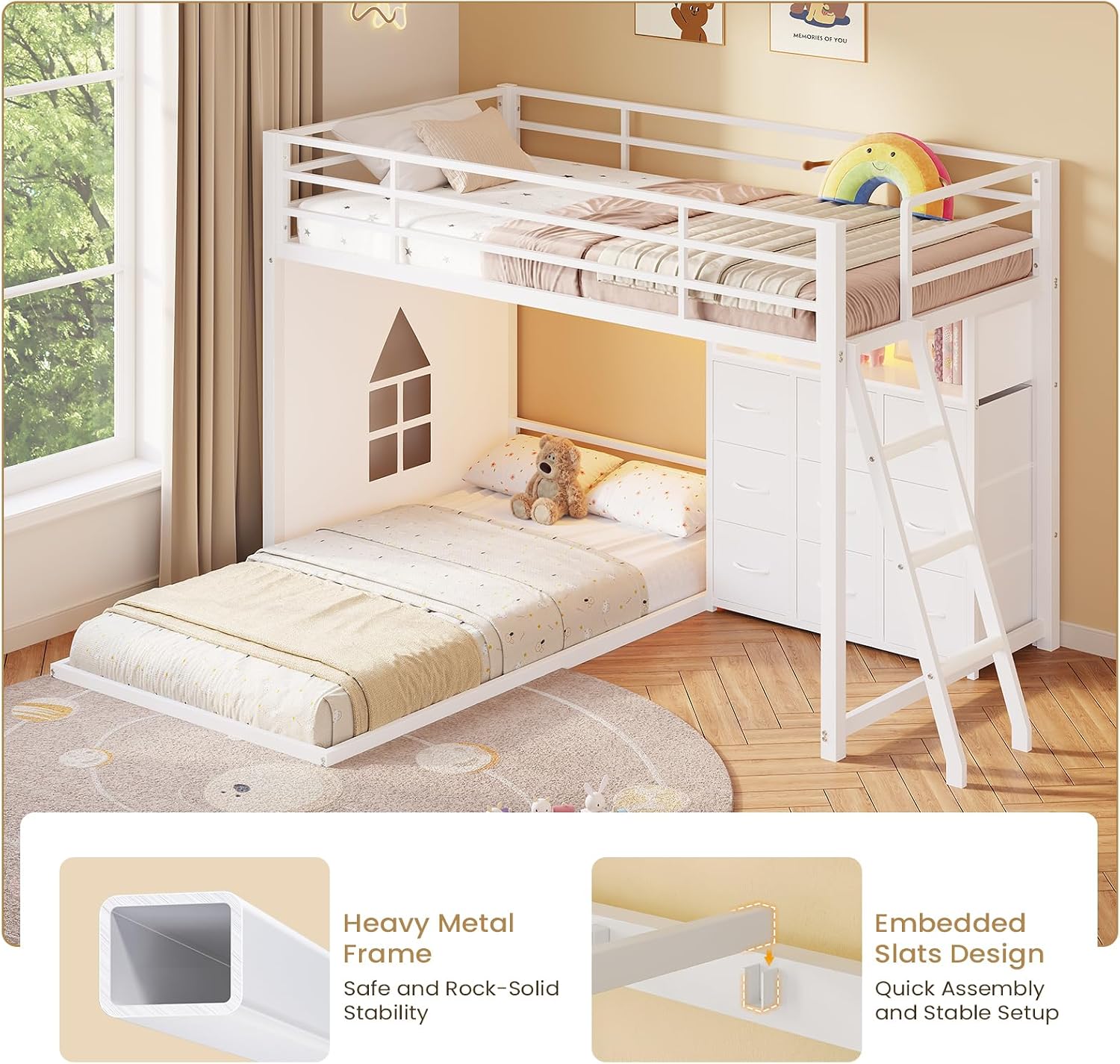

Image 4: Illustration of the heavy metal frame construction and the embedded slats design, which contribute to the bed's stability and ease of assembly.

4. Operating Instructions

4.1. LED Lighting System

The bunk bed features integrated RGB LED lights under the top bunk, providing customizable illumination for various moods and activities.

• Color Selection: Choose from over 60,000 colors to match your preference or activity.
• Brightness Adjustment: Adjust the light intensity for reading, ambient lighting, or night light.
• Control Methods: The LED lights can be controlled via a key control unit or a dedicated mobile application (APP Control). Refer to the separate LED light manual for detailed instructions on pairing and operation.
• Special Modes: Includes music mode (lights sync with sound), mic mode, timing function, and custom style options.

Image 5: Visual representation of the RGB LED lighting system, showcasing various control options like key control and app control, and features such as color selection, brightness adjustment, and music mode.

4.2. Storage Drawers and Cubbies

The bunk bed includes 9 easy-slide fabric drawers and open storage cubbies to help keep the room organized.

• Drawer Use: Utilize the fabric drawers for storing clothes, toys, books, and other personal items.
• Open Cubbies: The open storage space above the drawers is ideal for displaying decorative items or frequently accessed books.
• Maintenance: Keep drawers clean by wiping with a damp cloth. Avoid overloading to ensure smooth operation.

Image 6: Detailed view of the 9 large fabric drawers and open storage space, demonstrating their capacity for organizing various items.

4.3. L-Shaped Play Area

The unique L-shaped design creates a dedicated play area under the top bunk, fostering a space for creativity and relaxation.

• Versatile Space: This area is suitable for storytelling, creative games, reading, or quiet time.
• Interaction: Encourages family interaction and provides a personal space for the child.

Image 7: An illustration of the private play zone located under the top bunk, showing children engaging in play and reading activities.

5. Maintenance

Regular maintenance will help prolong the life and appearance of your Hasuit bunk bed.

• Cleaning: Wipe down the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Hardware Check: Periodically check all bolts, screws, and connections to ensure they remain tight. Retighten as necessary.
• Drawer Care: Keep fabric drawers clean and avoid placing excessively heavy or sharp objects inside that could damage the fabric.
• LED Lights: If the LED lights malfunction, refer to the separate LED light manual for troubleshooting or contact customer support.

6. Troubleshooting

If you encounter any issues with your bunk bed, please refer to the following common troubleshooting tips.

• Squeaking/Noise: Ensure all bolts and connections are securely tightened. Loose hardware can cause noise.
• LED Lights Not Working: Check power connections. Refer to the LED light manual for specific troubleshooting steps for the lighting system.
• Drawers Sticking: Ensure drawers are not overloaded and are properly aligned within their cubbies.
• Stability Concerns: Verify that the anti-toppling device is correctly installed and secured to a wall stud. Recheck all frame connections.

If problems persist after attempting these steps, please contact Hasuit customer support for further assistance.

7. Specifications

8. Official Product Video

9. Warranty and Support

Hasuit stands behind the quality of its products. Your Hasuit LBB-03 Low Bunk Bed is backed by our customer-focused warranty.

• Warranty Coverage: For specific details regarding your product's warranty, please refer to the documentation included with your purchase or visit the official Hasuit website.
• Customer Support: Our responsive support team is available to assist you with any questions, concerns, or issues you may encounter.

For assistance, please contact Hasuit customer service through the contact information provided in your purchase documentation or on the Hasuit brand store page.
