SKRT Super Large Electric 4 Wheel Mobility Scooter User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and care of your SKRT Super Large Electric 4 Wheel Mobility Scooter. Please read this manual thoroughly before using your scooter to ensure proper understanding of its features and functions. Retain this manual for future reference.

2. Safety Information

Your safety is paramount. Always adhere to the following safety guidelines:

• Pre-Operation Check: Before each use, inspect tires, brakes, lights, and battery charge.
• Weight Capacity: Do not exceed the maximum weight capacity of 500 lbs.
• Speed Control: Always adjust your speed according to terrain and conditions. Use lower speeds in crowded areas or indoors.
• Visibility: Use headlights and taillights, especially during low-light conditions or at night. Ensure turn signals are used when changing direction.
• Terrain: While designed for all-terrain, exercise caution on uneven surfaces, steep inclines (maximum 20-degree slope), sand, snow, or mud.
• Braking: Familiarize yourself with the hand brake and push-to-lock parking brake. Always engage the parking brake when stopped.
• Stability: Avoid sharp turns at high speeds. The scooter is designed for stability but can tip if operated recklessly.
• Charging: Only use the provided charger. Do not overcharge the battery. Ensure the scooter is switched off during charging.
• Children and Pets: Keep children and pets away from the scooter during operation and charging.
• Modifications: Do not modify the scooter. Unauthorized modifications can compromise safety and void the warranty.

Image: Operating the scooter at night, demonstrating the use of headlights for visibility.

3. Product Overview

The SKRT Super Large Electric 4 Wheel Mobility Scooter is a heavy-duty device designed for comfort and reliability. It features an 800W motor, a 48V 20Ah high-capacity battery offering up to 25 miles of range, and a robust frame supporting up to 500 lbs.

Image: Key components and controls of the electric scooter.

Key Features:

• Powerful Motor: 800W brushless motor for efficient performance.
• Long Range Battery: 48V 20Ah battery providing up to 25 miles on a single charge.
• Adjustable Speed: Three-speed control settings (1 mph to 15 mph).
• Comprehensive Lighting: Front headlight (high/low beam), rear running/brake lights, turn signals.
• Safety Features: Horn, LCD monitor, front and rear brakes, parking brake, rearview mirrors, remote key with anti-theft system and alarm.
• Comfort: Thick luxury leather seat with headrest, adjustable seat back angle, adjustable padded armrests.
• Storage: Two storage spaces, including a removable rear trunk.
• All-Terrain Capability: Fat tires and two rear shock absorbers for various surfaces.

4. Setup and Initial Preparation

Your SKRT mobility scooter arrives largely pre-assembled. Follow these steps for initial preparation:

1. Unpacking: Carefully remove the scooter from its packaging. It is recommended to have assistance due to the size and weight of the unit.
2. Inspection: Inspect the scooter for any visible damage from shipping. Contact customer support immediately if any damage is found.
3. Battery Connection: Locate the battery compartment (often under the seat or in a designated area). Ensure all battery connections are secure. Some models may have a main power switch in the battery compartment that needs to be turned ON.
4. Initial Charge: Before first use, fully charge the battery. Refer to the "Charging Instructions" section for details.
5. Adjustments: Adjust the seat position, backrest angle, and armrests for your comfort.
6. Familiarization: Sit on the scooter and familiarize yourself with the controls before starting the motor.

5. Operating Instructions

5.1 Powering On/Off

• To Power On: Insert the key into the ignition and turn it to the 'ON' position. The LCD monitor will illuminate.
• To Power Off: Turn the key to the 'OFF' position and remove it. Always remove the key when leaving the scooter unattended.

5.2 Driving Controls

Image: Dashboard display and speed selector switch.

• Speed Selector Switch: Located on the tiller control. This scooter offers three speed ranges:
  • 1st Gear: Approximately 7 mph
  • 2nd Gear: Approximately 11 mph
  • 3rd Gear: Approximately 15 mph
  Select the appropriate gear based on your environment and desired speed.
• Forward/Reverse Button: Use this button to switch between forward and reverse driving modes. Always check your surroundings before engaging reverse.
• Accelerator: Gently twist the throttle grip to accelerate. Release the throttle to slow down.

5.3 Braking

• Hand Brake: Located on the handlebars, similar to a bicycle brake. Squeeze the lever to apply the brake.
• Parking Brake: The scooter is equipped with a push-to-lock parking brake. Engage this when parking or stopping on an incline to prevent unintended movement.

5.4 Lighting and Horn

• Light Switch: Use the light switch on the handlebar to turn on the front headlight and rear running lights. The headlight has high/low beam settings.
• Turn Signal Switch: Activate the left or right turn signal using the switch on the handlebar to indicate your intended direction.
• Horn Button: Press the horn button to alert others of your presence.

5.5 Remote Key and Security

Image: Remote key functionality for security.

Your scooter comes with a remote key that includes an anti-theft system and alarm function. Refer to the remote key's specific instructions for pairing and usage.

6. Adjustments

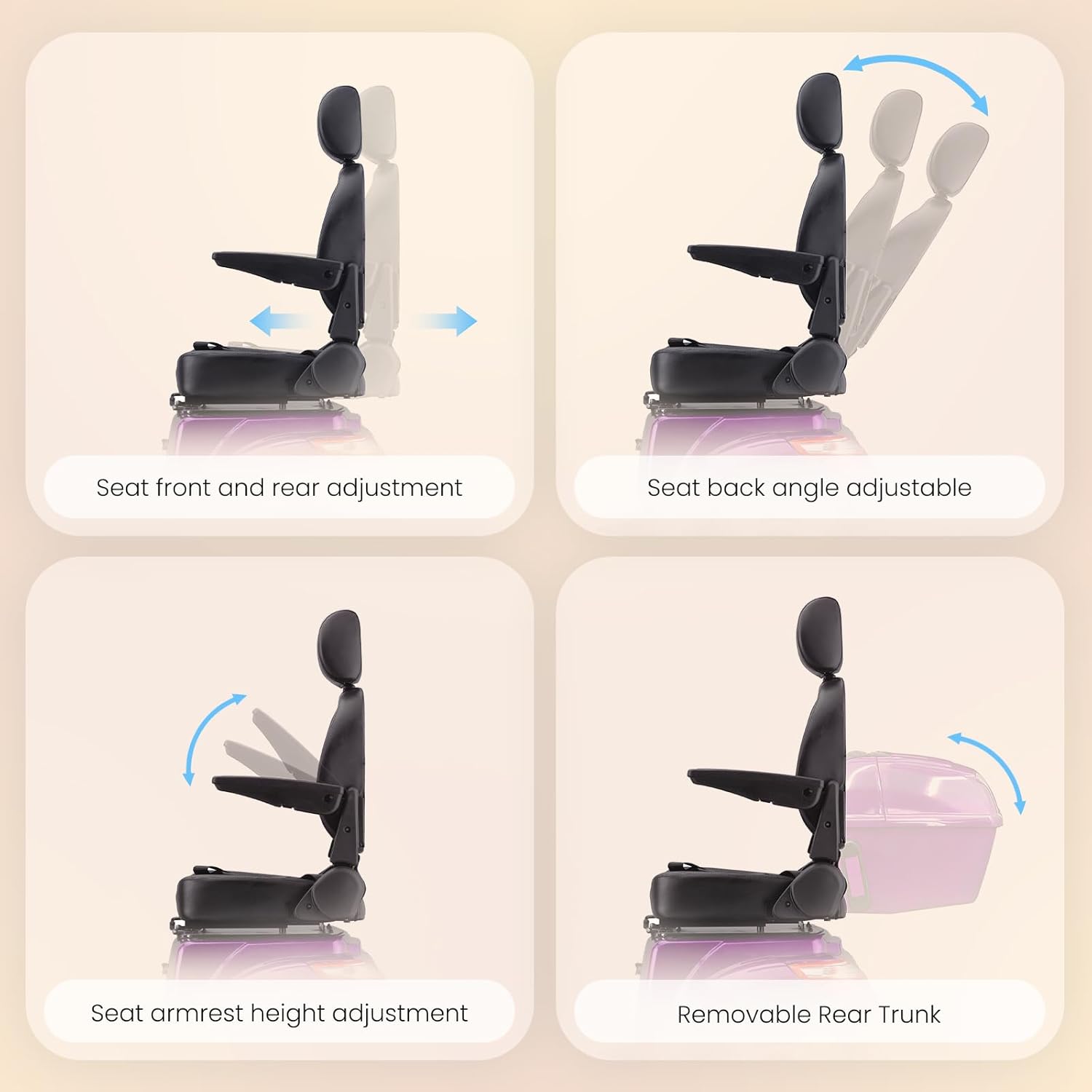

Image: Seat and storage adjustments.

• Seat Position: The seat can be adjusted forward and backward to accommodate different leg lengths.
• Seat Back Angle: The backrest angle can be adjusted for optimal comfort.
• Armrests: The padded armrests can be adjusted forward or backward, and potentially for height, to facilitate getting on and off the scooter and for comfortable riding.
• Rear Trunk: The rear trunk is removable for convenience.

7. Charging Instructions

Proper charging ensures optimal battery life and performance.

1. Ensure the scooter is turned OFF before connecting the charger.
2. Locate the charging port on the scooter.
3. Connect the charger to the scooter's charging port, then plug the charger into a standard wall outlet.
4. The charger will typically display an indicator light:
   • Red Light: Indicates the battery is currently charging.
   • Green Light: Indicates the battery is fully charged.
5. Once fully charged, disconnect the charger from the wall outlet first, then from the scooter.
6. Avoid completely draining the battery before recharging. Regular charging after use is recommended.

Image: Scooter connected to charger, showing charging indicator lights.

8. Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

• Cleaning: Wipe down the scooter with a damp cloth. Avoid using harsh chemicals or direct water spray.
• Tires: Check tire pressure regularly. Ensure pneumatic tires are inflated to the recommended PSI (check tire sidewall for details).
• Battery Care: Keep the battery charged. If storing the scooter for an extended period, charge the battery fully and then periodically recharge it every few weeks to prevent deep discharge.
• Brakes: Periodically check brake function. If brakes feel loose or ineffective, have them inspected by a qualified technician.
• Fasteners: Periodically check all nuts, bolts, and fasteners to ensure they are tight.
• Storage: Store the scooter in a dry, cool place, away from direct sunlight and extreme temperatures.

9. Troubleshooting

If you encounter issues with your scooter, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact SKRT customer support for further assistance.

10. Specifications

11. Warranty and Support

SKRT provides support for its products.

• Returns: A 30-day free return policy is available. Please ensure the original packaging is retained for returns.
• Accessory Replacement: A 90-day accessory replacement policy is offered, depending on the status of the vehicle.
• Customer Support: For any questions, technical assistance, or warranty claims, please contact SKRT customer support. Refer to your purchase documentation for specific contact details.
