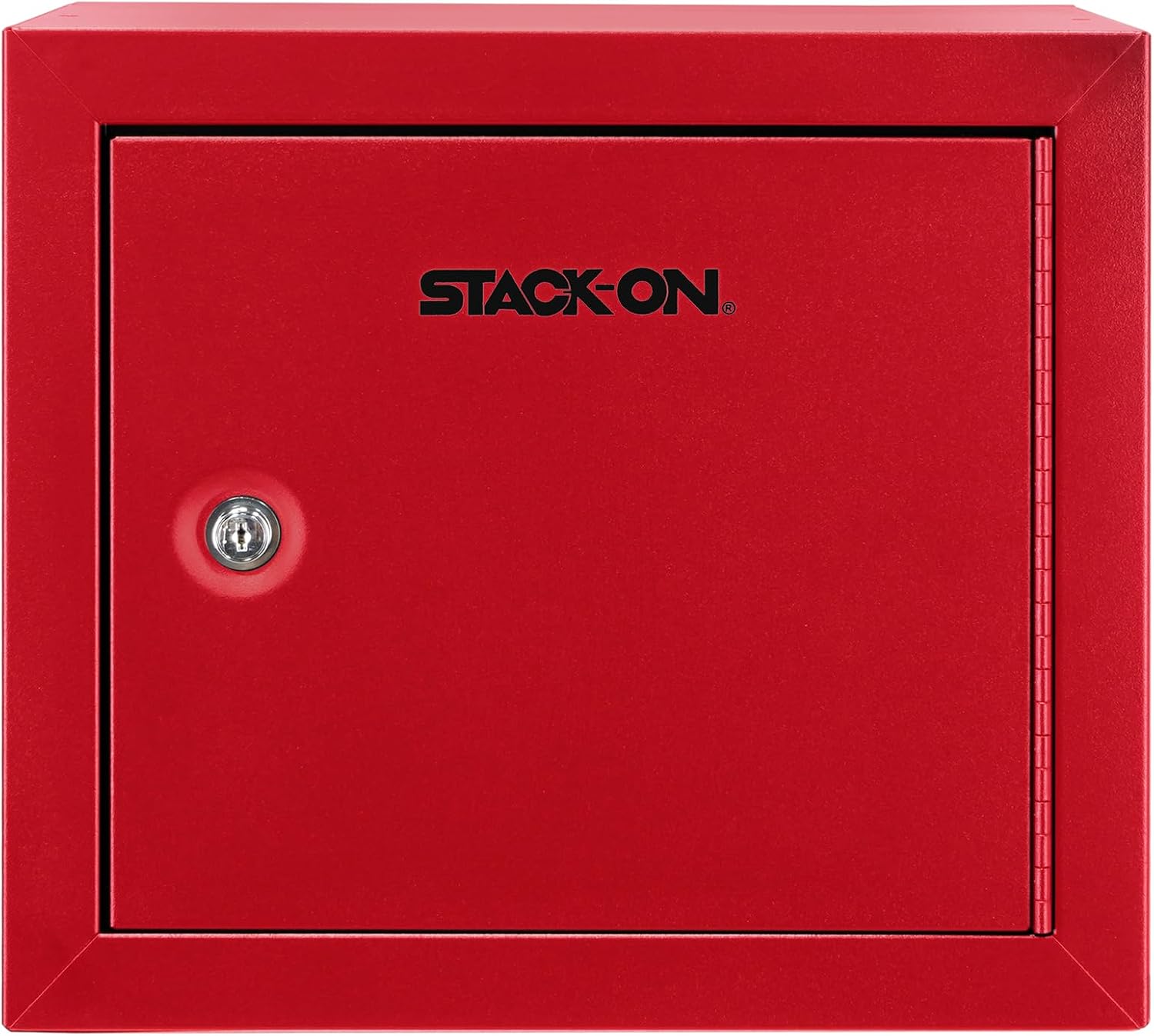

Stack-On GCR-500 Compact Welded Steel Pistol & Ammo Cabinet Safe Instruction Manual

Introduction

This manual provides essential instructions for the proper setup, operation, and maintenance of your Stack-On GCR-500 Compact Welded Steel Pistol & Ammo Cabinet Safe. This safe is designed to provide secure storage for firearms, ammunition, and other valuables. Please read all instructions carefully before using the product to ensure safe and effective operation.

Safety Information

• Always store firearms unloaded and locked.
• Keep keys in a secure location, inaccessible to unauthorized individuals, especially children.
• Ensure the safe is securely mounted to prevent unauthorized removal or tipping.
• This product is a California DOJ-approved Firearm Safety Device, meeting Penal Code 23655 requirements for compliant firearm storage.
• Do not store flammable materials or explosives inside the safe.

Package Contents

Verify that all components are present before beginning installation:

• Stack-On GCR-500 Compact Welded Steel Pistol & Ammo Cabinet Safe
• Two (2) Entry Keys
• One (1) Removable Shelf
• One (1) Foam Base Pad
• Mounting Hardware (bolts, washers)

Setup and Installation

The GCR-500 safe is designed for easy installation and can be mounted to a floor, closet shelf, or the top of a long-gun cabinet. Pre-drilled holes are provided for convenience.

Mounting Instructions:

1. Choose a secure and discreet location for your safe. Ensure the mounting surface is sturdy enough to support the weight of the safe and its contents.
2. Position the safe in the desired location.
3. Using the pre-drilled holes in the back or bottom of the safe as a template, mark the drilling points on the mounting surface.
4. Remove the safe and drill pilot holes into the marked locations. Use an appropriate drill bit size for the provided mounting hardware and the type of mounting surface (wood, concrete, etc.).
5. Reposition the safe over the pilot holes.
6. Insert the provided mounting hardware through the safe's pre-drilled holes and into the pilot holes. Securely tighten all bolts. Do not overtighten.

Shelf and Foam Base Installation:

• Place the foam base pad on the bottom interior surface of the safe to protect contents from scratches.
• Insert the removable shelf into the desired position using the integrated shelf supports inside the cabinet.

Operating Instructions

Opening the Safe:

1. Insert one of the provided keys into the key lock on the front of the safe door.
2. Turn the key clockwise until the locking mechanism disengages.
3. Pull the door open.

Closing and Locking the Safe:

1. Ensure all contents are properly placed inside the safe.
2. Close the safe door firmly.
3. Insert the key into the lock and turn it counter-clockwise until the door is securely locked.
4. Remove the key and store it in a secure, hidden location away from the safe.

Maintenance

• Cleaning: Wipe the exterior of the safe with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
• Lock Care: Periodically check the key lock for smooth operation. Do not force the key if it feels stiff; a small amount of graphite lubricant can be applied if necessary.
• Key Management: Keep track of both keys. Consider storing one key in a separate, secure location as a backup.

Troubleshooting

Key will not turn:

• Ensure the key is fully inserted into the lock.
• Check for any obstructions in the keyway.
• Try the spare key. If the spare key works, the original key may be damaged.

Door will not close properly:

• Check for any items obstructing the door's path or the locking mechanism.
• Ensure the safe is on a level surface and not warped due to improper mounting.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the manufacturer's official website or contact their customer service department. Keep your purchase receipt for warranty claims.
