1. Introduction
Thank you for choosing VICLLAX Swivel Patio Chairs. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor dining chairs. Please read these instructions carefully before assembly and retain them for future reference.
These chairs are designed for outdoor use, featuring a durable powder-coated metal frame and breathable textilene fabric, offering a comfortable 360-degree swivel function.
2. Safety Information
- Assembly Required: This product requires assembly. Always follow the assembly instructions carefully to ensure safe use.
- Weight Capacity: Do not exceed the maximum weight capacity of 250 lbs (113 kg) per chair.
- Stable Surface: Always place the chairs on a flat, stable, and level surface to prevent tipping.
- Regular Inspection: Periodically check all bolts and connections to ensure they remain tight. Retighten as necessary.
- Outdoor Use: These chairs are designed for outdoor use. While weather-resistant, prolonged exposure to extreme weather conditions may reduce their lifespan.
- Children Safety: Keep children away from the assembly area. Small parts can be a choking hazard.
3. Package Contents
Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.
- Chair Frames (Backrest, Seat, Armrests, Base)
- Textilene Fabric (Pre-attached to frame sections)
- Hardware Pack (Bolts, Washers, Nuts, Allen Wrench)
- Instruction Manual
4. Setup (Assembly Instructions)
Assembly typically requires two people. Using your own 10mm and 13mm sockets or a ratchet driver can make assembly faster than using the provided Allen wrench. Do not fully tighten bolts until all components are aligned.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a soft, clean surface to prevent scratches. Verify all parts are present against the package contents list.
- Attach Seat to Backrest: Connect the seat frame to the backrest frame using the provided bolts and washers. Hand-tighten only at this stage.
- Attach Armrests: Secure the armrests to both the seat and backrest frames. Ensure proper alignment before hand-tightening the bolts.
- Assemble Swivel Base: Connect the swivel mechanism to the chair's underside and then attach the base ring.
- Final Tightening: Once all components are assembled and aligned, gradually tighten all bolts securely using the provided tools or your own. Do not overtighten.

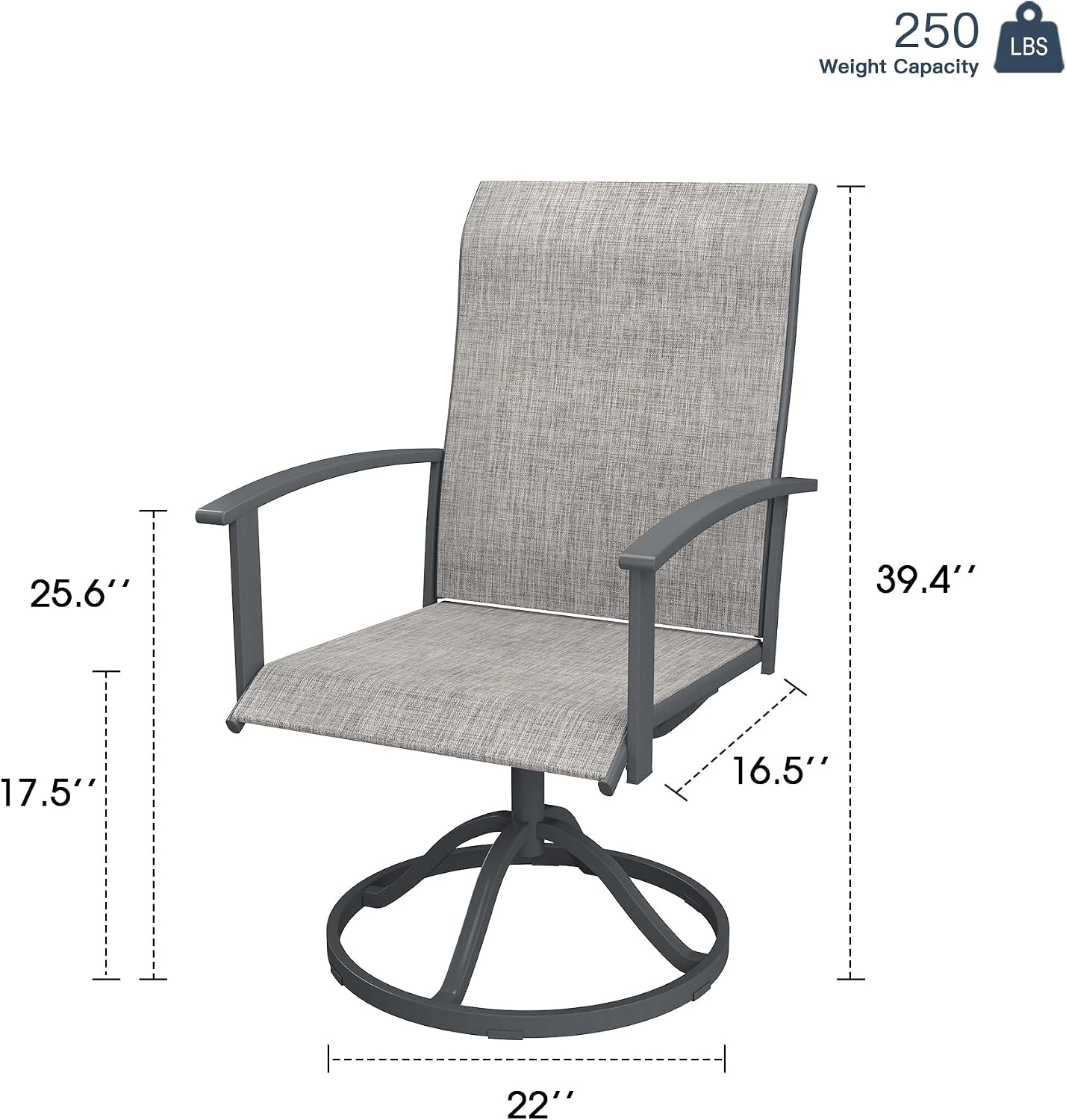

Figure 4.1: Chair dimensions for reference during assembly.
Figure 4.2: Example of assembled chairs.
5. Operating Instructions
Your VICLLAX Swivel Patio Chairs are designed for comfortable outdoor seating with a smooth 360-degree rotation feature.
- Swivel Function: The chair base allows for a full 360-degree rotation. Simply push off the ground with your feet to rotate the chair in any direction.
- Ergonomic Design: The high backrest and curved armrests provide support for your back, neck, and arms, enhancing comfort during use.
- Placement: Position the chairs in your desired outdoor area, such as a patio, deck, or garden. Ensure there is enough space around each chair for safe swiveling.
Figure 5.1: Demonstrating the 360-degree swivel feature.
Figure 5.2: Detail of the curved armrest for comfort.
6. Maintenance
Proper care and maintenance will extend the life and appearance of your patio chairs.
- Cleaning: Wipe clean with a damp cloth. For stubborn dirt, use a mild soap solution and rinse thoroughly with water. Avoid harsh chemicals or abrasive cleaners.
- Fabric Care: The textilene fabric is quick-drying, fade-resistant, and stain-resistant. For best results, clean spills promptly.
- Frame Care: The powder-coated metal frame is designed for rust protection. Inspect the frame periodically for any signs of wear or damage to the coating. Touch up any chips to prevent rust.
- Winter Storage: During off-season or extreme weather, it is recommended to store the chairs indoors or cover them with protective outdoor furniture covers to prolong their lifespan.
- Hardware: Periodically check and tighten all bolts and screws to ensure stability.
Figure 6.1: Detail of the premium textilene fabric, highlighting its breathable, fade-resistant, and pressure-resistant qualities.
Figure 6.2: High backrest design for optimal support.
7. Troubleshooting
If you encounter any issues with your VICLLAX Swivel Patio Chairs, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair wobbles or is unstable | Loose bolts; uneven surface | Ensure all bolts are securely tightened. Move the chair to a level surface. |
| Swivel mechanism is stiff | Dirt or debris in mechanism; lack of lubrication | Clean the swivel base area. Apply a silicone-based lubricant if necessary (avoid oil-based lubricants). |
| Parts do not align during assembly | Bolts overtightened prematurely; incorrect orientation of parts | Loosen all bolts, re-align parts, then hand-tighten before final tightening. Refer to assembly diagrams. |
8. Specifications
- Brand: VICLLAX
- Model: B0GJLQ73Z7
- Color: Grey
- Material: Metal (Frame), Textilene (Seat)
- Dimensions (L x W x H): 28.3" x 22.8" x 39"
- Seat Height: 17.5"
- Maximum Weight Recommendation: 250 lbs (113 kg)
- Arm Style: Track
- Features: 360-Degree Swivel, High Back, Curved Armrests, Rust-Resistant Powder-Coated Frame, Breathable Textilene Fabric
- Indoor/Outdoor Usage: Outdoor
- Product Care Instructions: Wipe Clean
9. Warranty and Support
For warranty information or technical support, please contact VICLLAX customer service directly. Keep your purchase receipt and model number (B0GJLQ73Z7) handy when contacting support.
Contact information can typically be found on the product packaging or the official VICLLAX website.
