1. Product Overview
This manual provides detailed instructions for the assembly, operation, and maintenance of your Domi 14' x 24' Hardtop Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

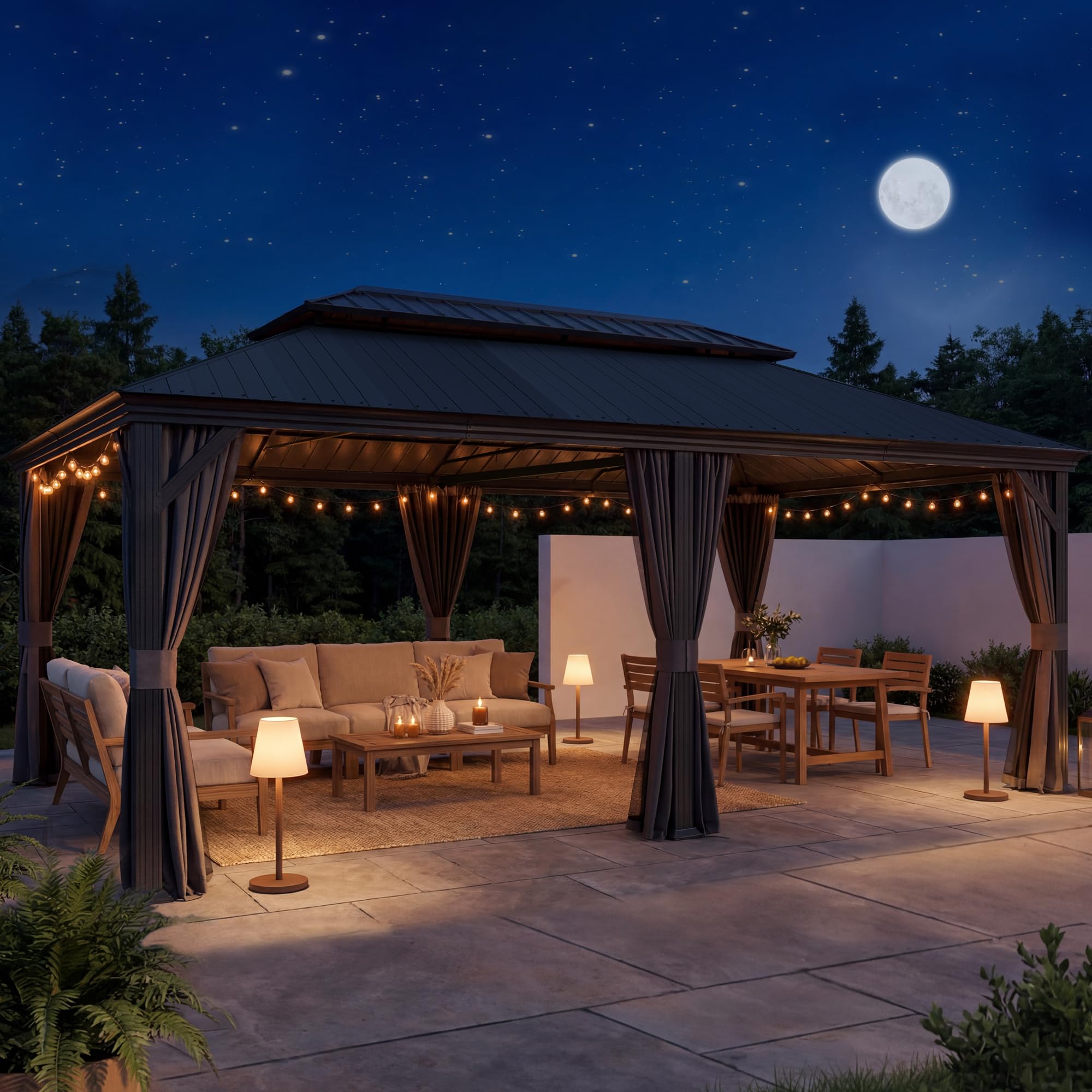

Image 1.1: The Domi 14' x 24' Hardtop Gazebo, showcasing its overall structure, curtains, and netting.
2. Safety Information
Important Safety Instructions:
Always follow the assembly instructions carefully. Secure the gazebo to a stable foundation to withstand winds and heavy snow loads. Be cautious when handling curtains and netting to avoid injury. Keep children and pets away from the gazebo during assembly and disassembly.
3. Product Features
The Domi 14' x 24' Hardtop Gazebo is designed with several key features for enhanced durability, comfort, and usability:
- High-Performance Resin Roof: Features an advanced resin roof for exceptional durability, noise reduction, thermal insulation, and simplified installation.
- Year-Round Outdoor Living Space: Transforms your backyard or patio into a versatile, all-season retreat, suitable for various activities and weather conditions.
- Dual-Layer Roof System: Combines a galvanized steel upper roof with a 16mm thick resin lower roof, engineered to withstand heavy snow loads (up to 35 lbs/sq.ft) and winds over 60 mph when anchored. Provides superior weather resistance, reduces rain noise, and improves winter insulation.
- Built-in Drainage System: An innovative system channels rainwater away from the structure, ensuring a dry and comfortable space.
- Versatile Ceiling Hooks: Includes 5 hooks, each capable of holding up to 20 lbs, for hanging lights, fans, or decorations.
- Premium Privacy Curtains: Equipped with heavy-duty 180G PU-coated polyester curtains for privacy, waterproof protection, and effective UV blockage. Features a smooth double-track system for easy adjustment.
- Full-Coverage Mosquito Protection: Includes a full-height mesh curtain that pairs with privacy curtains and a seamless one-piece mesh screen between the double roofs for comprehensive insect defense and excellent airflow.
Image 3.1: Key features of the Domi Hardtop Gazebo, highlighting the double roof, drainage, and privacy options.
Image 3.2: Details of the hardtop double roof, emphasizing UV protection, ventilation, weather resistance, and anti-rust properties.
Image 3.3: Illustration of the efficient drainage system, with water gutters channeling runoff.
Image 3.4: Innovative resin panels, detailing their durability, ease of maintenance, and weather resistance.
Image 3.5: Performance comparison between resin and steel roof materials.
Image 3.6: Multi-functional ceiling hooks for customization with lights, fans, or decorations.
Image 3.7: Double track system for curtains and netting, offering versatility for views, insect protection, and privacy.
Image 3.8: Details of the 180 GSM PU-enhanced polyester fabric used for curtains, emphasizing its waterproof, UV protective, and fade-proof qualities.
4. Specifications
| Attribute | Detail |
|---|---|
| Brand | domi outdoor living |
| Model Number | LGMF-DR-1730-G-US |
| Product Dimensions (L x W x H) | 283.31" x 165.2" x 126.42" |
| Item Weight | 693.3 Pounds |
| Material | Alloy Steel, Resin |
| Frame Material | Alloy Steel |
| Roof Material | Galvanized Steel (upper), 16mm Resin (lower) |
| Color | Gray with Resin Roof |
| Water Resistance Level | Water Resistant |
| UV Protection | 99% UV-proof, UPF 50+ |
| Snow Load Capacity | Up to 35 lbs/sq.ft |
| Wind Resistance | Over 60 mph (when anchored) |
| Assembly Required | Yes |
Image 4.1: Product dimensions and structural measurements.
5. Setup & Assembly
Assembly of the Domi Hardtop Gazebo requires careful attention to detail. It is recommended that at least two adults perform the assembly. Please ensure all parts are present before beginning.
- Unpack and Identify Parts: Carefully unpack all components and compare them against the parts list provided in your separate assembly guide. Ensure no parts are missing or damaged.
- Prepare the Site: Choose a level and stable location for your gazebo. Clear any debris and ensure adequate space for assembly.
- Assemble the Frame: Follow the step-by-step instructions in the dedicated assembly manual to construct the main alloy steel frame.
- Install the Roof Panels: Attach the galvanized steel upper roof and 16mm resin lower roof panels. Pay close attention to the drainage system components during this step.
- Secure the Gazebo: It is crucial to anchor the gazebo securely to a stable foundation (e.g., concrete, deck). Use appropriate fasteners for your surface type. For decks over 3 inches thick, use 5/16" x 4" structural screws. For concrete over 3 inches thick, use expansion bolts. Soft-ground installation is not recommended, and structures must be securely anchored in severe weather.
- Attach Curtains and Netting: Install the privacy curtains and mosquito netting onto the double-track system.
- Final Checks: Verify all connections are tight and the structure is stable.
Note: A detailed, step-by-step assembly guide with diagrams is included in the product packaging. Refer to that document for specific part numbers and assembly sequences.
Image 5.1: Anchoring instructions for different foundation types.
6. Operation
The Domi Hardtop Gazebo is designed for straightforward use as an outdoor shelter.
- Curtains and Netting: The dual-track system allows for independent operation of the privacy curtains and mosquito netting. Slide them open or closed as needed for ventilation, privacy, or insect protection.
- Ceiling Hooks: Utilize the five integrated ceiling hooks to hang outdoor lighting, decorative items, or lightweight fans (each hook supports up to 20 lbs).
- Weather Protection: The dual-layer roof and drainage system are designed to provide protection from sun, rain, and snow. Ensure the gazebo is properly anchored, especially in windy conditions.
Image 6.1: Flexible usage options for curtains and netting.
Image 6.2: Gazebo performance across various weather conditions.
Video 6.1: Official product video demonstrating the Domi Outdoor Resin Roof Gazebo features and functionality.
7. Maintenance
Regular maintenance will extend the life and appearance of your gazebo.
- Cleaning the Roof: Periodically clean the resin and galvanized steel roof panels with mild soap and water. Avoid abrasive cleaners or harsh chemicals.
- Cleaning Curtains and Netting: The polyester curtains and mesh netting can be spot cleaned with mild soap and water. For deeper cleaning, follow fabric care instructions if provided in the separate assembly guide. Ensure they are dry before storing or retracting for extended periods to prevent mildew.
- Frame Inspection: Regularly inspect the alloy steel frame for any signs of rust, loose bolts, or damage. Tighten any loose fasteners.
- Drainage System: Ensure the built-in drainage system remains clear of leaves and debris to function effectively.
- Winter Care: While designed for snow loads, it is advisable to clear heavy snow accumulation from the roof to prevent excessive stress on the structure.
8. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo feels unstable or wobbly. | Improper anchoring; loose fasteners; uneven ground. | Ensure the gazebo is securely anchored to a level, stable foundation using appropriate bolts/screws. Check and tighten all frame fasteners. |
| Water accumulation on the roof or dripping. | Drainage system blocked; roof panels not properly installed. | Clear any debris from the drainage gutters. Verify that all roof panels are correctly seated and sealed according to assembly instructions. |
| Curtains or netting do not slide smoothly. | Tracks are dirty or obstructed; fabric snagged. | Clean the double tracks to remove dirt or debris. Ensure curtains/netting are properly aligned on the tracks and not snagged. |
| Minor rust spots on metal components. | Exposure to moisture and elements over time. | Clean the affected area and apply a rust-inhibiting paint or coating. Regular maintenance helps prevent this. |
9. Warranty & Support
For specific warranty information, please refer to the documentation included with your purchase or contact Domi Outdoor Living customer service. Domi Outdoor Living offers various protection plans for extended coverage.
Customer Support:
If you require assistance with assembly, missing parts, or have any questions regarding your Domi Hardtop Gazebo, please contact Domi Outdoor Living customer support. Contact details are typically found in your product packaging or on the official Domi Outdoor Living website.
You can also visit the Domi Outdoor Living Store on Amazon for more information and support resources.
