ASKGO F30 Electric Dirt Bike User Manual

1. Important Safety Information

Read this manual thoroughly before operating the ASKGO F30 Electric Dirt Bike. Failure to follow instructions and safety warnings may result in serious injury or property damage. Always wear a helmet and appropriate safety gear. Observe all local laws and regulations regarding electric bike usage.

Pre-Ride Checklist:

• Ensure the battery is fully charged and securely installed.
• Check tire pressure and condition.
• Verify brake functionality (front and rear).
• Confirm all bolts and quick releases are tightened.
• Test the headlight and taillight.
• Ensure the throttle and pedal-assist system function correctly.

2. Package Contents

Upon unpacking, please verify that all items listed below are present:

• ASKGO F30 Electric Dirt Bike (main frame with rear wheel and motor)
• Front Wheel
• Handlebars
• Pedals (Left and Right)
• Charger
• Installation Tools (1 set)
• NFC Keys (2 pieces)
• User Manual (this document)

3. Setup & Assembly

The ASKGO F30 Electric Dirt Bike requires minimal assembly. Follow these steps carefully:

3.1. Install the Front Wheel

1. Carefully align the front wheel with the front fork.
2. Ensure the brake disc slides smoothly into the brake caliper.
3. Insert the axle through the fork and wheel hub.
4. Secure the axle nuts firmly using the provided tools.

Image: The ASKGO F30 Electric Dirt Bike with the front wheel and headlight installed, showcasing the robust front suspension and tire.

3.2. Attach the Handlebars

1. Place the handlebars into the stem clamp.
2. Ensure the display and control cables are not pinched.
3. Tighten the four bolts on the stem clamp evenly to secure the handlebars.
4. Adjust the angle of the handlebars for comfortable riding.

3.3. Install the Pedals

1. Identify the Left (L) and Right (R) pedals.
2. Thread the Left pedal counter-clockwise into the left crank arm.
3. Thread the Right pedal clockwise into the right crank arm.
4. Tighten both pedals securely with a wrench.

3.4. Connect the Headlight

1. Locate the headlight and its corresponding wire connector near the front fork.
2. Connect the headlight wire securely.
3. Mount the headlight to the designated bolts on the front fork.

3.5. Initial Battery Charge

Before your first ride, fully charge the battery. The charging port is located on the main frame. Open the protective cover and connect the charger. The battery typically takes 6-8 hours for a full charge.

Image: Close-up of the 48V 25AH removable battery integrated into the frame, showing the charging port and lock mechanism.

4. Operating Instructions

4.1. Powering On/Off and NFC Unlock

• To power on the bike, insert the key into the battery lock and turn it to the "On" position, then press the power button on the battery.
• Alternatively, use one of the provided NFC keys by tapping it against the designated NFC reader on the bike.
• To power off, reverse the process or hold the power button.

4.2. LCD Display Functions

The smart LCD display provides real-time information about your ride:

• Speed: Current riding speed (MPH/KMH).
• Battery Level: Graphical indicator of remaining battery charge.
• PAS Level: Current Pedal Assist System level (1-5).
• Odometer/Trip Meter: Total distance traveled or trip distance.
• Headlight Indicator: Shows if the headlight is active.
• Cruise Control Mode: Indication when cruise control is engaged.

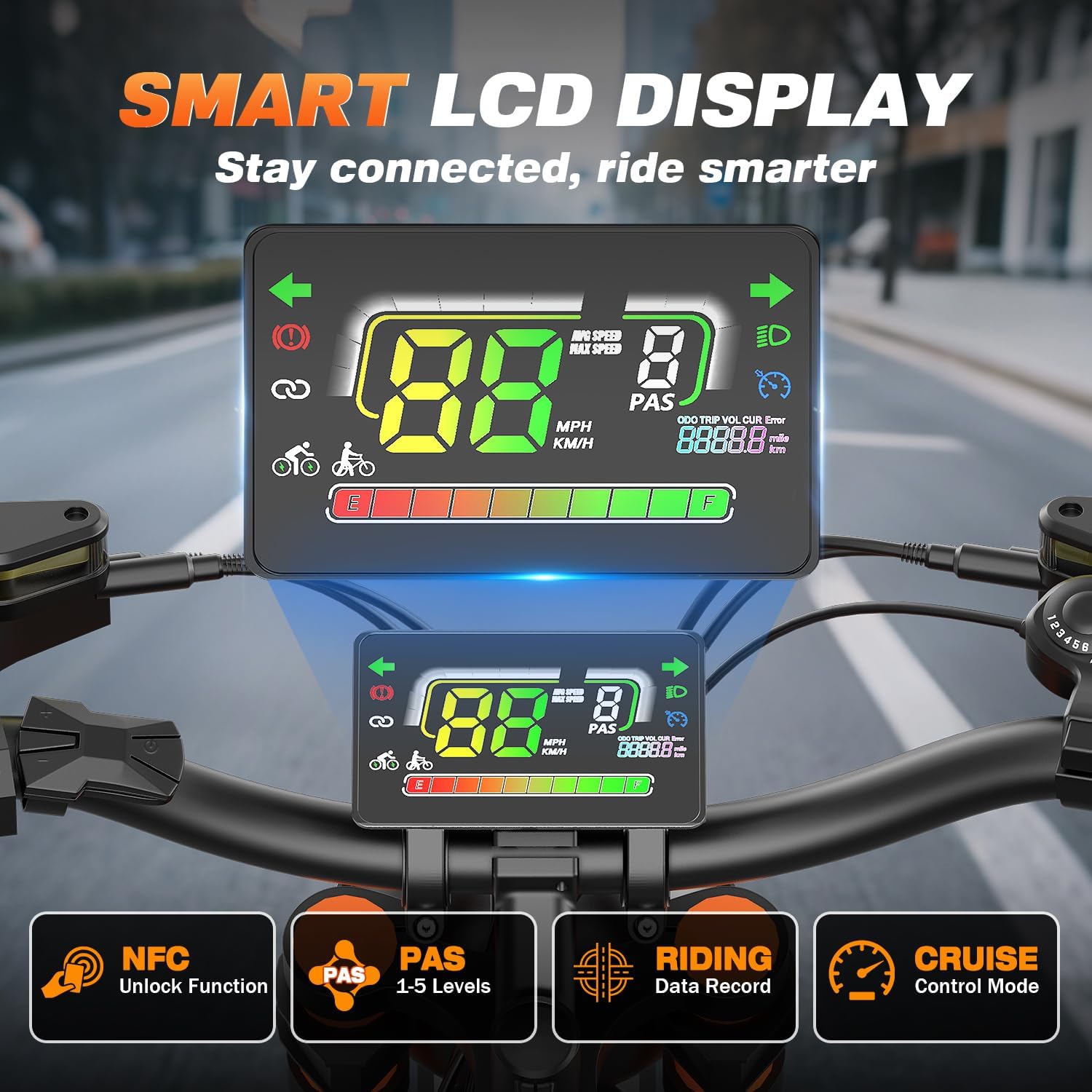

Image: The smart LCD display on the handlebars, showing speed, battery level, PAS level, and other ride data.

4.3. Riding Modes and Throttle

The ASKGO F30 offers three riding modes:

• Pure Electric Mode: Engage the throttle for motor-only propulsion.
• Pedal Assist System (PAS) Mode: Pedal normally, and the motor will provide assistance based on the selected PAS level (1-5). Higher levels provide more assistance.
• Regular Cycling Mode: Ride the bike like a traditional bicycle without motor assistance.

The throttle is located on the right handlebar. Twist it to engage the motor in Pure Electric mode or to boost power in PAS mode.

4.4. Braking System

The bike is equipped with a dual hydraulic disc braking system for reliable stopping power. The front brake lever is on the left handlebar, and the rear brake lever is on the right. Apply both brakes simultaneously for optimal stopping performance.

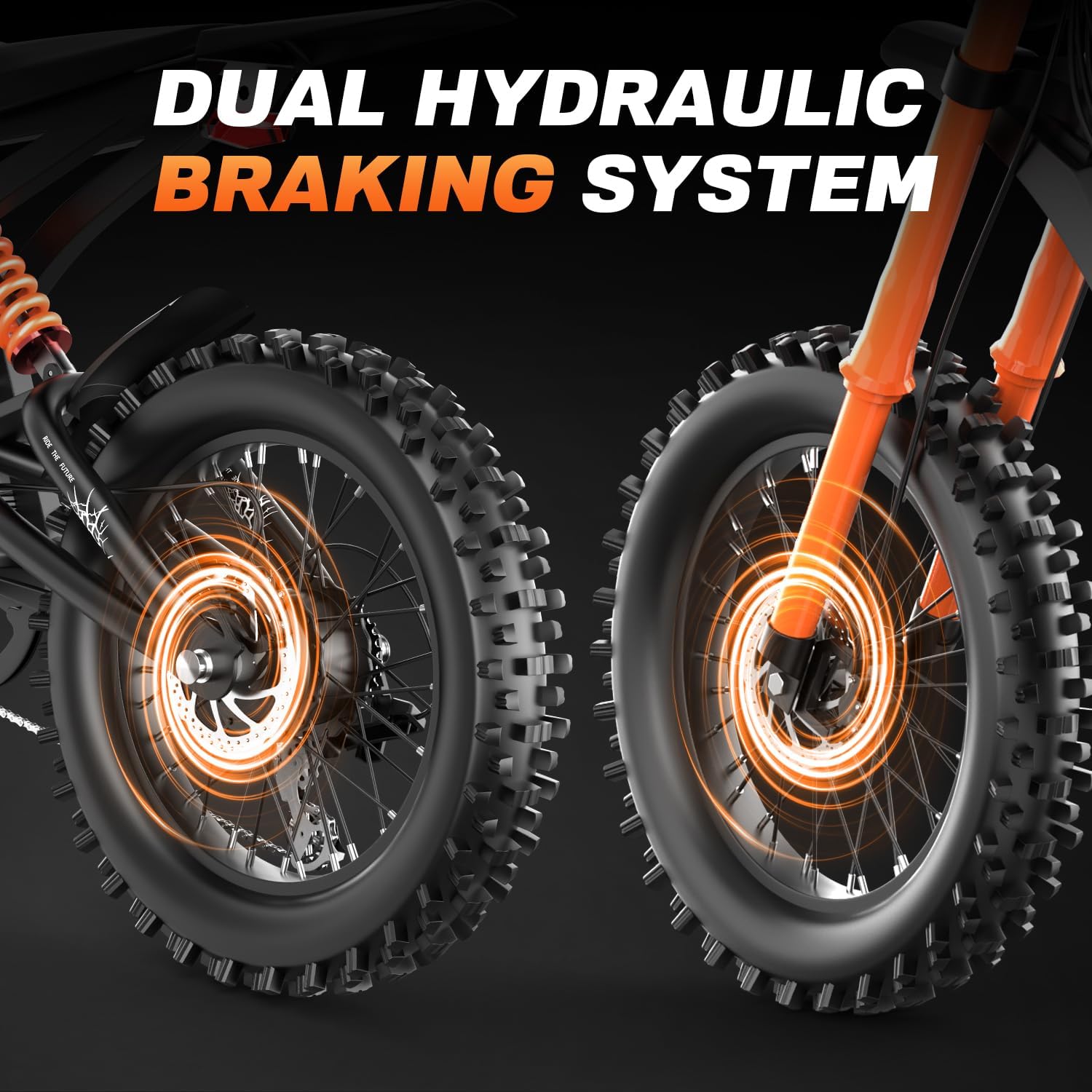

Image: Close-up view of the front and rear wheels, highlighting the dual hydraulic disc braking system.

4.5. Gear Shifting

The ASKGO F30 features a 7-speed manual transmission. Use the twist grip shifter on the right handlebar to change gears, adapting to different terrains and riding conditions.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your electric dirt bike.

5.1. Battery Care

• Charge the battery fully after each ride, especially if it will be stored for an extended period.
• Avoid completely draining the battery.
• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• If storing for a long time, charge the battery to 50-70% every 1-2 months.

5.2. Tire Maintenance

• Check tire pressure before each ride. Refer to the tire sidewall for recommended pressure.
• Inspect tires for wear, cuts, or punctures.
• The 16-inch fat tires are designed for diverse terrains, including urban roads, snowy roads, mountain trails, and beaches.

Image: Close-up of the 16-inch wide fat tire, illustrating its suitability for various terrains.

5.3. Brake System Inspection

• Regularly check brake pads for wear and replace them if necessary.
• Ensure brake levers are firm and responsive.
• Inspect brake lines for any damage or leaks.

5.4. Suspension System

The dual suspension system, featuring nitrogen-filled technology, is designed for consistent performance. Periodically check for any visible damage or leaks in the front and rear shock absorbers.

Image: A rider on the ASKGO F30 Electric Dirt Bike, highlighting the front and rear hydraulic shock absorbers designed to absorb bumps.

5.5. General Cleaning

Clean the bike regularly with a damp cloth. Avoid using high-pressure washers directly on electrical components. The bike has an IP67 rating, indicating resistance to mud, rain, and sand, but proper cleaning after exposure is recommended.

Image: A rider on the ASKGO F30 Electric Dirt Bike crossing a shallow stream, demonstrating its IP67 rating for resistance against mud, rain, and sand.

6. Troubleshooting

This section addresses common issues you might encounter with your ASKGO F30 Electric Dirt Bike.

7. Specifications

Key technical specifications for the ASKGO F30 Electric Dirt Bike:

Image: Diagram showing the dimensions, recommended height, maximum load, and scooter weight of the ASKGO F30 Electric Dirt Bike.

8. Warranty & Support

ASKGO provides comprehensive support for your electric dirt bike.

8.1. Warranty Information

• Motor and Battery: 1-year limited warranty.
• Frame: 1-year limited warranty.
• Please retain your original packaging for the best after-sales service.

8.2. Customer Support

For any issues or inquiries, our support team guarantees an 8-hour response time. Please refer to the contact information provided with your purchase or visit the official ASKGO website for assistance.
