1. Product Overview
The Hunter ZenTech 52 Inch Smart Ceiling Fan (Model 53638) is designed for both indoor and covered outdoor spaces, offering quiet, efficient performance with advanced smart home integration. This 5-blade fan features a slim DC motor, adjustable LED lighting with TrueLight technology, and Wi-Fi connectivity for control via the HunterSMART app, Amazon Alexa, Google Assistant, and Apple HomeKit. It is ENERGY STAR certified and damp-rated for versatile use.

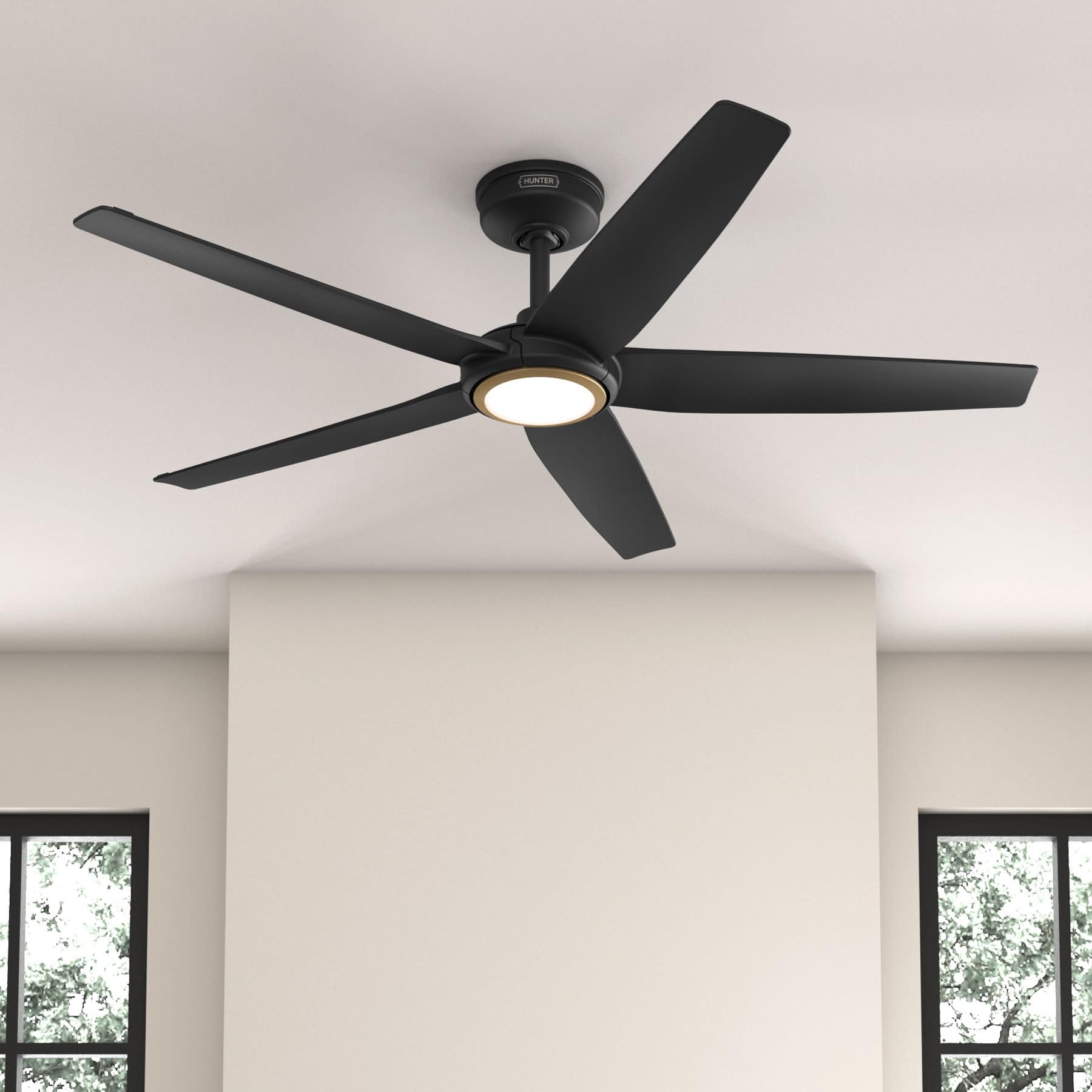

Figure 1: Hunter ZenTech 52 Inch Smart Ceiling Fan (Matte Black)
Key Features:
- Advanced Design: Ultra-slim DC motor for powerful, quiet airflow and a modern aesthetic.
- Smart Home Integration: HunterSMART technology for app and voice control via Amazon Alexa, Google Assistant, and Apple HomeKit.
- Adjustable LED Lighting: TrueLight LED offers 10 brightness levels and 10 color temperatures, protected by a durable Duralight lens.
- SureSpeed Guarantee: Delivers strong, consistent airflow with quiet, wobble-free performance.
- Energy Efficient: ENERGY STAR certified reversible 6-speed DC motor.
- Damp Rated: Suitable for indoor and covered outdoor areas.
2. Important Safety Instructions
Read all instructions carefully before beginning installation. Failure to follow these instructions could result in electric shock, fire, or personal injury.
- Always disconnect power at the main circuit breaker before installation or servicing.
- Ensure all electrical connections comply with local codes and ordinances. If you are unfamiliar with electrical wiring, consult a qualified electrician.
- The mounting structure must be capable of supporting the fan's weight (approximately 14.11 lbs).
- Do not bend blade brackets during installation or cleaning.
- Keep hands clear of the fan blades when the fan is operating.
- This fan is damp-rated for use in covered outdoor areas but should not be exposed directly to water.
3. Package Contents
Verify that all components listed below are present in your package before beginning installation.
- Ceiling Fan Motor Housing
- 5 Fan Blades
- Light Kit with Duralight Lens
- 6-inch Downrod
- Canopy and Mounting Bracket
- Handheld Remote Control
- Hardware Pack (screws, washers, wire nuts)
Figure 2: ZenTech 52 Inch Fan Components
4. Installation Guide
Professional installation is recommended. Ensure the power is OFF at the circuit breaker before starting.
4.1 Mounting the Fan
- Secure the mounting bracket to the ceiling junction box. The junction box must be listed for fan support.
- Assemble the downrod (6-inch included, compatible with up to 24-inch downrods) to the fan motor housing.
- Hang the fan assembly from the mounting bracket.
- Complete electrical wiring connections as per the wiring diagram provided in the full manual.
- Attach the fan blades to the motor housing.
- Install the light kit and Duralight lens.
Figure 3: ZenTech Fan installed in a covered outdoor space
5. Operating Instructions
The ZenTech fan can be operated using the included handheld remote control or through the HunterSMART app.
5.1 Remote Control Operation
- Fan On/Off: Press the fan button to turn the fan on or off.
- Fan Speed: Use the speed buttons to cycle through 6 fan speeds.
- Light On/Off: Press the light button to turn the light on or off.
- Light Dimming: Hold the light button to dim or brighten the light.
- Color Temperature: Press the color temperature button to cycle through different color temperatures (warm to cool).
- Reverse Function: Press the reverse button to change the fan's direction for seasonal use.
5.2 LED Light Control (TrueLight Technology)
The TrueLight LED system allows for precise control over your lighting environment. You can select from 10 brightness levels and 10 color temperatures to match your preference.
Figure 4: TrueLight LED Technology for adjustable lighting
6. Smart Home Integration
The ZenTech fan features HunterSMART technology, enabling seamless integration with popular smart home ecosystems.
6.1 Connecting to HunterSMART App
- Download the HunterSMART app from your device's app store.
- Follow the in-app instructions to create an account and add your ZenTech fan.
- Ensure your fan is powered on and your mobile device is connected to a 2.4 GHz Wi-Fi network during setup.
6.2 Voice Control Compatibility
Once connected to the HunterSMART app, you can link your fan to:
- Amazon Alexa
- Google Assistant
- Apple HomeKit
Refer to the respective smart home platform's instructions for linking smart devices.
Figure 5: HunterSMART Control Options
7. Care and Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Dust the fan blades and motor housing periodically with a soft, lint-free cloth. For damp-rated areas, wipe down with a slightly damp cloth, then dry thoroughly. Do not use abrasive cleaners or solvents.
- Tightness Check: Annually, check all screws and connections for tightness. Vibrations can cause them to loosen over time.
- Light Kit: The LED light source is designed for long life and is not user-serviceable.
8. Troubleshooting Guide
If you encounter issues with your ZenTech ceiling fan, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Remote control battery low. | Check circuit breaker; Verify all wire connections are secure; Replace remote control battery. |
| Light does not work | No power to the light kit; Loose wire connection; Light kit malfunction. | Check circuit breaker; Verify light kit wiring; Contact customer support if LED is faulty. |
| Fan wobbles | Loose blades or blade holders; Improperly balanced blades; Loose mounting bracket. | Ensure all blade screws are tight; Use a blade balancing kit (not included); Tighten mounting bracket screws. |
| Smart features not connecting | Incorrect Wi-Fi network (not 2.4 GHz); Incorrect app setup; Router issues. | Ensure connection to 2.4 GHz Wi-Fi; Re-attempt app setup; Restart router and fan. |
9. Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Hunter |
| Model Name | ZenTech |
| Model Number | 53638 |
| Size | 52 inches |
| Color | Matte Black |
| Product Dimensions | 52"D x 52"W x 11.78"H |
| Item Weight | 14.11 Pounds |
| Number of Blades | 5 |
| Motor Type | DC |
| Number of Speeds | 6 |
| Air Flow Capacity | 5443.94 Cubic Feet Per Minute |
| Wattage | 17 watts |
| Voltage | 120 Volts |
| Indoor/Outdoor Usage | Indoor, Covered Outdoor (Damp Rated) |
| Special Features | LED Light, Quiet Operation, Water Resistant, Wi-Fi Enabled |
| Controller Type | App Control, Remote Control |
| Certifications | ETL, Energy Star, FCC |
| Downrod Length | 6 Inches (included) |
10. Warranty Information
The Hunter ZenTech 52 Inch Smart Ceiling Fan is backed by Hunter's commitment to quality. It includes a limited lifetime motor warranty, ensuring long-term confidence in your product. For full warranty details and terms, please refer to the documentation included with your fan or visit the official Hunter Fan Company website.
11. Customer Support
If you require further assistance, have questions about installation, operation, or troubleshooting that are not covered in this manual, please contact Hunter Fan Company customer support. You can typically find contact information on the official Hunter Fan Company website or within the product packaging.
