1. Important Safety Information
Before operating your GYMAX Beach Cruiser Bike, please read and understand all safety instructions. Failure to follow these instructions may result in injury or damage.
- Always wear a helmet that meets safety standards.
- Ensure all bolts, nuts, and quick-release levers are securely tightened before each ride.
- Check tire pressure before each use. Refer to the tire sidewall for recommended pressure.
- Test brakes for proper function before riding.
- Be aware of your surroundings and obey all traffic laws.
- Do not ride at night without proper lighting and reflectors.
- Avoid riding in adverse weather conditions, such as heavy rain or snow.
2. Product Overview
The GYMAX Beach Cruiser Bike is designed for comfortable commuting and recreational riding. It features an ergonomic low step-through frame, an adjustable saddle, and a dual brake system for reliable stopping power. The bike includes a front basket and a rear rack for convenient storage.
This image shows the GYMAX Beach Cruiser Bike being ridden on a paved road next to a beach, highlighting its design and suitability for various environments.
Key Features:
- Adjustable Saddle: The saddle height can be adjusted with a quick-release lever to accommodate various rider heights. It features soft foam padding and springs for comfort.
- Storage Options: Includes a woven front basket for small items and a rear carrying rack for larger parcels.
- Durable Tires: Equipped with premium rubber tires designed to be puncture-proof, non-skidding, and hard-wearing for diverse terrains.
- Dual Brake System: Features a front C-brake and a rear hub brake for smooth and stable stopping.
- Ergonomic Design: Low step-through frame for easy mounting and dismounting, and ergonomic grip handles for an upright riding posture.
This image highlights several ergonomic and functional features: the comfortable ergonomic grip handle, the low step-through frame for easy mounting, the classic bike bell, and the stable kickstand.
3. Assembly Instructions
Your GYMAX Beach Cruiser Bike arrives approximately 85% pre-assembled. The following steps detail the completion of the assembly process.
Required Tools (Not Included):
- Adjustable wrench
- Hex key set
- Phillips head screwdriver
Assembly Steps:
- Handlebar Installation: Insert the handlebar stem into the fork tube. Ensure the handlebars are straight and aligned with the front wheel. Tighten the stem bolt securely.
- Front Wheel Attachment: Place the front wheel into the fork dropouts. Ensure the wheel is centered and the quick-release skewer or axle nuts are tightened firmly.
- Pedal Installation: Identify the left (L) and right (R) pedals. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise. Apply a small amount of grease to the threads and screw them firmly into the crank arms.
- Seat Post and Saddle Adjustment: Insert the seat post into the frame's seat tube. Adjust the saddle height using the quick-release lever to a comfortable riding position where your feet can touch the ground while seated. Ensure the quick-release is securely closed.
Detail of the bike's comfortable saddle with soft foam padding and springs, demonstrating the quick-release lever for easy height adjustment.
- Basket and Rack Attachment: Attach the woven front basket to the handlebars or front fork as per the included hardware. Secure the rear carrying rack if it requires additional assembly.

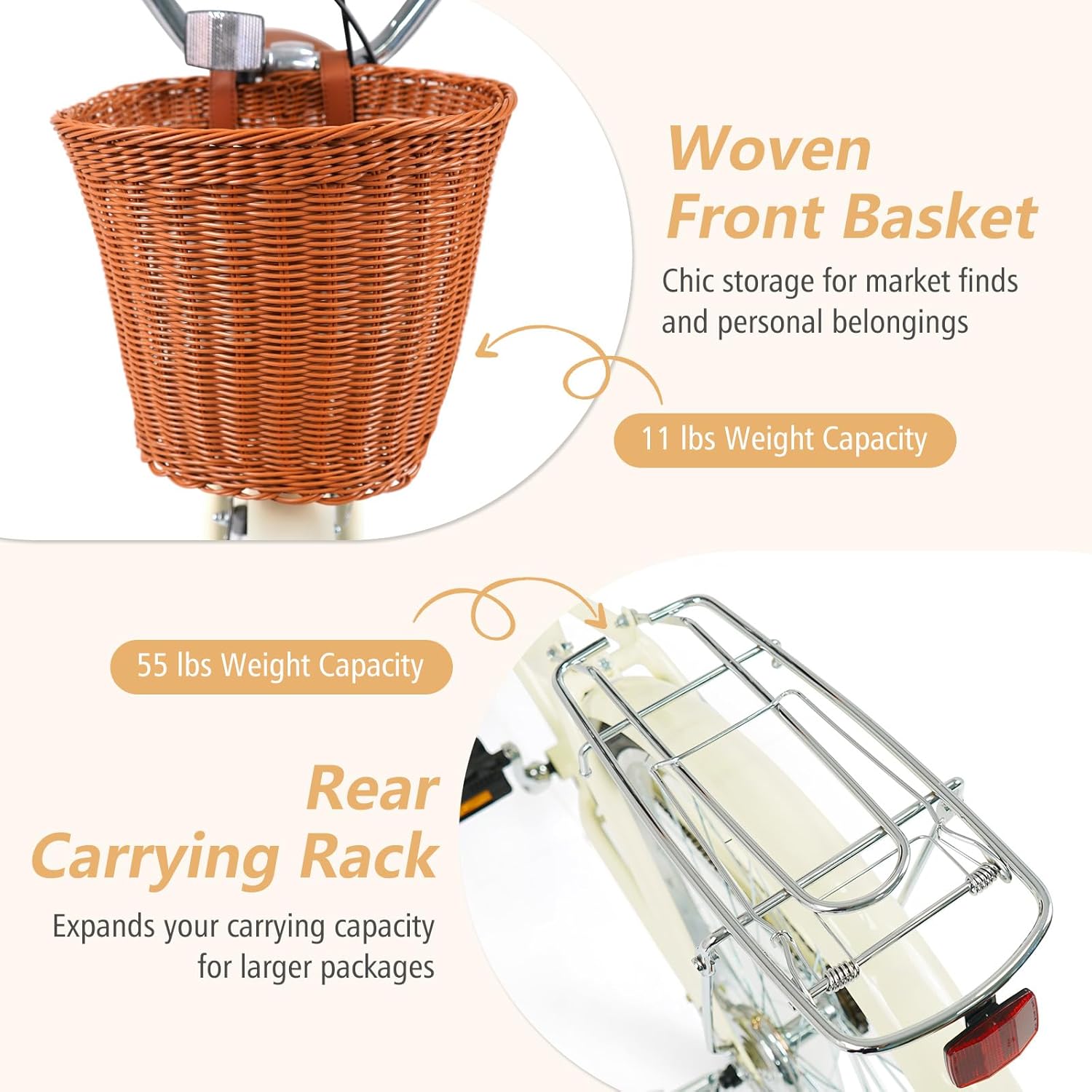

Detail of the bike's storage options, including the woven front basket with an 11 lbs capacity and the rear carrying rack with a 55 lbs capacity for transporting items.
4. Operating Your Bicycle
Riding Position:
The low step-through frame and ergonomic grips promote an upright and relaxed riding posture. Adjust the saddle height so that your legs have a slight bend at the knee when the pedal is at its lowest point.
Braking System:
Your bike is equipped with a dual brake system: a front C-brake and a rear hub brake. To stop, gently squeeze both brake levers simultaneously. Apply slightly more pressure to the rear brake for controlled deceleration. Avoid sudden, hard braking, especially with the front brake, to prevent loss of control.
This image illustrates the bike's dual brake system, featuring a front C-brake and a rear hub brake for smooth and stable stopping power.
5. Maintenance and Care
Regular maintenance ensures the longevity and safe operation of your bicycle.
Routine Checks (Before Each Ride):
- Tires: Check tire pressure and inspect for cuts or punctures.
- Brakes: Ensure brake levers are firm and responsive, and brake pads make full contact with the rim/hub.
- Chain: Check for proper tension and lubrication.
- Fasteners: Verify all nuts, bolts, and quick-release mechanisms are tight.
This image focuses on the durable 24-inch rubber tire, emphasizing its puncture-proof, non-skidding, and hard-wearing qualities suitable for city roads and park trails.
Cleaning and Storage:
- Clean your bike regularly with mild soap and water. Avoid high-pressure washing.
- Lubricate the chain periodically with bicycle-specific chain lubricant.
- Store the bike in a dry, covered area to prevent rust and weather damage.
6. Troubleshooting
This section addresses common issues you might encounter with your bicycle.
- Flat Tire: Inspect the tire for punctures. If a puncture is found, repair or replace the inner tube. Ensure the tire is properly seated on the rim before reinflating.
- Squeaky Brakes: Clean brake pads and rims. If squeaking persists, adjust brake pad alignment or consider replacing worn pads.
- Loose Components: Periodically check and tighten all bolts and nuts, especially on the handlebars, seat post, and wheels.
- Chain Noise: Clean and lubricate the chain. If the noise continues, check for bent links or excessive wear.
7. Product Specifications
The following table provides detailed specifications for the GYMAX Beach Cruiser Bike. Note that some specifications vary by wheel size (24 inch vs. 26 inch).
A visual guide detailing the overall dimensions, wheel size, suitable age, height, seat height, handlebar height, and weight capacity for both 24-inch and 26-inch models of the GYMAX Beach Cruiser Bike.
| Feature | 24 inch Model | 26 inch Model |
|---|---|---|
| Bike Type | Cruiser Bike | |
| Age Range (Description) | Adult (8+ Years Old) | |
| Brand | GYMAX | |
| Number of Speeds | 1 | |
| Frame Material | Metal | |
| Suspension Type | Dual | |
| Special Features | Adjustable Seat, Basket, Dual Suspension, Durable, Rust Resistant | |
| Included Components | Commuter Bike, User Guide | |
| Overall Dimensions (L x W x H) | 63.5" x 26.5" x 36.5"-40.5" | 67" x 25.5" x 39"-43" |
| Wheel Size | 24" | 26" |
| Suitable Height | 56"-66" | 64"-74" |
| Seat Height | 32.5"-36" | 33"-41" |
| Weight Capacity of Seat | 220 lbs | 330 lbs |
| Weight Capacity of Basket | 11 lbs | |
| Weight Capacity of Rack | 55 lbs | |
| Net Weight | 33.5 lbs | |
| Brake Style | Caliper (Front C-brake), V Brake (Rear Hub Brake) | |
| Model Number | GM2441 | N/A (Refer to 26 inch variant) |
| Is Assembly Required | Yes (85% pre-assembled) | |
8. Warranty Information
The GYMAX Beach Cruiser Bike comes with a 90-day warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.
9. Customer Support
For further assistance, technical support, or warranty inquiries, please contact GYMAX customer service. Refer to your purchase documentation or the GYMAX official website for contact details.
