Introduction
This instruction manual provides essential information for the safe assembly, operation, and maintenance of your Ball & Cast Full Size Daybed with Trundle. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Safety Information
WARNING: To prevent instability or injury, assemble this product carefully according to the provided instructions. Do not exceed the maximum weight capacity of 300 pounds for the daybed. Ensure all connections are secure before use. Keep small parts away from children during assembly.
Package Contents
Your Ball & Cast Full Size Daybed with Trundle is shipped in two packages. Please verify that all components listed below are present before starting assembly. If any parts are missing or damaged, contact customer support.
- Headboard
- Daybed Frame Components
- Trundle Bed Frame Components
- Slats (for both daybed and trundle)
- Installation Manual
- All necessary tools and hardware
Assembly Instructions
Assembly is required for this daybed. Follow the detailed assembly instructions, diagrams, and use the provided tools to ensure correct and secure construction. No box spring is required as the mattress rests directly on the slats.
1. Unpack and Identify Components
Carefully unpack all parts from both packages. Lay them out on a clean, soft surface to prevent scratches. Refer to the included parts list and diagrams to identify each component.
2. Assemble the Main Daybed Frame
Begin by connecting the main frame components. Ensure all bolts are tightened securely but do not overtighten until the frame is fully assembled.
Image: Main daybed frame and trundle frame components with slats.
3. Install Slats
Once the main frame is stable, install the plywood slats onto the designated supports. Ensure slats are evenly spaced and securely fastened to provide proper mattress support.
4. Assemble the Trundle Bed
Assemble the trundle bed frame separately. Attach the wheels to the trundle frame, ensuring they can move freely and lock when needed.

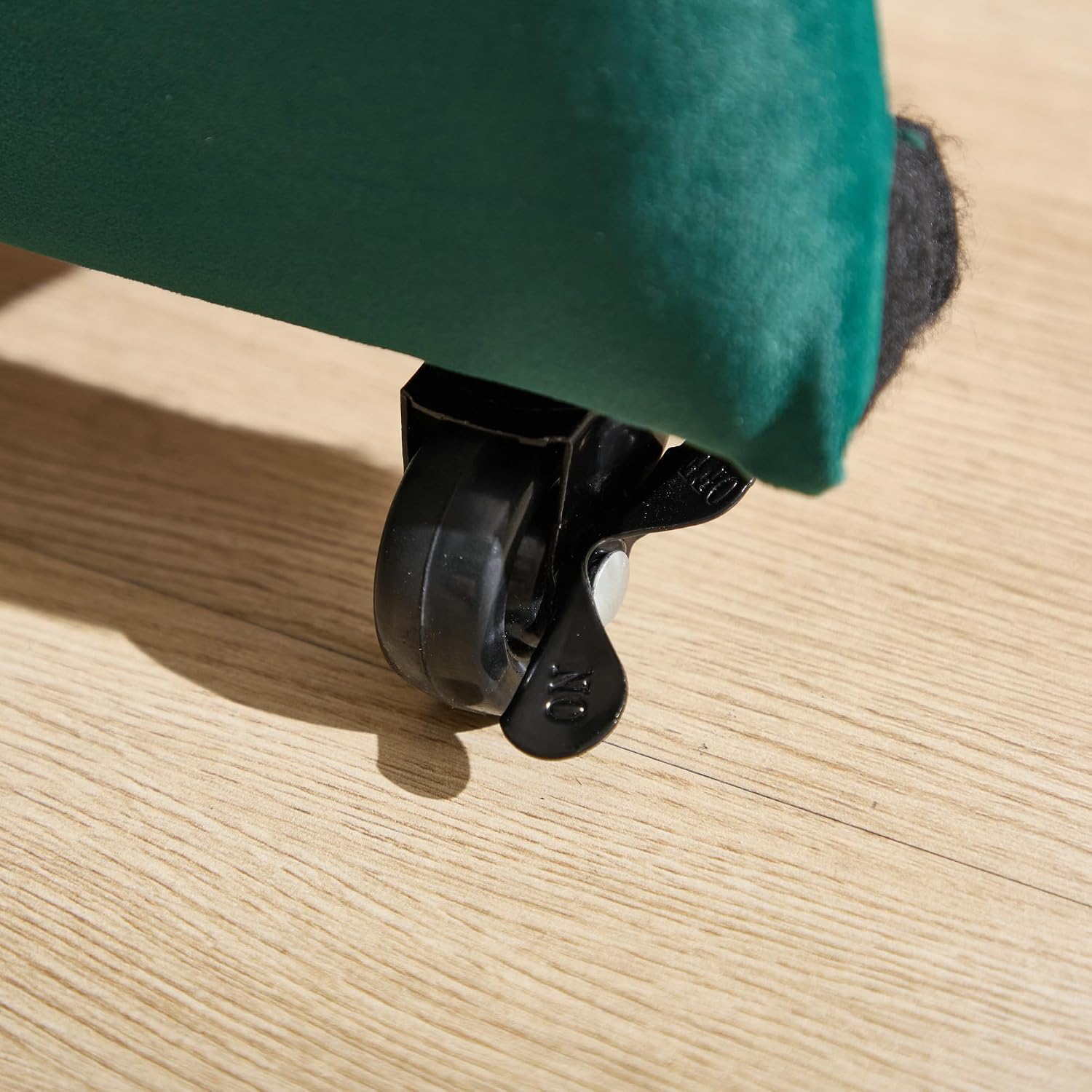

Image: Close-up of a trundle wheel with its locking mechanism.
5. Integrate Trundle and Finalize Assembly
Slide the assembled trundle bed under the main daybed frame. Ensure it glides smoothly. Double-check all connections for tightness. Place your full-size mattress on the daybed and a twin-size mattress on the trundle.
Image: Product dimensions for the daybed and trundle.
Operating Instructions
Using the Trundle Bed
The trundle bed is designed to provide additional sleeping space. To use, simply pull the trundle frame out from under the main daybed. Ensure the wheels are unlocked for smooth movement. To store, push the trundle back under the daybed and lock the wheels if desired for stability.
Image: Daybed with trundle extended, ready for use.
Using the USB Charging Ports
The daybed features integrated USB charging ports located on the backrest. Connect your devices to these ports for convenient charging. Ensure the daybed is connected to a power source for the USB ports to function.
Image: Close-up of the USB charging port in use.
Maintenance
- Cleaning: For the velvet upholstery, gently vacuum with an upholstery attachment to remove dust. For spills, blot immediately with a clean, dry cloth. Do not rub. For stubborn stains, consult a professional upholstery cleaner.
- Frame Care: Periodically check all bolts and connections to ensure they remain tight. Retighten as necessary to maintain stability.
- Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading of the velvet fabric.
Troubleshooting
- Squeaking Noises: If the daybed or trundle squeaks, check all bolts and screws for tightness. Ensure slats are properly seated and not rubbing against the frame.
- Trundle Not Sliding Smoothly: Check for obstructions under the daybed. Ensure trundle wheels are clean and free of debris. Verify wheels are unlocked.
- USB Ports Not Working: Ensure the daybed is properly connected to a functioning power outlet. Check the USB cable and device for proper connection.
Specifications
| Material | Velvet, Engineered Wood, Metal, Wood |
| Overall Product Dimensions (L x W x H) | 80.8" x 58.7" x 22.7" |
| Recommended Daybed Mattress Size | L76.2" x W54.2" (Full) |
| Recommended Trundle Mattress Size | L74.9" x W39.6" (Twin) |
| Recommended Daybed Mattress Thickness | 5"-8" |
| Daybed Weight Capacity | 300 lbs |
| Assembly Required | Yes |
| Color | Emerald |
Warranty and Support
For warranty information or customer support regarding your Ball & Cast Full Size Daybed with Trundle, please refer to the documentation included with your purchase or contact the retailer where the product was acquired. You may also visit the official Ball & Cast website for further assistance.
