IRONCK 10x12FT Outdoor Storage Shed Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your IRONCK 10x12FT Outdoor Storage Shed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

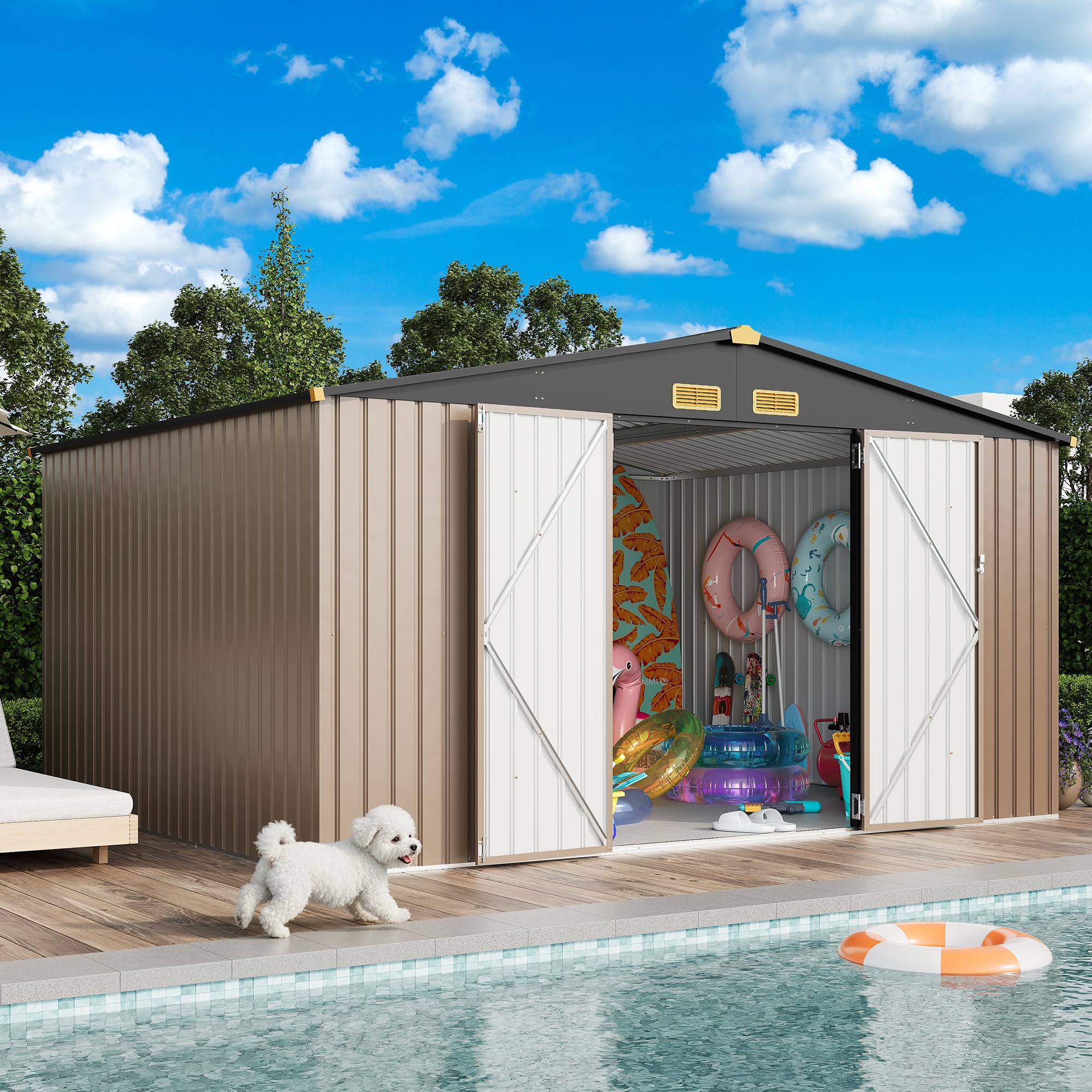

Image 1.1: The IRONCK 10x12FT Outdoor Storage Shed in a typical backyard environment.

Product Features:

• Multi-Functional Storage: Designed to store gardening tools, pool supplies, BBQ gear, and seasonal decorations. Can also serve as a pet house or recycling station.
• Dual Doors & Ventilation: Features double front doors for easy access of bulky items and a built-in top vent for air circulation.
• Durable Construction: Made with thickened galvanized steel, a reinforced frame, and a protective powder-coated finish for all-weather use.
• Weather Resistance: Water-repellent and fade-inhibiting materials ensure belongings stay dry and the shed maintains its appearance.
• Easy Assembly: Pre-drilled and clearly labeled parts with visual guides and 3D animated assembly videos for straightforward installation.

2. Safety Information

Warning: Assembly required. Follow instructions carefully to ensure safe and proper installation.

• Always wear appropriate safety gear, including gloves, during assembly.
• Ensure the assembly area is clear of obstructions and hazards.
• It is recommended that two people assist with assembly to ensure stability and safety.
• Securely anchor the shed to a level and stable base to prevent tipping or movement.
• Keep children and pets away from the assembly area.

3. Parts List

Before beginning assembly, please verify that all components listed in the packaging are present and undamaged. Refer to the detailed parts diagrams in the assembly videos for specific part identification.

Key Components:

• Galvanized Steel Wall Panels
• Roof Panels
• Frame Components (beams, rails, supports)
• Double Doors with Lockable Mechanism
• Breathable Vents
• Fasteners (screws, nuts, washers)
• Door Handles and Hinges

Image 3.1: Product dimensions for the 10x12FT shed.

4. Setup and Assembly

Assembly of the IRONCK 10x12FT Outdoor Storage Shed is designed to be straightforward with pre-drilled and clearly labeled parts. It is highly recommended to have at least two people for assembly.

General Assembly Steps:

1. Prepare the Base: Ensure a level and stable foundation for the shed. A wooden base or concrete slab is recommended.
2. Assemble the Frame: Connect the base frame components using the provided fasteners.
3. Install Wall Panels: Attach the wall panels to the base frame and connect them to each other.
4. Construct the Roof Structure: Assemble the roof beams and supports.
5. Attach Roof Panels: Secure the roof panels to the roof structure, ensuring proper overlap for weather resistance.
6. Assemble and Install Doors: Follow the specific instructions for door assembly, including hinges, handles, and locking mechanisms.
7. Final Checks: Verify all fasteners are tightened and the shed is stable.

Assembly Videos:

Image 4.1: Interior view highlighting the heavy-duty crossbeam structure for enhanced stability.

5. Operating Instructions

Doors and Locking Mechanism:

• The shed features double swing doors for wide access. To open, unlock the door using the provided key and pull the handle.
• To close, ensure both doors are properly aligned and engage the locking mechanism. Turn the handle to secure, and use the key to lock for added security.
• The reinforced hinges and stainless-steel lock are designed for reliable storage and theft deterrence.

Ventilation:

• The built-in top vents promote air circulation within the shed, helping to reduce condensation and maintain a fresher interior environment.
• Ensure vents are not obstructed by stored items to allow for optimal airflow.

Image 5.1: Details of the shed's features including vents, lock, and hinges.

6. Maintenance

Your IRONCK storage shed is designed for durability and low maintenance. Follow these guidelines to ensure its longevity:

• Regular Cleaning: Periodically clean the exterior with mild soap and water to remove dirt and debris. Avoid abrasive cleaners that could damage the powder-coated finish.
• Check Fasteners: Annually inspect all screws and bolts to ensure they remain tight. Re-tighten as necessary to maintain structural integrity.
• Clear Vents: Ensure the breathable vents are free from obstructions (e.g., leaves, dust) to maintain proper air circulation.
• Snow Load: While designed with a high snow load rating, it is advisable to clear excessive snow accumulation from the roof to prevent undue stress.
• Rust Prevention: The shed is made with thickened galvanized steel and a protective powder-coated finish to resist rust. If any scratches or damage occur to the coating, touch up with appropriate rust-inhibiting paint to prevent corrosion.

Image 6.1: The shed's resilience against UV rays, rain, and snow.

Image 6.2: Comparison of IRONCK's upgraded metal and coating against typical metal corrosion.

7. Troubleshooting

Common Issues and Solutions:

• Misaligned Screw Holes: Ensure the base is perfectly square before attaching wall and roof panels. Slight adjustments to the frame may be necessary to align holes.
• Loose Components: Regularly check and tighten all screws and bolts. Over time, vibrations or weather changes can cause fasteners to loosen.
• Water Leakage: Verify that all roof panels are correctly overlapped and secured. Check for any gaps or damaged seals and apply silicone sealant if necessary.
• Door Sticking/Misalignment: Inspect hinges for proper installation and ensure the ground beneath the doors is level. Adjust hinges if needed.

If you encounter issues not covered here, please refer to the customer support information in Section 9.

8. Specifications

9. Warranty and Support

Returns:

This product is eligible for 30-day easy returns. Please refer to the retailer's return policy for detailed information.

Customer Support:

For any questions, concerns, or assistance with your IRONCK 10x12FT Outdoor Storage Shed, please contact IRONCK HOME customer support. You can often find contact information on the product packaging or through the retailer's website where the product was purchased.

IRONCK is committed to providing durable and functional outdoor storage solutions. We value your satisfaction and are here to help.
