1. Introduction
Thank you for choosing the SPORTNOW Foldable Ping-Pong Table. This manual provides important instructions for the safe assembly, operation, and maintenance of your table. Please read it thoroughly before use and retain it for future reference.
This standard-size ping-pong table (274x152.5x76 cm) is designed for indoor use, suitable for both amateur and experienced players. It allows for solo training and competitive matches, enhancing coordination and promoting physical activity.
Image: The SPORTNOW Foldable Ping-Pong Table in a playing setup with two individuals.
2. Safety Information
- Indoor Use Only: This table is not suitable for outdoor use. Exposure to elements can damage the materials and compromise structural integrity.
- Assembly Required: Assembly is required. Due to the table's weight (54.93 kg) and size, it is highly recommended that at least two, preferably four, adults assist with assembly and movement to prevent injury and damage.
- Secure Latches: Always ensure safety latches are engaged when the table is in its folded position to prevent accidental unfolding.
- Stable Surface: Place the table on a flat, stable surface. Use the integrated leg levelers to ensure a uniform playing surface.
- Children Safety: Keep children away from the table during assembly and folding/unfolding operations.
3. Package Contents
Before beginning assembly, please verify that all components listed below are present and undamaged:
- 1 x Full-size Ping-Pong Table (two halves)
- 1 x Game Net
- 2 x Paddles
- 3 x Balls
- 4 x Wheels (two with brakes)
- Assembly Hardware (screws, bolts, etc.)
- Assembly Instructions (refer to the included diagram for detailed steps)
A detailed PDF user manual is also available for download from the product's Amazon page for additional guidance.
4. Setup and Assembly
Assembly of the SPORTNOW Ping-Pong Table requires careful attention. It is recommended to have at least two, and ideally four, people for this process due to the size and weight of the table halves. Allow approximately two hours for complete assembly.
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches.
- Identify Parts: Refer to the included assembly diagram to identify each component and hardware piece. Pay close attention to the orientation of parts.
- Attach Legs and Frame: Follow the diagram to attach the leg assemblies and frame supports to each table half. Ensure all bolts are securely tightened, but avoid over-tightening, which can strip screws or deform plastic parts.
- Install Wheels: Attach the four wheels to the designated points on the frame. Ensure the two wheels with brakes are installed in accessible positions for easy locking.
- Connect Table Halves: Once both halves are assembled, carefully bring them together. The table is designed to be used as two separate halves or connected for a full playing surface.
- Install Net: Attach the net to the designated posts on the table. Ensure it is taut and centered.
- Adjust Levelers: Use the rubber levelers on the table legs to adjust the height and ensure a perfectly flat and stable playing surface.
Image: Underside view of the table, illustrating the frame structure and wheel attachment points.
5. Operating Instructions
5.1 Unfolding the Table
- Ensure the area is clear of obstructions.
- Release the safety latches that secure the table in its folded position.
- Carefully lower each table half until it is fully extended and the legs are locked into place. This may require two people.
- Bring the two halves together and ensure they are aligned.
- Attach the net to the center of the table.
5.2 Folding the Table for Storage
The table features a compact and portable design, allowing it to be folded easily for storage.
- Remove the net from the table.
- Carefully lift one half of the table, allowing the legs to fold inwards.
- Secure the safety latches to hold the table half in its upright, folded position.
- Repeat for the second table half.
- Push the two folded halves together for compact storage.
Image: The table in its folded configuration, highlighting the safety latches that secure it for storage.
5.3 Using the Wheels and Brakes
The table is equipped with four 360-degree wheels for easy movement, two of which have brakes for stability.
- Moving the Table: When the table is folded, unlock the brakes on the two braked wheels. Gently push the table to its desired location.
- Securing the Table: Once the table is in position (either folded or unfolded), engage the brakes on the two wheels to prevent unintended movement.
Image: A close-up view of the 360-degree rotating wheels, with an inset showing the brake mechanism.
5.4 Solo Training Mode
This table allows for solo training. To set up for solo play, fold one half of the table into the upright position while leaving the other half extended. Ensure the folded half is securely latched.
6. Maintenance
- Cleaning: Wipe the table surface with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the MDF board.
- Frame Care: The powder-coated steel frame can be cleaned with a damp cloth. Inspect for any signs of rust or damage.
- Hardware Check: Periodically check all bolts and screws to ensure they are tight. Re-tighten if necessary, but do not over-tighten.
- Storage: Store the table in a dry, indoor environment. Ensure it is folded and secured with the safety latches to prevent accidental opening.
- Net Maintenance: Clean the net as needed. Store it properly when not in use to prolong its lifespan.
7. Troubleshooting
- Uneven Playing Surface: Adjust the rubber levelers on the bottom of the table legs until the surface is perfectly flat and stable.
- Difficulty Folding/Unfolding: Check for any obstructions or misaligned parts. Ensure safety latches are fully disengaged before unfolding and fully engaged after folding. Lubricate moving parts if necessary.
- Wobbly Table: Ensure all assembly bolts are securely tightened. Verify the table is on a flat surface and adjust leg levelers.
- Damaged Parts: If any parts are damaged during shipping or assembly, do not attempt to force them. Contact customer support for assistance.
8. Specifications
Detailed specifications for the SPORTNOW Foldable Ping-Pong Table Model A90-349V00BU:
- Model Number: A90-349V00BU
- Brand: SPORTNOW
- Sport: Table Tennis
- Color: Blue
- Material: Engineered Wood (Tabletop), Alloy Steel (Frame/Base)
- Tabletop Thickness: 12 Millimeters
- Unfolded Dimensions (LxWxH): 274 x 152.5 x 76 cm (107.9 x 60 x 29.9 inches)
- Folded Dimensions (LxWxH): 153 x 64 x 181 cm (60.2 x 25.2 x 71.3 inches)
- Product Weight: 54.93 Kilograms (121.1 lbs)
- Number of Players: Up to 4
- Assembly Required: Yes
- Country of Origin: China
- Manufacturer: SPANISH AOSOM

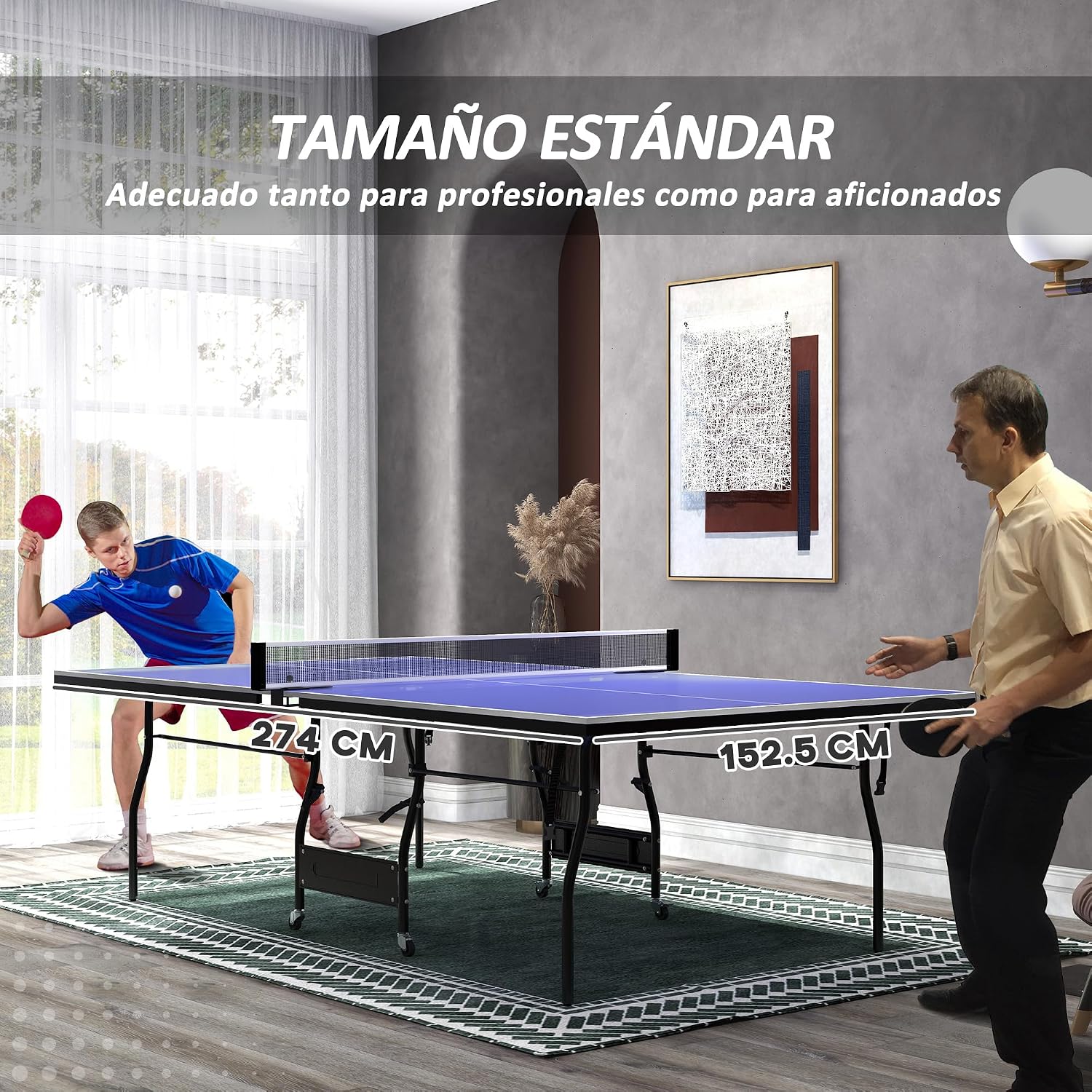

Image: The table displaying its standard playing dimensions: 274 cm in length and 152.5 cm in width.
Image: Detailed dimensional drawing showing the table's measurements when fully extended (274x152.5x76 cm) and when folded for storage (153x64x181 cm).
Image: A detailed view highlighting the MDF painted tabletop, powder-coated steel frame, and adjustable leg levelers.
9. Warranty Information
The SPORTNOW Foldable Ping-Pong Table Model A90-349V00BU comes with a three-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation provided with your product or contact customer support.
10. Support
If you encounter any issues, have questions about assembly, operation, or require replacement parts, please contact the seller or manufacturer directly. Refer to your purchase documentation for contact details.
Please note: No official product videos from the seller were available for embedding in this manual.
