Garvee Poly Dump Cart 1200 lbs User Manual

Introduction

Thank you for choosing the Garvee Heavy Duty 1200 lbs Poly Dump Cart. This manual provides essential information for the safe assembly, operation, and maintenance of your new garden cart. Please read these instructions thoroughly before use and retain them for future reference.

This poly dump cart is designed for transporting various materials such as soil, plants, firewood, and leaves in outdoor environments. Its robust construction and quick-release dumping mechanism make it a versatile tool for yard work, landscaping, and gardening tasks.

Safety Information

• Always wear appropriate safety gear, such as gloves and sturdy footwear, when operating the cart.
• Do not exceed the maximum load capacity of 1200 lbs (approximately 4 cu.ft). Overloading can cause damage to the cart and lead to injury.
• Ensure all bolts and fasteners are securely tightened before each use. Regularly check for loose parts.
• Operate the cart on stable, relatively level ground. Avoid steep inclines or uneven terrain when heavily loaded.
• Keep hands and feet clear of moving parts, especially during dumping operations.
• Do not allow children to play with or operate the cart.
• Store the cart in a dry, protected area when not in use to prevent corrosion and prolong its lifespan.

Package Contents

Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, contact customer support.

• Polyethylene Dump Bed
• Steel Frame Components
• Handle Assembly
• (4) 13-inch Puncture-Resistant Tires
• Axle and Wheel Hardware
• Mounting Hardware (bolts, nuts, washers)
• Removable Dividers (if applicable)
• Instruction Manual

Assembly Instructions

Assembly typically requires basic hand tools (wrenches, pliers). It is recommended to assemble the cart on a flat, clear surface.

1. Attach Axles to Frame: Secure the steel axles to the main frame components using the provided bolts and nuts. Ensure all connections are tight.
2. Install Wheels: Slide the 13-inch puncture-resistant tires onto the axles. Use washers and cotter pins or locking nuts to secure them in place. Verify wheels spin freely.
3. Mount Poly Dump Bed: Place the polyethylene dump bed onto the assembled frame. Align the mounting holes and secure the bed to the frame using the appropriate hardware.
4. Assemble Handle: Attach the handle assembly to the front axle mechanism. Ensure the 180° adjustable angle feature operates smoothly. Secure with pins or bolts as instructed.
5. Final Checks: Double-check all fasteners for tightness. Ensure the dumping mechanism engages and disengages properly.

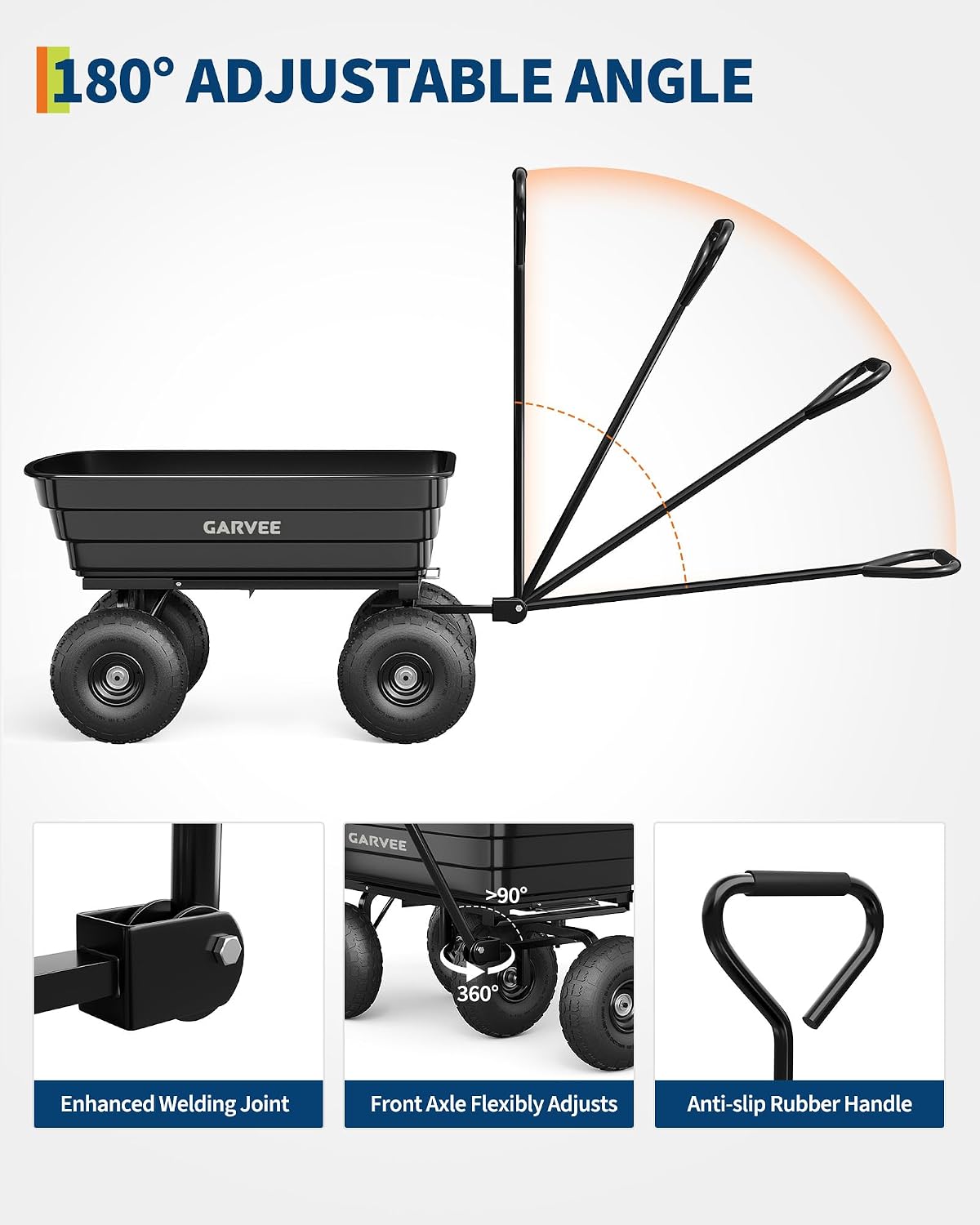

Image: This diagram illustrates key features of the cart's handle and axle system, including the 180° adjustable handle, enhanced welding joint for durability, and the front axle's flexible 360° adjustment for maneuverability.

Operating Instructions

Loading the Cart

• Distribute the load evenly within the dump bed to maintain balance and stability.
• Do not exceed the 1200 lbs weight capacity or fill beyond the top edge of the bed.
• For specific items like tools, utilize the removable dividers to organize and secure contents.

Transporting Materials

• Grasp the anti-slip rubber handle firmly.
• The 13-inch puncture-resistant tires are designed for all-terrain mobility, including mud, gravel, and slopes. Exercise caution on uneven surfaces.
• The front axle flexibly adjusts 360° for enhanced maneuverability around obstacles.

Dumping Mechanism

• To dump the contents, locate the quick-release lever (typically near the handle or front of the bed).
• Engage the lever to release the bed, allowing it to tilt forward.
• Use the 180° adjustable handle to guide the dumping process and control the precise placement of materials.
• Once emptied, push the bed back into its horizontal position until it locks securely.

Towing (Optional)

• The cart is compatible with tow hitches for ATV or lawn tractor attachment.
• Ensure the tow hitch connection is secure before towing.
• Do not exceed the towing capacity of your ATV or lawn tractor.
• Always operate at a safe speed when towing, especially on uneven terrain.

Image: This composite image demonstrates the versatility of the Garvee Poly Dump Cart, showing it effectively used for moving potted plants, transporting loose soil, hauling dry firewood, and collecting fallen leaves.

Maintenance

• Cleaning: After each use, clean the poly dump bed with water and mild soap to remove dirt, debris, and corrosive materials. Rinse thoroughly and allow to dry.
• Lubrication: Periodically lubricate moving parts such as axle bearings and the dumping mechanism pivot points with a general-purpose grease or oil.
• Fastener Checks: Regularly inspect all bolts, nuts, and pins for tightness. Tighten any loose fasteners to prevent parts from detaching during operation.
• Tire Inspection: Although puncture-resistant, inspect tires for any signs of wear or damage. Ensure they are free of embedded sharp objects.
• Storage: Store the cart in a dry, covered area to protect the anti-corrosion coated frame and UV-stabilized poly body from extreme weather conditions.

Troubleshooting

Specifications

• Model: 1200 lbs
• Brand: Garvee
• Capacity: 1200 lbs (544 kg) / 4 cu.ft
• Product Dimensions (L x W x H): 41.7" x 25" x 28.7" (105.9 cm x 63.5 cm x 72.9 cm)
• Item Weight: 55.1 lbs (25 kg)
• Tire Size: 13 inches, puncture-resistant
• Material: Polypropylene (bed), Steel (frame)
• Color: Black
• Special Features: Quick-release dumping, 180° adjustable handle, 360° flexible front axle, removable dividers, tow hitch compatible.
• UPC: 800068888387
• Manufacturer Model Number: 5Y7lw7N_KV5263gdgb-5LAAVHv03M / PHO_34SG

Warranty and Support

Garvee products are designed for durability and performance. For warranty information, product support, or to order replacement parts, please contact Garvee customer service.

Refer to your purchase documentation or visit the official Garvee website for the most current contact information and warranty details.

Garvee Essentials Customer Support: Seller Information on Amazon
