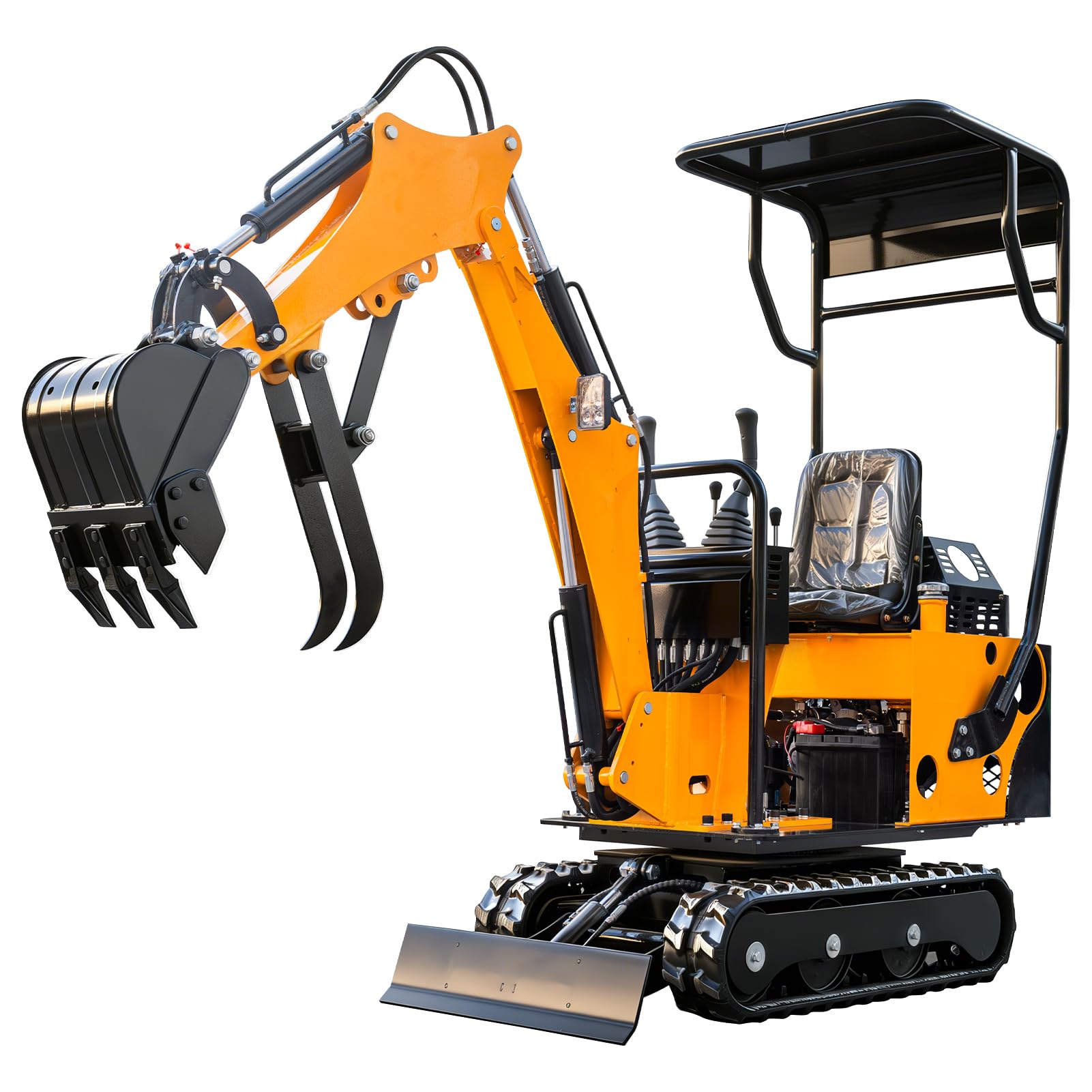

MMS MS08-RT-1 0.8 Ton Mini Excavator Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your MMS MS08-RT-1 0.8 Ton Mini Excavator. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage.

Safety Information

Operating heavy machinery requires strict adherence to safety protocols. Always wear appropriate personal protective equipment (PPE), including hard hat, safety glasses, hearing protection, and steel-toed boots. Ensure the work area is clear of bystanders and obstacles. Never operate the excavator under the influence of alcohol or drugs. Refer to local regulations and safety standards for additional guidelines.

• Always perform a pre-operation inspection.
• Ensure all controls are functioning correctly.
• Maintain a safe distance from power lines and underground utilities.
• Secure the machine when not in use.
• Do not exceed the machine's rated capacity.

Setup

The MMS MS08-RT-1 Mini Excavator is shipped largely assembled. Upon arrival, perform the following steps:

1. Unloading: Carefully unload the excavator from its transport container using appropriate heavy lifting equipment. The machine is approximately 1630 pounds (739 kg).
2. Visual Inspection: Inspect the excavator for any visible damage that may have occurred during shipping. Check all hydraulic lines, electrical connections, and structural components.
3. Fluid Levels: Verify all fluid levels, including engine oil, hydraulic fluid, and fuel. Top up as necessary according to the specifications.
4. Battery Connection: Ensure the battery is securely connected.
5. Familiarization: Before starting, familiarize yourself with the control panel, levers, and safety features.

Operating Instructions

Starting the Engine

1. Pre-Operation Check: Ensure all safety levers are engaged and the area around the excavator is clear.
2. Turn on Power Switch: Locate and turn on the main power switch.
3. Open Throttle Handle: Adjust the throttle handle to the appropriate starting position.
4. Start Engine: Use the ignition key or button to start the 13.5 HP RATO gasoline engine. Allow the engine to warm up for a few minutes before operation.

Basic Operation

The excavator features an intuitive control panel and smooth-response levers for precise control. The 360° rotation allows for flexible operation in confined spaces.

• Driving Console: The humanized driving space includes comfortable seats and a logical layout of control levers and buttons.
• Digging: Use the main joystick controls to maneuver the boom, arm, and bucket for digging operations. The maximum digging depth is 47.24 inches.
• Mechanical Thumb Clamp: Utilize the mechanical thumb clamp for grabbing, lifting, and moving materials such as rocks, branches, and debris.
• Adjustable Dozer Blade: The hydraulic-driven dozer blade can be adjusted to grade, level, and push materials, also providing stability on various terrains.

Maintenance

Regular maintenance is crucial for the longevity and optimal performance of your mini excavator. Always refer to the engine manufacturer's manual for specific engine maintenance schedules.

• Daily Checks: Before each use, check engine oil, hydraulic fluid, coolant levels, and fuel. Inspect tracks for damage and ensure all bolts and fasteners are tight.
• Lubrication: Regularly grease all pivot points and moving parts as indicated in the machine's service points.
• Filter Replacement: Replace air filters, oil filters, and fuel filters at recommended intervals.
• Hydraulic System: Monitor hydraulic fluid for contamination and replace as needed. Inspect hydraulic hoses for leaks or damage.
• Cleaning: Keep the machine clean, especially the engine compartment and radiator, to prevent overheating and component wear.

Troubleshooting

This section provides basic troubleshooting steps for common issues. For complex problems, contact qualified service personnel.

Specifications

What's in the Box

Your MMS MS08-RT-1 Mini Excavator package includes:

• Mini Excavator (fully assembled)
• Toolbox

Warranty and Support

MMS provides professional quality and performance, with products passing certifications such as CE, SGS, TUV, ISO. For any questions, technical assistance, or warranty claims, please contact MMS Excavator customer support.

• Return Policy: 30-day easy returns.
• Protection Plans: Optional 4-Year Protection Plan and Complete Protect monthly plan are available for extended coverage.
• Customer Support: Contact MMS Excavator for assistance.
