DUMOS 24 Inch Round LED Bathroom Mirror with Lights

Important Safety Information

Please read all instructions carefully before installation and use. Keep this manual for future reference.

• Ensure the power supply is disconnected before installation or maintenance.
• Installation should be performed by a qualified electrician if you are unsure about electrical wiring.
• Do not expose the mirror to excessive moisture or direct water spray.
• Handle the mirror with care to prevent damage. Although made with tempered glass, extreme impact can cause breakage.
• Keep packaging materials away from children.

Product Overview

The DUMOS 24 Inch Round LED Bathroom Mirror combines modern design with practical features for your bathroom or vanity area. It includes integrated LED lighting, an anti-fog function, and adjustable color temperature and brightness.

Key Features:

• Elegant Circular Design: Provides a clean, modern aesthetic.
• Dimmable LED Lighting: Adjustable brightness for various needs.
• 3 Color Temperatures: Switch between Warm (3000K), Natural (4000K), and White (6000K) light.
• Anti-Fog Function: Keeps the mirror clear after showers.
• Memory Function: Remembers your last light and brightness settings.
• Shatter-Proof HD Tempered Glass: Durable and safe, designed to prevent shattering into sharp pieces.

Components:

• LED Bathroom Mirror Unit
• Mounting Screws and Expansion Bolts
• User Manual (this document)

Image: Front view of the DUMOS 24 Inch Round LED Bathroom Mirror with its LED lights illuminated.

Image: Diagram highlighting the mirror's features including 3 color temperatures, brightness adjustment, memory function, high-definition, explosion-proof glass, and rapid defogging.

Installation Instructions

Follow these steps for secure installation. Ensure all necessary tools are available before beginning.

1. Determine Hanging Location: Choose a suitable wall location. Use a positioning ruler to mark the exact spots for drilling. Ensure the location allows for proper electrical connection.
2. Drill Holes: Using an electric drill, create holes at the marked locations. The size of the drill bit should match the expansion bolts provided.
3. Insert Expansion Bolts: Insert the expansion bolts into the drilled holes and tighten them securely. These will provide a stable anchor for the mirror.
4. Electrical Connection: Connect the mirror's electrical wiring to your home's electrical system. This step should be performed by a qualified professional if you are not experienced with electrical work. Ensure the power supply is OFF before making any connections.
5. Hang the Mirror: Carefully lift the mirror and align its mounting points with the installed expansion bolts. Hang the mirror securely and gently check for stability.

Image: Step-by-step visual guide for mirror installation, from marking the wall to hanging the unit.

Operating Instructions

The mirror features touch controls for its various functions.

Power On/Off and Light Color Adjustment:

• Short Press: Briefly touch the power icon to turn the LED lights on or off.
• Short Press (while on): Repeatedly short press the power icon to cycle through the three color temperatures: Warm Light (3000K), Natural Light (4000K), and White Light (6000K).

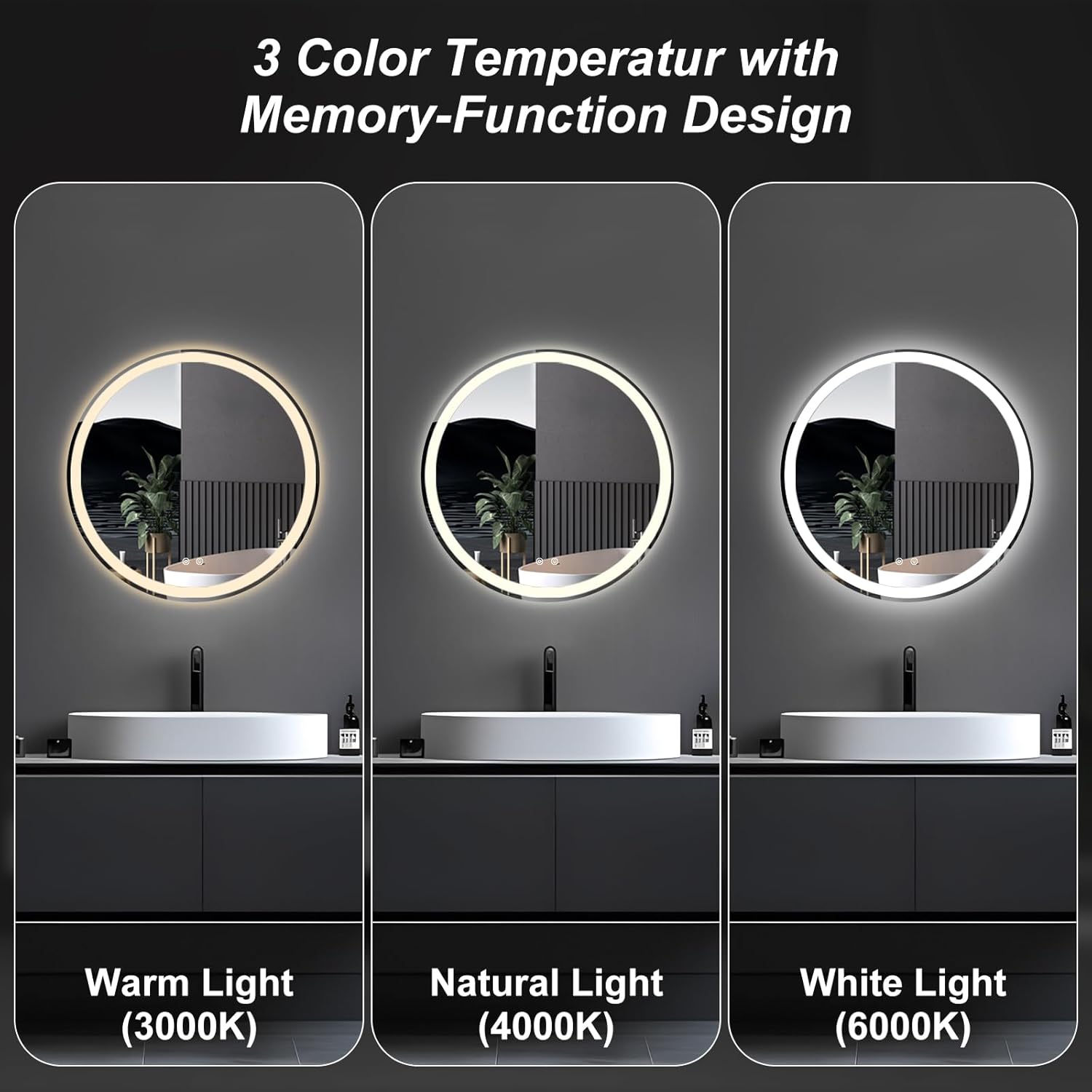

Image: Visual representation of the three available color temperatures: Warm (3000K), Natural (4000K), and White (6000K).

Brightness Adjustment:

• Long Press: While the lights are on, long press the power icon to adjust the brightness level. The brightness will cycle from dim to bright. Release your finger when the desired brightness is reached.

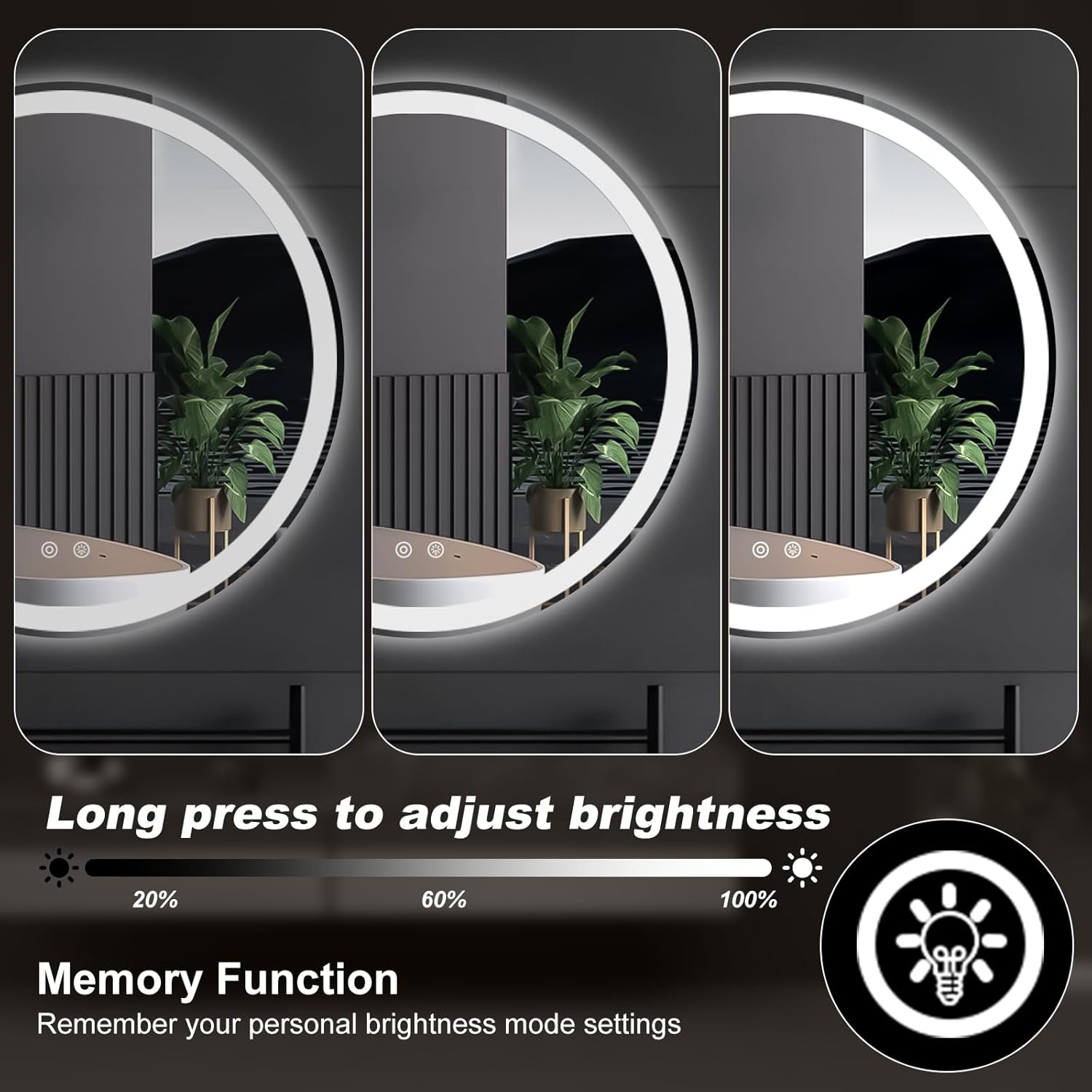

Image: Illustration of the brightness adjustment feature, showing a range from 20% to 100% via a long press.

Anti-Fog Function:

• Long Press: Long press the dedicated defog icon (often a circle with a target symbol) to activate or deactivate the defogging function. The defogger will quickly clear condensation from the mirror surface.

Image: Depiction of the anti-fog function, showing a clear mirror and the touch control for activation.

Memory Function:

The mirror automatically saves your last used light color temperature and brightness settings. When you turn the mirror back on, it will resume with these previously selected settings.

Maintenance and Care

Proper care will ensure the longevity and optimal performance of your DUMOS LED mirror.

• Cleaning the Mirror Surface: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into the electrical components.
• Cleaning the Frame: Wipe the frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Electrical Components: Do not attempt to clean or repair the internal electrical components. Ensure the mirror is completely dry before reconnecting power after cleaning.
• Tempered Glass: The mirror is made of shatter-proof tempered glass. While durable, avoid dropping or striking the mirror with hard objects.

Image: Visual comparison demonstrating the durability of the DUMOS mirror's explosion-proof glass against shattering.

Troubleshooting

If you encounter issues with your mirror, refer to the following common problems and solutions.

Specifications

Warranty and Support

For warranty information or technical support, please contact the seller or manufacturer directly. Keep your purchase receipt and product model information handy when contacting support.

Manufacturer: DUMOS
