Xiangtat SKY RC TWneo Tire Warmer Instruction Manual

1. Introduction

The Xiangtat SKY RC TWneo Tire Warmer is an advanced electronic device designed to preheat the tires of 1/10 and 1/8 scale electric touring and drift RC cars. Preheating tires increases the rubber's friction coefficient, enhancing grip and performance on the track. This manual provides essential information for the safe and effective use of your TWneo Tire Warmer.

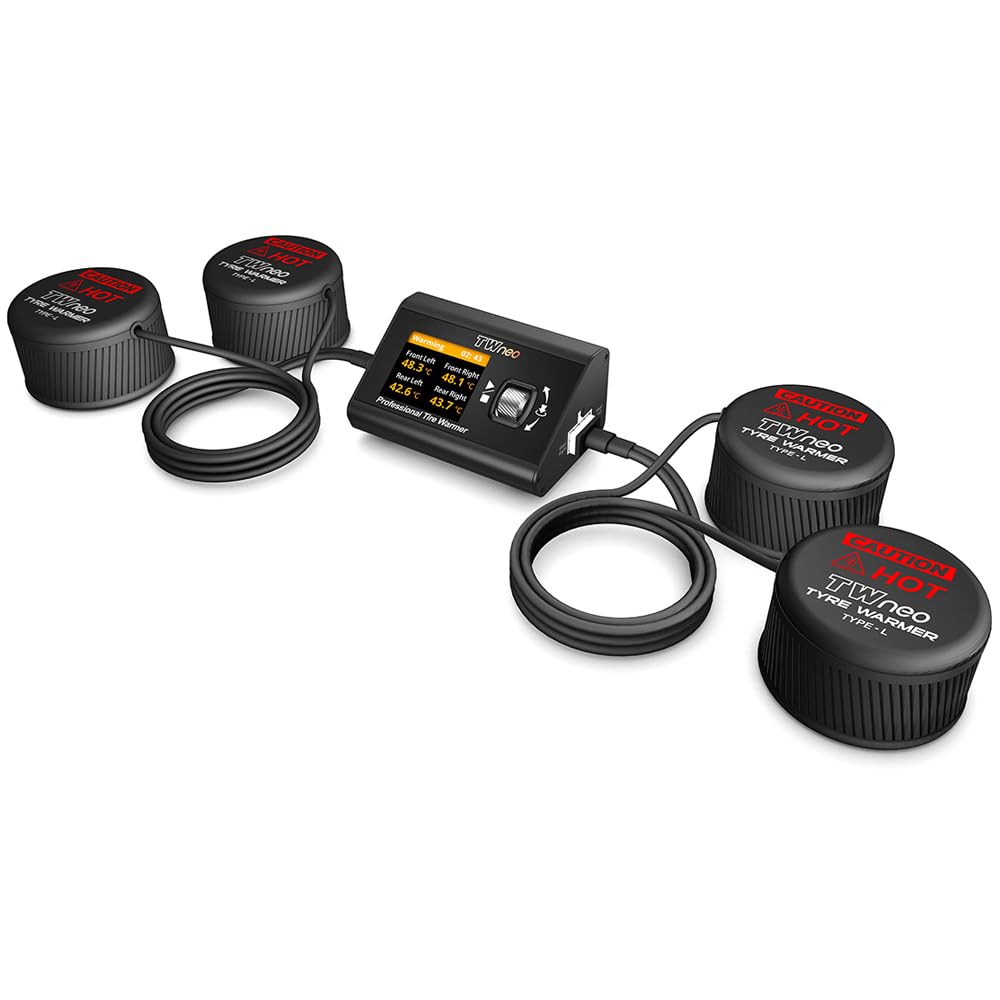

Image 1.1: The Xiangtat SKY RC TWneo Tire Warmer main control unit connected to a single tire warming cup.

2. Safety Information

Please read all safety instructions carefully before operating the device. Failure to follow these instructions may result in injury or damage to the product.

General Safety Precautions:

• Always operate the tire warmer in a well-ventilated area.
• Keep the device away from water, moisture, and flammable materials.
• Do not touch the warming cups or tires immediately after heating, as they will be hot. Allow them to cool or use protective gloves. The warming cups are marked with "CAUTION HOT".
• Ensure the power source (DC input or Lipo battery) matches the specified voltage range (12-18V).
• Disconnect power when the device is not in use or during cleaning.
• Do not attempt to disassemble or modify the device. Refer all servicing to qualified personnel.
• Keep out of reach of children.

3. Product Features

The TWneo Tire Warmer offers a range of features designed for precision and convenience:

• Dual Power Sources: Compatible with 4S Lipo battery packs or 12-18V DC input.
• Independent Temperature Control: Set temperatures independently for front and rear tires.
• MCU Controlled Temperature: Microcontroller Unit ensures precise temperature regulation.
• Removable Warming Cups: Silicone warming cups are easily detachable for convenience and maintenance.
• Audible Alerts: Choose from 8 different beep tones for operational feedback.
• Minimum Temperature Setting: Allows for maintaining a base temperature.
• Switchable Units: Easily switch between Celsius (℃) and Fahrenheit (℉).
• Safety Timer: Integrated timer for safe operation.
• Even Heating: Silicone warming cups provide uniform heat distribution and excellent heat preservation.
• Reverse Polarity Protection: Enhanced safety for flexible input voltage.

4. Package Contents

Verify that all items are present in your package:

• 1x TWneo Main Control Unit
• 4x Silicone Tire Warming Cups with integrated cables (2 Front, 2 Rear)
• 1x DC Input Power Cable (if included)

Image 4.1: Two of the four silicone tire warming cups, showing the 'CAUTION HOT' label and cable.

5. Setup

Follow these steps to set up your TWneo Tire Warmer:

1. Connect Power: Connect your 4S Lipo battery pack or a 12-18V DC power supply to the power input port on the main control unit. Ensure the connection is secure. The unit features reverse polarity protection.
2. Connect Warming Cups: Plug each silicone warming cup's cable into the corresponding port on the main control unit. The ports are typically labeled 'Front Left', 'Front Right', 'Rear Left', and 'Rear Right'.
3. Position Warming Cups: Place the warming cups securely over the tires of your RC car. Ensure full contact between the cup and the tire surface for optimal heating.

Image 5.1: The TWneo main control unit with all four tire warming cups properly connected to their respective ports.

6. Operating Instructions

Once set up, operate your TWneo Tire Warmer as follows:

1. Power On: The unit will automatically power on when connected to a valid power source. The display will illuminate, showing current tire temperatures and settings.
2. Display Overview: The display shows 'Warming' status, elapsed time, and individual temperatures for Front Left, Front Right, Rear Left, and Rear Right tires.
3. Setting Temperature: Use the control knob and buttons (if present) to navigate the menu. Select the desired temperature for the front and rear tires independently. The MCU will then regulate the heating elements to reach and maintain these temperatures.
4. Switching Units (℃/℉): Access the settings menu to toggle between Celsius and Fahrenheit temperature displays.
5. Safety Timer: Set the desired warming duration using the safety timer function. The unit will automatically stop heating after the set time.
6. Beep Tones: Customize the audible feedback by selecting one of the 8 available beep tones in the settings menu.
7. Monitoring: Continuously monitor the tire temperatures on the display. The unit will indicate when the target temperatures are reached.

Image 6.1: A close-up view of the TWneo display, showing 'Warming' status, elapsed time, and individual tire temperatures in Celsius.

7. Maintenance

Proper maintenance ensures the longevity and performance of your tire warmer.

• Cleaning: Disconnect power before cleaning. Use a soft, dry cloth to wipe the main control unit. For the silicone warming cups, a slightly damp cloth can be used. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the tire warmer in a cool, dry place away from direct sunlight and extreme temperatures. Ensure cables are not kinked or strained.
• Inspection: Periodically inspect cables and connectors for any signs of wear or damage. Replace damaged components immediately.

8. Troubleshooting

If you encounter issues with your TWneo Tire Warmer, refer to the following common problems and solutions:

Unit Not Powering On:

• Check if the power source (Lipo battery or DC input) is properly connected and providing the correct voltage (12-18V).
• Ensure the power source itself is charged or functioning correctly.

Warming Cups Not Heating:

• Verify that each warming cup cable is securely plugged into its designated port on the main unit.
• Check the temperature settings on the display to ensure a target temperature is set above the current ambient temperature.
• Inspect the warming cup cables for any visible damage.

Inaccurate Temperature Readings:

• Ensure the warming cups are making full and even contact with the tire surface.
• Atmospheric conditions can affect final tire temperature readings; ensure the device is used in a stable environment.

9. Specifications

10. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
