Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your JAZAVA 8-Inch Modern Farmhouse Pendant Light. Please read this manual thoroughly before beginning installation and retain it for future reference. This single pendant hanging fixture is designed to provide focused lighting and enhance the aesthetic of kitchen islands, dining rooms, and entryways.

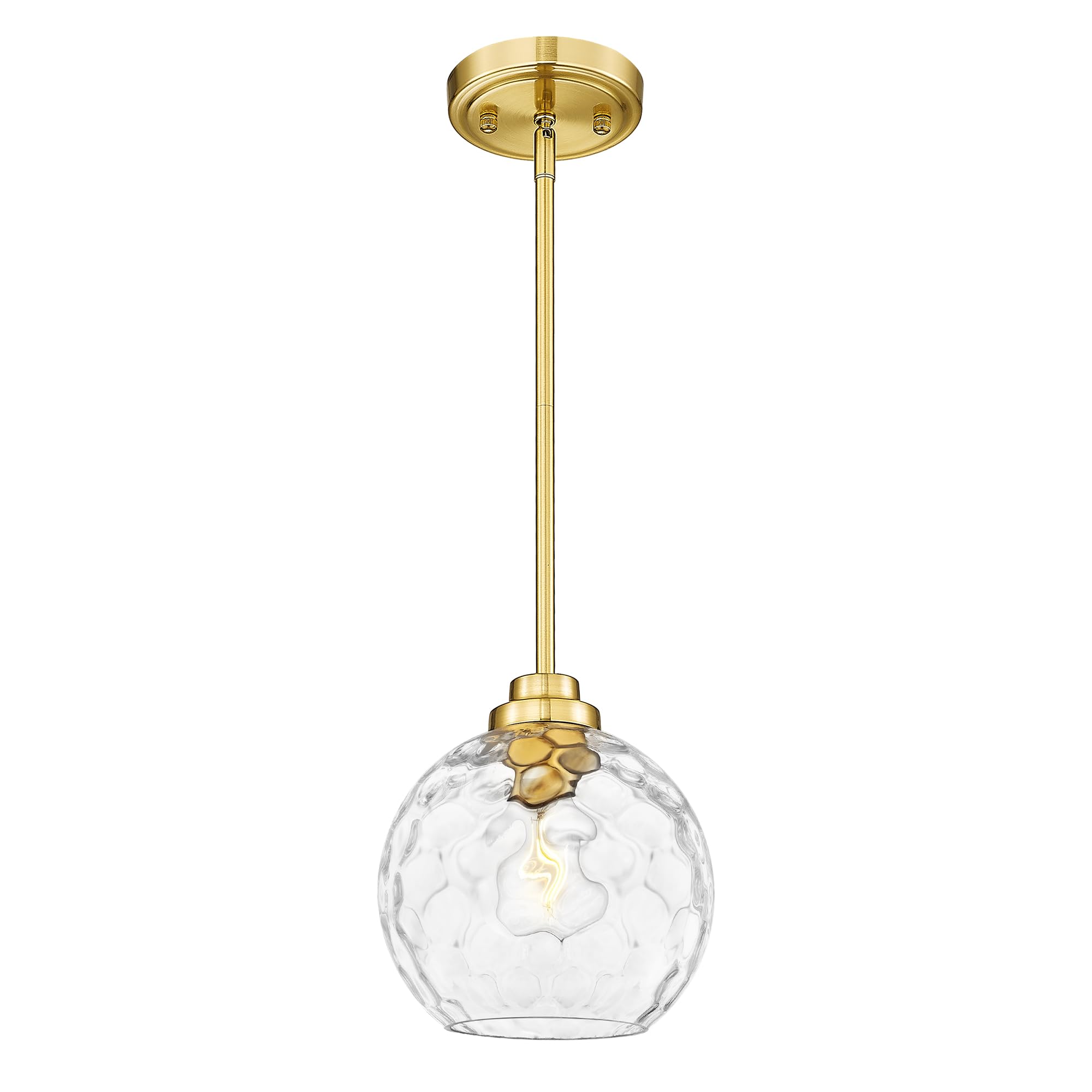

Figure 1: JAZAVA 8-Inch Modern Farmhouse Pendant Light, showcasing its hammered glass shade and polished gold finish.
Safety Information
WARNING: Risk of electric shock. Disconnect power at the circuit breaker or fuse box before installation or servicing. Consult a qualified electrician if you are unsure about the installation process.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC).
- Use only UL/ETL listed wire connectors.
- Do not exceed the maximum wattage specified for this fixture.
- Handle glass components with care to prevent breakage.
- Ensure the fixture is securely mounted to a structural element of the ceiling.
Package Contents
Verify that all components are present before beginning installation:
- Pendant Light Fixture (1)
- Hammered Glass Shade (1)
- Mounting Hardware Kit (1)
- Downrods (3 x 12 inches, 1 x 6 inches)
- Instruction Manual (1)
Setup and Installation
Follow these steps to install your pendant light fixture:
- Turn Off Power: Before starting, ensure the power supply to the installation area is turned off at the circuit breaker or fuse box.
- Prepare Mounting: Attach the mounting bracket to the junction box in the ceiling using the provided screws. Ensure the bracket is securely fastened.
- Adjust Height: Determine the desired hanging height. This fixture includes multiple downrods (3x12" + 1x6") allowing for adjustable installation height from 13.7" to 52.8". Connect the appropriate number of downrods to the fixture body and the canopy.
- Wire Connections: Connect the fixture's wires to the corresponding household wires (black to black, white to white, ground to ground) using the wire connectors. Ensure all connections are secure.
- Mount Canopy: Carefully push the canopy up to the ceiling, aligning the screws on the mounting bracket with the holes in the canopy. Secure the canopy with the decorative nuts.
- Install Glass Shade: Attach the hammered glass shade to the fixture body. Ensure it is firmly seated and secured according to the design.
- Install Bulb: Insert an E26 base bulb (not included) into the socket. Do not exceed the maximum wattage of 60W.
- Restore Power: Once installation is complete, restore power at the circuit breaker.
Figure 2: Detailed dimensions, adjustable rod lengths, and electrical specifications for the pendant light.
Figure 3: Example of pendant light placement and spacing over a kitchen island, showing both 6-inch and 8-inch diameter options.
Operating Instructions
This pendant light operates via a standard wall switch (not included). Once installed and power is restored, use your wall switch to turn the light on or off. The fixture is compatible with E26 base LED, incandescent, or Edison-style bulbs (bulb not included) up to 60 watts. Choose a bulb that provides your desired ambiance.
Video 1: Demonstration of the JAZAVA pendant light, showcasing its design, various finishes, and the comfortable lighting ambiance it creates when turned on and off.
Figure 4: The pendant light creating a comfortable lighting effect, with light diffused through the hammered glass.
Maintenance
To maintain the appearance and functionality of your pendant light:
- Cleaning: Always disconnect power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or glass.
- Bulb Replacement: Ensure the power is off and the bulb has cooled before attempting to replace it. Unscrew the old bulb and screw in a new E26 base bulb, ensuring it does not exceed 60 watts.
Figure 5: Close-up view of the hammered glass and brushed gold components, highlighting the product's material quality.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | 1. Power is off. 2. Bulb is faulty or loose. 3. Wiring connections are incorrect. | 1. Check circuit breaker/wall switch. 2. Replace bulb or tighten it. 3. Verify wiring connections (consult electrician if needed). |
| Light flickers. | 1. Loose bulb. 2. Incompatible dimmer switch. 3. Loose wiring connection. | 1. Tighten bulb. 2. Ensure dimmer switch is compatible with the bulb type. 3. Check wiring connections (consult electrician if needed). |
| Glass shade arrived damaged. | Shipping damage. | Contact customer support for a replacement. |
Specifications
- Brand: JAZAVA
- Model Number: ZCPL101HBG-L
- Color: Polished Gold & Hammered Glass
- Material: Glass
- Style: Modern Farmhouse
- Light Fixture Form: Pendant
- Room Type: Dining Room, Kitchen Island, Entryway
- Indoor/Outdoor Usage: Indoor use only
- Power Source: AC
- Special Features: Adjustable Height
- Light Source: LED (compatible)
- Number of Light Sources: 1
- Voltage: 110-120 Volts
- Wattage: Max 60 watts
- Bulb Base: E26
- Switch Type: Wall Switch (not included)
- Water Resistance Level: Not Water Resistant
- Mounting Type: Ceiling Mount (Semi Flush Mount)
- Required Assembly: Yes
- Item Dimensions (L x W x H): 8"L x 8"W x 50"H (adjustable)
Warranty
This JAZAVA product is backed by a manufacturer's warranty. For specific warranty details and duration, please refer to the documentation included with your purchase or contact JAZAVA customer support. If the glass shade arrives damaged or needs replacement, please reach out to us for prompt assistance.
Support
For any questions, technical assistance, or to report damaged parts, please contact JAZAVA customer support. Our dedicated after-sales service team in the United States is available to assist you.
Please have your model number (ZCPL101HBG-L) and purchase information ready when contacting support.
