Introduction
The HPBS 5000A Jump Starter with Air Compressor (Model A1) is a multi-functional portable device designed for automotive emergencies and general utility. It combines a powerful jump starter capable of restarting 12V vehicles with up to 10.0L gasoline and 8.0L diesel engines, a 150 PSI tire inflator, a power bank for charging electronic devices, and an LED flashlight with SOS and strobe functions. This manual provides essential information for safe and effective use.

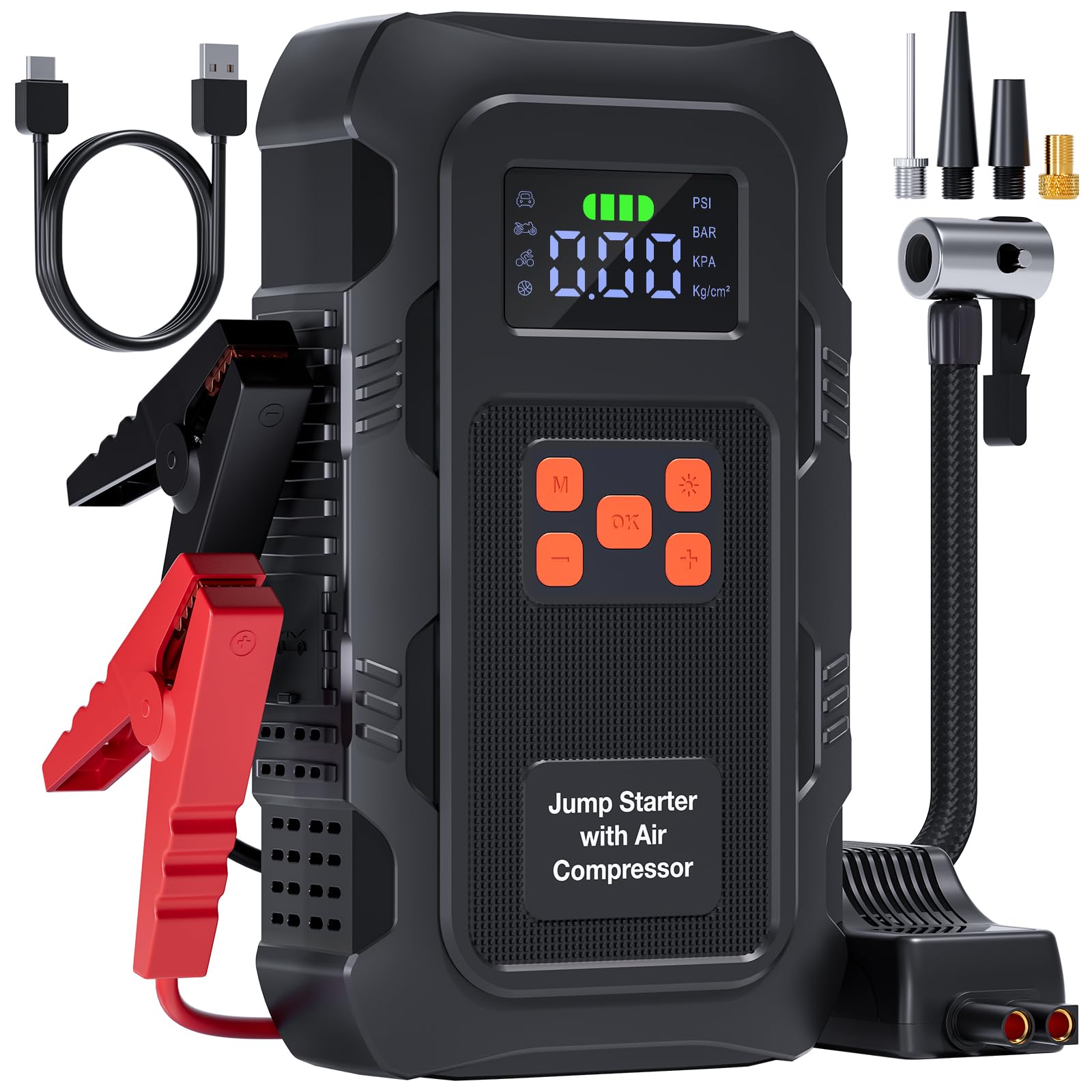

Figure 1: HPBS 5000A Jump Starter with Air Compressor (Model A1)
Safety Information
Always adhere to the following safety guidelines to prevent injury or damage to the device and vehicle:
- Do not use the air pump function continuously for more than 10 minutes. Allow a 10-minute rest period after each 10 minutes of continuous use to prevent overheating.
- Charge the jump starter fully upon first receipt.
- It is recommended to start the car when the jump starter's power level is above 75%.
- Recharge the jump pack every 2-3 months to extend battery life, even if not in use.
- Avoid using the jump starter on cars with an engine displacement exceeding the specified limits (10.0L gasoline, 8.0L diesel).
- Wait 30 seconds between jump-start attempts to prevent overheating.
- The device features 10 built-in protections (reverse connection, overcurrent, overvoltage, overload, overcharge/discharge, etc.) to ensure safe operation. Indicator lights and beeping sounds from the smart jumper clamps will alert you to incorrect connections or errors.
- Keep out of reach of children.
- Do not disassemble the unit.
Figure 2: Built-in Smart BMS Safety System protections.
Package Contents
Verify that all items are present in your package:
- 1 x HPBS 5000A Jump Starter with Air Compressor
- 1 x Smart Jumper Cable
- 1 x USB Type-C Charging Cable
- 1 x Storage Box
- 1 x Pump Tube
- 4 x Air Nozzles
- 1 x User Manual (this document)
Figure 3: All items included in the HPBS 5000A Jump Starter package.
Setup and Charging
Before initial use, fully charge the HPBS 5000A Jump Starter. This ensures optimal performance and extends battery life.
- Connect the provided USB Type-C charging cable to the charging port on the jump starter.
- Connect the other end of the USB cable to a suitable USB power adapter (not included) or a powered USB port.
- The digital display will indicate the charging status. Charge until the battery indicator shows full.
Note: For best results and to maintain battery health, recharge the unit every 2-3 months, even when not in active use.
Figure 4: Charging the HPBS 5000A Jump Starter.
Operating Instructions
1. Jump Starting a Vehicle
Ensure the jump starter is at least 75% charged before attempting to jump-start a vehicle.
- Connect Smart Jumper Cable: Insert the smart jumper cable into the jump starter's port. Ensure a secure connection.
- Connect to Car Battery: Attach the red (+) clamp to the positive terminal of the car battery. Attach the black (-) clamp to the negative terminal of the car battery.
- Verify Connection: The LED indicator on the smart jumper cable should turn green, indicating a correct and safe connection. If it shows red or beeps, check the connections for polarity or other errors.
- Start Vehicle: Once the indicator is green, start your car's engine.
- Remove Clamps: After the car starts, immediately remove the jumper clamps from the car battery, then disconnect the smart jumper cable from the jump starter.
Figure 5: Correct connection and steps for jump starting a vehicle.
Video 1: Official demonstration of the HPBS Jump Starter with Air Compressor in use for jump starting.
2. Using the Tire Inflator (Air Compressor)
The 150 PSI air compressor can inflate tires for cars, motorcycles, bikes, and other inflatables using the included nozzles.
- Connect Air Hose: Screw the pump tube securely onto the air outlet port of the jump starter.
- Attach Nozzle: Select the appropriate air nozzle for your item (car tire, bike valve, ball needle) and attach it to the pump tube.
- Connect to Item: Connect the nozzle to the tire valve or inflatable item.
- Power On and Select Mode: Turn on the jump starter. Short press the 'M' button to cycle through inflation modes (Car, Motorcycle, Bicycle, Ball). The display will show the current pressure and target pressure.
- Set Target Pressure: Use the '+' and '-' buttons to set your desired target pressure. The unit supports PSI, KPA, BAR, and KG/CM².
- Start Inflation: Long press the 'OK' button to begin inflation. The compressor will automatically stop once the target pressure is reached.
- Disconnect: Disconnect the nozzle and pump tube.
Important: Allow the compressor to cool for at least 10 minutes after 10 minutes of continuous use to prevent damage from overheating.
Figure 6: Using the portable tire inflator function with detailed steps.
Video 2: Short demonstration of the HPBS Jump Starter's air compressor inflating a tire.
3. Using as a Power Bank
The jump starter can charge USB-powered devices like smartphones and tablets.
- Connect your device's USB charging cable to the USB output port on the jump starter.
- The jump starter will automatically begin charging your device.
Figure 7: Using the jump starter as a portable power bank.
4. Using the LED Flashlight
The built-in LED flashlight offers multiple modes for various situations.
- Turn On/Off: Press and hold the flashlight button to turn the light on or off.
- Change Modes: Short press the flashlight button to cycle through modes: Normal, SOS, and Strobe.
Figure 8: The 400-lumen LED flashlight with SOS and Strobe functions.
Maintenance
Proper maintenance ensures the longevity and reliability of your HPBS 5000A Jump Starter.
- Regular Charging: Recharge the unit every 2-3 months to maintain battery health, even if it has not been used.
- Storage: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. The operating temperature range is -4°F to 140°F (-20°C to 60°C).
- Cleaning: Wipe the device with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Air Compressor Cooling: Always allow the air compressor to cool down for at least 10 minutes after 10 minutes of continuous operation.
Figure 9: The jump starter is designed to operate in various environmental conditions.
Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Battery is depleted. | Charge the device fully using the USB Type-C cable. |
| Car does not start after jump-start attempt. | Incorrect clamp connection; jump starter battery too low; vehicle battery severely damaged. | Ensure clamps are connected correctly (red to +, black to -) and the smart cable indicator is green. Ensure jump starter is above 75% charge. If issues persist, consult a mechanic. Wait 30 seconds between attempts. |
| Air compressor does not inflate or stops prematurely. | Hose not securely connected; target pressure reached; overheating; low device battery. | Check all hose and nozzle connections. Verify target pressure setting. Allow device to cool if used continuously for over 10 minutes. Charge the device if battery is low. |
| Smart jumper cable indicator shows red or beeps. | Reverse polarity connection; short circuit; overcurrent. | Immediately disconnect clamps and re-connect them correctly (red to positive, black to negative). If the issue persists, there might be a fault with the vehicle battery or the smart cable. |
Specifications
| Feature | Detail |
|---|---|
| Brand | HPBS |
| Model Number | A1 |
| Peak Amperage | 5000 Amps |
| Engine Compatibility | Up to 10.0L Gas, 8.0L Diesel |
| Voltage | 12 Volts |
| Battery Cell Composition | Lithium Polymer |
| Battery Capacity | 59.2 Amp Hours |
| Air Compressor Pressure | 150 PSI |
| Airflow Rate | 30L/min |
| Product Dimensions (D x W x H) | 5.5" x 8.46" x 4.7" |
| Item Weight | 1.6 Pounds |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Safety Certifications | UL, FCC, IEC standards compliant |
Warranty and Support
Your HPBS 5000A Jump Starter comes with a comprehensive warranty and dedicated customer support.
- Warranty: Enjoy peace of mind with a 24-month warranty covering manufacturing defects and quality-related issues.
- Customer Support: 24/7 customer support is available for any questions or assistance you may need. Please refer to the contact information provided in your package or on the official HPBS website.
