1. Introduction
Thank you for choosing the OSRAM ENDURA Flood 50W Outdoor LED Projector with Sensor. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new floodlight. Please read these instructions carefully before use and retain them for future reference.

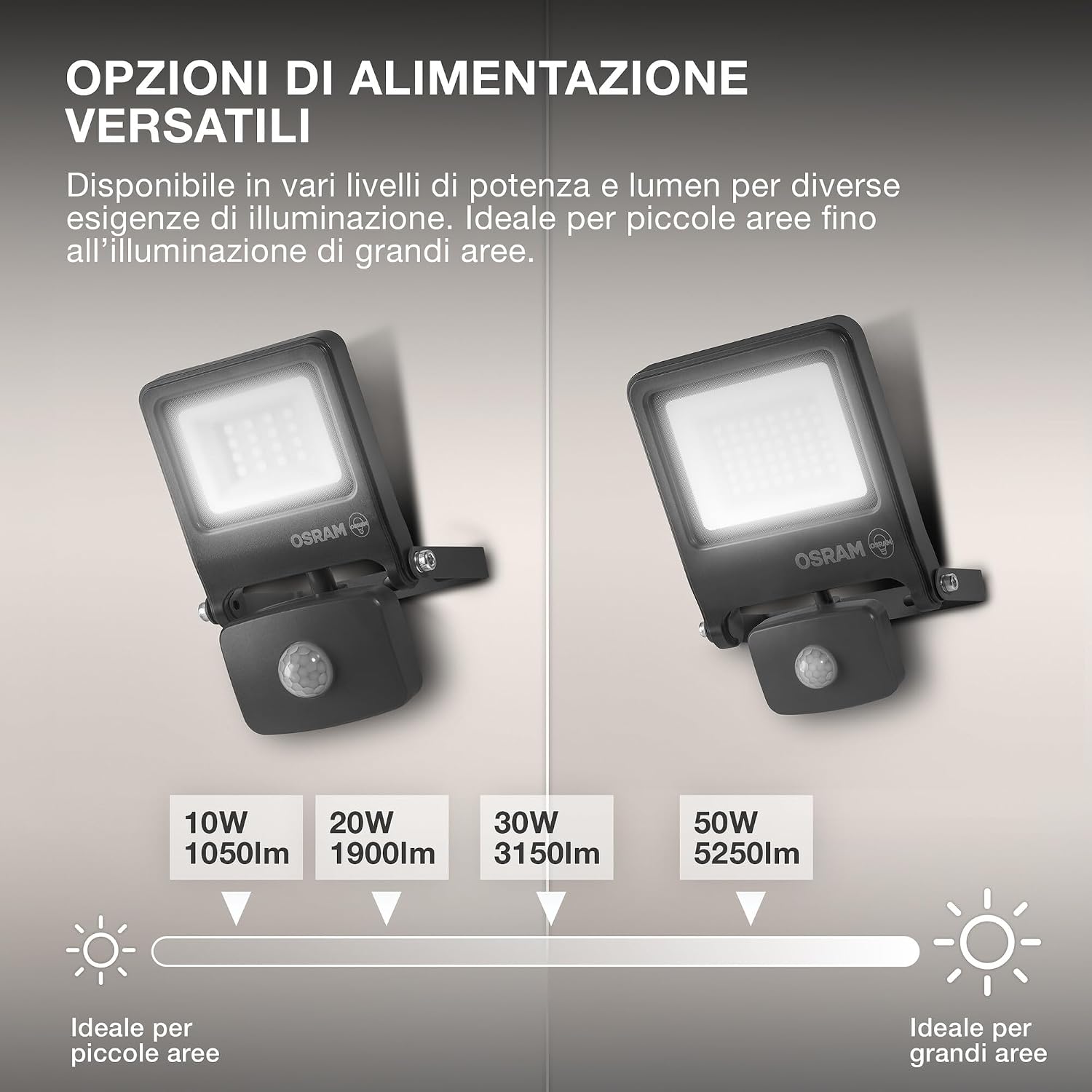

A front-facing view of the OSRAM ENDURA Flood 50W outdoor LED projector, showcasing its compact design and integrated motion sensor. The light panel is visible, indicating the LED array.
2. Safety Information
- Electrical Safety: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure the power supply is disconnected before installation or maintenance.
- Voltage: This product operates on 220 Volts AC. Verify your power supply matches this requirement.
- Protection Class: This product is Protection Class I, meaning it must be earthed.
- Water Resistance: The projector has an IP65 rating, providing protection against water jets. It is suitable for outdoor use in various weather conditions.
- LED Source: The LED light source in this luminaire is not replaceable. When the light source reaches its end of life, the entire luminaire shall be replaced.
- Operating Environment: Designed for outdoor use, including facades, garages, and other exterior areas.
3. Package Contents
Carefully unpack the box and ensure all items are present and undamaged. If any components are missing or damaged, contact your retailer.
- 1x OSRAM ENDURA Flood Sensor Warm White PCR 50W Dark Grey Projector
- Integrated 1m connection cable
- Mounting bracket (pre-attached)
- Instruction Manual (this document)
The product packaging box for the OSRAM ENDURA Flood projector, displaying key features, specifications, and a QR code for additional information.

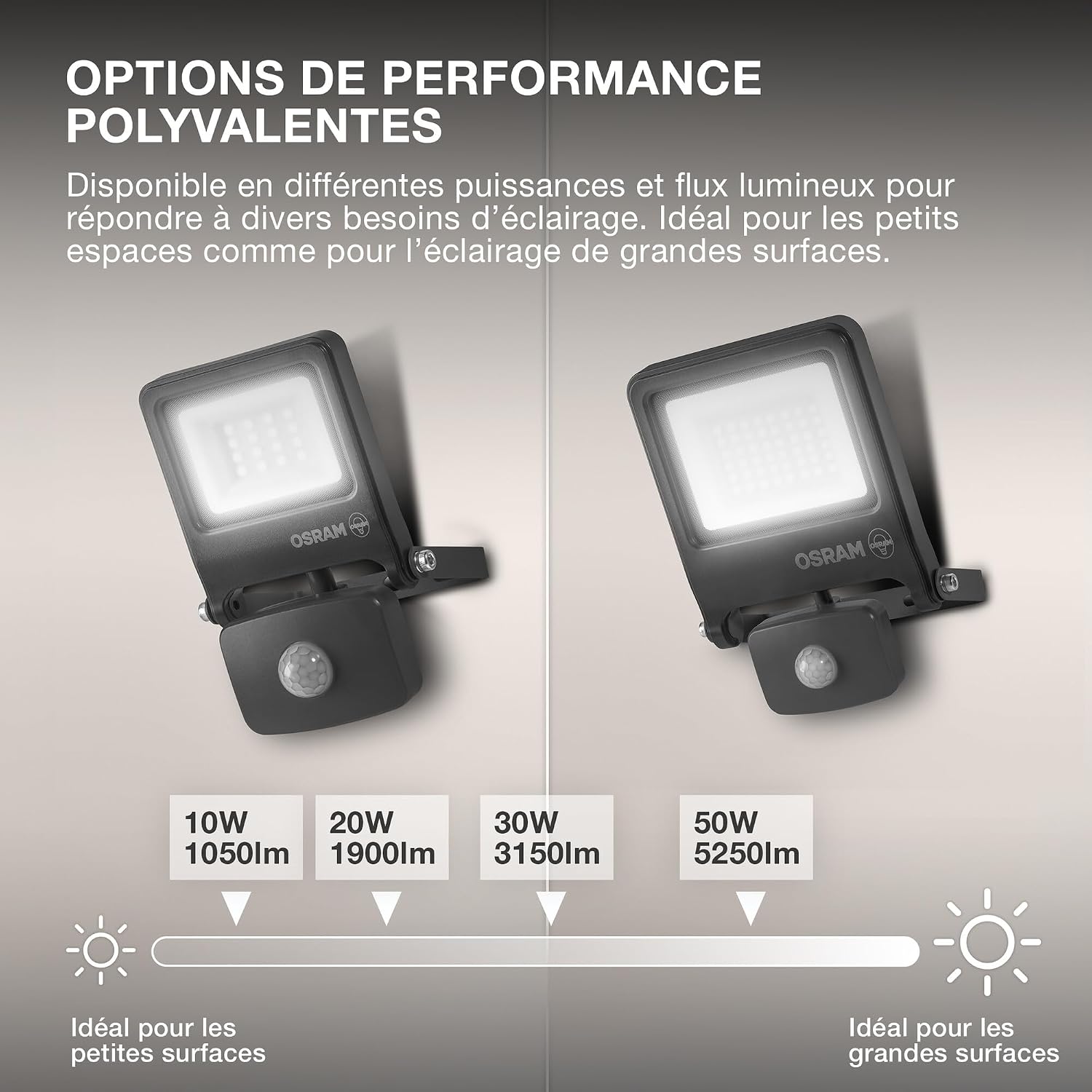

4. Product Overview
The OSRAM ENDURA Flood projector is a high-performance outdoor LED light designed for efficient and reliable illumination with integrated motion detection.
Key Features:
- High Efficiency LED: 50W power consumption with 5000lm luminous flux, providing up to 100 lm/W efficiency.
- Warm White Light: 3000K color temperature for a comfortable and inviting ambiance, with a Color Rendering Index (CRI) >80 for natural colors.
- Integrated Motion and Daylight Sensor: Detects movement up to 9 meters. Sensitivity and delay time are adjustable.
- Durable Construction: Housing made from 100% recycled aluminum with a partially frosted tempered glass cover for uniform light distribution. Dark grey finish.
- Wide Beam Angle: Symmetrical 110° x 110° beam angle ensures uniform illumination.
- Adjustable Mounting: 180° rotatable mounting bracket for precise light direction.
An illustrative image comparing the light output of two projectors: one emitting 3000K warm white light and another emitting 4000K cool white light, demonstrating the different ambiance each temperature creates. This specific model provides 3000K warm white light.
5. Installation Guide
Follow these steps for safe and correct installation. Always ensure power is disconnected before beginning.
5.1 Mounting Location
- Choose a suitable outdoor location (wall, ceiling, or floor) that provides the desired illumination area and allows for optimal motion sensor detection.
- Ensure the mounting surface is stable and can support the weight of the projector (700 grams).
- Consider the 1m cable length for power connection.
5.2 Mounting Steps
- Disconnect Power: Turn off the main power supply at the circuit breaker before starting any electrical work.
- Position Bracket: Use the pre-attached mounting bracket as a template to mark the drilling points on your chosen surface.
- Drill Holes: Drill appropriate holes for your mounting screws (not included, choose based on surface material).
- Secure Projector: Attach the projector securely to the surface using suitable screws and anchors.
- Wire Connection: Connect the 1m power cable to your electrical supply. Ensure correct wiring (Live, Neutral, Earth) according to local regulations. The projector is Protection Class I and requires an earth connection.
- Adjust Angle: Once mounted, adjust the projector's angle using the 180° rotatable bracket to direct the light as needed.
- Restore Power: Once installation is complete and all connections are secure, restore power to the circuit.
This image displays diagrams demonstrating the versatile mounting options for the projector: wall, ceiling, and floor installation. It also shows a person adjusting the light head, illustrating the 180-degree rotatable bracket for precise light direction.
6. Operating Instructions
The OSRAM ENDURA Flood projector features an integrated motion and daylight sensor for automatic operation.
6.1 Sensor Functionality
- The integrated IR motion sensor detects movement within its detection range (up to 9 meters).
- The daylight sensor ensures the light only activates when ambient light levels are below a set threshold, saving energy during daylight hours.
6.2 Adjusting Sensor Settings
The sensor typically has adjustable settings for:
- Sensitivity (SENS): Controls the detection range of the motion sensor. Adjust to prevent unwanted activations (e.g., from small animals or distant traffic).
- Time Delay (TIME): Determines how long the light remains on after motion is detected and then stops.
- Daylight Threshold (LUX): Sets the ambient light level at which the sensor becomes active. Adjust to ensure the light only comes on when it's dark enough.
Refer to the specific markings on the sensor unit for adjustment dials or switches. Use a small screwdriver if necessary to carefully turn the adjustment controls.
The OSRAM ENDURA Flood projector mounted on an exterior wall of a building, with an overlay graphic depicting the motion sensor's detection field, illustrating its function in an outdoor environment.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your projector.
- Cleaning: Periodically clean the projector's surface and sensor lens with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure power is off before cleaning.
- Inspection: Regularly check the mounting and wiring for any signs of wear, damage, or loose connections. Address any issues promptly.
- LED Source: The LED light source is not replaceable. Do not attempt to open the sealed unit.
8. Troubleshooting
If you encounter issues with your projector, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply; Daylight sensor setting too high; Faulty wiring. | Check power connection and circuit breaker; Adjust LUX setting; Verify wiring connections (consult electrician if unsure). |
| Light stays on constantly. | Continuous motion detected; Sensor setting incorrect; Faulty sensor. | Check for obstructions in sensor's field of view; Adjust TIME and SENS settings; Contact support if problem persists. |
| Light turns on too frequently/randomly. | Sensor sensitivity too high; Environmental factors (e.g., moving branches, small animals). | Reduce SENS setting; Reposition projector to avoid unwanted triggers. |
| Light flickers. | Unstable power supply; Loose connection. | Check power source stability; Verify wiring connections. |
9. Technical Specifications
| Specification | Value |
|---|---|
| Model Number | 4099854659577 |
| Brand | OSRAM |
| Manufacturer | LEDVANCE |
| Product Dimensions (L x W x H) | 17.2 x 7 x 22.3 cm |
| Weight | 700 grams |
| Material | 100% Recycled Aluminum |
| Color | Dark Grey |
| Power Source | AC (Alternating Current) |
| Voltage | 220 Volts |
| Wattage | 50 Watts |
| Luminous Flux | 5000 Lumens |
| Light Color | Warm White (3000 Kelvin) |
| Color Rendering Index (CRI) | >80 |
| Beam Angle | 110° x 110° |
| Bulb Type | Integrated LED (non-replaceable) |
| Switch Type | Motion Sensor and Daylight Detection |
| Motion Sensor Detection Range | Up to 9 meters |
| Waterproof Level | IP65 (Protected against water jets) |
| Protection Class | I (Requires earthing) |
| Installation Type | Surface Mount (Wall Mount) |
| Cable Length | 1 meter |
| Country of Origin | China |
A technical line drawing providing precise measurements (length, width, height) of the OSRAM ENDURA Flood projector, essential for planning installation.
10. Warranty and Support
For warranty information, please refer to the terms and conditions provided at the point of purchase or visit the official OSRAM website. For technical support or further assistance, please contact OSRAM customer service or your local retailer.
Manufacturer: LEDVANCE
Brand Website: Visit the OSRAM Store on Amazon
