Thank you for choosing the VITILAN V3 Electric Folding Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric bicycle. Please read this manual thoroughly before your first ride and keep it for future reference. Proper understanding and adherence to these instructions will ensure optimal performance and longevity of your bike.
2. Safety Information
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Observe all local traffic laws and regulations. Before each ride, perform a safety check:
Ensure tires are properly inflated.
Check that brakes are functioning correctly.
Verify that all quick releases and fasteners are securely tightened.
Confirm that the battery is securely locked and charged.
Ensure lights and horn are operational, especially for night riding.
Avoid riding in adverse weather conditions or on excessively rough terrain until you are familiar with the bike's handling characteristics. Do not exceed the maximum recommended weight capacity of 330 lbs (150 kg).
3. Package Contents
Upon unpacking, please verify that all components are present:
VITILAN V3 Electric Folding Bike (95% pre-assembled)
Removable 48V 13Ah Battery
Battery Charger
Safety Lights (Front and Rear)
Horn
User Manual
Assembly Tools (if applicable)
4. Setup and Assembly
Your VITILAN V3 bike comes 95% pre-assembled. The remaining steps typically involve unfolding the bike, attaching the handlebars, pedals, and ensuring all components are secure.
4.1 Unfolding the Bike
Carefully unfold the frame until it locks into place. Secure the frame hinge with the safety latch. Raise the handlebar stem and lock it into position. Adjust the seat post to your preferred riding height and secure it with the quick-release lever.

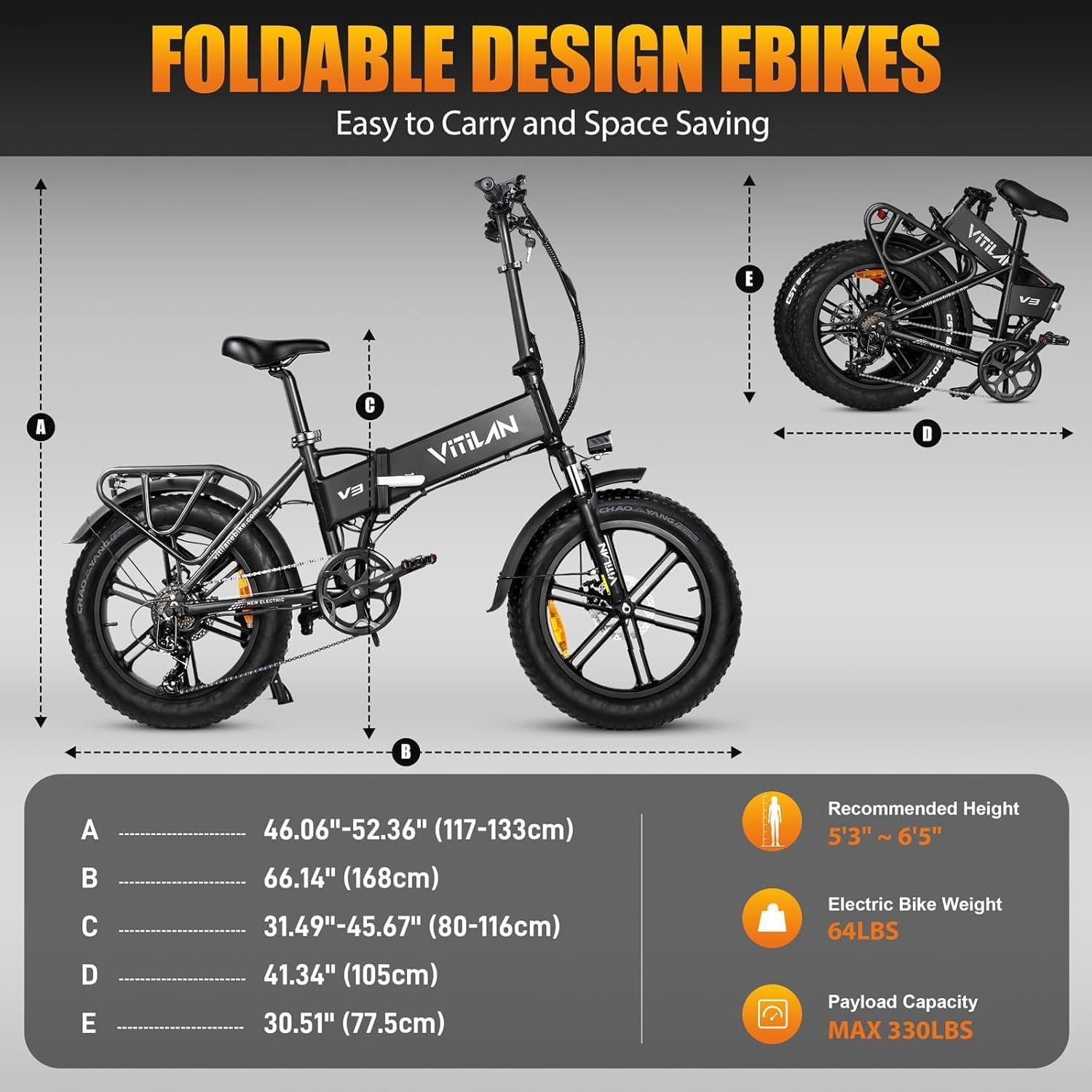

Image: The VITILAN V3 Electric Folding Bike shown in both its compact, folded state and its fully assembled, unfolded state. Key dimensions are indicated, highlighting its portability and operational size. The folded dimensions are approximately 41.34 inches (105 cm) in length and 30.51 inches (77.5 cm) in height.
4.2 Attaching Pedals and Handlebars
Attach the pedals, ensuring the left (L) and right (R) pedals are installed on the correct crank arms. Tighten them firmly. Adjust the angle of the handlebars and brake levers for comfortable riding, then secure them.
4.3 Battery Installation and Charging
Insert the 48V 13Ah removable battery into its compartment and lock it securely with the key. Before your first ride, fully charge the battery. The charging time is approximately 5-6 hours. Use only the provided charger.
5. Operating Instructions
The VITILAN V3 offers multiple riding modes and features for a versatile experience.
5.1 Powering On/Off and Display
Press and hold the power button on the LCD display to turn the bike on or off. The intelligent LCD display provides real-time information including battery level, current speed, mileage, and selected riding mode.
Image: A close-up of the VITILAN V3's multifunction color LCD display mounted on the handlebars. The display shows battery level, speed, PAS level (1-5), trip distance, and total odometer. Below the image, icons illustrate features like PAS levels, battery indicator, speed, headlight, mileage, and riding modes.
5.2 Riding Modes
The VITILAN V3 supports several riding modes:
Pure Electric Mode: Engages the motor via the throttle for propulsion without pedaling.
Pedal Assist System (PAS) Mode: Provides electric assistance as you pedal. There are 5 levels of assistance, adjustable via the display controls. This mode allows for a range of 60-80 km on a flat road.
Cruise Control Mode: Maintains a set speed without continuous throttle input.
Pedal Mode: Operates as a traditional bicycle without electric assistance.
Walk Mode: Provides low-speed assistance to help push the bike when walking alongside it.
Image: A woman stands beside a VITILAN V3 electric bike on a sandy beach, with the ocean in the background. An overlay lists the bike's riding modes: Pure Electric Mode (throttle only), PAS Mode (1-5 levels), Cruise Mode (uniform ride), Pedal Mode (like a normal bicycle), and Walk Mode (easy to push).
5.3 Gear Shifting
The VITILAN V3 is equipped with a 7-speed Shimano gear system. Use the shifter on the handlebars to change gears, allowing you to adapt to different terrains and optimize pedaling efficiency.
5.4 Braking System
The bike features hydraulic disc brakes for reliable stopping power. Always apply both brakes smoothly and evenly. Avoid sudden, hard braking, especially at high speeds or on loose surfaces.
5.5 All-Terrain Capability
The 20"x4.0" CST all-terrain fat tires provide excellent grip and stability on various surfaces, including urban roads, beaches, sand, and snow. The front suspension fork enhances comfort on uneven terrain.
Image: A detailed view of the 20"x4.0" CST all-terrain fat tire of the VITILAN V3 electric bike. The image highlights the tire's robust tread pattern, suitable for various terrains like urban roads, beaches, sand, and snow. A comparison graphic indicates the VITILAN tire's superior puncture and wear resistance compared to other tires.
Video: A short video showcasing the VITILAN V3 electric bike being ridden on various outdoor terrains, including dirt paths and hills. The video demonstrates the bike's stability and performance in different environments, highlighting its all-terrain capabilities.
6. Maintenance
Regular maintenance ensures the safety and longevity of your VITILAN V3 electric bike.
Cleaning: Clean the bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
Lubrication: Keep the chain, gears, and other moving parts lubricated.
Tires: Check tire pressure before each ride. The 20"x4.0" CST tires are designed for durability.
Brakes: Inspect brake pads for wear and adjust brake cables as needed. Hydraulic disc brakes require specific maintenance; consult a bike mechanic if unsure.
Battery Care: Store the battery in a cool, dry place. Charge it regularly, even if not in use, to maintain its health. Avoid fully discharging the battery.
Frame: The 6061 aluminum alloy frame is lightweight and resistant to corrosion. Regularly inspect for any signs of damage.
Image: A visual comparison highlighting the VITILAN V3's 6061 aluminum alloy frame against a generic carbon steel frame. The VITILAN frame is described as 10mm thick, lightweight (64 lbs), durable (anti-fracture), corrosion-resistant, and long-lasting (10+ years). The carbon steel frame is depicted as thinner (5mm), heavier (75 lbs), vulnerable to breakage, prone to rust and corrosion, and less durable (1-2 years).
Image: A grid of nine close-up images detailing key components of the VITILAN V3 electric bike. These include the front fork suspension, the lockable removable battery, the hydraulic disc brake, a USB charging port for phones, the front headlight, rear turn signals and taillight, the Shimano 7-speed shifter, the adjustable saddle, and the rear luggage rack.
7. Troubleshooting
This section addresses common issues you might encounter with your VITILAN V3 electric bike.
Bike not powering on: Check if the battery is fully charged and properly seated/locked. Ensure the power button on the display is pressed and held.
Motor not assisting: Verify that the PAS level is not set to 0. Check battery charge. Ensure all electrical connections are secure.
Brakes feel weak: Inspect brake pads for wear. Check brake fluid levels for hydraulic brakes. Adjust brake levers if necessary.
Unusual noises: Inspect the chain, gears, and wheels for any obstructions or loose components. Lubricate the chain if it sounds dry.
Reduced range: This can be due to low tire pressure, riding against strong headwinds, frequent use of high PAS levels, or an aging battery. Ensure proper tire inflation and consider lower PAS levels for extended range.
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact customer support.
8. Specifications
Feature
Specification
Model Name
Vitilan V3
Brand
VITILAN
Bike Type
Electric Bike, Folding Bike
Age Range Description
Adults
Motor Power
250W (Brushless Hub Motor)
Battery
48V 13Ah Removable
Charging Time
5-6 hours
Max Speed
25 km/h
Electric Range (Pure)
Up to 48 km
Electric Range (Assist)
Up to 80 km
Wheel Size
20 Inches
Tires
20"x4.0" CST All-Terrain Fat Tires
Suspension Type
Front Suspension
Brake System
Hydraulic Disc Brakes
Number of Speeds
7 (Shimano Integrated)
Frame Material
6061 Aluminum Alloy
Max Recommended Weight
330 lbs (150 kg)
Unfolded Dimensions
105 × 77.5 cm (approximate, specific dimensions for height/length vary)
Included Components
Safety Lights, Horn
UPC
754197709221

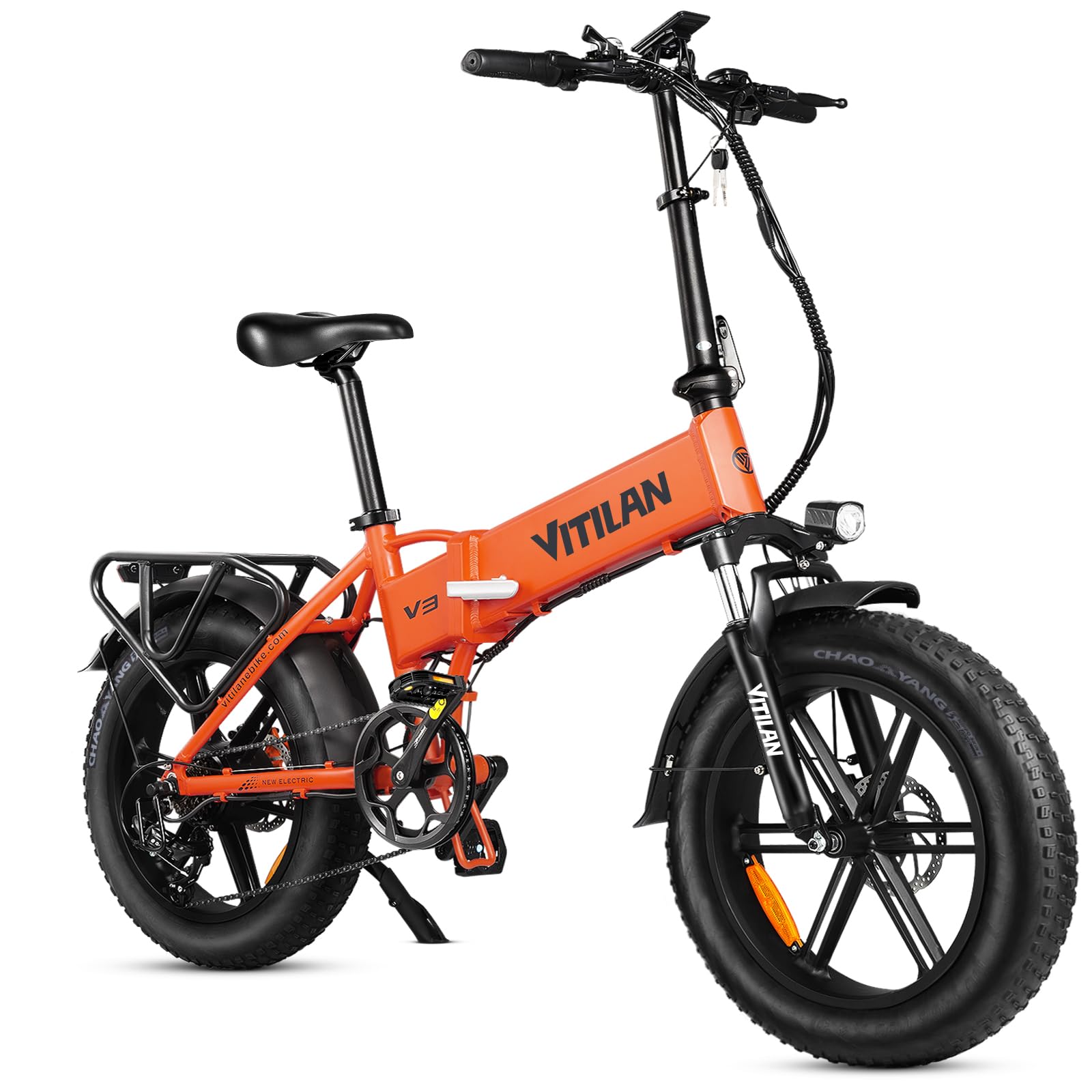

Image: The VITILAN V3 Electric Folding Bike in its Orange color variant, showcasing its overall design and features.
Image: A comparison graphic illustrating the VITILAN brushless hub motor against a generic motor. The VITILAN motor is highlighted as powerful, capable of a 35° uphill angle, providing 80N/m torque, and operating quietly. The 'other' motor is shown as less powerful, with a 25° uphill angle, 60N/m torque, and higher noise levels.
9. Warranty and Support
The VITILAN V3 Electric Folding Bike comes with a 1-year limited warranty. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.
For technical assistance, warranty service, or any questions regarding your VITILAN V3, please contact VITILAN customer support. Refer to the contact information provided with your purchase documentation.
