1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Dowinx LS-6658B Fabric Gaming Chair. Designed for comfort and functionality, this chair features a 145-degree reclining backrest, linked armrests, and a retractable ottoman, making it suitable for various activities including gaming, office work, and relaxation.
Image: Dowinx LS-6658B Fabric Gaming Chair in a home office setting.
2. Safety Information
- Read all instructions carefully before assembly and use.
- Ensure all screws and bolts are securely fastened before using the chair. Periodically check and tighten fasteners.
- Do not stand on the chair.
- Keep children and pets away from moving parts during adjustment.
- Use the chair on a level and stable surface to prevent tipping.
- Do not exceed the maximum weight capacity (if specified by manufacturer, not provided in data).
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
Image: Exploded view of chair components and features.
- Backrest
- Seat Cushion with Retractable Ottoman
- Left Armrest
- Right Armrest
- Gas Lift Cylinder
- Gas Lift Cover
- Star Base
- Casters (5 pcs)
- Headrest Pillow
- Lumbar Support Pillow
- Assembly Hardware (Screws, Washers, Allen Key)
4. Assembly Instructions
Assembly instructions are included with the product and are designed for easy setup. While assembly can be performed by one person, having a second person may simplify certain steps.
Image: Chair frame and key components.
- Attach Casters to Base: Insert the five casters into the holes at the ends of the star base until they click securely into place.
- Install Gas Lift: Place the gas lift cylinder into the center hole of the star base. Cover it with the gas lift cover.
- Attach Mechanism to Seat: Secure the seat mechanism to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism faces the front of the seat.
- Connect Seat to Gas Lift: Carefully place the assembled seat onto the gas lift cylinder.
- Attach Backrest to Seat: Align the backrest with the seat and secure it using the designated screws.
- Install Armrests: Attach the left and right armrests to the chair frame using the provided screws. Ensure they are oriented correctly.
- Attach Pillows: Place the headrest pillow and lumbar support pillow onto the backrest as desired.
Once assembled, test all functions to ensure proper operation.
5. Operating Instructions
5.1. Seat Height Adjustment
To adjust the seat height, pull the lever located on the right side of the seat upwards. While holding the lever, stand up to raise the seat or sit down to lower it. Release the lever to lock the height in place.
5.2. Reclining Function (145-Degree)
The backrest can be reclined up to approximately 145 degrees. Pull the recline lever (typically on the left side) upwards and lean back to your desired angle. Release the lever to lock the backrest position. The armrests are designed to move in conjunction with the backrest, providing continuous support.

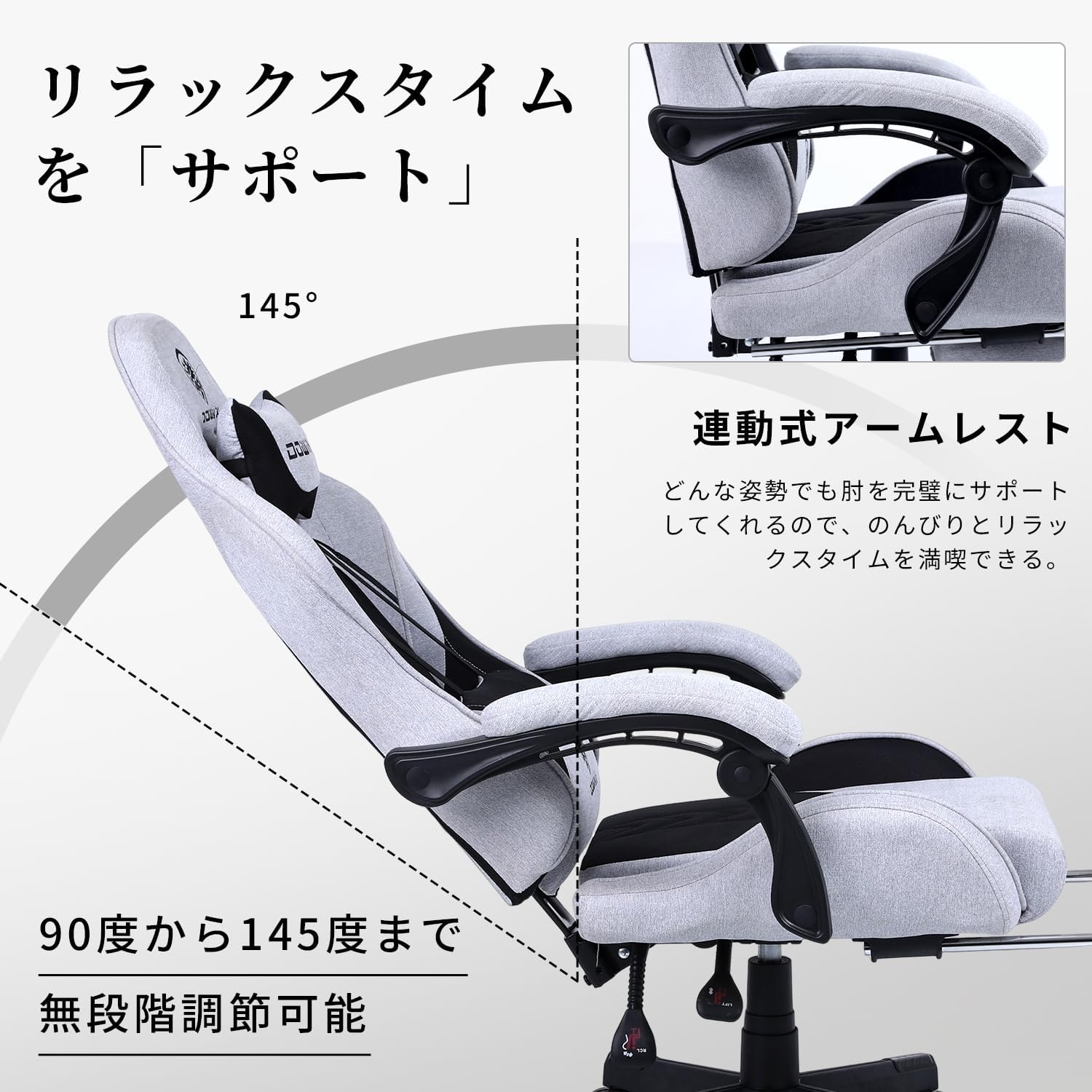

Image: Recline and linked armrest mechanism.
5.3. Retractable Ottoman
To use the ottoman, pull it out from underneath the seat cushion. Extend it to your desired length for leg support. When not in use, push it back under the seat for compact storage.
Image: User demonstrating the retractable ottoman.
5.4. Rocking Function
The chair features a rocking function. To enable rocking, pull out the height adjustment lever. Push the lever in to lock the chair in an upright position and disable rocking.
5.5. Lumbar Support Pillow
The lumbar support pillow can be adjusted vertically to provide optimal support for your lower back. Some models may include a vibration function for added comfort (check your specific model for this feature).
6. Maintenance
- Cleaning Fabric: For general cleaning, wipe the fabric with a damp cloth. For tougher stains, use a mild fabric cleaner according to its instructions. Avoid harsh chemicals.
- Checking Fasteners: Periodically inspect all screws and bolts to ensure they are tight. Re-tighten as necessary to maintain stability and safety.
- Caster Maintenance: Keep casters free of dust, hair, and debris to ensure smooth movement. Clean them regularly with a damp cloth.
- Gas Lift: Do not attempt to disassemble the gas lift cylinder. If it malfunctions, contact customer support.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not adjust height. | Gas lift lever not fully engaged or gas lift cylinder malfunction. | Ensure the lever is pulled completely. If the issue persists, the gas lift may need replacement. Contact support. |
| Chair feels unstable or wobbly. | Loose screws or uneven floor surface. | Check and tighten all assembly screws. Ensure the chair is on a flat, level surface. |
| Casters do not roll smoothly. | Debris (hair, dust) caught in casters. | Remove any debris from the caster wheels. Clean regularly. |
| Backrest does not recline or lock. | Recline lever not fully engaged or mechanism issue. | Ensure the recline lever is pulled correctly. Check for any obstructions. If the issue persists, contact support. |
8. Specifications
| Brand | Dowinx |
| Model Number | LS-6658B-01 |
| Color | Black & Gray |
| Material | Fabric, Pocket Coil, Alloy Steel, Urethane Foam |
| Product Dimensions (D x W x H) | 51 x 43 x 119 cm |
| Size | Medium |
| Special Features | Ergonomic, Lumbar Adjustment, Reclining, Rocking Function, Height Adjustment |
| Recommended Uses | Office, Gaming, Relaxation, Reading |
| Country of Origin | China |
| Included Components | Ottoman, Headrest, Lumbar Support |
| Indoor/Outdoor Use | Indoor |
| Furniture Base Movement | Swivel |
| Number of Reclining Stages | 2 |
| Assembly Required | Yes |
| Back Style | Highback, Racing Seat |
| Arm Style | Linked Armrest |
| Leg Style | Wheel |
| Inner Material | Pocket Coil, Urethane Foam |
9. Warranty and Support
Your Dowinx LS-6658B Fabric Gaming Chair comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use.
For warranty claims, replacement parts, or any other inquiries, please contact Dowinx customer support. Have your purchase receipt and model number (LS-6658B) ready when contacting support.
Image: Dowinx 1-Year Warranty.
