ABFOCE Waterproof Power Bank 10000mAh User Manual

1. Introduction

Thank you for choosing the ABFOCE Waterproof Power Bank 10000mAh, Model ES360. This rugged and compact portable charger is designed to provide reliable power for your devices in various outdoor and travel conditions. It features a 10000mAh capacity, waterproof and shockproof construction, an integrated LED flashlight, and a compass. Please read this manual carefully to ensure proper use and maintenance of your power bank.

2. Important Safety Information

• Do not expose the power bank to extreme temperatures (above 60°C/140°F or below -10°C/14°F).
• Avoid dropping, disassembling, or attempting to repair the device yourself.
• Keep away from fire, water, and corrosive materials.
• Ensure proper ventilation during charging and discharging.
• This power bank features smart internal safety protection against over-charge, over-current, short-circuit, and overheating. However, always monitor the device during use.
• Dispose of the power bank according to local regulations; do not discard with household waste.

3. Package Contents

Please check the package for the following items:

• ABFOCE Waterproof Power Bank 10000mAh
• Micro USB Charging Cable
• Carabiner Clip
• User Manual

Image: Contents of the ABFOCE Power Bank retail package.

4. Product Overview

The ABFOCE ES360 Power Bank is designed for durability and portability, featuring a robust construction and essential outdoor tools.

Key Features:

• 10000mAh Capacity: Provides multiple charges for smartphones and tablets.
• Rugged & Waterproof: ABS + silicone housing with nano-coating PCBA for protection against water, dust, and shocks (IPX6 rated).
• Built-in LED Flashlight: For emergency lighting or outdoor use.
• Integrated Compass: A practical tool for navigation.
• Compact & Portable: Ergonomic design for easy carrying in hand, pocket, or attached to a backpack.
• Safety Protections: Guards against over-charge, over-current, short-circuit, and overheating.

Image: Front view of the ABFOCE ES360 Power Bank.

Image: The power bank held in a hand, illustrating its compact size and ergonomic design.

Image: The power bank's waterproof capability, with water splashing over it.

Image: The power bank connected to a smartphone, demonstrating its charging function and capacity.

5. Setup

Initial Charging:

Before first use, it is recommended to fully charge your ABFOCE Power Bank. Connect the provided Micro USB cable to the power bank's input port and the other end to a USB wall adapter (not included) or a computer's USB port. The LED indicators will illuminate to show the charging status.

LED Indicators:

The power bank features multiple LED lights to indicate the remaining battery level and charging status. Refer to the specific number of illuminated LEDs for the approximate charge level.

6. Operating Instructions

6.1. Charging the Power Bank

1. Connect the Micro USB end of the charging cable to the power bank's input port.
2. Connect the USB-A end of the charging cable to a USB power source (e.g., wall adapter, computer).
3. The LED indicators will show the charging progress. All LEDs will be solid when fully charged.

6.2. Charging External Devices

1. Connect your device's charging cable to the USB-A output port on the power bank.
2. Connect the other end of your device's charging cable to your device.
3. The power bank will automatically begin charging your device. The LED indicators will show the remaining power level.
4. Disconnect your device once fully charged or when you wish to stop charging.

6.3. Using the LED Flashlight

1. To turn on the flashlight, press and hold the power button for approximately 3 seconds.
2. To switch between modes (e.g., steady, SOS, strobe), briefly press the power button.
3. To turn off the flashlight, press and hold the power button again for approximately 3 seconds.

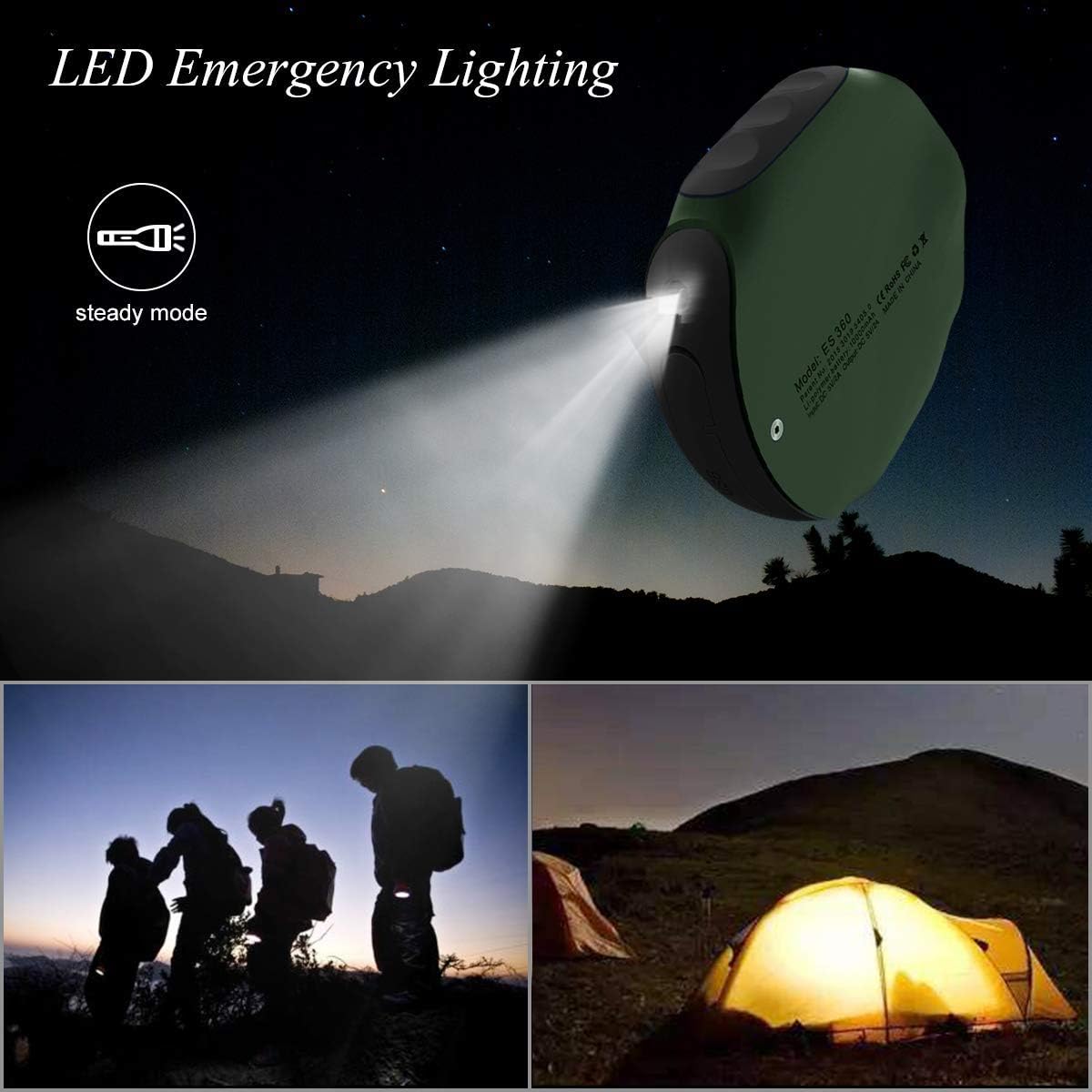

Image: The power bank's LED flashlight in operation, providing illumination.

6.4. Using the Compass

The integrated compass is located on the top of the power bank. For accurate readings, ensure the power bank is held level and away from strong magnetic fields or large metal objects that could interfere with the compass needle.

Image: The power bank attached to a backpack, highlighting its ease of transport.

Image: The power bank fitting easily into a pocket.

7. Maintenance and Care

• Cleaning: Wipe the power bank with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Life: To prolong battery life, fully charge the power bank at least once every three months if not in regular use.
• Water Exposure: While waterproof, ensure all ports are dry before connecting cables to prevent damage.

8. Troubleshooting

9. Specifications

10. Warranty and Support

Your ABFOCE Power Bank is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, warranty claims, or any questions regarding your product, please contact ABFOCE customer service through the retailer where the product was purchased or visit the official ABFOCE website for contact information.
