Generic Range Oven Spark Module

1. Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Generic 9758080 Range Oven Spark Module. This universal electric ignition system is designed to replace existing spark modules in most standard range ovens and cooktops, providing reliable ignition for gas burners and oven pilots.

Please read this manual thoroughly before attempting any installation or repair. Retain this manual for future reference.

2. Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Always disconnect power to the appliance before servicing. Failure to do so can result in electrical shock or personal injury.
• Turn off the gas supply to the appliance before servicing. Failure to do so can result in fire or explosion.
• Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection, during installation.
• Ensure all connections are secure and properly insulated after installation.
• This part is a refurbished component. It has been inspected, cleaned, and necessary contacts/plugs soldered to ensure functionality.

3. Product Overview

The Generic 9758080 Spark Module is a critical component in gas range ovens and cooktops, responsible for generating the high-voltage spark required to ignite the gas. It is a direct replacement module designed for broad compatibility with existing wiring and control systems.

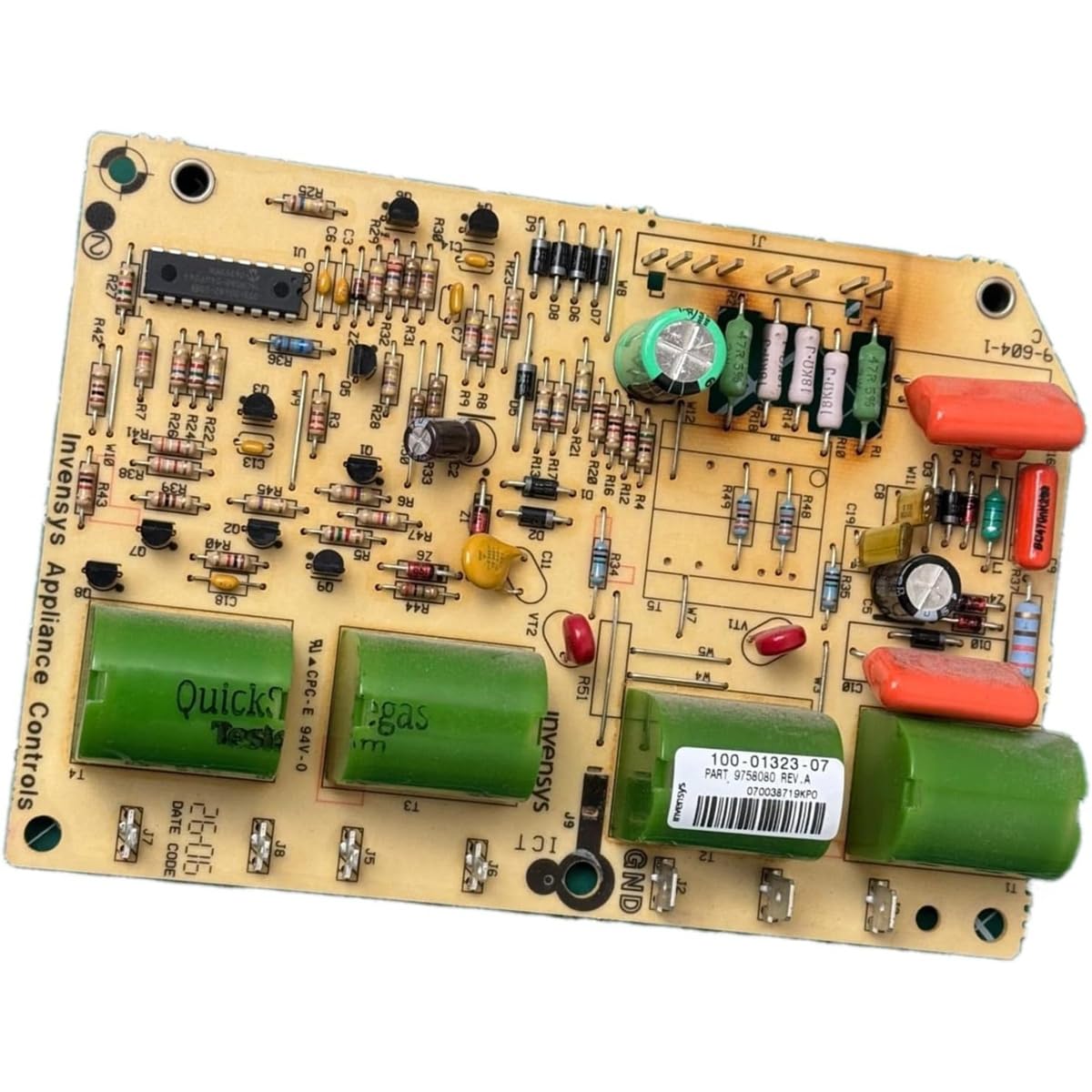

Figure 3.1: Overview of the 9758080 Range Oven Spark Module circuit board.

Key features include:

• Universal electric ignition system compatibility.
• Generates precise electrical sparks for safe and efficient ignition.
• Integrates with existing range oven wiring and control systems.
• Provides consistent and reliable ignition for both surface burners and oven pilots.

4. Setup and Installation

Professional installation is highly recommended for this component. Incorrect installation can lead to appliance malfunction, gas leaks, or electrical hazards.

4.1 Pre-Installation Steps

1. Disconnect Power: Unplug the range oven from the electrical outlet or turn off the circuit breaker supplying power to the appliance.
2. Turn Off Gas Supply: Locate the main gas shut-off valve for your range oven and turn it to the OFF position.
3. Access the Spark Module: Depending on your appliance model, you may need to remove the back panel, top panel, or control panel to access the existing spark module. Refer to your appliance's service manual for specific instructions.
4. Identify the Module: Confirm that the existing module matches the replacement part (9758080 or MHS3339). The part number is typically printed on a label on the module itself.

Figure 4.1: Close-up view showing the part number (9758080) on the module for identification.

4.2 Installation Procedure

1. Document Connections: Before disconnecting any wires, take clear photos or make a diagram of all wire connections to the old spark module. This will aid in correct reassembly.
2. Disconnect Wires: Carefully disconnect all wires from the old spark module. Note that some wires may be high-voltage ignition wires, while others are low-voltage control wires.
3. Remove Old Module: Unscrew or unclip the old spark module from its mounting location.
4. Install New Module: Position the new Generic 9758080 spark module in the same location and secure it using the original screws or clips.
5. Connect Wires: Reconnect all wires to the new spark module, referring to your photos or diagram. Ensure each wire is securely attached to its corresponding terminal. Pay close attention to the high-voltage ignition wires leading to the igniters.

Figure 4.2: Detailed view of the module's components, illustrating potential connection points for wiring.

4.3 Post-Installation Checks

1. Secure Panels: Reattach any panels or covers that were removed to access the module.
2. Restore Gas Supply: Turn the main gas shut-off valve back to the ON position.
3. Check for Gas Leaks: Apply a soapy water solution to all gas connections. If bubbles appear, there is a leak. Tighten connections or call a qualified technician immediately.
4. Restore Power: Plug the appliance back into the electrical outlet or turn on the circuit breaker.

5. Operating Instructions

The Generic 9758080 Spark Module operates automatically in conjunction with your range oven's controls. Once installed correctly, its function is seamless:

• When a surface burner knob is turned to the 'LITE' position, or the oven is set to a baking/broiling temperature, the control system sends a signal to the spark module.
• The spark module then generates a series of high-voltage sparks at the igniter electrodes located near the gas ports.
• These sparks ignite the gas flowing from the burner. Once the flame is established, the sparking typically stops automatically.

No direct user interaction with the spark module itself is required for operation.

6. Maintenance

The spark module itself is a sealed electronic component and generally requires no routine maintenance. However, ensuring the overall ignition system is clean and in good condition can prolong the life and efficiency of the module:

• Keep Igniters Clean: Periodically inspect and clean the ceramic igniters and burner ports. Food debris or grease can obstruct the spark or gas flow, preventing proper ignition. Use a soft brush or cloth to gently clean around the igniters.
• Check Wiring: During any other appliance servicing, visually inspect the wiring connected to the spark module for signs of wear, fraying, or loose connections.
• Avoid Moisture: Ensure the area around the spark module remains dry. Moisture can damage electronic components.

7. Troubleshooting

If your range oven is experiencing ignition issues after installing the new spark module, consider the following troubleshooting steps:

7.1 No Spark or Weak Spark

• Check Power and Gas: Ensure the appliance has power and the gas supply is fully open.
• Verify Connections: Re-check all wire connections to the spark module and igniters. Ensure they are secure and correctly placed according to your documentation.
• Inspect Igniters: Examine the ceramic igniters for cracks, damage, or excessive carbon buildup. A faulty igniter will prevent sparking even if the module is working. Replace damaged igniters if necessary.
• Grounding: Ensure the appliance and the spark module are properly grounded. Poor grounding can affect spark generation.
• Moisture: Check for any signs of moisture around the module or igniters. Allow any damp areas to dry completely.

7.2 Continuous Sparking (Even After Ignition)

• Flame Sensor Issue: This often indicates a problem with the flame sensor (if present) or the igniter's ability to sense the flame. Ensure the igniter is clean and positioned correctly relative to the burner flame.
• Moisture: Moisture or spills on the control panel or around the igniters can cause continuous sparking.
• Faulty Switch: A stuck or faulty burner switch can also cause continuous sparking.

If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance service technician.

8. Specifications

9. Warranty and Support

This Generic 9758080 Range Oven Spark Module comes with a 1-Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

For warranty claims or technical support, please contact your retailer or the manufacturer directly. Ensure you have your purchase receipt and the product model/part number available when contacting support.

For further assistance with installation or troubleshooting, it is recommended to consult a qualified appliance repair technician or refer to the service manual specific to your range oven model.
