Instruction Manual

1. Introduction

This manual provides essential instructions for the installation, operation, and maintenance of your new Generic carburetor, model xjw1122054nn. This carburetor is designed as a replacement part for Powerhorse 750143 3100PSI 2.5GPM 212cc Pressure Washers. Please read this manual thoroughly before attempting any installation or operation to ensure proper function and safety.

2. Safety Information

Always observe the following safety precautions when working with fuel systems and internal combustion engines:

• Ensure the pressure washer engine is turned off and cooled down before beginning any work.
• Disconnect the spark plug wire to prevent accidental starting.
• Work in a well-ventilated area to avoid inhaling fuel fumes.
• Wear appropriate personal protective equipment, such as gloves and eye protection.
• Handle gasoline with extreme care. It is highly flammable. Store fuel in approved containers.
• Keep open flames, sparks, and other ignition sources away from the work area.
• Dispose of old fuel and parts responsibly according to local regulations.
• If you are unsure about any step, consult a qualified service technician.

3. Package Contents

Your package includes the following items:

• 1 x Carburetor assembly
• Gaskets and seals (as shown in images)

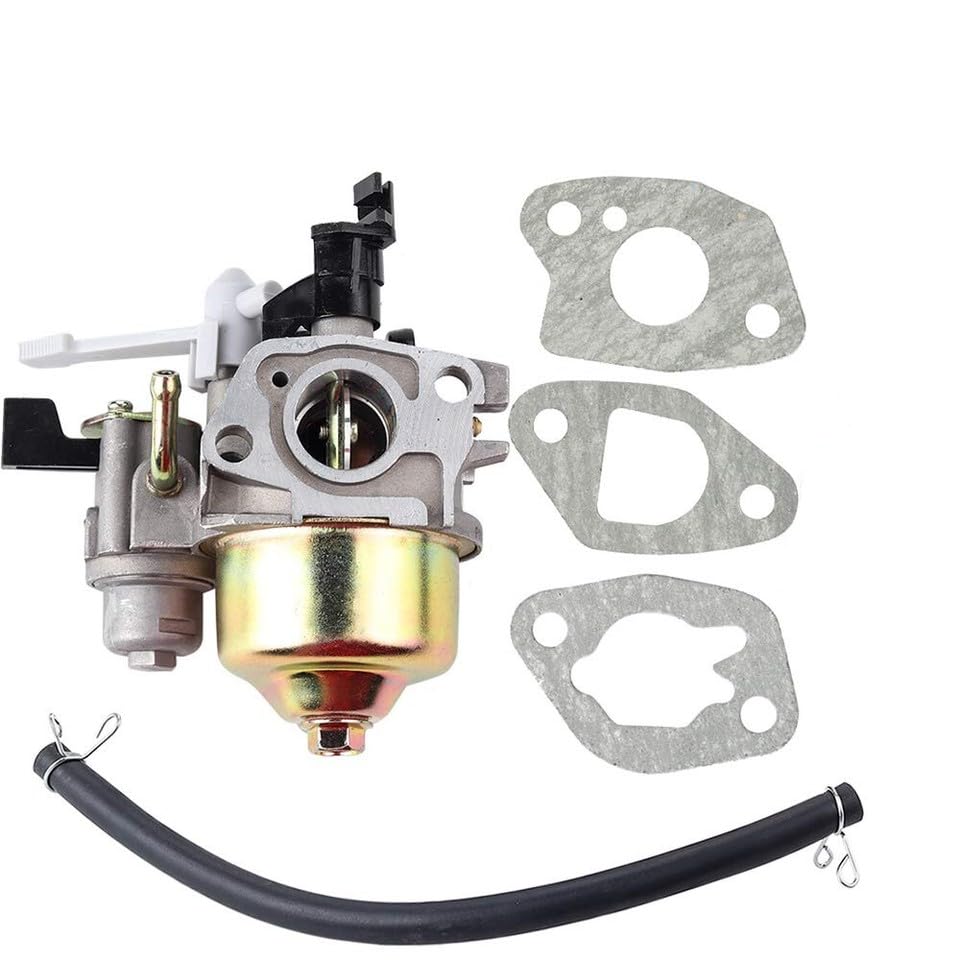

Figure 3.1: Complete carburetor assembly with associated components.

4. Setup and Installation

This carburetor is a direct replacement part. Installation typically involves removing the old carburetor and installing the new one. It is recommended that this procedure be performed by a qualified technician. If performing DIY installation, proceed with caution.

Required Tools (Not Included):

• Socket wrench set
• Screwdriver set
• Pliers
• Fuel line clamps
• Clean rags

Installation Steps:

1. Prepare the Pressure Washer: Ensure the engine is off and cool. Disconnect the spark plug wire. Turn off the fuel supply valve.
2. Drain Fuel: Place a suitable container under the carburetor and drain any remaining fuel from the fuel tank and carburetor bowl.
3. Remove Air Filter Assembly: Carefully remove the air filter housing and air filter element to access the carburetor.
4. Disconnect Fuel Line and Linkages: Use pliers to remove the fuel line clamp and disconnect the fuel line from the carburetor. Disconnect any throttle and choke linkages attached to the carburetor. Note their positions for reassembly.
5. Remove Old Carburetor: Unscrew the mounting bolts or nuts that secure the carburetor to the engine intake manifold. Carefully remove the old carburetor, ensuring all gaskets are removed.
6. Install New Carburetor: Place new gaskets (if provided) between the engine, insulator (if present), and the new carburetor. Mount the new carburetor, ensuring it is properly aligned. Secure it with the mounting bolts/nuts, tightening them evenly.


Figure 4.1: Front view of the carburetor, showing the air intake and fuel inlet.

7. Reconnect Linkages and Fuel Line: Reattach the throttle and choke linkages to their correct positions on the new carburetor. Reconnect the fuel line and secure it with a clamp.


Figure 4.2: Side view of the carburetor, highlighting the fuel bowl and adjustment screws (if applicable).

8. Reinstall Air Filter Assembly: Reattach the air filter element and housing.
9. Reconnect Spark Plug: Reconnect the spark plug wire.


Figure 4.3: Rear view of the carburetor, showing mounting points and linkage connections.

5. Operating Instructions

After installation, perform the following steps before starting the pressure washer:

1. Refill Fuel Tank: Fill the pressure washer's fuel tank with fresh, clean gasoline according to the pressure washer manufacturer's recommendations.
2. Open Fuel Valve: Turn the fuel supply valve to the "ON" position. Allow a few moments for the carburetor bowl to fill with fuel. Check for any leaks around the fuel line connections.
3. Choke and Throttle: Set the choke lever to the "CHOKE" position (if applicable) and the throttle to the "FAST" or "START" position as per your pressure washer's manual.
4. Start Engine: Follow your pressure washer's specific starting procedure (e.g., pull the recoil starter or engage the electric starter).
5. Adjust Choke: Once the engine starts and runs smoothly, gradually move the choke lever to the "RUN" position.

If the engine does not start or runs poorly, refer to the Troubleshooting section.

6. Maintenance

Proper maintenance ensures the longevity and optimal performance of your carburetor and pressure washer.

• Fuel Quality: Always use fresh, clean, unleaded gasoline. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if the pressure washer will be stored for extended periods.
• Fuel Filter: Regularly check and replace the fuel filter (if equipped on your pressure washer) to prevent debris from reaching the carburetor.
• Air Filter: Ensure the air filter is clean and free of debris. A clogged air filter can affect engine performance and fuel mixture.
• Storage: Before long-term storage, drain the fuel tank and carburetor bowl, or run the engine until it runs out of fuel to prevent fuel degradation and gumming inside the carburetor.

7. Troubleshooting

If you encounter issues after installing the new carburetor, refer to the following common problems and solutions:

If troubleshooting steps do not resolve the issue, consult a qualified service technician or the pressure washer manufacturer's support.

8. Specifications

9. Warranty Information

No specific warranty information is provided for this Generic replacement part. Please refer to the retailer's return policy or contact the seller directly for details regarding returns or defects.

10. Support

For technical assistance or further inquiries regarding the Powerhorse 750143 pressure washer, please consult the original pressure washer manufacturer's manual or contact their customer support. For issues specifically related to this replacement carburetor, please contact the retailer from whom it was purchased.
