1. Introduction
Thank you for choosing the TODIMART T6 Electric Scooter. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your scooter. Please read it thoroughly before your first ride and keep it for future reference.
The TODIMART T6 is designed for urban commuting and short daily trips, featuring a 350W brushless motor (650W peak power), a 36V 7.8Ah battery, and an estimated range of 30-35 km. It includes enhanced safety features like a dual braking system, triple lighting, and an IP54 waterproof rating.
2. Safety Information
Your safety is paramount. Always wear a helmet and appropriate protective gear when riding. Adhere to local traffic laws and regulations.
- Do not ride in heavy rain or through puddles deeper than 2 cm.
- Avoid riding on slippery surfaces, steep slopes, or uneven terrain.
- Maintain a safe distance from other vehicles and pedestrians.
- Do not allow children under 14 years old to ride the scooter.
- Ensure all components are securely fastened before each ride.
- Maximum load capacity is 120 kg.
Image: Safety features highlighted, showing bright headlights and taillights for night visibility.
3. Package Contents
Upon opening the package, please verify that all items are present and in good condition.
- TODIMART T6 Electric Scooter
- Charger
- Tools
- Instruction Manual (this document)
4. Setup and Assembly
The TODIMART T6 Electric Scooter comes largely pre-assembled. Follow these steps for initial setup:
- Unfolding the Scooter: Carefully lift the handlebar stem until it locks into place. Ensure the folding mechanism is securely latched.
- Handlebar Attachment: If the handlebars are detached, align them with the stem and secure them using the provided screws and tools.
- Initial Charge: Before first use, fully charge the scooter's battery. Connect the charger to the charging port and then to a power outlet. The charging indicator on the charger will change color (e.g., red to green) when fully charged. Charging time is approximately 3-5 hours.
Image: The scooter's battery compartment, indicating 30-35 km range and 3-5 hour charging time.
5. Operating Instructions
5.1 Power On/Off
Press and hold the power button on the display to turn the scooter on or off.
5.2 Riding
- Place one foot firmly on the deck and push off with the other foot.
- Once you have some momentum, gently press the accelerator lever.
- Place your second foot on the deck.
- To brake, release the accelerator and gently squeeze the brake levers. The scooter features a dual braking system (drum brake + EABS anti-lock).
5.3 Speed Modes
The scooter offers three speed modes (10/20/25 km/h). Use the control panel or the mobile application to switch between modes.
5.4 Smart App Control
Connect your TODIMART T6 to the dedicated mobile application (compatible with iPhone and Android) for enhanced control and features:
- Unlock/Lock the scooter
- Real-time location tracking (GPS)
- Activate anti-theft alarm
- Adjust speed limits
- Control headlights
- Cruise control activation
- Over-The-Air (OTA) updates

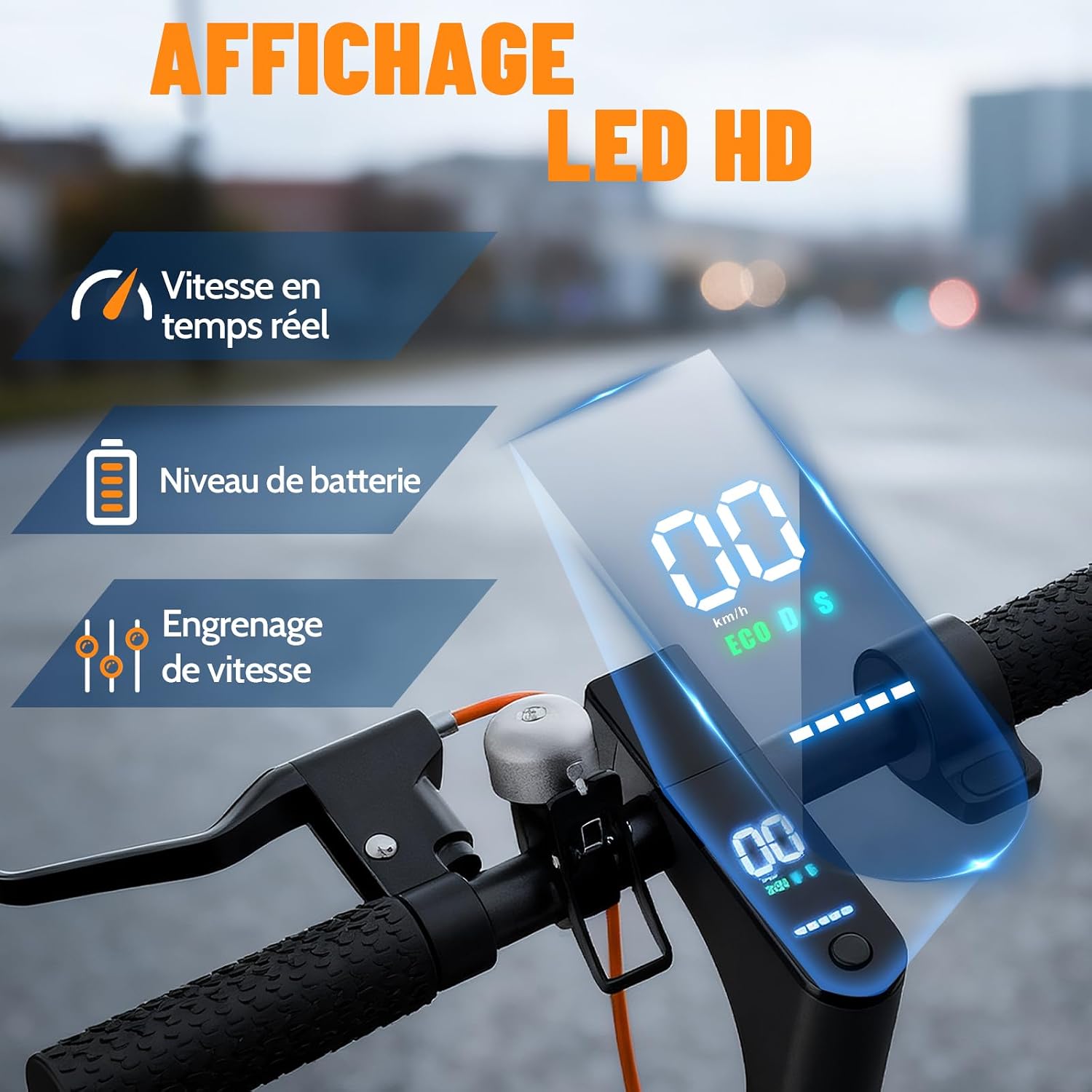

Image: High-definition LED display showing real-time speed, battery level, and speed gear.
Image: Smartphone app interface demonstrating features like connection, lock/unlock, headlight control, cruise control, and speed limitation.
6. Maintenance
6.1 General Care
- Regularly clean the scooter with a damp cloth. Avoid using high-pressure water jets.
- Check all screws and fasteners periodically to ensure they are tight.
- Inspect brake cables and pads for wear.
6.2 Battery Care
- Charge the battery fully after each use, especially if storing for an extended period.
- Do not allow the battery to fully discharge.
- Store the scooter in a cool, dry place away from direct sunlight and extreme temperatures.
6.3 Tires
The T6 features 8.5-inch solid honeycomb tires, which are wear-resistant and puncture-proof, requiring minimal maintenance. Regularly inspect them for any damage or embedded debris.
Image: Detailed view of the 350W brushless motor and the 8.5-inch solid tires, highlighting their durability.
Image: The scooter's enhanced spring shock absorption system, designed for smooth riding on various road conditions.
7. Troubleshooting
If you encounter any issues with your TODIMART T6 Electric Scooter, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on | Low battery; loose connection | Charge the battery; check all cable connections. |
| Reduced range or power | Battery degradation; improper charging; heavy load | Ensure full charge; avoid extreme temperatures; reduce load. |
| Brakes feel loose or ineffective | Brake cable adjustment needed; worn brake pads | Adjust brake cable tension; replace worn brake pads. |
| Unusual noises during operation | Loose components; debris in wheels | Inspect and tighten all parts; clean wheels and motor area. |
| App connectivity issues | Bluetooth off; app outdated; scooter not discoverable | Ensure Bluetooth is on; update app; restart scooter and phone. |
For issues not listed here, please contact TODIMART customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | TODIMART |
| Model Name | T6 |
| Motor Power | 350W (Peak 650W) Brushless |
| Battery | 36V 7.8Ah Lithium-ion with BMS |
| Max Range | 30-35 km |
| Max Speed | 25 km/h |
| Climbing Angle | Up to 25° |
| Tires | 8.5-inch Solid Honeycomb (Puncture-proof) |
| Braking System | Dual (Drum Brake + EABS Anti-lock) |
| Suspension | Enhanced Front Suspension |
| Max Load | 120 kg |
| Charging Time | 3-5 hours |
| Water Resistance | IP54 |
| Frame Material | Aerospace-grade Aluminum Alloy |
| Folded Dimensions | 108L x 43W x 49H cm |
| Item Weight | 12.6 kg |
| Certifications | EN 17128, CE, UN38.3 (Battery Safety) |
Image: A table summarizing the technical specifications of the TODIMART T6 Electric Scooter.
9. Warranty and Support
The TODIMART T6 Electric Scooter comes with a 1-year limited warranty. Spare parts availability is guaranteed for 3 years.
Each scooter is equipped with a unique identification plate and serial number, which may be required for warranty claims or insurance procedures.
For any questions, technical assistance, or warranty claims, please contact TODIMART customer support. Our team is available to assist you.
You can find more information and contact details on the official TODIMART website or through your purchase platform.
