Bahco BCL226 Cordless Electric Pruning Shears 26mm - Instruction Manual

1. Introduction

Thank you for choosing the Bahco BCL226 Cordless Electric Pruning Shears. This manual provides important information for the safe and efficient use, setup, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before operating the shears and keep it for future reference.

The Bahco BCL226 is designed for precise and effortless pruning of small vines and thin branches up to 26mm in diameter. It features high-quality SK5 steel blades, adjustable cutting apertures, and an intelligent display for monitoring battery charge and cut count.

2. Safety Instructions

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using this power tool.

• Read all instructions: Familiarize yourself with the controls and proper use of the tool.
• Wear appropriate personal protective equipment (PPE): Always wear safety glasses, gloves, and sturdy footwear when operating the shears.
• Keep hands clear of blades: Never touch the blades when the tool is powered on or connected to a power source.
• Secure work area: Ensure the area is clear of bystanders, especially children and pets.
• Avoid accidental starting: Ensure the switch is in the off position before inserting the battery pack, picking up or carrying the tool.
• Use the correct battery and charger: Only use the battery packs and charger specified by the manufacturer.
• Store safely: When not in use, store the shears in a dry, secure place out of reach of children.
• Maintain tool with care: Keep cutting tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories.

3. Package Contents

Verify that all items are present and in good condition upon unpacking:

• 1 x Bahco BCL226 Cordless Electric Pruning Shears
• 2 x Rechargeable Batteries
• 1 x Battery Charger (assumed, typically included with battery-powered tools)
• 1 x Tool Kit for Maintenance (assumed, for lubrication/adjustment)
• 1 x User Manual

4. Setup

4.1 Charging the Battery

Before first use, fully charge both batteries. Connect the charger to a power outlet and insert the battery. The charger indicator light will show the charging status. A full charge typically takes [X] hours (refer to charger manual for specific times). Do not overcharge the batteries.

4.2 Installing the Battery

Ensure the pruning shears are switched off. Align the battery with the battery slot on the handle and slide it in until it clicks securely into place. To remove, press the release buttons on the side of the battery and slide it out.

Image: Close-up view of the Bahco BCL226 pruning shears handle with the battery installed. The orange release buttons are visible, indicating how to secure and remove the battery pack.

4.3 Initial Inspection

Before each use, inspect the shears for any damage, loose parts, or obstructions. Ensure the blades are clean and sharp. Do not operate if any damage is found.

5. Operating Instructions

5.1 Powering On/Off

To power on the shears, press and hold the power button until the intelligent display illuminates. To power off, press and hold the power button again until the display turns off.

5.2 Adjusting Cutting Aperture

The Bahco BCL226 offers two adjustable cutting apertures: 15mm and 26mm. To switch between these settings, [specific instruction for aperture adjustment, e.g., double-click the trigger or press a dedicated button]. Select the appropriate aperture based on the branch thickness for optimal performance and battery life.

Image: A diagram illustrating the two adjustable cutting apertures of the Bahco BCL226 pruning shears, showing a smaller 15mm opening and a larger 26mm opening for different branch sizes.

5.3 Progressive Cutting Function

The shears feature a progressive cutting function, meaning the blades close proportionally to how much the trigger is pressed. This allows for precise control over the cut.

5.4 Intelligent Display

The intelligent display provides real-time information on the remaining battery charge and the total number of cuts performed. Monitor this display to plan battery changes and track usage.

5.5 Pruning Technique

Position the branch deep into the blades for a clean cut. Avoid twisting the shears during a cut. For thicker branches, use the 26mm aperture. Always ensure the branch is within the maximum cutting capacity to prevent damage to the blades or motor.

Image: A detailed close-up of the sharp SK5 steel blades of the Bahco BCL226 pruning shears, showing the cutting mechanism and the robust construction.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your pruning shears.

6.1 Blade Cleaning and Lubrication

After each use, clean the blades with a damp cloth to remove sap and debris. Apply a few drops of lubricating oil to the pivot point and blade surfaces to prevent rust and ensure smooth operation. The shears feature a lubrication and locking system for easy maintenance.

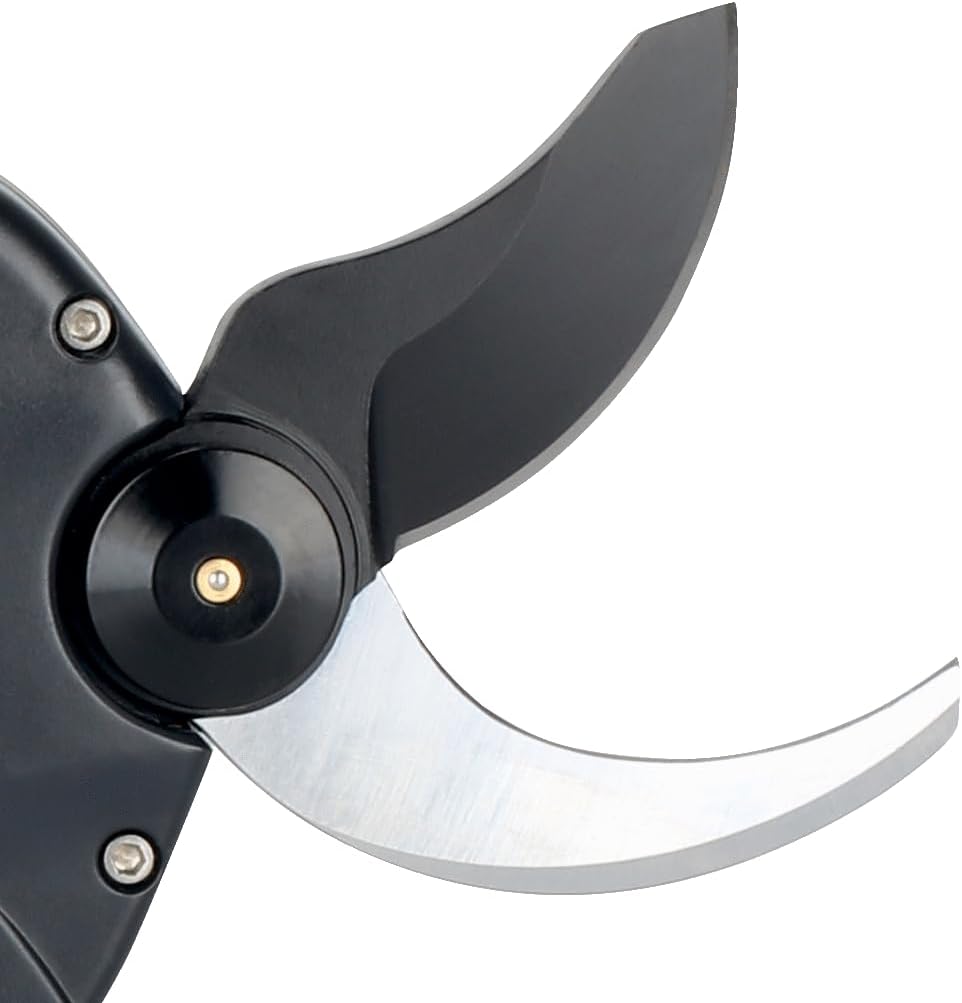

Image: A close-up view of the Bahco BCL226 pruning shears blades, highlighting the pivot mechanism and the area where lubrication should be applied for smooth operation.

6.2 Blade Sharpening/Replacement

Over time, blades may become dull. Sharpen them using a fine-grit sharpening stone or replace them with genuine Bahco replacement blades if severely damaged or worn. Always ensure the tool is powered off and the battery is removed before performing any blade maintenance.

6.3 Battery Care

Store batteries in a cool, dry place. Do not expose them to extreme temperatures. If storing for extended periods, charge them to approximately 50% capacity.

6.4 Storage

Store the pruning shears in their original case or a safe, dry location, away from moisture and direct sunlight. Ensure the blades are closed and locked (if applicable) to prevent accidental injury.

7. Troubleshooting

Refer to this section for common issues and their solutions.

• Shears not turning on:
  • Check if the battery is fully charged and correctly installed.
  • Ensure the power button is pressed and held sufficiently.
• Blades not cutting cleanly:
  • Clean the blades of sap and debris.
  • Sharpen or replace dull blades.
  • Ensure the branch is within the maximum cutting capacity.
• Battery not charging:
  • Verify the charger is properly connected to the power outlet and the battery.
  • Check for any damage to the battery or charger.
  • Ensure the battery is not too hot or too cold.

If the problem persists after following these steps, please contact Bahco customer support.

8. Specifications

9. Warranty and Support

Bahco products are manufactured to high-quality standards. This product includes a 3-year availability for spare parts in the EU, ensuring long-term support for your tool.

For warranty claims, technical support, or to purchase replacement parts, please contact your authorized Bahco dealer or visit the official Bahco website. Keep your proof of purchase for warranty validation.
