Important Safety Information
Please read this manual carefully before assembly and use. Keep these instructions for future reference.
- Always follow assembly instructions step-by-step.
- Ensure all parts are securely fastened before use.
- Do not overload drawers or the top surface of the dresser. Refer to specifications for weight limits.
- Install the anti-tip device to prevent serious injury from tipping furniture.
- Keep children away during assembly.
- Use only the provided power cord and adapter for the LED lighting and power outlet.
Image: Diagram illustrating the correct installation of the anti-tip device to secure the dresser to the wall, preventing accidental tipping.
Setup and Assembly
This dresser requires assembly. Please ensure you have all components and tools before beginning. A detailed PDF user manual with step-by-step diagrams is available for download. Download PDF Manual
- Unpack Components: Carefully remove all parts from the packaging. Verify against the parts list in the PDF manual.
- Assemble Frame: Follow the instructions to assemble the main frame of the dresser.
- Install Drawer Glides: Attach the drawer glides to the dresser frame and drawer sides.
- Assemble Drawers: Construct each of the six drawers.
- Insert Drawers: Carefully slide the assembled drawers into the glides.
- Attach Handles: Secure the metallic handles to each drawer front.
- Install Anti-Tip Device: Securely attach the anti-tip device to the back of the dresser and to a wall stud using appropriate hardware. This step is crucial for safety.
- Connect Power: Plug in the power cord for the LED lighting and integrated power outlet.

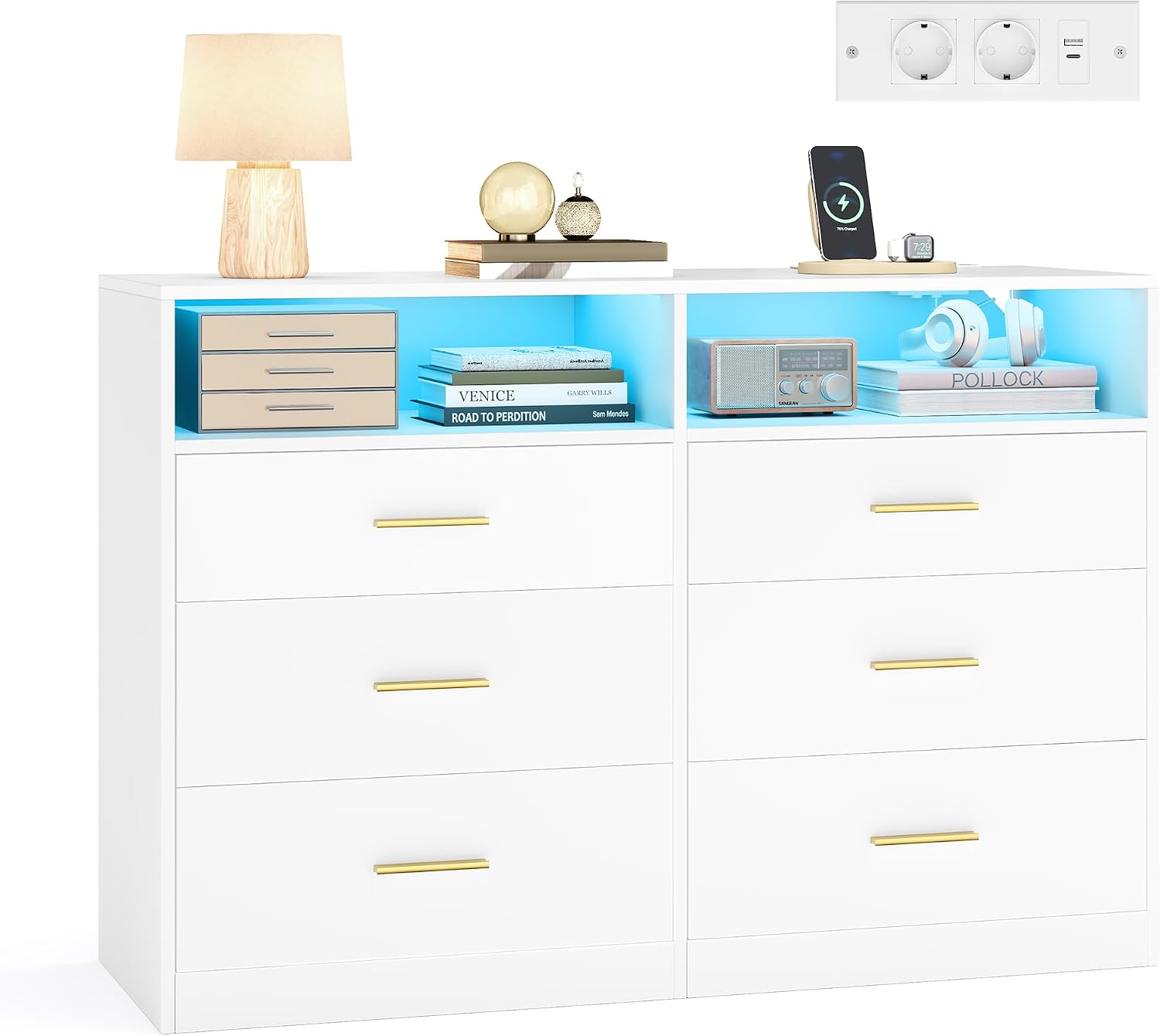

Image: The fully assembled VASAGLE Custos Collection 6-drawer dresser in Cloud White, showcasing its modern design and LED lighting.
Image: A close-up view of the dresser's elegant metallic handles and the smooth-operating drawer glides, highlighting their design and functionality.
Operating Instructions
LED Lighting System
The integrated LED strip provides ambient lighting and can be controlled via a mobile application or manually.
- Manual Control: Use the inline controller on the power cord to turn the lights on/off and cycle through basic color modes.
- App Control: Download the dedicated mobile application (refer to the PDF manual for app name and QR code). The app allows for:
- Over 29 color options.
- Adjustable intensity.
- Microphone mode (syncs with sound).
- Music mode (syncs with music).
- Timer function.
- Dynamic lighting modes.
Image: Illustration detailing the adjustable LED lighting, showing control options through a mobile application and a manual switch.
Image: Screenshots of the mobile application interface, demonstrating various LED control features such as color selection, intensity adjustment, music sync, and timer settings.
Integrated Power Outlet
The dresser includes an integrated power strip with 2 AC outlets, 2 USB-A ports, and 1 USB-C port for convenient charging of electronic devices.
- Ensure the dresser is plugged into a functional wall outlet.
- Connect your devices to the appropriate AC, USB-A, or USB-C ports.
- Do not exceed the maximum power rating of the integrated outlet (refer to specifications).
Image: A close-up view of the integrated power strip, showing 2 AC outlets, 2 USB-A ports, and 1 USB-C port for charging electronic devices.
Drawer Usage and Capacity
The dresser features six spacious drawers designed for organized storage. Two drawers have a height of 16 cm, and four drawers have a height of 20 cm.
- The top surface can hold up to 75 kg.
- Each drawer can hold up to 10 kg.
- Distribute weight evenly within drawers and on the top surface.
Image: A diagram illustrating the overall dimensions of the dresser (40 x 119 x 81.2 cm) and the weight capacities for the top surface (75 kg) and individual drawers (10 kg each).
Image: This image demonstrates the internal organization and varying capacities of the drawers, showing how different items like underwear, socks, clothes, and light blankets can be stored. It also compares the drawer heights (16 cm and 20 cm) with a competitor's smaller drawers.
Maintenance
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
- Dusting: Regularly dust the dresser to maintain its appearance.
- Drawer Glides: Periodically check drawer glides for smooth operation. If needed, a small amount of silicone lubricant can be applied.
- Fasteners: Occasionally check all screws and fasteners to ensure they remain tight. Retighten if necessary.
- LED Strip: Ensure the LED strip and power connections are free from dust and moisture.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| LED lights not turning on. | Power cord unplugged, faulty connection, LED strip damage. | Check power connection. Ensure the inline controller is on. Verify app connection if using. Contact support if issue persists. |
| Power outlets not working. | Dresser unplugged, circuit overload, internal wiring issue. | Check main power plug. Ensure total wattage of connected devices does not exceed the outlet's rating. Try a different device. |
| Drawers are stiff or difficult to open/close. | Overloaded drawer, misaligned glides, debris in glides. | Reduce drawer contents. Check for obstructions. Ensure glides are properly aligned and clean. Apply silicone lubricant if needed. |
| Dresser feels unstable. | Anti-tip device not installed, loose fasteners, uneven floor. | Install or re-secure the anti-tip device. Tighten all assembly fasteners. Place shims under legs if the floor is uneven. |
Specifications
| Brand | VASAGLE |
| Model Name | LTS316WB01 |
| Product Dimensions (D x W x H) | 40 x 119 x 81.2 cm (15.7 x 46.9 x 32 inches) |
| Color | Cloud White |
| Number of Drawers | 6 |
| Item Weight | 39.9 Kilograms (87.96 lbs) |
| Max. Top Surface Load Capacity | 75 kg (165 lbs) |
| Max. Drawer Load Capacity (each) | 10 kg (22 lbs) |
| Power Outlet | 2 AC outlets, 2 USB-A ports, 1 USB-C port |
| Assembly Required | Yes |
| Components Included | 1 x Bedroom Dresser |
| Country of Origin | China |
Warranty and Support
This product is covered by a standard return policy allowing returns within 30 days of receipt. For specific warranty details, please refer to the documentation included with your purchase or contact VASAGLE customer support.
For assistance with assembly, missing parts, or any operational issues, please contact VASAGLE customer support. You can often find contact information on the brand's official website or through your retailer.
- Online Support: Visit the VASAGLE Brand Store for FAQs and additional resources.
- Email/Phone: Refer to your purchase invoice or the PDF manual for direct contact details.
