Trailmaster JHL Pro Series TM SK110ES Dirt Bike User Manual

1. Introduction

This manual provides essential information for the safe operation, assembly, and maintenance of your new Trailmaster JHL Pro Series TM SK110ES Dirt Bike. Please read this manual thoroughly before operating the dirt bike to ensure proper use and to prevent injury or damage.

The Trailmaster JHL Pro Series TM SK110ES is a premium mid-size dirt bike designed for off-road use, featuring an XZ110 single-cylinder, four-stroke, air-cooling engine with both electric and kick start capabilities. It includes a four-gear, non-circulate transmission, front and rear disc brakes, and advanced suspension components.

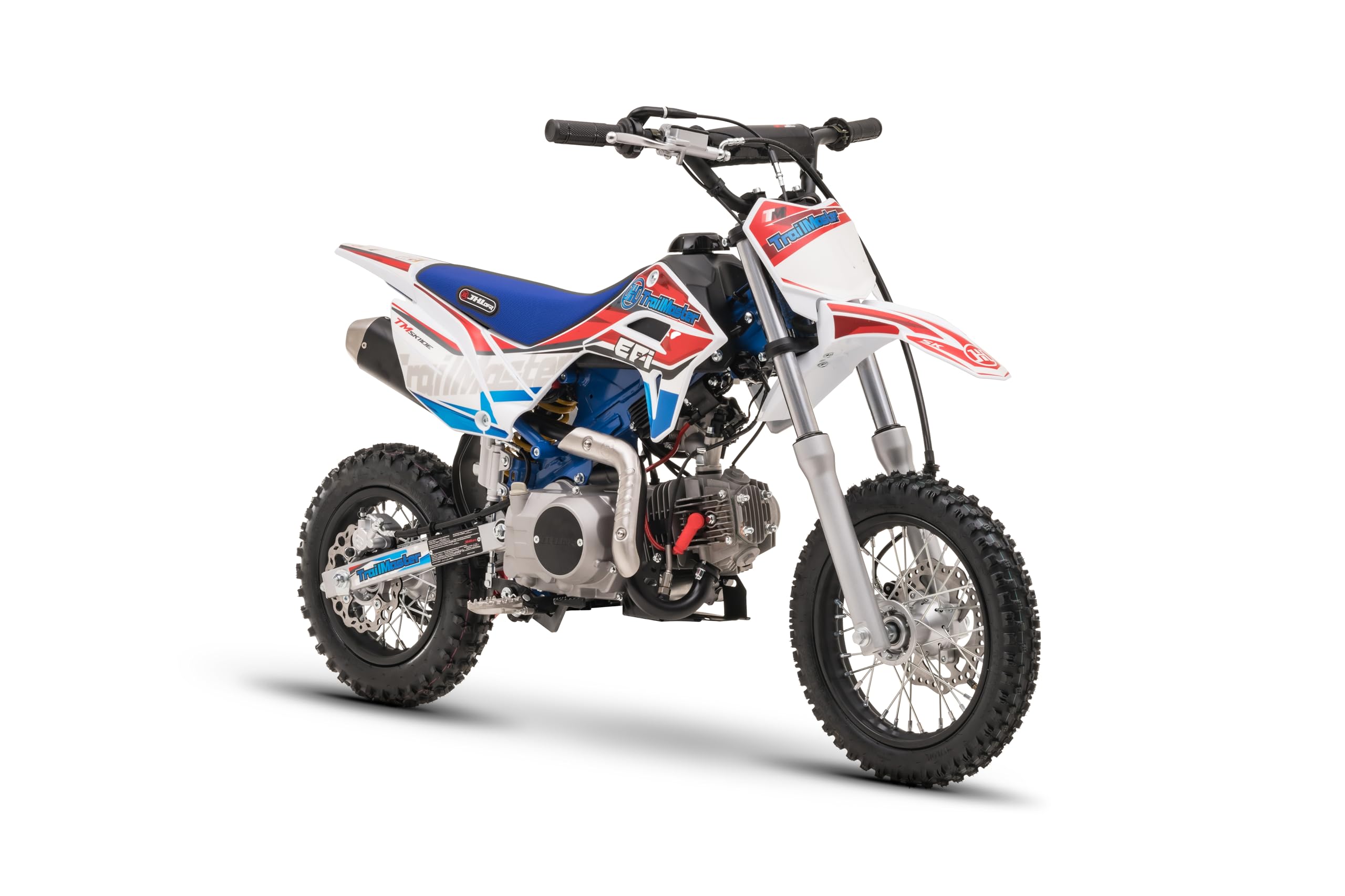

Image: The Trailmaster JHL Pro Series TM SK110ES Dirt Bike, showcasing its overall design and blue color scheme.

2. Safety Information

WARNING: Operating a dirt bike can be dangerous. Always wear appropriate safety gear, including a helmet, eye protection, gloves, long pants, and sturdy boots. Never operate the dirt bike under the influence of alcohol or drugs. Adult supervision is required for riders under 16 years of age.

2.1 General Safety Guidelines

• Always perform a pre-ride inspection.
• Understand and obey all local laws and regulations regarding off-road vehicle use.
• Ride within your skill level and avoid excessive speeds.
• Maintain a safe distance from other riders and obstacles.
• Be aware of changing terrain and weather conditions.

2.2 Rider Requirements

• Recommended height: 4.2 FT - 5.3 FT.
• Maximum load capacity: 143 LBS.

Image: An infographic detailing key specifications for rider suitability, including recommended height (4.2ft-5.3ft), start type (EFI / Electric and Kick Start), maximum load capacity (143lbs), and seat height (24.8 inches).

3. Setup and Assembly

Your Trailmaster TM SK110ES Dirt Bike requires some assembly before its first use. Please follow these instructions carefully. A tool kit is included with your purchase.

3.1 Unpacking

Carefully remove all components from the packaging. Inspect for any shipping damage. Ensure all parts listed in the packing list are present.

3.2 Front Wheel Installation

Install the front wheel onto the front fork. Ensure the brake disc aligns correctly with the caliper and the axle is securely fastened. Refer to the assembly video for visual guidance.

Image: A front view of the dirt bike, highlighting the front wheel assembly, including the disc brake and inverted front shock absorbers.

3.3 Handlebar Installation

Attach the handlebars to the triple clamp. Ensure all bolts are tightened to the manufacturer's specifications. Check for proper cable routing and lever positioning.

3.4 Other Assembly Steps

Follow the remaining assembly instructions provided in the separate assembly guide or refer to the official assembly video for detailed steps on installing other components like fenders and any remaining covers.

3.5 Assembly Video

For a visual guide on assembling your TM SK110ES dirt bike, please watch the official assembly video below. This video demonstrates the process of installing various components.

4. Operating Instructions

Before starting the engine, ensure you have completed all assembly steps and performed a pre-ride inspection.

4.1 Pre-Ride Inspection

• Check tire pressure.
• Verify brake functionality (front and rear disc brakes).
• Inspect chain tension and lubrication.
• Ensure all fasteners are tight.
• Check fuel level.

4.2 Starting the Engine

The TM SK110ES features both electric and kick start options.

Electric Start:

1. Turn the ignition key to the "ON" position.
2. Ensure the kill switch is in the "RUN" position.
3. Press the electric start button.

Kick Start:

1. Turn the ignition key to the "ON" position.
2. Ensure the kill switch is in the "RUN" position.
3. Place your foot firmly on the kick start lever and push down with a swift, strong motion.

Allow the engine to warm up for a few minutes before riding.

4.3 Shifting Gears

This model features a four-gear, non-circulate transmission. Shift gears using the foot lever on the left side of the bike.

• To shift up, lift the lever.
• To shift down, press the lever.

Practice shifting in a safe, open area until you are comfortable with the operation.

4.4 Braking

The dirt bike is equipped with front and rear disc brakes for effective stopping power.

• The front brake lever is on the right handlebar.
• The rear brake pedal is on the right footpeg.
• Apply both brakes smoothly and progressively for controlled stopping.

Image: A detailed side view of the dirt bike, showing the engine, exhaust, and overall chassis design.

5. Maintenance

Regular maintenance is crucial for the longevity and safe operation of your dirt bike. Refer to the full service manual for detailed maintenance schedules and procedures.

5.1 Engine Oil

Check engine oil level before each ride. Change engine oil according to the recommended service intervals (typically every 10-20 hours of operation or as specified in the full manual).

5.2 Chain Maintenance

Keep the drive chain clean, lubricated, and properly tensioned. Adjust tension as needed to prevent excessive slack or tightness.

5.3 Air Filter

Clean or replace the air filter regularly, especially when riding in dusty conditions. A clean air filter ensures optimal engine performance and longevity.

Image: A close-up view of the Bosch Fuel Injection System, indicating its role in engine performance and efficiency.

5.4 Brakes

Inspect brake pads for wear and brake fluid levels regularly. Ensure brake levers and pedals operate smoothly and provide firm resistance.

5.5 Tires

Check tire pressure before each ride. Inspect tires for wear, cuts, or punctures. The bike is equipped with YUANXING FT: 2.50*12 - RR: 3.00*10 tires.

Image: A visual representation of the front and rear tire specifications (12"/10"), highlighting features like high-quality alloy hubs, inverted front shock absorbers, and suitability for mudland, gravel road, and mountain terrains.

5.6 Muffler

The bike features a performance stainless steel muffler. Inspect for damage or leaks periodically.

Image: A close-up of the stainless steel muffler, emphasizing its design and material.

6. Troubleshooting

This section addresses common issues you might encounter with your TM SK110ES Dirt Bike. For more complex problems, consult a qualified technician.

6.1 Engine Does Not Start

• Check Fuel: Ensure there is sufficient fuel in the tank.
• Ignition: Verify the ignition key is in the "ON" position.
• Kill Switch: Confirm the kill switch is in the "RUN" position.
• Battery (Electric Start): If using electric start, check battery charge.
• Spark Plug: Inspect the spark plug for fouling or damage.

6.2 Loss of Power

• Air Filter: A clogged air filter can restrict airflow. Clean or replace it.
• Fuel System: Check for fuel delivery issues or clogged fuel lines.
• Spark Plug: A faulty spark plug can cause misfires and power loss.

6.3 Brakes Not Effective

• Brake Pads: Inspect brake pads for wear and replace if necessary.
• Brake Fluid: Check brake fluid level and top up if low.
• Air in System: If brakes feel spongy, there might be air in the hydraulic system, requiring bleeding.

7. Specifications

8. Warranty and Support

8.1 Returns Policy

This product is eligible for 30-day easy returns. Please refer to the seller's return policy for detailed terms and conditions.

8.2 Customer Support

For technical assistance, parts inquiries, or any other support needs, please contact TrailMaster Powersports customer support. Contact information can typically be found on the manufacturer's official website or through your purchase platform.

What's in the Box: Tool Kit
