1. Introduction
This manual provides essential information for the safe and efficient use of your LOVMOR LED Medicine Cabinet with Mirror. This product integrates LED lighting, a high-definition mirror, and internal storage, designed for use in bathrooms, powder rooms, and vanity areas. Please read these instructions thoroughly before installation and operation, and retain them for future reference.
2. Safety Information
Important Safety Instructions:
- Always unplug the cabinet from the power source before performing any installation, maintenance, or cleaning procedures.
- Do not install this cabinet near direct water sources (e.g., inside a shower or directly above a bathtub) to prevent electrical hazards.
- Keep the cabinet away from high heat sources, as prolonged exposure to excessive heat can damage the LED lighting components.
- Use only the provided installation kit and strictly follow the manufacturer's instructions for safe installation and proper use. Failure to do so may result in injury or product damage.
3. Product Features
- Integrated LED Lighting: Features 3-color adjustable lighting (White, Natural, Warm) and dimmable brightness from 5% to 100%.
- High-Definition Mirror: Equipped with shatter-proof tempered glass for clear reflection and enhanced safety.
- Ample Storage: Includes three tiers of internal shelving for organizing toiletries and other bathroom essentials.
- Installation Versatility: Supports both wall surface mounted and recessed mounted installations.
- Durable Construction: Made from rust-resistant metal for longevity in bathroom environments.

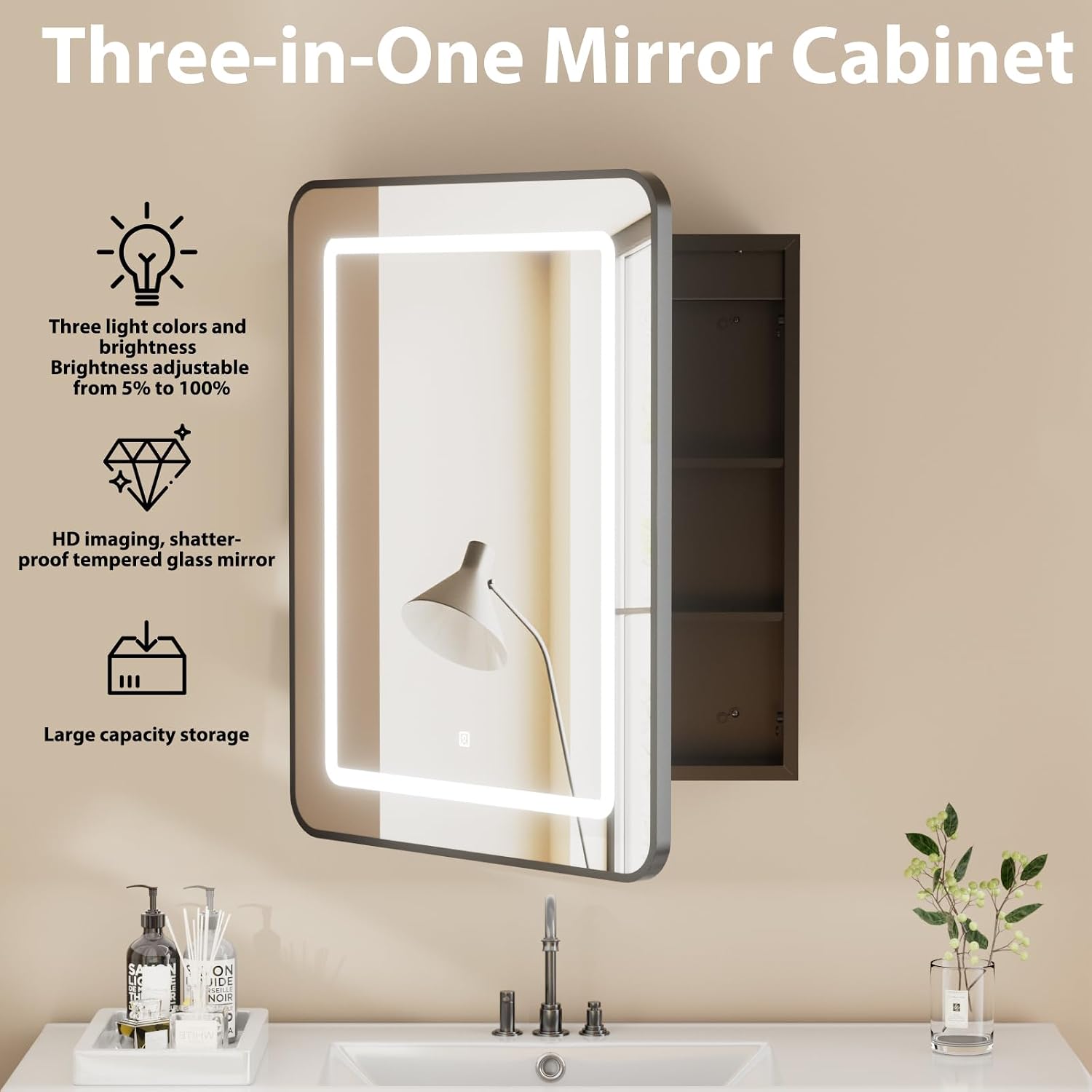

Image: LOVMOR LED Medicine Cabinet with Mirror, highlighting its three-in-one functionality.
Image: Detail of the HD Imaging Shatter-proof Tempered Glass Mirror.
Image: Interior view showcasing the 3-tier large capacity storage.
4. Specifications
Image: Item Size Diagram for the LOVMOR LED Medicine Cabinet.
| Brand | LOVMOR |
| Model Number | MC-HGH |
| Color | Black |
| Material | Metal, Glass |
| Product Dimensions (D x W x H) | 5"D x 16"W x 24"H |
| Item Weight | 24.64 Pounds |
| Number of Shelves | 3 |
| Installation Type | Wall-Mounted, Built-in |
| Additional Features | Rust Resistant |
| Included Components | Installation Kit |
5. Setup and Installation
The LOVMOR LED Medicine Cabinet supports both wall surface mounted and recessed mounted installations. The unit is designed for hardwired electrical connection only. An installation kit is included with your purchase.
Installation Options:
- Wall Surface Mounted: The cabinet is mounted directly onto the wall surface.
- Recessed Mounted: The cabinet is installed into a wall opening. For recessed installation, ensure your wall opening size is approximately 14.33" W x 18.82" H x 3.54" D.
Image: Visual guide for Wall Surface Mounted vs. Recessed Mounted installation, showing required wall opening dimensions for recessed mounting.
For a visual guide on installation, please refer to the video below:
Video: This video demonstrates the surface-mounted screw installation method for the LOVMOR LED Medicine Cabinet.
6. Operating Instructions
The LED lighting features a touch-sensitive switch for control.
Light Color Adjustment:
To change the light color (White, Natural, Warm), quickly press the touch button located on the mirror surface. Each quick press will cycle through the available color temperatures.
Image: Demonstrating the three adjustable light colors: White (6500K), Natural (4500K), and Warm (3000K).
Brightness Adjustment:
To adjust the brightness level (from 5% to 100%), press and hold the touch button. The brightness will gradually increase or decrease. Release the button when the desired brightness is achieved.
Image: Illustrating the adjustable brightness levels from 5% to 100%.
7. Maintenance
To ensure the longevity and optimal performance of your medicine cabinet, follow these maintenance guidelines:
- Cleaning: Always unplug the cabinet before cleaning. Use a soft, damp cloth with a mild, non-abrasive cleaner to wipe the mirror and cabinet surfaces. Avoid harsh chemicals or abrasive materials that could damage the finish or mirror.
- Rust Resistance: The cabinet is constructed with rust-resistant materials. However, to maintain its appearance, wipe away any standing water or moisture promptly.
- Mirror Care: For best results, clean the mirror with a glass cleaner and a lint-free cloth. Do not spray cleaner directly onto the mirror; instead, apply it to the cloth first.
8. Troubleshooting
If you encounter any issues with your LOVMOR LED Medicine Cabinet, please consider the following common solutions:
- Lights Not Working: Ensure the cabinet is properly hardwired and the power supply is active. Check for any tripped circuit breakers.
- Dim or Flickering Lights: Verify that the brightness setting is not at its lowest. If the issue persists, ensure the electrical connection is secure.
- Touch Switch Unresponsive: Ensure the mirror surface is clean and dry. Moisture or dirt can interfere with touch sensitivity.
If these steps do not resolve the issue, please contact LOVMOR customer support for further assistance.
9. Warranty and Support
For information regarding product warranty, returns, or technical support, please refer to the documentation included with your purchase or visit the official LOVMOR website. You may also contact LOVMOR customer service directly for assistance with your MC-HGH LED Medicine Cabinet.
