1. Introduction
This manual provides essential information for the safe and effective operation, maintenance, and care of your Trailmaster JHL Pro Series TM MK125E Dirt Bike. Please read this manual thoroughly before operating the dirt bike to ensure proper understanding of its features and safety guidelines.

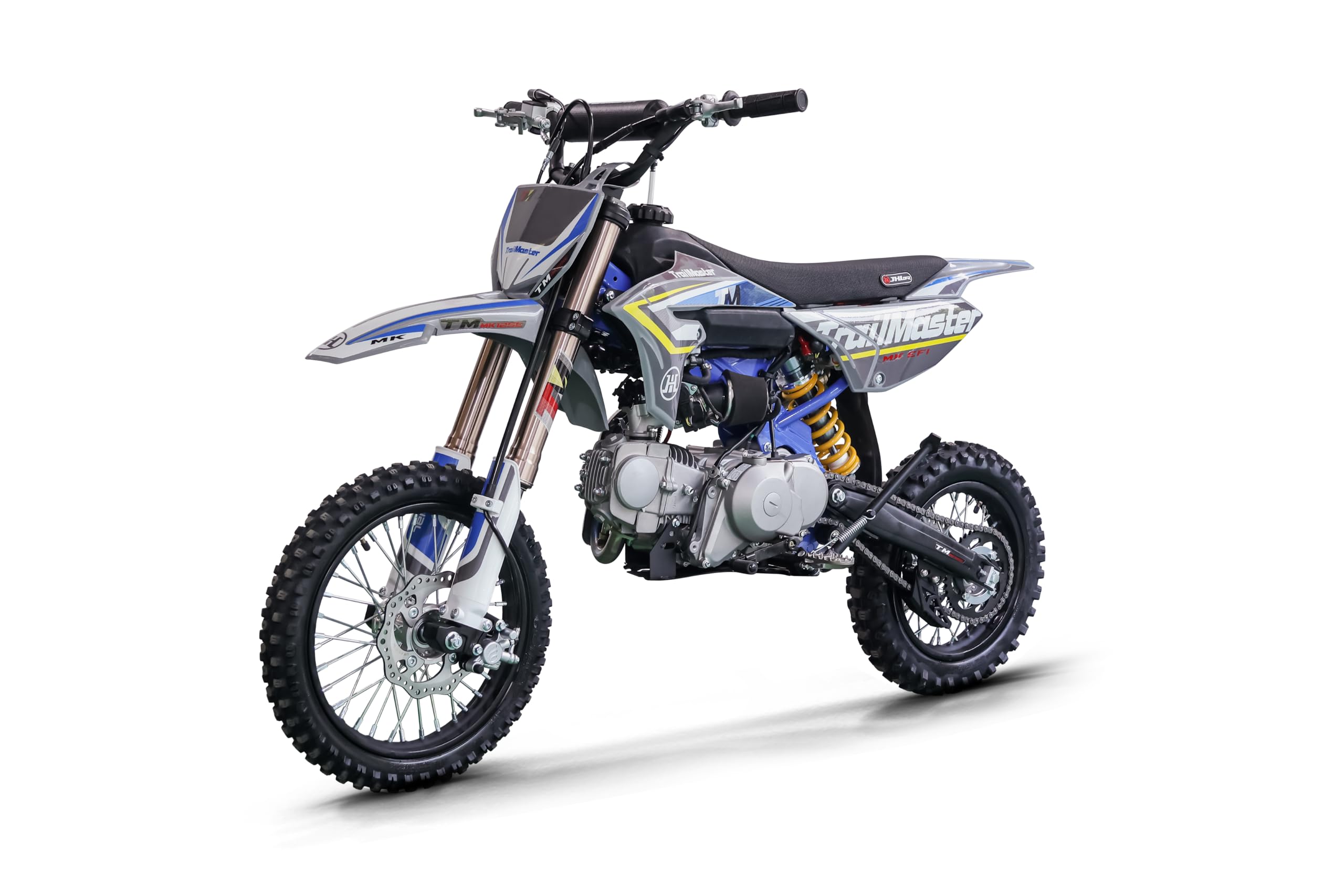

Image 1.1: The Trailmaster JHL Pro Series TM MK125E Dirt Bike, showcasing its overall design in blue.
2. Safety Information
Operating a dirt bike can be hazardous. Always prioritize safety to prevent injury or damage.
- Wear Protective Gear: Always wear an approved helmet, eye protection, gloves, sturdy boots, and appropriate riding apparel.
- Pre-Ride Inspection: Before each ride, check tire pressure, brake function, chain tension, fluid levels, and ensure all fasteners are secure.
- Operator Age and Skill: This dirt bike is intended for adult riders. Ensure the operator has sufficient skill and experience for off-road riding.
- No Passengers: This dirt bike is designed for a single rider only. Do not carry passengers.
- Avoid Public Roads: This vehicle is for off-road use only. Do not operate on public streets, highways, or paved surfaces.
- Environmental Awareness: Be aware of your surroundings, including terrain, obstacles, and other riders.
- No Alcohol or Drugs: Never operate the dirt bike under the influence of alcohol or drugs.
- Engine Heat: The engine and exhaust system become very hot during operation and remain hot for some time after stopping. Avoid contact to prevent burns.
3. Setup and Assembly
Your Trailmaster MK125E dirt bike may require some assembly upon arrival. Refer to the separate assembly guide for detailed instructions. Key components to check during setup include:
- Handlebar Installation: Securely attach and align the handlebars.
- Wheel Attachment: Ensure front and rear wheels are correctly installed and axle nuts are tightened to specifications.
- Fluid Checks: Verify engine oil level and brake fluid levels.
- Tire Pressure: Inflate tires to the recommended pressure (refer to tire sidewall or specifications section). The front tire is 14 inches, and the rear tire is 12 inches.
- Brake Adjustment: Confirm proper function and adjustment of front and rear disc brakes.
- Chain Tension: Adjust chain tension as per the maintenance section.
Image 3.1: Key dimensions and features including recommended height (4.5FT-5.6FT), start type (EFI, Electric/Kick start), max load capacity (165LBS), and seat height (29.55 inches).
4. Operating Instructions
4.1 Starting the Engine
The TM MK125E is equipped with both electric and kick start options for its Zhongshen 123cc 4-stroke engine.
- Fuel: Ensure there is sufficient fuel in the tank.
- Ignition: Turn the ignition key to the "ON" position.
- Choke (if cold): If the engine is cold, engage the choke lever. Disengage once the engine warms up.
- Electric Start: Press the electric start button located on the right handlebar.
- Kick Start: Alternatively, firmly push down the kick start lever with your foot until the engine starts.
4.2 Transmission and Riding
This model features a 4-speed full-auto transmission, simplifying gear changes.
- Automatic Shifting: The transmission will automatically shift gears as you accelerate and decelerate. There is no clutch lever to operate.
- Braking: Use both the front and rear disc brakes smoothly and simultaneously for effective stopping. The front brake is operated by the right-hand lever, and the rear brake by the right foot pedal.
- Terrain: The robust design, including 14-inch front and 12-inch rear tires, and dual suspension (inverted front shock and nitrogen air gas rear shock), allows for navigation across various off-road terrains such as mudland, gravel roads, mountains, and sand.

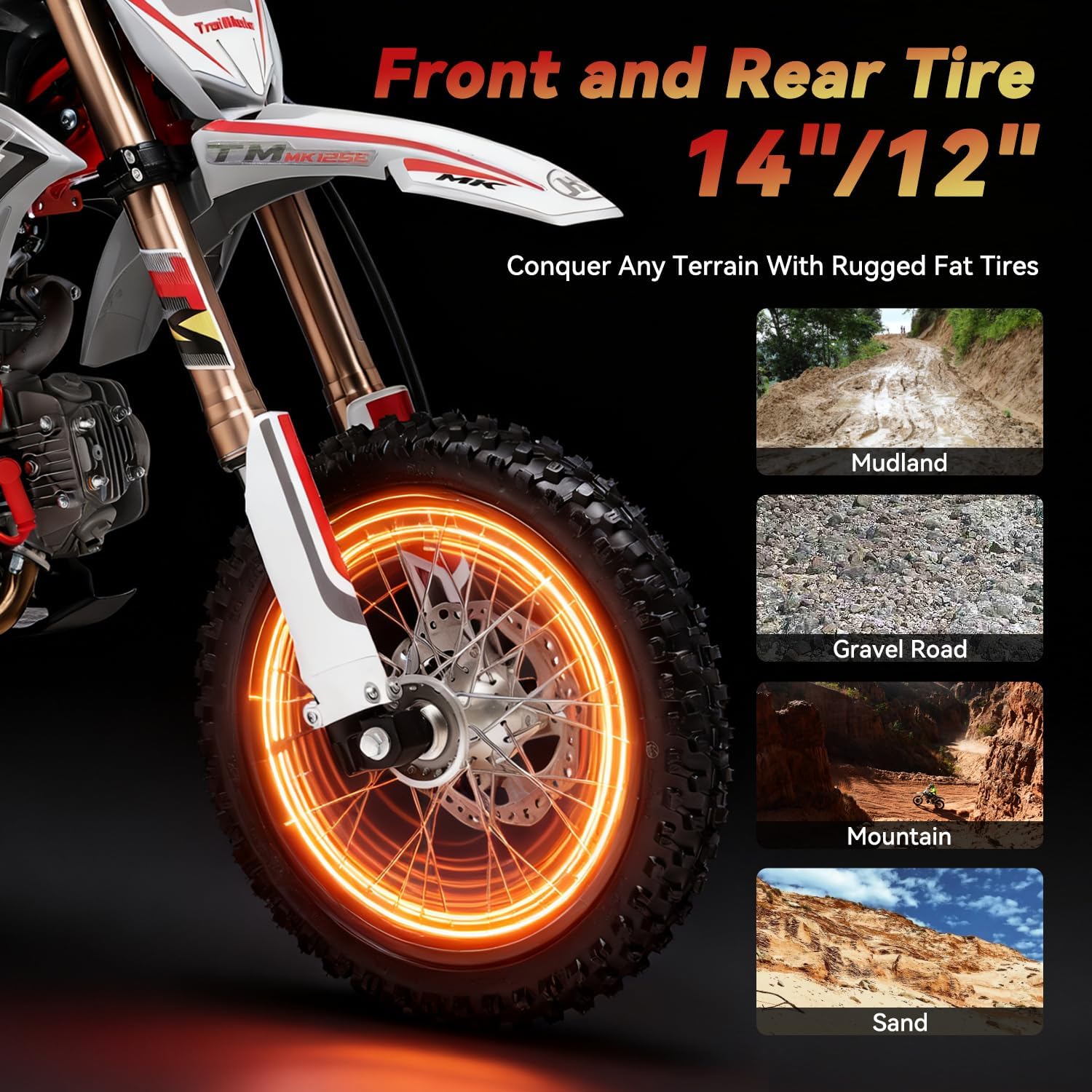

Image 4.1: The 14-inch front tire designed for various terrains, including mud, gravel, mountain trails, and sand.
Image 4.2: Detail of the dual suspension system, featuring a built-in gas bag rear shock absorber and hydraulic inverted front shock absorbers.
5. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your dirt bike.
- Engine Oil: Check engine oil level before each ride. Change oil according to the maintenance schedule in the full service manual.
- Air Filter: Clean or replace the air filter regularly, especially when riding in dusty conditions.
- Chain Maintenance: Keep the drive chain properly tensioned, cleaned, and lubricated.
- Brakes: Inspect brake pads for wear and brake fluid levels regularly. Ensure disc brakes are functioning correctly.
- Tires: Check tire pressure and inspect for wear or damage before each ride.
- Fasteners: Periodically check and tighten all nuts, bolts, and fasteners.
- Muffler: The performance stainless steel muffler should be inspected for damage or blockages.

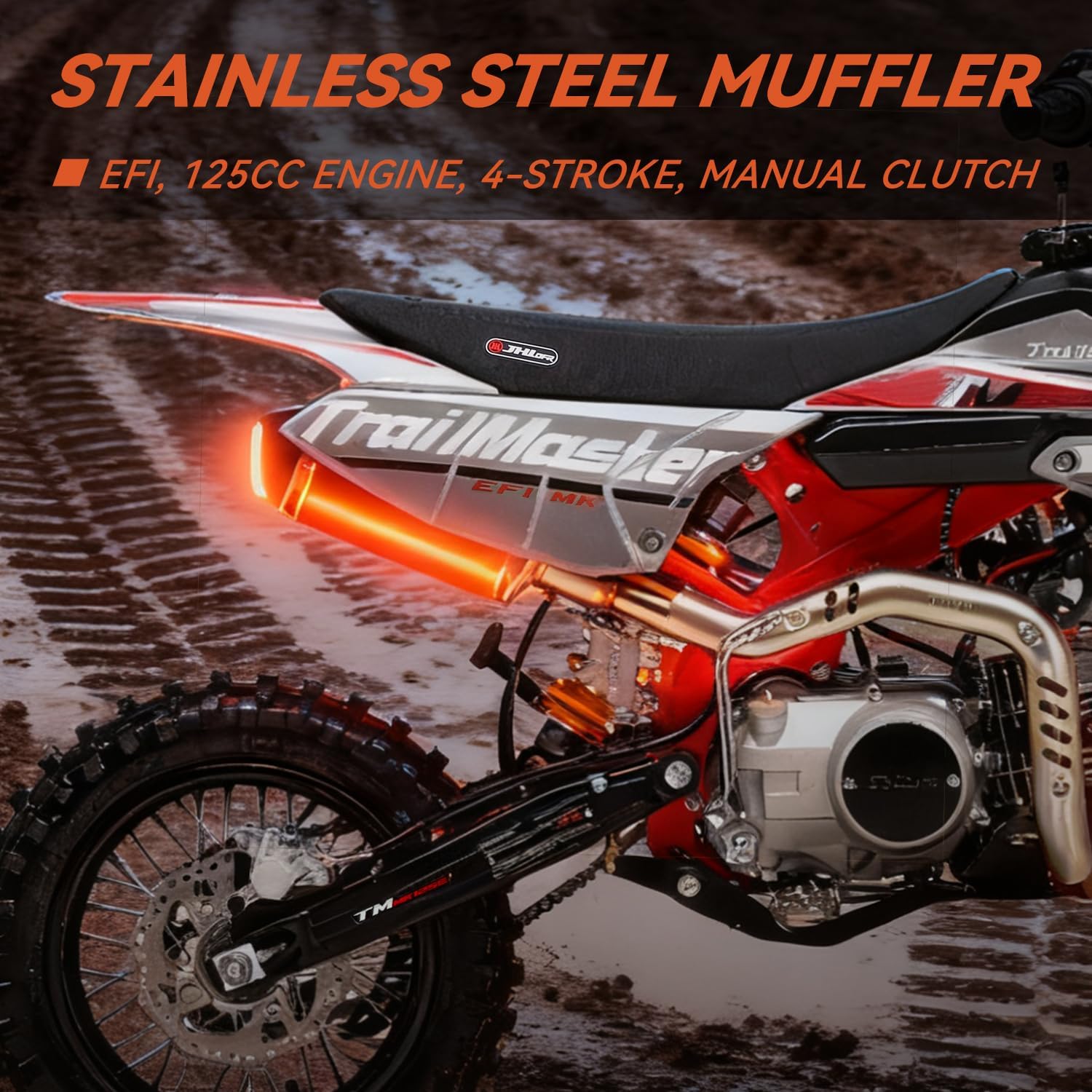

Image 5.1: The performance stainless steel muffler, part of the exhaust system.
Image 5.2: High-quality alloy hubs contribute to wheel durability and performance.
Image 5.3: Foldable handle levers and alloy U/D triple clamps, designed for durability and rider comfort.
6. Troubleshooting
This section addresses common issues you might encounter. For more complex problems, consult a qualified technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start | No fuel, battery low (electric start), spark plug issue, choke not used (cold engine) | Check fuel level, charge battery, inspect spark plug, apply choke if needed. |
| Loss of power | Clogged air filter, improper fuel mixture, spark plug issue | Clean/replace air filter, check fuel system, inspect spark plug. |
| Brakes feel spongy or ineffective | Low brake fluid, air in brake lines, worn brake pads | Check/add brake fluid, bleed brake lines, replace brake pads. |
| Excessive engine noise | Loose components, low oil, internal engine issue | Inspect for loose parts, check oil level, consult technician if noise persists. |
7. Specifications
Key technical specifications for the Trailmaster JHL Pro Series TM MK125E Dirt Bike:
- Model Name: TM-MK125E
- Engine: Zhongshen 123cc, 4-stroke, 8.4hp
- Start Type: Electric and Kick Start
- Ignition: Electronic CDI Ignition, Bosch EFI
- Transmission: 4-speed Full-Auto
- Front Tire: 14 inches
- Rear Tire: 12 inches
- Seat Height: 29.5 inches (29.55 inches)
- Wheel Base: 45.31 inches
- Weight: 149 lbs (slim weight)
- Brakes: Front and Rear Disc Brakes
- Suspension: Inverted Front Shock Absorber, Nitrogen Air Gas Rear Shock Absorber
- Frame Material: Carbon Steel
- Included Components: Tool Kit
- Recommended Height: 4.5FT-5.6FT
- Max Load Capacity: 165 LBS
8. Warranty and Support
Your Trailmaster JHL Pro Series TM MK125E Dirt Bike comes with a manufacturer's warranty.
- Warranty Period: 90 days Manufacturer Warranty.
- Support: For technical assistance, parts, or warranty claims, please contact Trailmaster customer support or your authorized dealer. Refer to the official Trailmaster website for contact information.
