1. Product Overview
The Kitstorack 3-Tier Height Adjustable Pull-Out Cabinet Organizer is designed to maximize storage space under sinks, in cabinets, pantries, and laundry rooms. Its robust metal construction and thoughtful design provide a stable and accessible storage solution for various household items.

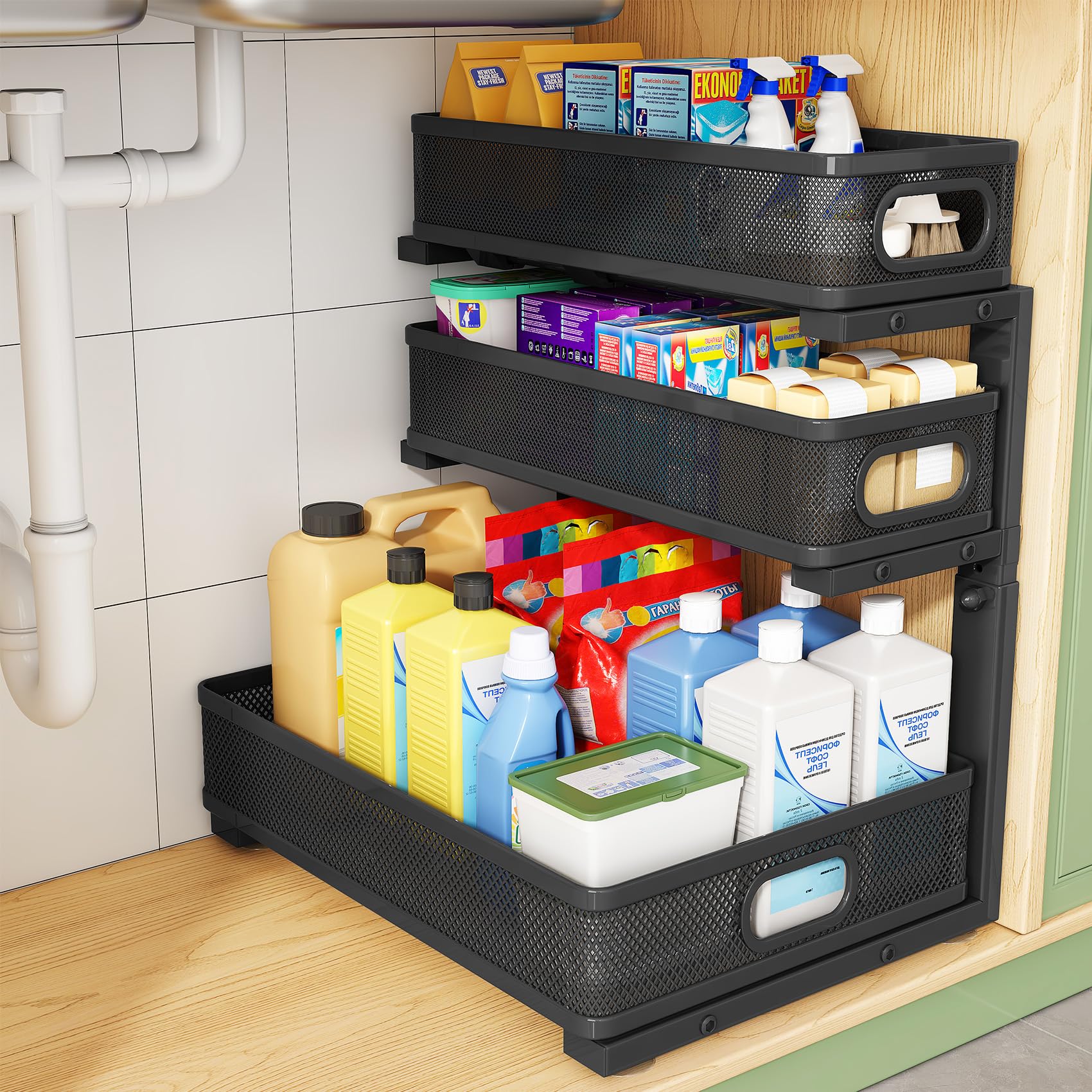

Image 1: The Kitstorack 3-Tier Height Adjustable Pull-Out Cabinet Organizer in black.
Key Features:
- Upgraded 3-Tier Design: Offers increased storage capacity by utilizing vertical space.
- Adjustable Heights: Features multiple height settings to accommodate items of various sizes.
- Smooth Sliding Drawers: Allows easy access to items stored at the back.
- Enhanced Stability: Equipped with suction cups and nano adhesive films for secure placement, supporting up to 60 lbs.
- Durable Construction: Made from thickened, heavy-duty steel with a 1-inch reinforced frame for long-term use.
Image 2: Visual comparison highlighting the increased storage capacity of the 3-tier design.
2. Product Dimensions and Space Measurement
Before assembly and placement, it is crucial to measure your cabinet space to ensure a proper fit and optimal functionality. Consider any plumbing, hinges, or other obstructions.
Product Dimensions:
- Depth: 15.6 inches
- Width: 11.8 inches
- Height: 15.4 to 16.9 inches (adjustable)
- Item Weight: 5.96 pounds
Image 3: Detailed dimensions and adjustable height range of the organizer.
Recommended Cabinet Space:
For a single 1-pack organizer, ensure your cabinet has a minimum depth of 17 inches, a width of 13 inches, and a height of 17 inches. For a 2-pack setup, a minimum width of 26 inches is recommended. Always account for plumbing and other internal obstructions.
Image 4: Guide for measuring cabinet space for a 1-pack organizer, considering plumbing.
3. Setup Instructions
Follow these steps to assemble and install your Kitstorack Under Sink Organizer:
- Unpack Components: Carefully remove all parts from the packaging. Verify that all components are present according to the packing list.
- Assemble the Frame: Connect the vertical support bars to the base frame using the provided screws. Ensure all connections are secure.
- Attach Baskets: Slide the mesh baskets onto the designated runners on the vertical support bars. The baskets are designed to slide smoothly.
- Adjust Height: Utilize the multiple height settings on the vertical bars to position the baskets at your desired levels. This allows customization for taller bottles or smaller items.
- Secure Placement: For enhanced stability, attach the provided suction cups to the bottom of the base frame. For additional security, use the nano adhesive films on a clean, dry surface within your cabinet.
- Insert Mats: Place the non-slip mats into the bottom of each basket to prevent small items from falling through and to provide a stable surface.
Video 1: Official Kitstorack guide demonstrating the assembly and features of the 3-Tier Under Sink Organizer.
Image 5: Close-up view of the suction cups and nano adhesive film for securing the organizer.
Image 6: Illustration of the non-slip mats placed inside the pull-out baskets.
4. Operating Instructions
The Kitstorack organizer is designed for ease of use and efficient access to your stored items.
Using the Pull-Out Drawers:
- Gently pull the handle of each basket to slide it out. The smooth gliding mechanism allows for full extension, providing easy access to items at the back.
- Push the basket back into the frame until it is fully retracted.
Adjusting Shelf Height:
- To adjust the height of a basket, first empty the basket.
- Locate the adjustment pins or screws on the vertical support bars.
- Carefully lift the basket and reposition it to a different height setting. Ensure both sides are securely locked into the desired position before placing items back into the basket.
Image 7: Demonstrating the organizational improvement and accessibility provided by the pull-out design.
5. Maintenance
To ensure the longevity and optimal performance of your Kitstorack organizer, follow these simple maintenance guidelines:
- Cleaning: Wipe down the metal frame and mesh baskets with a soft, damp cloth and mild detergent. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Drying: Ensure all components are thoroughly dried after cleaning to prevent rust or water spots.
- Smooth Operation: Periodically check the sliding mechanisms for any debris or obstructions that might hinder smooth operation. Clean as necessary.
- Stability Check: Regularly inspect the suction cups and adhesive films to ensure they maintain a strong grip. Reapply or replace if necessary.
6. Troubleshooting
If you encounter any issues with your organizer, refer to the following common solutions:
- Organizer is Wobbly:
- Ensure all screws are tightened securely during assembly.
- Verify that the suction cups are firmly pressed onto a clean, smooth surface. If using adhesive films, ensure the surface is clean and dry before application.
- Distribute weight evenly across the baskets. The organizer is designed to hold up to 60 lbs, but uneven loading can affect stability.
- Drawers Not Sliding Smoothly:
- Check for any obstructions on the sliding rails or under the baskets.
- Ensure the baskets are correctly seated on their runners.
- Clean the rails and runners to remove any dust or grime.
- Organizer Does Not Fit in Cabinet:
- Re-measure your cabinet space, paying close attention to plumbing, hinges, and other internal elements.
- Adjust the height of the upper baskets if they are interfering with the sink basin or pipes.
Image 8: Demonstrating the robust weight capacity of the organizer, capable of holding heavy items.
7. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 15.6 x 11.8 x 16.9 inches (L x W x H) |
| Item Weight | 5.96 pounds |
| Material | Thickened Metal (Steel) |
| Tiers | 3 |
| Weight Capacity | Up to 60 lbs |
| Stability Features | 4 Large Suction Cups, 2 Nano Adhesive Films |
| Adjustability | 5+ Height Settings |
| Manufacturer | Kitstorack |
8. Warranty and Support
Kitstorack stands behind the quality of its products. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty details, please refer to the product packaging or contact Kitstorack customer support.
Customer Support:
If you have any questions, require assistance with assembly, or need to report a defect, please contact our customer support team. Contact information can typically be found on the product packaging or on the official Kitstorack website.
Please have your product model name (Kitstorack 3-Tier Height Adjustable Pull-Out Cabinet Organizer) and purchase date ready when contacting support.
