1. Introduction and Overview
This manual provides essential information for the safe and efficient operation of your WattCycle 12V 314Ah Mini LiFePO4 Lithium Battery. This battery is designed for various applications including RVs, marine, camping, and solar off-grid systems, offering high capacity and advanced protection features.
Key features include enhanced conductivity with braided oxygen-free copper wires, high capacity (4019Wh) with flexible expansion options up to 4S4P configurations, a compact mini size for space efficiency, all-round protection with a built-in 200A BMS and cooling fins, a durable full-aluminum frame, and long-lasting EV Grade-A cells supporting 5000-15000 deep discharge cycles.
2. Product Features
2.1 Enhanced Conductivity
The WattCycle 12V 314Ah LiFePO4 battery features braided oxygen-free copper wires, which significantly boost current output efficiency by 50%. This design allows the battery to power devices over 2000W with ease, making it suitable for heavy-duty applications such as trolling motors or RV appliances.
Image: Internal view of the WattCycle battery, illustrating the braided oxygen-free copper wires designed for improved current flow.
2.2 High Capacity & Flexible Expansion
Boasting 4019Wh of energy, this battery outperforms multiple 12V 100Ah or 12V 300Ah LiFePO4 batteries connected in parallel. It is ideal for RVs, solar systems, home storage, trolling motors, and marine use. The battery supports up to 4S4P configurations, allowing users to build a 64.30 kWh energy system for off-grid or high-demand setups.
Image: Visual representation of the battery's energy capacity and its scalability for home storage systems.
2.3 Compact Mini Size
Measuring just 9.76"H x 15.12"W x 7.64"L, this battery is more space-efficient than standard 12V 300Ah LiFePO4 batteries. Weighing only 62.5lbs (50% lighter than lead-acid/AGM/SLA batteries), it fits various vehicle and application types, simplifying installation for solar energy storage and RV camping.
Image: The WattCycle battery with its compact dimensions and weight clearly labeled.
2.4 All-Round Protection
A built-in 200A Battery Management System (BMS) offers comprehensive protection. Premium aluminum cooling fins enhance heat dissipation by 30%. The battery also includes a low-temperature cut-off at -4°F (-20°C) to ensure reliability in harsh weather conditions, maintaining consistent performance compatible with existing 12V 300Ah LiFePO4 battery setups.

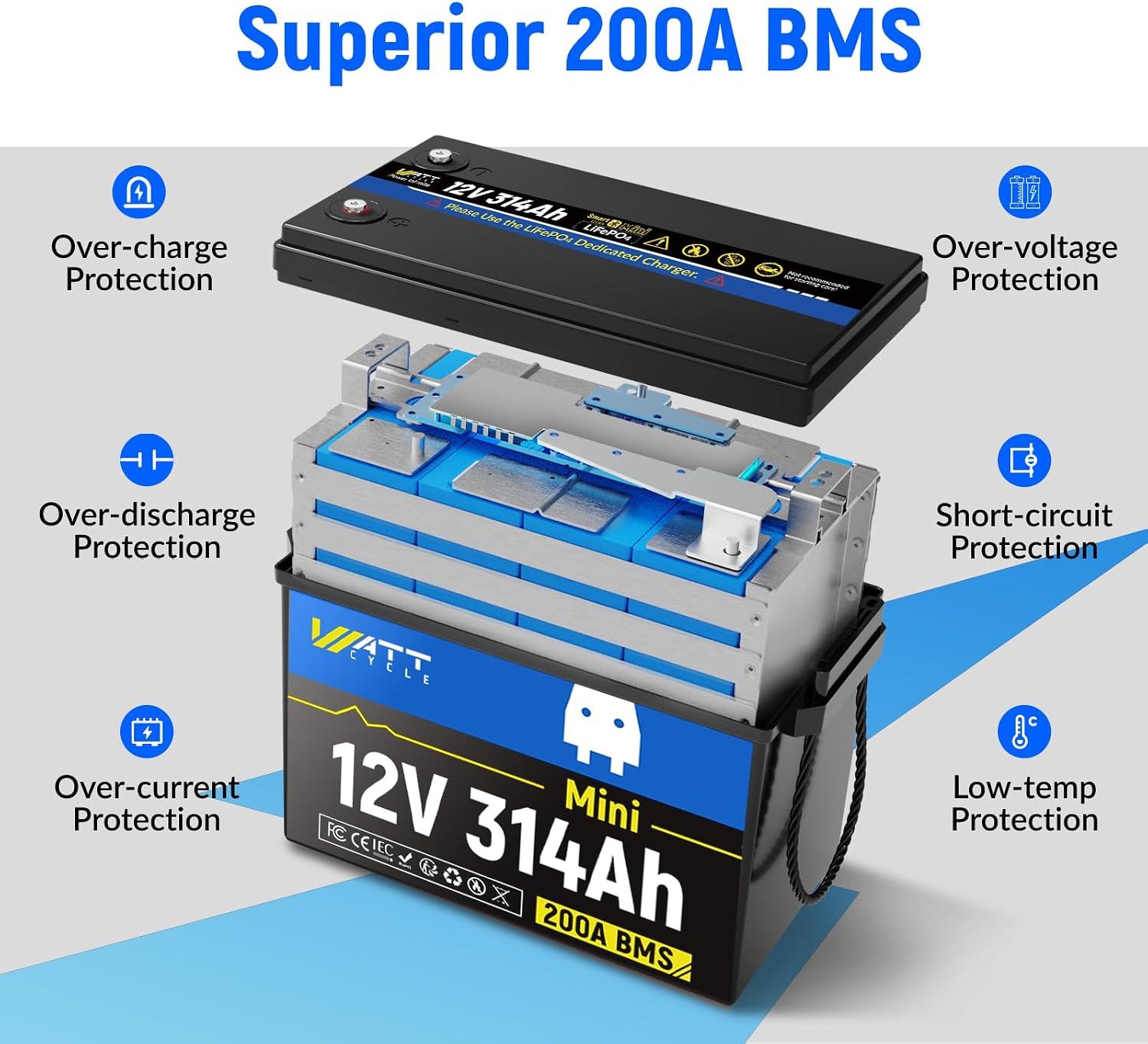

Image: An exploded view of the battery showing the BMS and its protective functions.
Image: The battery operating in cold conditions, demonstrating its low-temperature protection features.
2.5 Durable Full-Aluminum Frame
The unique internal aluminum skeleton eliminates swelling risk and strengthens shock resistance. Paired with a tough ABS case, the battery has passed UL62133 safety tests, making it a sturdier alternative to standard 12V 300Ah LiFePO4 batteries for long-term use.
Image: Internal structure of the battery, highlighting the full-aluminum frame for enhanced stability and no swelling risk.
2.6 Long-Lasting Grade-A Cells
Outperforming 12V 300Ah LiFePO4 batteries and lead-acid options, this battery utilizes EV Grade-A cells. It supports 5000-15000 deep discharge cycles, offering over 10 years of use. It is lighter, smaller, and charges faster, requiring no complicated wiring for easy setup.
Image: A comparative chart highlighting the superior performance and longevity of the WattCycle LiFePO4 battery against traditional lead-acid batteries.
3. Specifications
| Attribute | Value |
|---|---|
| Brand | WattCycle |
| Model | WT12V314AH200MINI |
| Size | 12V 314Ah MINI |
| Product Dimensions | 7.64"D x 15.12"W x 9.76"H |
| Item Weight | 62.5 pounds |
| Voltage | 12 Volts |
| Battery Cell Composition | Lithium Ion (LiFePO4) |
| Number Of Cells | 3 |
| Terminal | M8 |
| Automotive Fit Type | Universal Fit |
| Max Continuous Discharge Current | 200A |
| Energy | 4019Wh (4.01kWh) |
| Cycle Life | 5000-15000 DOD cycles |
| Low-Temperature Cut-off | -4°F (-20°C) |
| Vehicle Service Type | Boat, Golf Cart, RV, Van, lithium trolling motor battery |
4. What's in the Box
- 3 x 12V 314Ah LiFePO4 Battery Mini (15.12 x 7.64 x 9.76 inches each)
- 12 x M8 Screws
- 6 x Insulated Cap
- Instruction Manual (this document)
5. Setup
5.1 Unboxing and Initial Inspection
Upon receiving your WattCycle LiFePO4 battery, carefully unbox the package. Inspect the battery for any visible damage. Ensure all components listed in the 'What's in the Box' section are present. If any items are missing or damaged, contact customer support immediately.
Video: An unboxing and overview of the WattCycle 12V 314Ah Mini LiFePO4 Lithium Battery, showing its components and initial appearance.
5.2 Connecting Batteries (Parallel/Series)
The WattCycle 12V 314Ah Mini LiFePO4 battery supports both parallel and series connections for increased capacity or voltage. Always ensure all batteries are at the same State of Charge (SOC) before connecting them. Use appropriate gauge cables and M8 screws for secure connections.
- Parallel Connection: Connect positive terminals together and negative terminals together to increase overall capacity (Ah) while maintaining 12V. Up to 4 batteries can be connected in parallel.
- Series Connection: Connect the positive terminal of one battery to the negative terminal of the next battery to increase overall voltage. For example, two 12V batteries in series create a 24V system. Up to 4 batteries can be connected in series.
- Combined Series-Parallel: For higher voltage and capacity, batteries can be arranged in series-parallel configurations (e.g., 4S4P for 64.30 kWh).
Image: Multiple batteries connected in parallel, emphasizing balanced discharge for optimal system performance.
5.3 Charger Requirements
Use a LiFePO4 compatible charger. Ensure the charger's voltage and current ratings are appropriate for your battery configuration. Overcharging or using an incompatible charger can damage the battery and void the warranty.
6. Operating Instructions
6.1 Initial Charge
It is recommended to fully charge the battery before its first use. Monitor the charging process using a compatible charger or the Bluetooth app.
6.2 BMS Monitoring via Bluetooth
The WattCycle battery includes Bluetooth connectivity for real-time monitoring of battery status. Download the dedicated app (refer to the QR code on the battery or the included manual for app download instructions) to view parameters such as voltage, current, state of charge (SOC), temperature, and cell balance.
Video: A demonstration of connecting to a 12V 314Ah LiFePO4 battery with 200A BMS via Bluetooth, showing real-time monitoring of battery status.
6.3 Discharge and Load Management
The battery's 200A BMS provides protection against over-discharge. Avoid consistently discharging the battery below its recommended voltage to maximize lifespan. The battery can continuously deliver up to 2560W (12.8V * 200A), suitable for various high-power appliances.
Image: Examples of appliances powered by the WattCycle battery and their estimated run times.
7. Maintenance
LiFePO4 batteries require minimal maintenance compared to lead-acid batteries. However, following these guidelines will ensure optimal performance and longevity:
- Regular Inspection: Periodically check battery terminals for corrosion or loose connections. Ensure the battery case is clean and free from debris.
- Temperature Management: Operate the battery within its specified temperature ranges. The built-in low-temperature cut-off protects against charging below -4°F (-20°C).
- Storage: For long-term storage, charge the battery to approximately 50% State of Charge (SOC) and store it in a cool, dry place. Avoid storing in direct sunlight or extreme temperatures.
- Balancing: The integrated BMS actively balances the cells. No manual balancing is typically required under normal operating conditions.
8. Troubleshooting
If you encounter issues with your WattCycle LiFePO4 battery, refer to the following common troubleshooting steps:
- Battery Not Charging:
- Check charger connections and ensure the charger is LiFePO4 compatible.
- Verify battery temperature is within the charging range (above -4°F / -20°C). The BMS will prevent charging if too cold.
- Inspect cables and terminals for damage or loose connections.
- No Power Output:
- Check battery voltage. If below minimum operating voltage, the BMS may have triggered low-voltage protection.
- Ensure all connections are secure and free from corrosion.
- Check for any tripped circuit breakers or fuses in your system.
- If drawing excessive current, the BMS may have activated over-current protection. Reduce the load and attempt to reconnect.
- Bluetooth Connectivity Issues:
- Ensure Bluetooth is enabled on your device and the battery.
- Move closer to the battery to improve signal strength.
- Restart the app and/or your device.
For persistent issues, contact WattCycle customer support with your battery model and a detailed description of the problem.
9. Warranty and Support
WattCycle batteries are designed for durability and performance. Please refer to your purchase documentation for specific warranty terms and conditions. Typically, the warranty covers manufacturing defects under normal use.
For technical support, warranty claims, or any questions regarding your WattCycle 12V 314Ah Mini LiFePO4 Lithium Battery, please visit the official WattCycle website or contact their customer service department. Keep your proof of purchase handy when contacting support.
