Ninja Deluxe Blender & Kitchen System (Model CO905KS) Instruction Manual

Introduction

The Ninja Deluxe Blender & Kitchen System is a versatile 3-in-1 appliance designed to streamline your food preparation. This high-performance countertop system includes an 88-oz pitcher, a 9-cup food processor, and Auto-iQ technology, allowing you to effortlessly create everything from frozen smoothies and nut butters to dough, shredded vegetables, and blended soups. Its powerful motor and durable blades ensure professional-grade results, while the space-saving design keeps your kitchen organized.

Important Safety Information

Please read all instructions carefully before using your Ninja Deluxe Blender & Kitchen System. Failure to follow these instructions may result in injury or damage to the appliance.

• Always ensure the unit is unplugged before assembling, disassembling, or cleaning.
• Blades are extremely sharp. Handle with care to avoid injury.
• Do not operate the appliance with damaged cords or plugs.
• Keep hands and utensils out of the container while blending to reduce the risk of severe injury to persons or damage to the blender.
• Ensure the lid is securely locked in place before operating.
• Do not overfill containers beyond the MAX FILL line.

Package Contents

Your Ninja Deluxe Blender & Kitchen System includes the following components:

• Blender base with Auto-iQ controls
• 88-oz Total Crushing Pitcher with lid
• Stacked Blade Assembly for pitcher
• 9-cup Food Processor Bowl with lid
• Chopping Blade Assembly for food processor
• Dough Blade Assembly for food processor
• Reversible Slicing/Shredding Disc
• Grating Disc
• 2 x 21-oz Nutrient Extraction Cups with Spout Lids
• Pro Extractor Blades Assembly for Nutrient Extraction Cups
• Recipe book

Image: The Ninja Deluxe Blender & Kitchen System showcasing the main base, 88-oz pitcher, 9-cup food processor, two 21-oz single-serve cups, and various blade attachments.

Setup

1. Unpack Components: Carefully remove all parts from the packaging. Wash all containers, lids, and blade assemblies in warm, soapy water before first use. Rinse thoroughly and dry.
2. Position the Base: Place the motor base on a clean, dry, and level surface. The suction cups on the bottom of the base will help secure it to the countertop.
3. Attach Desired Container:
   • For 88-oz Total Crushing Pitcher: Place the pitcher onto the motor base, aligning the handle slightly to the right of the base's front. Rotate clockwise until it clicks into place. Insert the Stacked Blade Assembly onto the drive gear inside the pitcher. Secure the lid by aligning the arrow on the lid with the arrow on the pitcher handle and pressing down until it clicks.
   • For 9-cup Food Processor Bowl: Place the food processor bowl onto the motor base, aligning the handle slightly to the right of the base's front. Rotate clockwise until it clicks into place. Insert the desired blade (Chopping Blade, Dough Blade) or spindle with disc (Slicing/Shredding, Grating) onto the drive gear. Secure the lid by aligning the arrow on the lid with the arrow on the bowl handle and pressing down until it clicks.
   • For 21-oz Nutrient Extraction Cup: Fill the cup with ingredients. Screw the Pro Extractor Blades Assembly onto the open end of the cup until tightly sealed. Invert the cup and place it onto the motor base, rotating clockwise until it clicks into place.
4. Connect Power: Plug the power cord into a standard electrical outlet. The power button will illuminate.

Operating Instructions

The Ninja Deluxe Blender & Kitchen System features intuitive controls, including Auto-iQ programs for one-touch convenience and manual settings for precise control.

Image: A detailed view of the control panel, showing the power button, Auto-iQ programs (Smoothie, Ice Crush, Extract, Chop, Dough), and manual speed settings (Low, Med, High, Pulse).

General Operation

• Power Button: Press to turn the unit on or off.
• Auto-iQ Programs: Select a pre-programmed setting (Smoothie, Ice Crush, Extract, Chop, Dough) for intelligent blending that automatically adjusts speed and time for optimal results.
• Manual Settings: Use LOW, MED, HIGH for continuous blending at a consistent speed. Use PULSE for short bursts of power.

Using the 88-oz Total Crushing Pitcher

Ideal for large batches of smoothies, frozen drinks, and purees.

1. Add ingredients to the pitcher, ensuring not to exceed the MAX LIQUID line.
2. Secure the lid.
3. Select an Auto-iQ program (e.g., Smoothie, Ice Crush) or a manual speed.
4. Process until desired consistency is achieved.

Image: The 88-oz Total Crushing Pitcher filled with various fruits and ice, demonstrating its capacity for large batches.

Using the 9-cup Food Processor Bowl

Perfect for chopping, shredding, slicing, and making dough.

1. Install the appropriate blade or disc for your task.
2. Add ingredients to the bowl. For slicing/shredding, use the food chute and pusher.
3. Secure the lid.
4. Select an Auto-iQ program (e.g., Chop, Dough) or a manual speed.
5. Process until desired results are achieved.

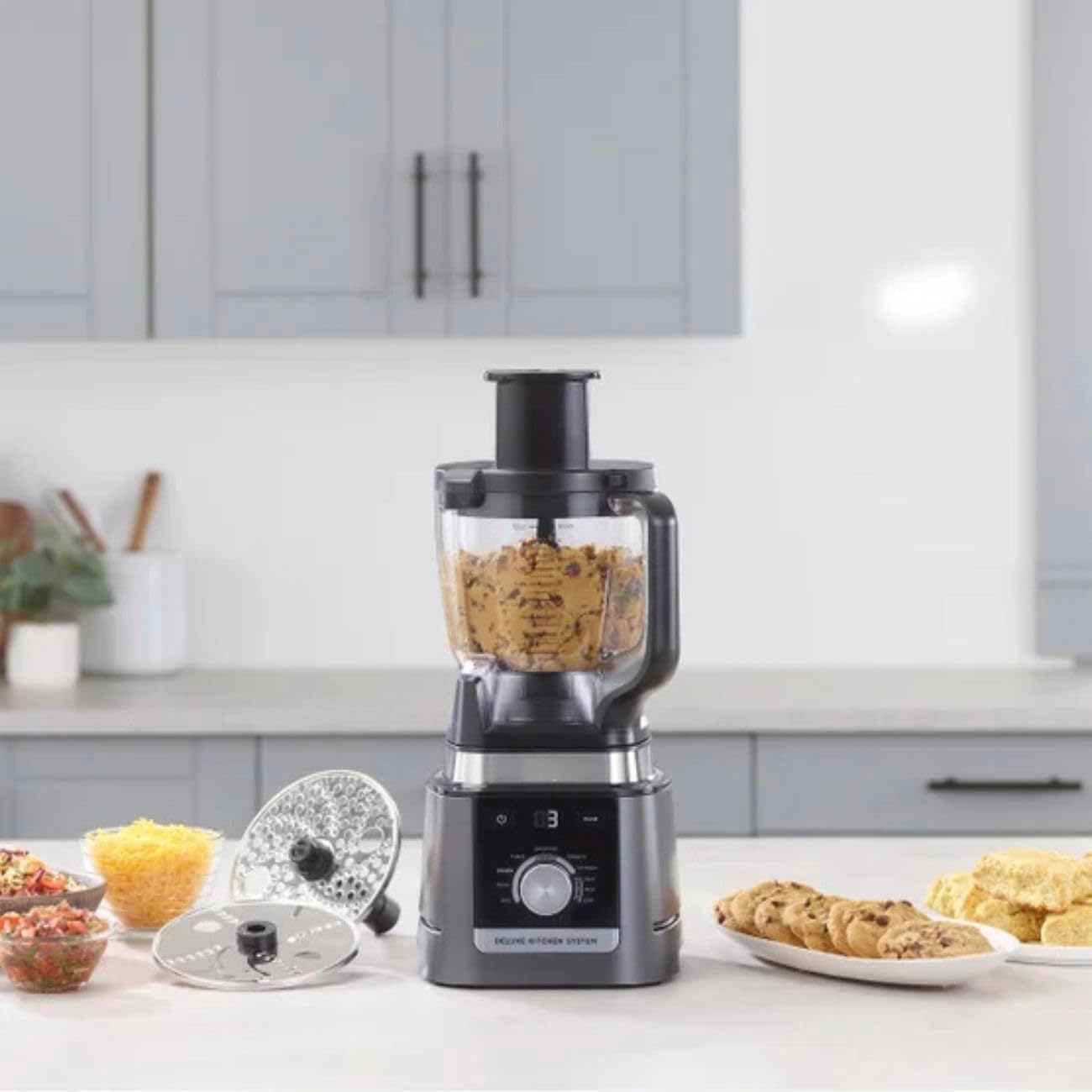

Image: The 9-cup Food Processor Bowl containing cookie dough, with the slicing/shredding disc and grating disc visible on the countertop.

Using the 21-oz Nutrient Extraction Cups

Ideal for single-serve smoothies and nutrient extraction.

1. Add ingredients to the cup, ensuring not to exceed the MAX LIQUID line.
2. Screw on the Pro Extractor Blades Assembly tightly.
3. Invert the cup onto the motor base and twist clockwise to lock.
4. Select the 'Extract' Auto-iQ program or a manual speed.
5. Once blending is complete, remove the cup, unscrew the blade assembly, and replace with a spout lid for on-the-go convenience.

Image: A 21-oz Nutrient Extraction Cup filled with a green smoothie, positioned next to the blender base and fresh ingredients.

Maintenance and Cleaning

Proper maintenance ensures the longevity and optimal performance of your kitchen system.

• Dishwasher Safe Components: All containers, lids, and blade assemblies are dishwasher safe. Place them on the top rack of your dishwasher.
• Motor Base Cleaning: Wipe the motor base clean with a damp cloth. Do not immerse the motor base in water or any other liquid.
• Blade Care: Handle all blade assemblies with extreme caution as they are very sharp. Store them safely when not in use.

Image: Various components of the Ninja Deluxe Blender & Kitchen System, including pitchers and lids, arranged in a dishwasher for cleaning.

Troubleshooting

If you encounter any issues with your Ninja Deluxe Blender & Kitchen System, refer to the following common solutions:

• Unit does not power on: Ensure the power cord is securely plugged into a working electrical outlet. Check if the container and lid are properly assembled and locked onto the motor base.
• Ingredients are not blending: Ensure there is sufficient liquid in the container. If using frozen ingredients, add some liquid to help with blending. Check that the blade assembly is correctly installed.
• Lid/Container not locking: Ensure the container is placed correctly on the base and rotated clockwise until it clicks. For lids, align the arrows and press down firmly until it clicks.
• Motor stops during operation: The unit may have overheated. Unplug the unit and allow it to cool down for at least 15 minutes before attempting to use it again. Reduce the load or liquid amount if consistently overheating.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the documentation included with your product or visit the official Ninja website. Keep your purchase receipt as proof of purchase for any warranty claims.
