1. Important Safety Information
Read all instructions before assembling and using the trampoline. Failure to follow these warnings and instructions may result in serious injury or death.
- Adult Supervision Required: Always ensure children are supervised by an adult while using the trampoline.
- Weight Limit: Do not exceed the maximum weight capacity of 50 kg (110 lbs).
- One Jumper at a Time: Only one person should use the trampoline at any given time to prevent collisions.
- Clearance: Ensure adequate overhead and surrounding clearance. Keep the area around the trampoline free from obstacles.
- Proper Attire: Remove shoes, jewelry, and any sharp objects before jumping.
- No Somersaults: Avoid somersaults or other dangerous maneuvers that could lead to head or neck injuries.
- Secure Placement: The trampoline features anti-slip suction cups and L-shaped legs for stability. Ensure it is placed on a flat, stable surface.
- Safety Net: Always use the trampoline with the safety net securely closed. The integrated safety net and seamless design minimize gaps and prevent falls.
- Under-Trampoline Barrier: A special net is placed underneath the trampoline to prevent children or objects from entering the area below the jumping mat.
This trampoline is certified with GS safety standards, ensuring a secure and enjoyable experience when used correctly.
2. Package Contents
Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact customer support.
- Trampoline Frame (Base, Legs, Support Poles)
- Jumping Mat with Integrated Spring Cover
- Safety Enclosure Net with L-shaped Zipper
- 30 High-Quality Springs
- Padded Sleeves for Support Poles
- Anti-slip Suction Cups (pre-attached to legs)
- Assembly Tools (Wrench, Spring Puller)
- Instruction Manual

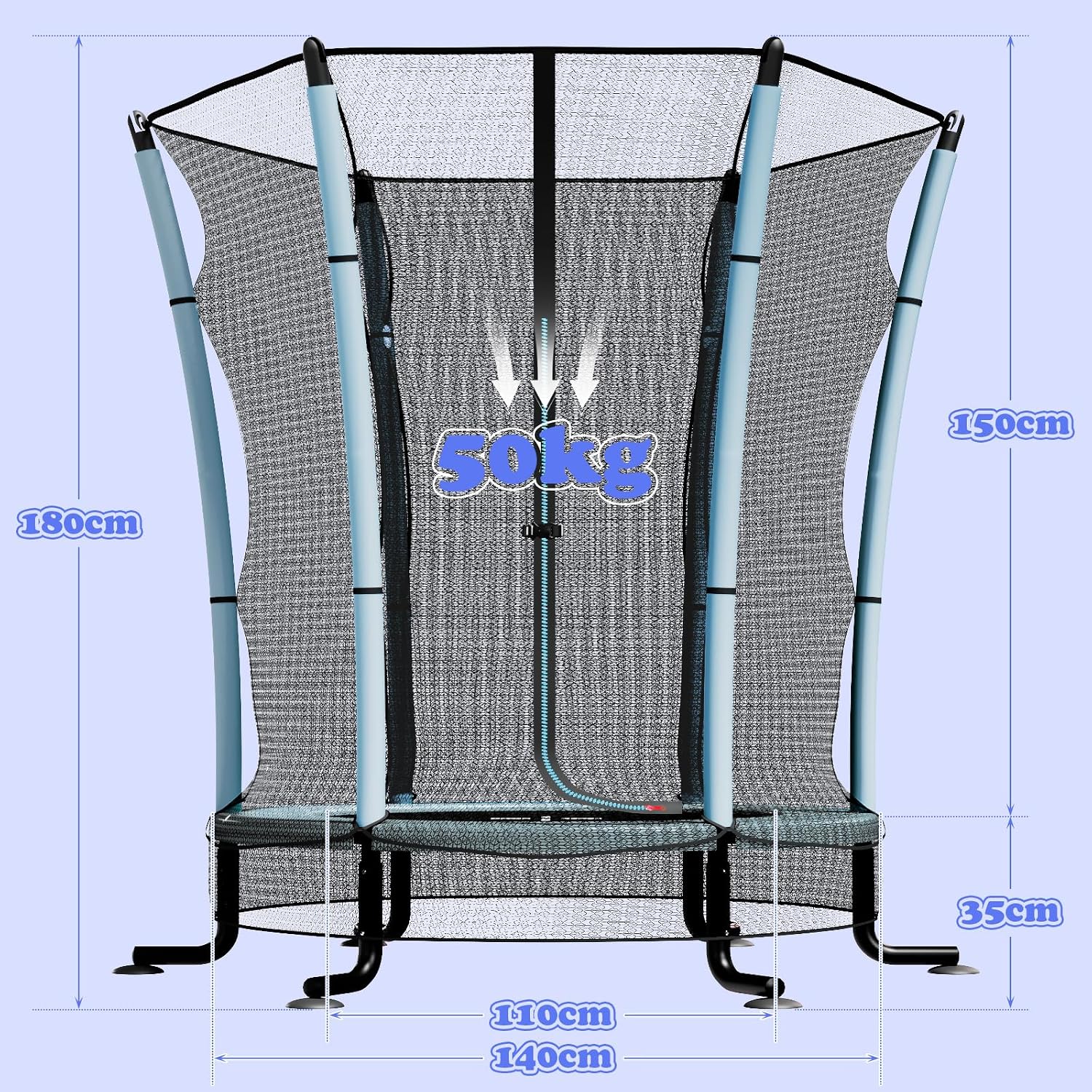

Image: Diagram showing the trampoline's overall dimensions (140cm width, 180cm height) and the 50kg weight capacity.
3. Assembly Instructions
Assembly is designed to be straightforward, with all necessary tools included. It is recommended to have two adults for easier and quicker setup.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Verify against the package contents list.
- Assemble the Base Frame: Connect the frame sections according to the diagrams provided in the separate assembly guide. Ensure all connections are secure.
- Attach Legs: Securely attach the L-shaped legs to the base frame. Ensure the anti-slip suction cups are facing downwards.
- Install Jumping Mat and Springs: Carefully attach the springs to the frame and the jumping mat using the provided spring puller tool. Work systematically around the trampoline to ensure even tension. The jumping mat has an integrated spring cover for safety.
- Erect Support Poles: Insert the support poles into the designated slots on the frame. Slide the padded sleeves over the poles.
- Install Safety Net: Attach the safety enclosure net to the top of the support poles and secure it to the trampoline frame. Ensure the L-shaped zipper is functional and closes completely.
- Final Check: Before first use, double-check all bolts, nuts, and connections to ensure they are tight and secure. Confirm the safety net is properly installed and closed.
Image: Close-up details of the trampoline's construction, highlighting the external safety net, the L-shaped zipper for entry, the anti-slip suction cups on the feet, and the robust L-shaped support design.
4. Operating Instructions
To ensure a safe and enjoyable experience, follow these guidelines when using the JUMMICO trampoline:
- Entry and Exit: Always use the designated L-shaped zippered opening to enter and exit the trampoline. Ensure the zipper is fully closed before jumping.
- Jumping Technique: Begin with small bounces and gradually increase height. Maintain control at all times.
- Center Jumping: Try to jump in the center of the mat to maximize stability and reduce the risk of hitting the frame or net.
- Stopping a Jump: To stop jumping, flex your knees as your feet come into contact with the mat.
- Indoor/Outdoor Use: The trampoline is suitable for both indoor and outdoor environments. When used outdoors, ensure it is anchored or placed in a sheltered area during strong winds.
Image: The JUMMICO trampoline positioned indoors, demonstrating its suitability for home use.
Image: The JUMMICO trampoline placed outdoors on a lawn, illustrating its versatility for exterior use.
5. Maintenance
Regular maintenance will extend the life of your JUMMICO trampoline and ensure continued safety.
- Inspection: Periodically inspect all components for wear, damage, or loose parts. Check the frame, springs, jumping mat, safety net, and pole padding.
- Cleaning: Clean the jumping mat and safety net with mild soap and water. Rinse thoroughly and allow to air dry. Avoid harsh chemicals.
- Rust Prevention: The frame is rust-resistant, but regular cleaning and ensuring it is dry after outdoor use will help maintain its condition.
- Storage: If storing the trampoline for an extended period, especially during harsh weather, disassemble it and store components in a dry, protected area.
- Springs: The trampoline uses 30 durable springs (10cm length, 19N tensile strength) which are waterproof and UV-resistant. Inspect them for any signs of stretching or damage.
Image: Detailed view of the trampoline springs, highlighting their quantity (30), length (10cm), tensile strength (19N), and properties such as being waterproof, UV-resistant, safe, and tear-resistant.
6. Troubleshooting
If you encounter any issues with your trampoline, refer to the following common problems and solutions:
- Trampoline feels unstable:
- Ensure the trampoline is placed on a completely flat and level surface.
- Check that all leg connections and frame bolts are securely tightened.
- Verify that the anti-slip suction cups are making full contact with the ground.
- Jumping mat tension seems uneven:
- Inspect all springs to ensure they are correctly attached and not damaged or stretched.
- Re-check the spring installation pattern to ensure even distribution.
- Safety net does not close properly:
- Examine the zipper for any obstructions or damage.
- Ensure the net is correctly attached to the poles and frame, without excessive slack or tension.
For issues not covered here, please contact JUMMICO customer support.
7. Specifications
| Brand | JUMMICO |
| Model Name | Trampoline |
| Product Dimensions | 140 cm (Diameter) x 180 cm (Height) |
| Product Weight | 15 kg |
| Maximum Load Capacity | 50 kg |
| Material | Polyethylene (PE) |
| Number of Springs | 30 |
| UPC | 788418909442 |
8. Warranty and Support
JUMMICO is committed to providing high-quality products. For warranty information, technical support, or to report missing/damaged parts, please contact JUMMICO customer service through their official website or the retailer where the product was purchased.
Please have your model name (Trampoline) and UPC (788418909442) ready when contacting support.
