1. Safety Information
Please read all instructions carefully before using your new Yeego Wine & Beverage Refrigerator. Retain this manual for future reference.
- Electrical Safety: Ensure the unit is connected to a properly grounded electrical outlet. Do not use extension cords or ungrounded adapters.
- Ventilation: Maintain adequate clearance around the unit for proper ventilation. Do not block the front ventilation grille.
- Placement: Install the unit on a level, stable surface. Avoid direct sunlight or heat sources.
- Children Safety: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Supervise children to ensure they do not play with the appliance.
- Flammable Materials: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
Important Tip: For optimal cooling performance, keep the refrigerator upright for 24–36 hours before first use. This allows the refrigerant to settle properly after transportation.
2. Product Overview
The Yeego 30 Inch Dual Zone Wine & Beverage Refrigerator is designed for efficient storage of both wine bottles and beverage cans. It features two independent temperature zones, allowing for precise cooling of different types of drinks.
Key Features:
- Dual Zone Storage: Separate compartments for wine and beverages with independent temperature controls.
- Capacity: Holds up to 33 standard 750ml wine bottles and 80 standard 12oz cans.
- Adjustable Shelves: Includes 6 wooden shelves for wine and 6 adjustable wire shelves for beverages, offering flexible storage options.
- Durable Construction: Crafted with a 304 stainless steel door and insulated design for reliable performance.
- Versatile Installation: Suitable for built-in, under-counter, or freestanding placement.
Figure 2.1: Interior layout displaying the 33 bottle and 80 can capacity with adjustable shelves.
Figure 2.2: Cross-section illustrating the insulation and construction materials for superior heat resistance and cool retention.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. Inspect the unit for any shipping damage. The package includes:
- 6 Wire Shelves
- 6 Wooden Shelves
- 2 Door Handles
- 1 L-Shaped Screwdriver
- 1 Instruction Manual (this document)
3.2 Placement
This unit is designed for built-in, under-counter, or freestanding installation. Ensure the chosen location has a stable, level surface and is away from direct sunlight or heat sources. The front ventilation system allows for flexible placement in kitchens, home bars, and covered outdoor entertaining areas.
Figure 3.1: The refrigerator can be installed as a built-in or freestanding unit, with dimensions for planning.
3.3 Leveling the Unit
The refrigerator is equipped with adjustable feet to ensure it is level. Adjust the feet by turning them clockwise or counter-clockwise until the unit is stable and level. Proper leveling is crucial for optimal performance and door alignment.

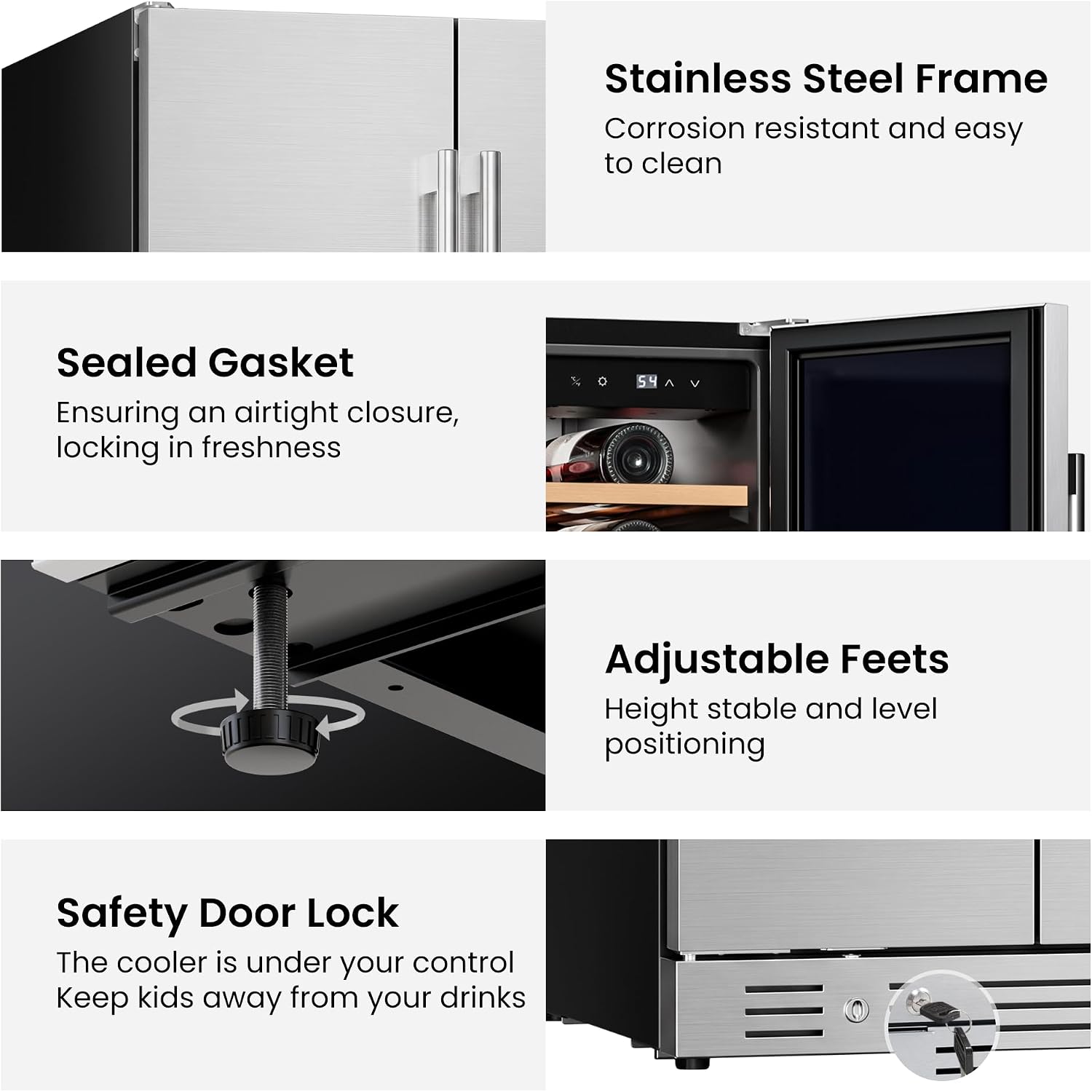

Figure 3.2: Detail of adjustable feet for stable and level positioning.
3.4 Initial Power-On
After placing and leveling the unit, wait 24-36 hours before plugging it into a power outlet. This allows the compressor oils and refrigerants to settle, preventing potential damage. Once plugged in, the unit will begin cooling.
4. Operating Instructions
4.1 Control Panel
The unit features independent digital control panels for each zone, located at the top of the interior. These panels allow you to set and monitor temperatures, control internal lighting, and switch between temperature displays.
Figure 4.1: Digital control panel for setting and monitoring temperatures in each zone.
4.2 Temperature Control
Each zone can be set independently within a temperature range of 34°F to 65°F (1°C to 18°C). Use the up/down arrows on each control panel to adjust the desired temperature. The digital display will show the current temperature setting.
- Beverage Zone: Typically set between 34°F and 54°F for optimal chilling of cans and other beverages.
- Wine Zone: Typically set between 40°F and 65°F, depending on the type of wine being stored.
The unit features a power-off memory function, which restores your last temperature settings automatically after a power interruption. An internal fan circulation system ensures stable and evenly distributed cooling throughout both zones.
Figure 4.2: Advanced cooling and circulation system for consistent temperatures.
4.3 Adjusting Shelves
The wire and wooden shelves are removable and adjustable to accommodate various bottle and can sizes. To adjust, carefully slide the shelf out, reposition it to the desired height, and slide it back in until securely seated.
Video 4.1: This video demonstrates the adjustable shelves and large capacity of the Yeego Wine and Beverage Refrigerator, showing how to reconfigure space for different bottle and can sizes.
5. Maintenance
5.1 Automatic Defrost
The unit features an automatic defrost system. Frost will melt and drain into an evaporation tray located at the back of the unit, where it evaporates. This process occurs periodically and does not require manual intervention.
5.2 Cleaning
- Interior: Disconnect power before cleaning. Use a soft cloth with a mild, non-abrasive cleaner and warm water. Avoid harsh chemicals or abrasive pads. Dry thoroughly.
- Exterior: Clean the stainless steel door and cabinet with a soft cloth and a mild detergent. For stainless steel surfaces, use a specialized stainless steel cleaner to maintain its finish.
- Door Gasket: Regularly clean the door gasket to ensure a tight seal. A clean gasket helps maintain cooling efficiency.
5.3 Power Saving Tips
- Avoid opening the door frequently or for extended periods.
- Ensure the unit is not placed near heat sources.
- Keep the condenser coils clean for efficient operation.
6. Troubleshooting
Before contacting customer support, please refer to the following troubleshooting guide for common issues.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not operate | No power; circuit breaker tripped; unit not plugged in. | Check power supply, circuit breaker, and plug connection. |
| Temperature is not cold enough | Door not closed properly; excessive door openings; warm items added; poor ventilation; thermostat set too high. | Ensure door is sealed; reduce door openings; allow time for new items to cool; ensure proper clearance for ventilation; adjust thermostat to a lower setting. |
| Unit is making unusual noise | Unit not level; loose parts; fan obstruction. | Level the unit using adjustable feet; check for loose components; ensure fan is clear of obstructions. |
| Vibration | Unit not level; unit touching a wall or other appliance. | Adjust leveling feet; move unit away from contact surfaces. |
| Moisture buildup inside | High humidity; door left open; door gasket not sealing. | Ensure door is closed tightly; check and clean door gasket for proper seal. |
If the problem persists after checking these points, please contact Yeego customer support.
7. Specifications
Detailed specifications for the Yeego 30 Inch Dual Zone Wine & Beverage Refrigerator.
| Feature | Detail |
|---|---|
| Product Dimensions (D x W x H) | 22.4"D x 29.7"W x 34.3"H |
| Brand | Yeego |
| Capacity | 6 cubic feet (33 Bottles & 80 Cans) |
| Configuration | Wine and Beverage Refrigerator |
| Color | Silver |
| Special Features | Adjustable Shelves, Built-in/Under counter/Freestanding, Door Ajar/Open Alarm, High temperature alarm |
| Installation Type | Built-In |
| Number of Doors | 2 |
| Defrost System | Automatic |
| Finish Type | Matte |
| Shelf Type | Wire and wood |
| Form Factor | Wine Cellar |
| Number Of Shelves | 12 (6 Wire, 6 Wooden) |
| Power Source | Corded Electric |
| Item Weight | 117.3 pounds |
| Model Number | YG-BC-170A2EQ(B)-A |
8. Warranty Information
Yeego provides a 3-Year Compressor Guarantee for this product, covering defects in materials and workmanship under normal use. This warranty applies from the date of purchase. Please retain your proof of purchase for warranty claims.
For full warranty terms and conditions, please refer to the official Yeego website or contact customer support.
9. Customer Support
Yeego is committed to providing excellent customer service. If you require assistance with installation, operation, maintenance, or troubleshooting that is not covered in this manual, please contact our technical support team.
Contact Information:
- Website: Visit the Yeego Store on Amazon
- Email: [Insert Customer Support Email Here]
- Phone: [Insert Customer Support Phone Number Here]
Please have your model number (YG-BC-170A2EQ(B)-A) and purchase date available when contacting support.
