OKD 70-inch Fireplace TV Stand User Manual
Model: RPC70FP36P-ROWAW-21
1. Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your OKD 70-inch Fireplace TV Stand. Please read all instructions carefully before beginning assembly or using the product. Retain this manual for future reference.
Figure 1.1: OKD 70-inch Fireplace TV Stand (Antique White)
Figure 1.2: TV Stand accommodating a large television
2. Important Safety Information
To reduce the risk of fire, electric shock, or injury, adhere to the following safety precautions:
- Read all instructions before using this appliance.
- This product is intended for indoor use only.
- Do not operate any fireplace with a damaged cord or plug, or if the heater malfunctions or has been dropped or damaged in any manner.
- Always ensure the fireplace is plugged directly into a wall outlet. Never use with an extension cord or relocatable power tap (outlet/power strip).
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and away from the sides and rear.
- Exercise extreme caution when any heater is used by or near children or invalids and whenever the fireplace is left operating and unattended.
- The TV stand top surface supports up to 150 lbs. Do not exceed this weight limit.
- Assembly requires two adults. Do not attempt to assemble alone.
3. Package Contents
Your OKD Fireplace TV Stand will be delivered in two separate packages, which may arrive on different days. Please verify all components are present before beginning assembly.
3.1 Main Components
- TV Stand Panels and Hardware
- 36-inch 3-Sided Glass Electric Fireplace Insert
3.2 Hardware and Accessories
Refer to the detailed parts list included in your assembly guide for all specific hardware components (screws, dowels, cam locks, etc.).
4. Assembly Instructions
Assembly of this TV stand requires patience and careful attention to the provided diagrams. It is strongly recommended that two adults perform the assembly to ensure safety and proper construction.
4.1 Before You Begin
- Clear a spacious area for assembly.
- Identify all parts and hardware. Lay them out according to their labels.
- Ensure you have the necessary tools (e.g., screwdriver, hammer).
- Review the assembly diagrams thoroughly before starting each step.
4.2 Step-by-Step Assembly
Follow the numbered steps and corresponding diagrams in the separate assembly guide provided with your product. Pay close attention to the orientation of each panel and the correct hardware for each connection.
Figure 4.1: Product Dimensions Overview
4.3 Fireplace Insert Installation
The electric fireplace insert is individually packaged and designed to nest securely into the designated opening of the TV stand. Follow the specific instructions for the fireplace insert to connect it to power and ensure proper placement.
Video 4.1: Assembly and Feature Overview of the OKD 70-inch Fireplace TV Stand. This video demonstrates the assembly process and highlights key features of the product.
5. Operating Instructions
5.1 Electric Fireplace Operation
The 36-inch electric fireplace can be controlled via the touch screen panel on the unit or the included remote control.
- Power On/Off: Press the power button to turn the fireplace on or off.
- Flame Colors: Select from 3 classic flame colors (red, orange, blue) to match your ambiance.
- Flame Brightness: Adjust the flame brightness through 5 levels (L1-L5).
- Temperature Control: Set the desired room temperature between 64°F and 82°F. The heater is effective for areas up to 400 square feet.
- Timer Function: Utilize the 1-9 hour timer to automatically shut off the fireplace, conserving energy.
- Flame Only Mode: The flame effect can be operated independently of the heat function, allowing for year-round enjoyment.
- Remote Control: The remote control has an effective range of up to 19 feet. Ensure clear line of sight to the fireplace sensor.
Figure 5.1: Electric Fireplace Controls and Flame Options
5.2 Storage and Organization
The TV stand offers various storage solutions for media devices and household items.
- Semi-Open Top Shelf: A central shelf provides easy access for DVDs, game consoles, or routers.
- Smooth Sliding Drawers: Two large drawers (12"W × 10"D × 4"H) are located on either side of the top shelf for concealed storage.
- Glass-Door Cabinets: Dual cabinets (16"W × 13.25"D × 20.5"H) with glass doors offer display and storage space.
- Adjustable Glass Shelves: Each cabinet includes adjustable glass shelves with three height options for flexible organization.
- Soft-Close Hinges: Cabinet doors feature soft-close hinges for quiet operation and to prevent finger injuries.
- Cable Management: Rear cable management holes help organize and conceal wires for a tidy setup.
Figure 5.2: Storage Features: Drawers and Adjustable Shelves

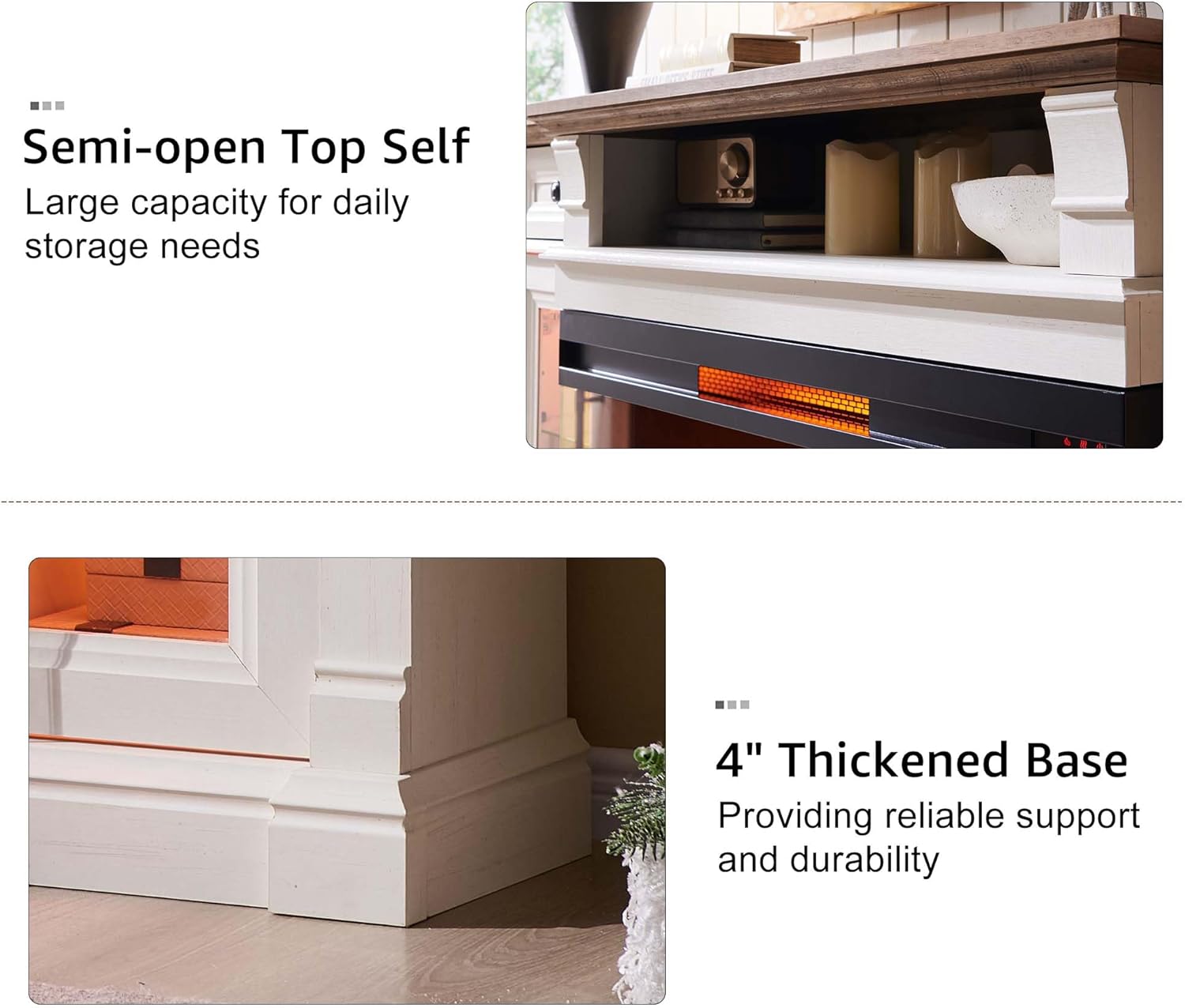

Figure 5.3: Semi-Open Top Shelf and Thickened Base
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your TV stand and electric fireplace.
6.1 Cleaning the TV Stand
- Dust the surfaces regularly with a soft, dry cloth.
- For spills, wipe immediately with a damp cloth and dry thoroughly.
- Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish.
6.2 Electric Fireplace Care
- Ensure the fireplace is unplugged and cool before cleaning.
- Wipe the exterior surfaces with a soft, damp cloth.
- Clean the glass panel with a soft cloth and glass cleaner. Do not use abrasive cleaners.
- Periodically check the air intake and exhaust vents for dust or obstructions and clean as necessary.
7. Troubleshooting
If you encounter issues with your OKD Fireplace TV Stand, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fireplace does not turn on. | No power, loose connection, power switch off. | Check if the unit is plugged in securely. Ensure the wall outlet is functional. Verify the main power switch on the fireplace is in the 'ON' position. |
| No heat output. | Heat function off, temperature setting too low, overheat protection activated. | Ensure the heat function is activated. Increase the temperature setting. If overheat protection activated, unplug the unit, wait 10-15 minutes, then plug back in. Clear any obstructions from vents. |
| Remote control not working. | Dead batteries, obstructed signal, remote out of range. | Replace batteries in the remote. Ensure no objects are blocking the signal path to the fireplace sensor. Operate the remote within 19 feet of the unit. |
| Unusual noises or odors. | Dust accumulation, new unit odor. | A slight odor may occur during initial use; this is normal and will dissipate. If persistent or unusual noises occur, discontinue use and contact customer support. |
If the problem persists after attempting these solutions, please contact OKD customer support.
8. Specifications
Key technical specifications for your OKD Fireplace TV Stand:
| Feature | Detail |
|---|---|
| Brand | OKD |
| Model Name | 70" Electric Fireplace TV Stand |
| Item Model Number | RPC70FP36P-ROWAW-21 |
| Product Dimensions | 15.96"D x 70"W x 32"H |
| Material | Engineered Wood |
| Color | Antique White |
| Power Source | AC/DC (Corded) |
| Power Consumption | 1500 Watts |
| Heat Output | 5118 BTU per Hour (Heats up to 400 sq ft) |
| Installation Type | Freestanding |
| Item Weight | 177 Pounds |
| Max TV Size Supported | Up to 80 inches |
| Max Top Surface Weight Capacity | 150 lbs |
| Certifications | CSA, UL Certified |
Figure 8.1: Top Surface Dimensions
9. Warranty and Customer Support
Your OKD Fireplace TV Stand comes with a limited warranty. For specific details regarding warranty coverage, please refer to the warranty information included with your product packaging.
For any questions, missing parts, or technical assistance, please contact OKD customer support. Have your model number (RPC70FP36P-ROWAW-21) and purchase information ready when contacting support.
