How do I assemble the hose connection hardware for the VINGLI GC-003 Garden Hose Reel Cart, and what is the correct order of washers and spacers to prevent leaking?

Based on the VINGLI GC-003 manual and standard hose reel assembly, here is how the hose connection hardware should be configured to prevent leaks:The Leader Hose Connection: The short leader hose connects your water spigot to the brass inlet on the side of the cart. Ensure there is a rubber washer inside the female end of the leader hose before tightening it to the brass connector.The Internal Drum Connection: This is where your main garden hose attaches to the reel. The assembly typically follows this order: Brass Connector > Rubber Washer > Garden Hose. If you have a spacer, it usually sits behind the brass fitting to provide tension, but the rubber washer is the most critical part for stopping leaks.Washer Placement: Washers should not be "glued" to the pipe. If a washer appears stuck or fused, it may be old, compressed, or mineral-scaled. You should be able to pry it out and replace it with a fresh, flexible rubber or vinyl washer.Leaking Troubleshooting: If it is leaking badly, check for the following:Ensure there is exactly one rubber washer in every female connection point. Using two washers can actually cause leaks by preventing a deep thread connection.Check the brass swivel connector on the side of the drum. If water is spraying from the swivel itself (where it rotates), the internal O-rings may be damaged.Hand-tighten all connections firmly. If leaks persist, use pliers for an additional quarter-turn, but do not over-tighten as this can crush the washers.If you are missing specific hardware components like the brass swivel or the leader hose, you should contact VINGLI customer support through your original purchase platform for replacement parts.

VINGLI 4-Wheel Garden Hose Reel Cart (Model GC-003) Instruction Manual

Introduction

Thank you for choosing the VINGLI 4-Wheel Garden Hose Reel Cart. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new hose reel cart. Please read all instructions carefully before use and retain this manual for future reference.

Safety Information

Always follow basic safety precautions when using this product to reduce the risk of injury or damage.

Ensure all connections are secure before operating the hose reel with water pressure.
Do not exceed the recommended hose capacity to prevent damage to the reel or hose.
Keep children and pets away from the hose reel during operation.
Store the hose reel in a dry, protected area when not in use to prolong its lifespan.
Wear appropriate safety gear, such as gloves, if necessary during assembly or maintenance.

Package Contents

Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or broken, please contact customer support.

Hose Reel Drum
Main Frame
Side Discs (for reel)
Storage Basket
Wheels (4)
Axle
Connecting Hose (Leader Hose)
Assembly Hardware (bolts, nuts, washers)
Crank Handle

Setup and Assembly

Follow these steps to assemble your VINGLI 4-Wheel Garden Hose Reel Cart. While specific detailed instructions are not provided, general assembly involves attaching the wheels, frame, reel, and handle.

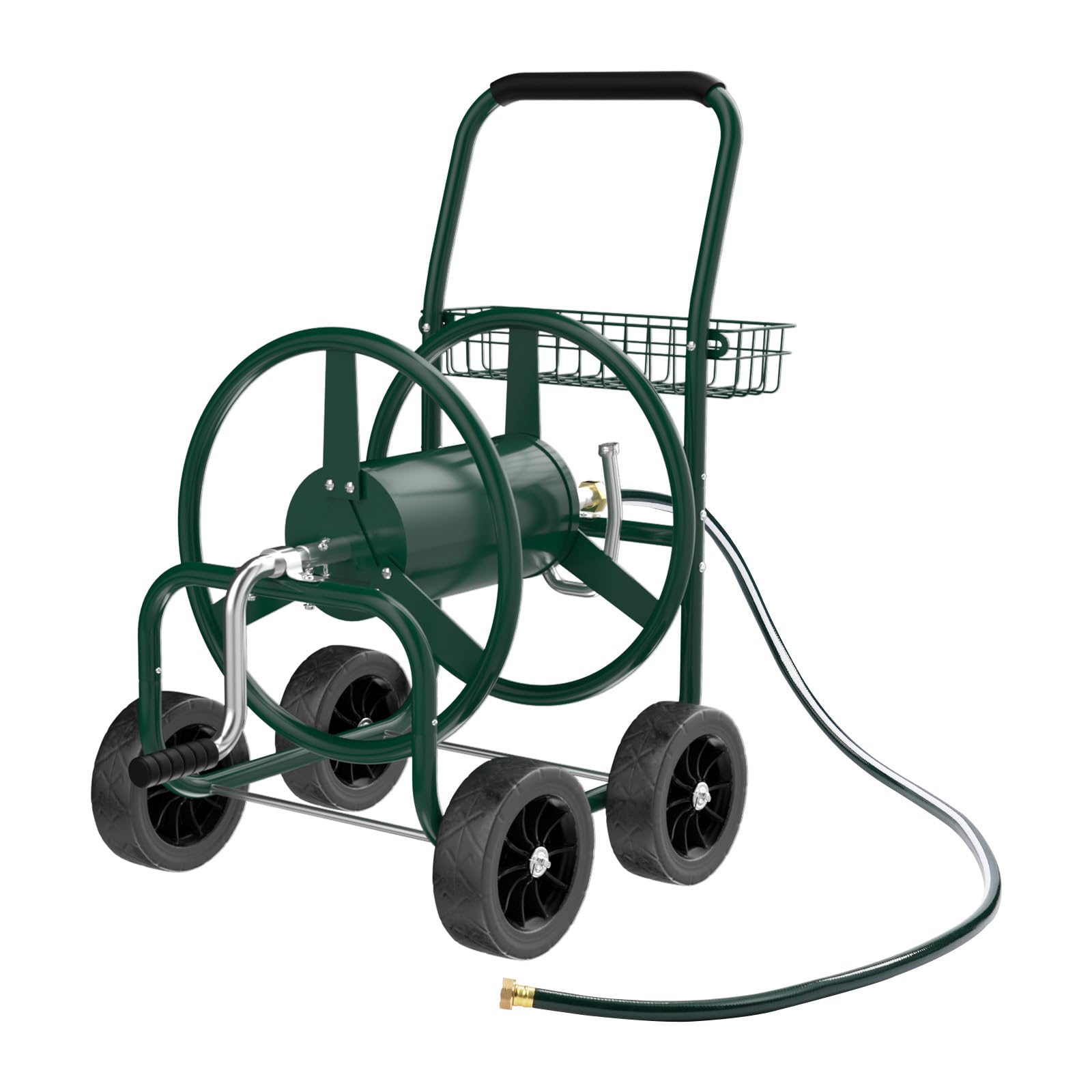

Figure 1: Fully assembled VINGLI 4-Wheel Garden Hose Reel Cart.

Attach the Wheels: Secure the four wheels to the main frame using the provided axle and hardware. Ensure they are firmly attached for stability.
Assemble the Main Frame: Connect the various frame components as per the included diagram (if available) to form the cart's structure.
Install the Hose Reel Drum: Mount the hose reel drum onto the frame's central axis. Ensure it spins freely.
Attach the Crank Handle: Secure the crank handle to the side of the hose reel drum for easy winding.
Mount the Storage Basket: Attach the storage basket to the designated area on the cart's handle frame.
Connect the Leader Hose: Attach the short connecting hose (leader hose) from the reel's internal connection to your water source. Ensure a tight, leak-free connection.
Attach Your Garden Hose: Connect your main garden hose to the external fitting on the hose reel drum.

Note: For detailed visual guidance, refer to the assembly diagrams typically found in the product packaging.

Dimensions and key features of the hose reel cart

Figure 2: Overview of the hose reel cart highlighting dimensions, foam-filled grip, fatigue-reducing handle, and all-terrain PU wheels.

Operating Instructions

Winding the Hose

Ensure the hose is fully extended and free of kinks or tangles.
Turn the crank handle clockwise to begin winding the hose onto the reel.
Guide the hose evenly across the reel to prevent uneven coiling and potential damage.
Once the hose is fully wound, you can secure the end to prevent it from unwinding.

Unwinding the Hose

Grasp the end of the hose and pull it away from the reel.
The reel will rotate freely, allowing the hose to unwind.
Extend the hose to the desired length, ensuring it does not snag on obstacles.

Connecting to Water Source

Connect the leader hose (short hose from the reel) to your outdoor faucet or water spigot.
Tighten the connection firmly by hand to prevent leaks.
Slowly turn on the water supply. Check for any leaks at the connections.

Close-up of hose reel cart features including storage basket, PU tires, and brass connector

Figure 3: Detailed view of the convenient storage basket, all-terrain PU tires, and durable brass connector.

Maintenance

Regular maintenance will ensure the longevity and optimal performance of your VINGLI Hose Reel Cart.

Cleaning: Periodically clean the cart with mild soap and water to remove dirt and debris. Rinse thoroughly and dry to prevent rust.
Lubrication: Apply a small amount of lubricant to the moving parts of the reel mechanism and axle annually to ensure smooth operation.
Hose Inspection: Regularly inspect your garden hose for cracks, leaks, or damage. Replace damaged hoses to maintain water pressure and prevent waste.
Storage: During winter months or extended periods of non-use, store the hose reel cart in a dry, frost-free environment. Drain any water from the hose and reel before storage.
Connections: Check all hose connections for tightness periodically. Replace worn washers as needed to prevent leaks.

Close-up of anti-corrosion features on the hose reel cart

Figure 4: The cart features anti-rust chrome finish and rugged, weather-proof finish for enhanced durability.

Troubleshooting

Problem	Possible Cause	Solution
Hose Leaks at Connection Points	Loose connections or worn washers.	Tighten all hose connections. Replace rubber washers if they appear worn or damaged.
Difficulty Winding/Unwinding Hose	Hose is tangled, kinked, or reel mechanism needs lubrication.	Ensure hose is free of tangles. Apply lubricant to the reel's moving parts.
Cart is Unstable	Wheels or frame components are not securely fastened.	Check all bolts and nuts for tightness. Ensure wheels are properly installed on the axle.
Water Flow is Restricted	Kink in the hose or debris in the nozzle/connections.	Straighten any kinks in the hose. Check nozzle and connections for blockages.

Specifications

Brand	VINGLI
Model Number	GC-003
Material	Coated Steel
Dimensions (L x W x H)	32.68 x 36.22 x 22.83 inches
Hose Capacity	Up to 300 feet of 5/8-inch hose or 400 feet of 1/2-inch hose
Operation Mode	Manual Crank
Installation Method	Freestanding
Wheels	4 All-Terrain PU Wheels

Warranty and Support

VINGLI stands behind the quality of its products. If you encounter any issues, or if any parts are missing or broken upon arrival, please contact our customer support team for assistance. We are committed to arranging replacements promptly.

For support, please visit the official VINGLI store or contact customer service through your purchase platform.

Note: Specific warranty details may vary. Please refer to your purchase documentation for complete warranty terms and conditions.

VINGLI GC-003
