1. Safety Information
Please read and understand all instructions before assembly and use of this product. Keep this manual for future reference.
- For safety reasons, children should not climb or play with this product.
- Ensure the storage cabinet is placed on a level and stable surface to prevent tipping.
- Do not store flammable liquids or hazardous materials inside the cabinet.
- Distribute weight evenly inside the cabinet to maintain stability.
- Check local HOA policies or regulations regarding outdoor storage structures before installation.
2. Product Overview
The Patiowell 25 Cu.ft Outdoor Storage Cabinet is designed to provide a durable and convenient solution for your outdoor storage needs. Constructed from premium plastic (PP) and high-density (HDPE) resin, this cabinet offers excellent structural strength and weather resistance.
Key Features:
- Durable Construction: Crafted from sturdy plastic (PP) and high-density (HDPE) resin for long-lasting use.
- Weather Resistant: Designed to withstand UV rays, extreme temperatures, and heavy rainfall without fading or warping.
- Spacious Capacity: Offers 25 cubic feet of storage for gardening tools, patio cushions, pool supplies, and more.
- Secure Locking System: Features a dual-locking system (foot pedal + magnetic latch) for enhanced security.
- Easy Access: Pedal-operated base allows for convenient door opening without bending.
- Low Maintenance: UV-resistant materials and smooth surfaces ensure effortless cleaning.
- Modular Design: Can be expanded with additional units or customized with optional shelves (sold separately).

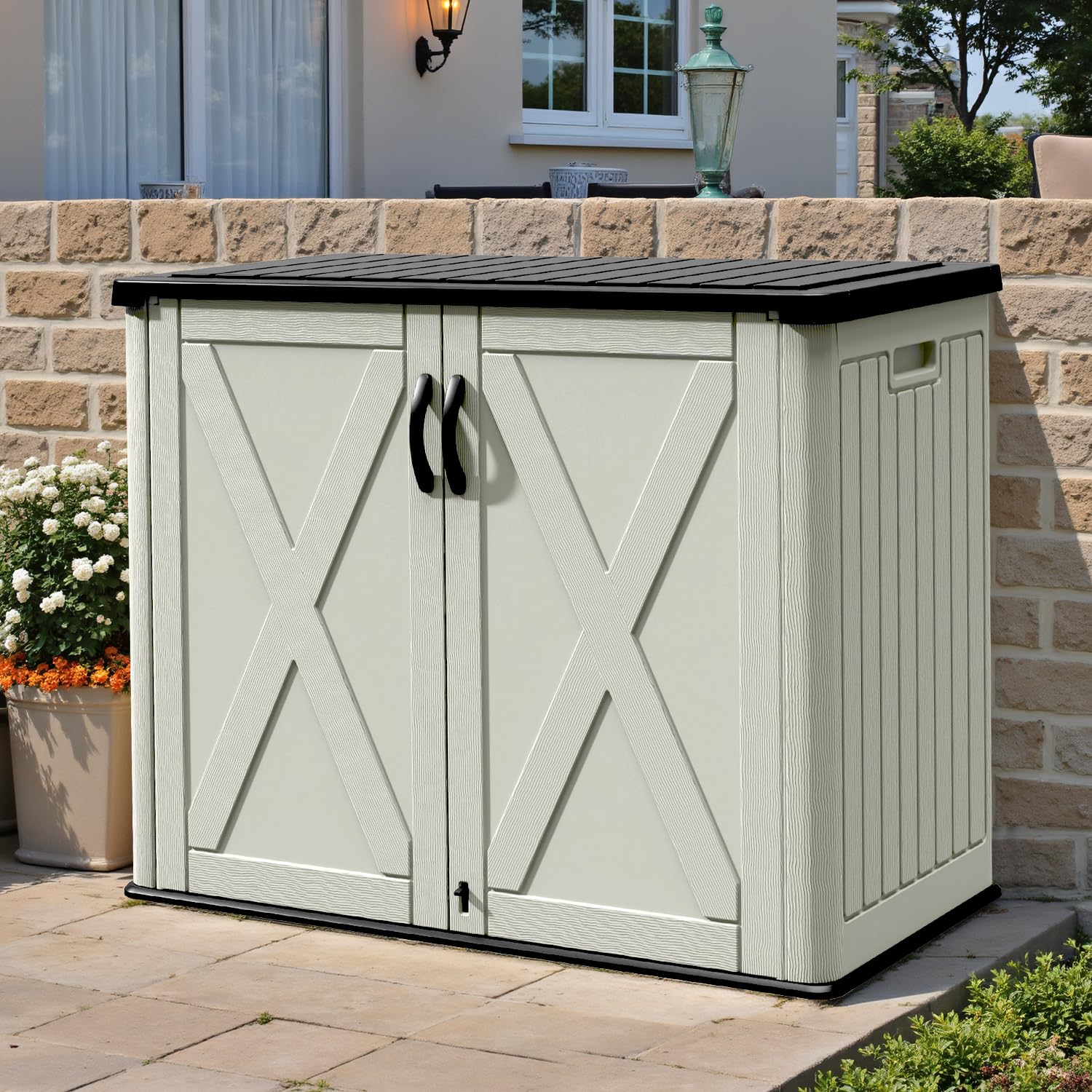

Image 2.1: The Patiowell 25 Cu.ft Outdoor Storage Cabinet in a closed position, showcasing its design.
Image 2.2: The storage cabinet with its doors open, revealing ample space for various outdoor items like gardening tools and bags of soil.
3. Assembly Instructions
The Patiowell Outdoor Storage Cabinet is designed for easy assembly without specialized tools. Follow these general steps for construction. A detailed step-by-step manual is included in the product packaging.
Before You Begin:
- Clear a flat, level area for assembly.
- Unpack all components and verify against the parts list in your included manual.
- Familiarize yourself with all parts and hardware.
General Assembly Steps:
- Base Installation: Place the base panel on your chosen level surface.
- Side Panel Attachment: Secure the side panels to the base, ensuring they are correctly oriented.
- Back Panel Integration: Attach the back panel(s) to the side panels.
- Door Frame Assembly: Assemble the door frames and attach them to the main structure.
- Roof Placement: Position and secure the roof panel onto the assembled structure.
- Handle and Lock Installation: Install the door handles and ensure the foot-operated and magnetic latch mechanisms are functional.
- Final Checks: Verify all connections are secure and the doors open and close smoothly.
Image 3.1: An exploded diagram showing the individual components of the storage cabinet, illustrating how they fit together during assembly.
4. Operation
Operating your Patiowell Outdoor Storage Cabinet is straightforward, designed for convenience and security.
Opening the Doors:
- Foot Pedal: To open the doors, gently press down on the foot pedal located at the bottom center of the cabinet. This disengages the primary latch.
- Handles: While pressing the foot pedal, grasp the door handles and pull the doors open.
Closing and Securing the Doors:
- Close Doors: Push the doors firmly shut until the magnetic latches engage.
- Locking Mechanism: The cabinet features a provision for a padlock (not included) for additional security. Align the holes on the doors and insert your padlock.
Image 4.1: Detailed view of the cabinet's convenient handles, the foot-operated lock mechanism, and an internal load-bearing buckle.
5. Maintenance
The Patiowell Outdoor Storage Cabinet is designed for low maintenance, ensuring long-lasting appearance and functionality.
Cleaning:
- Regular Cleaning: Wipe down the exterior surfaces with a damp cloth and mild soap solution as needed.
- Stubborn Stains: For more stubborn dirt, use a soft brush or sponge. Avoid abrasive cleaners or harsh chemicals, as these can damage the plastic.
- Rinsing: Rinse thoroughly with clean water and allow to air dry.
General Care:
- No painting or sealing is required for this resin shed.
- Periodically check all connections and hardware to ensure they remain tight and secure.
- Ensure the area around the cabinet is clear of debris to prevent obstruction of the doors or ventilation.
Image 5.1: Visual representation highlighting the cabinet's waterproof, UV-resistant, and low-maintenance properties, attributed to its PP eco-friendly material.
6. Troubleshooting
If you encounter any issues with your Patiowell Outdoor Storage Cabinet, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors do not close properly. | Uneven surface; Obstruction; Misaligned panels. | Ensure the cabinet is on a level surface. Remove any obstructions. Check panel alignment and re-tighten screws if necessary. |
| Water leakage inside the cabinet. | Improper assembly; Damaged seals; Extreme weather. | Verify all panels are securely fastened and seals are intact. Ensure the cabinet is not placed in an area prone to standing water. |
| Foot pedal mechanism is stiff or not engaging. | Debris in mechanism; Misalignment. | Clear any debris from around the foot pedal. Check the internal linkage for proper alignment as per the assembly manual. |
7. Specifications
Detailed specifications for the Patiowell 25 Cu.ft Outdoor Storage Cabinet.
| Feature | Detail |
|---|---|
| Brand | Patiowell |
| Model Number | 0811-DGYBG |
| Material | Plastic (PP & HDPE Resin) |
| Product Dimensions (D x W x H) | 25.4" x 47.4" x 37" |
| Item Weight | 59.52 Pounds |
| Door Width | 47.4 Inches |
| Door Height | 37 Inches |
| Water Resistance Level | Waterproof |
| Assembly Required | Yes |
Image 7.1: A visual representation of the product's key dimensions, including width, depth, and height.
8. Warranty & Support
Patiowell is committed to providing high-quality products. For specific warranty details, please refer to the warranty card included with your product or visit the official Patiowell website.
Customer Support:
If you have any questions, require assistance with assembly, or need to report a missing/damaged part, please contact Patiowell customer support:
- Website: Visit the Patiowell Store on Amazon
- Email: Refer to your product packaging for direct email support.
- Phone: Refer to your product packaging for direct phone support.
Please have your model number (0811-DGYBG) and purchase date ready when contacting support.
