JAMFLY 12x20 ft Heavy Duty Carport Instruction Manual

1. Product Overview

The JAMFLY 12x20 ft Carport is a versatile, heavy-duty shelter designed for various outdoor uses. It provides expansive space suitable for parking vehicles such as cars, trucks, boats, and motorcycles. This portable structure can also function as an outdoor storage shed or a temporary event tent.

Key features include a robust powder-coated steel frame, removable sidewalls with roll-up windows for adjustable ventilation, and an all-season tarp offering protection against sun, rain, snow, and dust. The design emphasizes durability and ease of assembly.

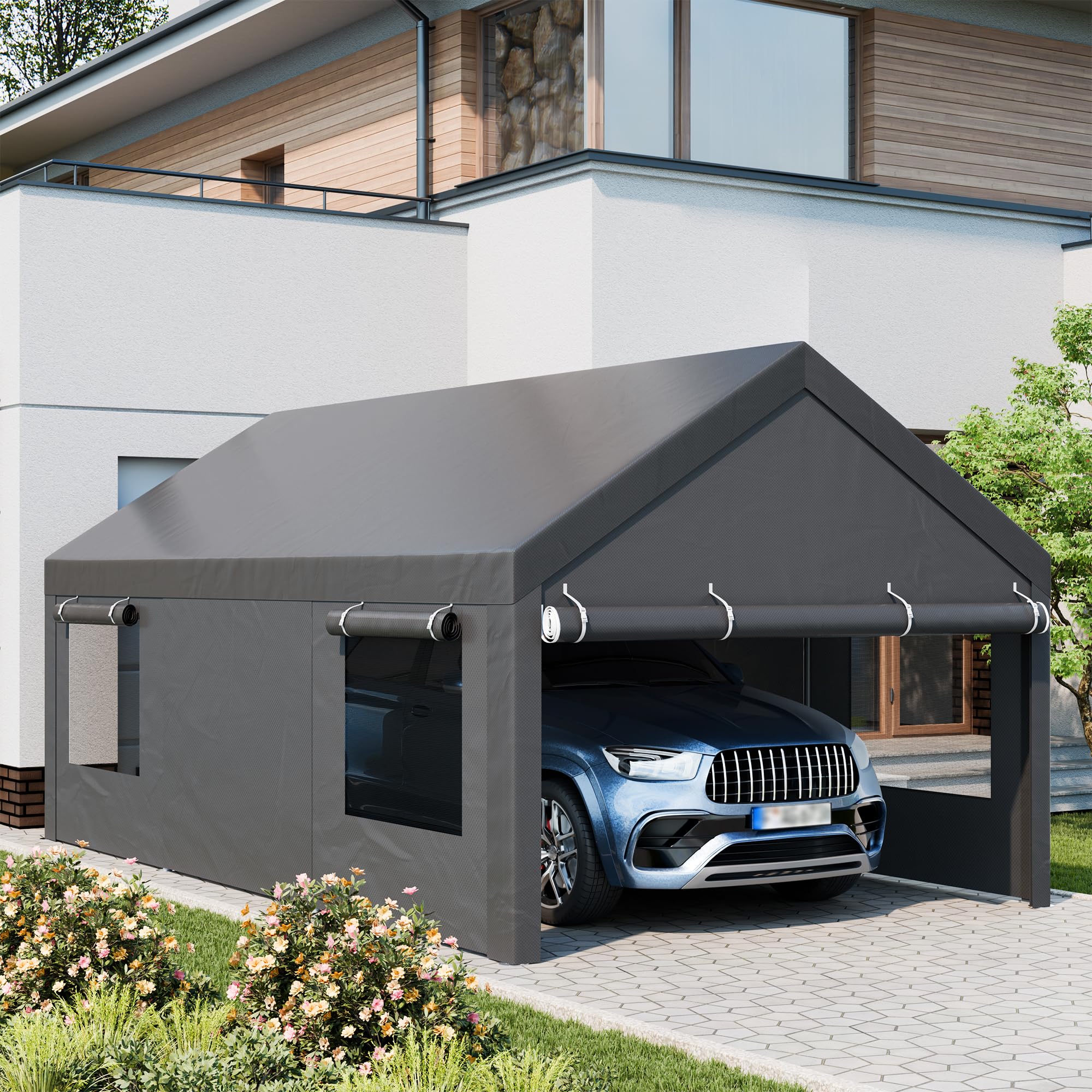

Image: The JAMFLY 12x20 ft Carport providing comprehensive weather protection for a vehicle.

2. Safety Information

Please read and understand all instructions before assembly and use. Failure to follow these safety guidelines may result in injury or damage to the product.

• Anchoring: Always ensure the carport is properly anchored using the provided sandbags and ropes, especially in windy conditions. Additional ground stakes may be necessary for enhanced stability.
• Flammable Materials: Keep all flammable materials away from the carport to minimize fire risks.
• Regular Inspection: Regularly inspect the carport for any signs of wear, damage, or loose connections. Address any issues promptly to maintain structural integrity.
• Assembly Safety: Ensure adequate space for assembly. Wear appropriate safety gear, such as gloves, during installation. It is recommended that 2-3 adults assist with assembly.
• Weather Conditions: While designed for all-season use, extreme weather conditions (e.g., heavy snow accumulation, severe winds) may require temporary disassembly or additional reinforcement. Clear snow accumulation from the roof promptly.

3. Components List

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact customer support.

• Steel Frame Components: Rust-resistant powder-coated alloy steel poles and connectors.
• Tarp: 180g PE all-season tarp for roof coverage.
• Sidewalls & Doors: Removable fabric sidewalls with roll-up mesh windows and end doors.
• Anchoring Accessories: 4 sandbags, 8 windproof ropes, 4 nylon ropes, thickened base plates for legs.
• Fasteners: Elastic ball straps for securing the tarp and sidewalls.

Image: Key structural components of the JAMFLY carport, highlighting its robust construction.

4. Setup Instructions

Assembly of the JAMFLY carport requires no special tools and can be completed by 2-3 adults following these steps:

1. Step 1: Build the Top Frame. Connect the roof poles and ridge poles to form the upper structure of the carport. Ensure all connections are secure.
2. Step 2: Assemble the Leg Steel Pipes. Attach the vertical leg pipes to the top frame. Ensure the thickened base plates are oriented correctly at the bottom of each leg.
3. Step 3: Cover the Frame with Tarp. Carefully drape the main tarp over the assembled frame. Ensure it is centered and evenly distributed. Secure the tarp to the frame using the elastic ball straps.
4. Step 4: Install Side Fabric and Secure. Attach the removable sidewalls and end doors to the frame. Use the provided fasteners to secure them firmly.
5. Step 5: Secure the Carport. Utilize the windproof ropes, ground nails (not explicitly listed but implied for anchoring), and sandbags to firmly anchor the carport to the ground. Fill the sandbags for maximum stability.

Image: Visual representation of the carport assembly process.

5. Operating Instructions

The JAMFLY carport offers flexible usage options:

• Roll-up Windows: The sidewalls feature roll-up mesh windows. To increase ventilation, simply unfasten and roll up the window covers. Secure them in the rolled-up position using the attached straps.
• Removable Sidewalls and Doors: For an open-air canopy experience, the sidewalls and doors can be completely removed. This is ideal for events or when maximum airflow is desired. Reattach them for full enclosure and protection.
• Securing Tarp: Ensure the main tarp is always taut and securely fastened to the frame using the elastic ball straps to prevent water pooling and wind damage.

Image: The carport's removable sidewalls feature, allowing for flexible use.

Image: Detail of the mesh windows and their function for ventilation.

6. Maintenance

Proper maintenance will extend the lifespan of your JAMFLY carport:

• Cleaning: Clean the tarp and frame regularly with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material. Rinse thoroughly and allow to air dry completely before storage.
• Inspection: Periodically check all frame connections, ropes, and sandbags for tightness and wear. Replace any worn or damaged components immediately.
• Snow Removal: In snowy conditions, promptly remove any accumulated snow from the roof to prevent excessive weight and potential collapse.
• Storage: If disassembling for storage, ensure all fabric components are clean and completely dry to prevent mold and mildew. Store components in a cool, dry place away from direct sunlight.

7. Troubleshooting

Here are solutions to common issues you might encounter:

• Carport Instability: If the carport feels unstable, re-check all anchoring points. Ensure sandbags are full and ropes are taut. Consider adding additional ground stakes or securing to a permanent structure if allowed and safe.
• Water Pooling on Roof: Ensure the tarp is stretched tightly and evenly over the frame. Adjust the elastic ball straps to eliminate any slack that could cause water to collect.
• Tears or Holes in Fabric: Small tears can be repaired with a suitable fabric repair kit. For larger damage, contact customer support for replacement parts. Prompt repair prevents further deterioration.
• Difficulty Rolling Up Windows: Check for any obstructions or misaligned fabric that might be preventing smooth operation. Ensure the straps are properly released before attempting to roll up.

8. Specifications

Image: Detailed dimensions and weight of the carport.

9. Warranty and Support

For warranty information, technical support, or to inquire about replacement parts, please contact JAMFLY customer service. Refer to your purchase documentation for specific contact details or visit the official JAMFLY website.
