Prostormer 269-Piece Tool Set Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use, maintenance, and storage of your Prostormer 269-Piece Tool Set. This comprehensive tool kit is designed for a wide range of tasks, including general household repairs, automotive maintenance, and various mechanical projects. Please read these instructions carefully before using the tools.

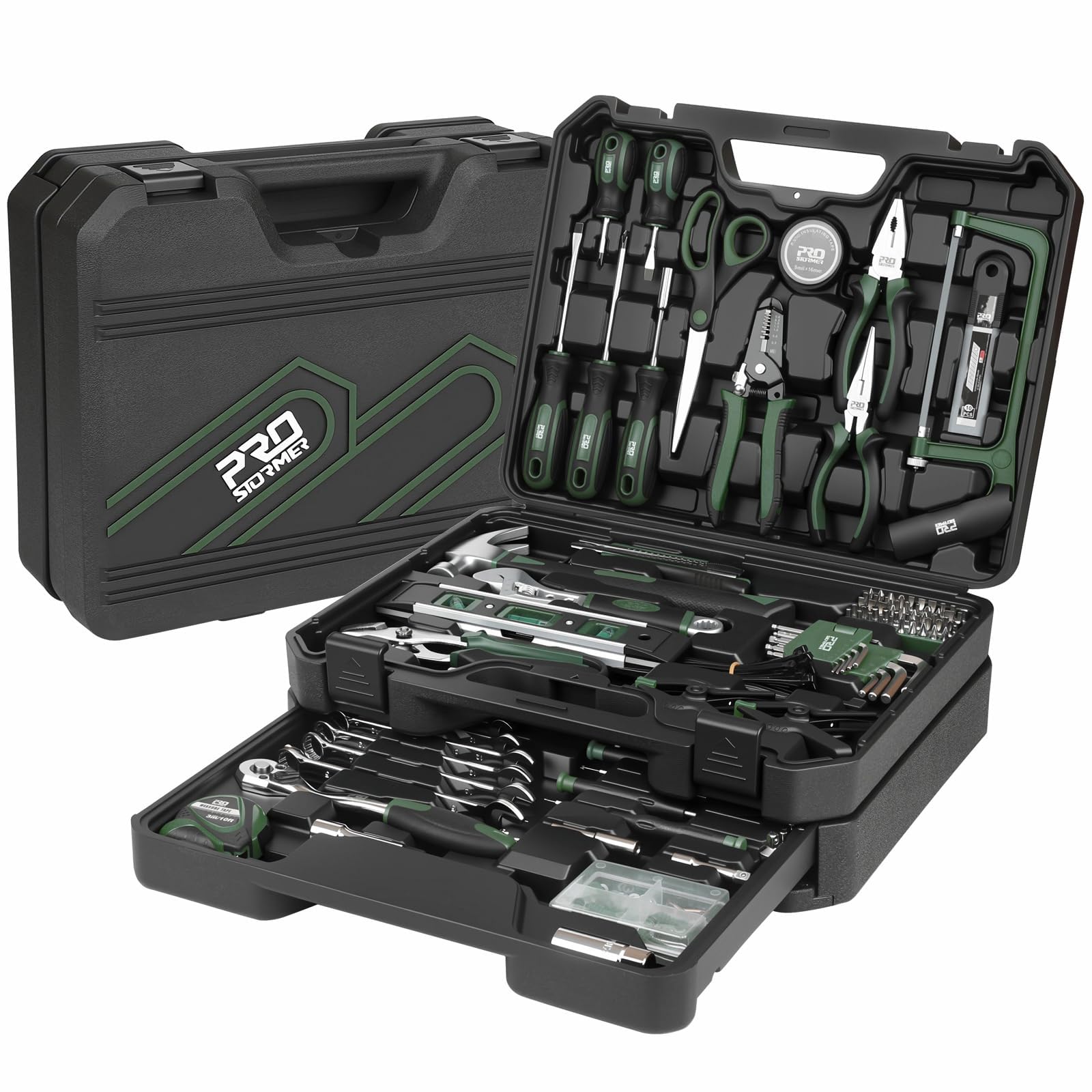

The Prostormer 269-Piece Tool Set in its durable, organized case.

2. Product Contents

Your Prostormer 269-Piece Tool Set includes a wide array of tools for various applications. The organized toolbox ensures each tool is securely stored and easily accessible.

This diagram illustrates the complete contents of the 269-piece tool set, with each tool clearly labeled for easy identification.

Included Components:

• Claw Hammer
• Pump Pliers
• Magnetic Level
• Wire Stripper
• Hack Saw
• Stainless Steel Ruler
• Long Nose Pliers
• Combination Pliers
• Adjustable Wrench
• Utility Knife
• Tape Measure
• PVC Insulating Tape
• 72-tooth Ratchet
• Fasteners Box
• Screwdrivers (various types)
• Hex Keys
• Combination Wrenches
• Magnetic Bit Driver
• Driver Sockets (various sizes)
• Driver Bits (various types)
• Cable Ties

3. Setup and Organization

The Prostormer tool set comes in a sturdy, drawer-style toolbox designed for optimal organization and easy access. Upon receiving your tool set, ensure all components are present and correctly seated in their designated slots.

Organizing the Toolbox:

• Each tool has a custom-fit slot to prevent movement during transport.
• The tiered design allows for quick identification and retrieval of tools.
• Utilize the fasteners box for small components like screws and anchors.

The Prostormer toolbox features a tiered, organized design to keep all tools securely in place and easily accessible, preventing clutter often found in traditional toolboxes.

The compact and portable design of the tool case, measuring 16.5 inches by 13 inches by 5.9 inches, allows for easy transport and storage.

4. Operating Instructions

Always select the correct tool for the task at hand. Using the wrong tool can lead to damage to the tool, the workpiece, or personal injury. Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves when necessary.

General Tool Usage Tips:

• Screwdrivers: Match the screwdriver tip (Phillips, flathead, etc.) to the screw head size. Apply firm, even pressure to prevent stripping the screw head.
• Wrenches and Sockets: Select the correct size wrench or socket that fits snugly onto the fastener. Avoid using oversized tools, which can round off bolt heads.
• Pliers: Use pliers for gripping, bending, or cutting. Do not use pliers as a substitute for a hammer or wrench.
• Hammer: Use the claw hammer for driving nails. Ensure you have a clear striking area and a stable surface.
• Utility Knife: Always cut away from your body. Retract the blade when not in use.
• Level: Place the level on the surface you wish to check. The bubble between the two lines indicates a level surface.

This image demonstrates the versatility of the tool set for everyday DIY jobs, including cutting materials, assembling furniture, and performing minor repairs.

The 72-tooth ratchet wrench and its accompanying sockets are designed for efficient fastening and loosening with a minimal 5-degree swing arc.

The 6-piece combination wrench set (sizes 8-10-12-13-14-15mm) is ideal for accessing and working in tight spaces, suitable for automotive, bicycle, and general mechanical maintenance.

The claw hammer is suitable for driving nails and prying objects. Ensure a firm grip and strike accurately.

The hack saw is designed for cutting various materials. Always secure the workpiece and use a steady, even stroke.

Long nose pliers are useful for gripping small objects, bending wires, and working in confined spaces. Exercise caution when working with electrical components.

The torpedo level helps ensure surfaces are perfectly horizontal or vertical. Place it on the surface and observe the bubble's position between the lines.

The ratchet wrench allows for efficient tightening and loosening of fasteners. Select the correct socket size and direction of rotation.

5. Maintenance

Proper maintenance extends the life of your tools and ensures their continued performance.

General Maintenance Tips:

• Cleaning: After each use, wipe tools clean of dirt, grease, and debris. A damp cloth can be used, followed by thorough drying.
• Lubrication: Apply a light coat of oil to moving parts of pliers, wrenches, and ratchets periodically to ensure smooth operation and prevent rust.
• Storage: Always return tools to their designated slots in the toolbox. Store the toolbox in a dry environment to prevent corrosion.
• Inspection: Regularly inspect tools for signs of wear, damage, or rust. Replace damaged tools to maintain safety and effectiveness.

6. Troubleshooting

Most issues with hand tools can be resolved with proper usage and maintenance. If you encounter problems, consider the following:

Common Issues and Solutions:

• Tool Slipping: Ensure the tool is correctly sized for the fastener or workpiece. Apply firm, even pressure. Clean any grease or oil from tool handles for a better grip.
• Rust: Rust can form if tools are stored in damp conditions or not dried properly after cleaning. Remove light rust with a wire brush or fine abrasive, then apply a protective oil.
• Stuck Fasteners: For stubborn bolts or screws, apply penetrating oil and allow it to soak. Use appropriate leverage, but avoid excessive force that could break the tool or fastener.
• Damaged Tool: Do not use damaged tools. A broken or bent tool can be unsafe and ineffective. Replace any tool that shows significant wear or damage.

7. Specifications

8. Warranty and Support

For information regarding product warranty, please refer to the official Prostormer website or contact Prostormer customer support directly. Keep your purchase receipt as proof of purchase.

Prostormer Official Website: Visit Prostormer Store on Amazon
