1. Introduction
Thank you for choosing the QNUT Victor 26" Electric Mountain Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your e-bike. Please read this manual thoroughly before your first ride and keep it for future reference.
1.1 Safety Information
- Always wear a helmet and appropriate safety gear when riding.
- Perform a pre-ride inspection before each use, checking brakes, tires, and battery.
- Familiarize yourself with local e-bike regulations and traffic laws.
- Do not operate the e-bike under the influence of alcohol or drugs.
- Ensure the battery is securely locked in place before riding.
- Avoid riding in extreme weather conditions or on excessively rough terrain.
2. Product Overview
The QNUT Victor is a versatile 26-inch electric mountain bike designed for adults and teens, offering a blend of pedal power and electric assistance. It features a robust motor, long-range battery, and a multi-speed gear system for various riding conditions.
Figure 2.1: The QNUT Victor 26" Electric Mountain Bike, showcasing its frame, wheels, and integrated battery.
2.1 Key Features
- Powerful 350W Motor: Provides strong acceleration and assistance for varied terrains.
- Long-Range 36V 10.4Ah Battery: Offers a range of 20-40 miles per charge, removable for convenient charging.
- 21-Speed Gear System: Allows for precise control and adaptability to different gradients and speeds.
- Dual Disc Brakes: Ensures reliable and responsive stopping power in all conditions.
- Front Suspension Fork: Absorbs shocks and vibrations for a smoother, more comfortable ride.
- Smart LCD Display: Provides real-time information on speed, battery level, and pedal assist mode.
- Three Riding Modes: Pedal Assist, Walking, and Regular Bicycle mode for versatile use.
3. Setup & Assembly
Your QNUT Victor e-bike arrives partially assembled. Follow these steps to complete the assembly and prepare for your first ride. Necessary tools are included in the package.
3.1 Unpacking
- Carefully remove the bike and all components from the packaging.
- Inspect for any shipping damage. Contact customer support immediately if damage is found.
- Remove all protective packaging materials.
3.2 Handlebar Installation
Attach the handlebar to the stem, ensuring it is centered and the brake levers and shifters are in a comfortable position. Tighten the stem bolts securely.
3.3 Pedal Installation
Identify the left (L) and right (R) pedals. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise. Apply a small amount of grease to the pedal threads before installation. Ensure they are tightened firmly.
3.4 Seat Post Adjustment
Insert the seat post into the frame. Adjust the seat height so that your leg has a slight bend at the knee when the pedal is at its lowest point. Secure the quick-release lever or bolt firmly.
3.5 Tire Inflation
Inflate both tires to the recommended pressure indicated on the tire sidewall. Do not over-inflate or under-inflate.
4. Operating Instructions
4.1 Powering On/Off
- To power on the e-bike, press and hold the power button on the LCD display until the screen illuminates.
- To power off, press and hold the power button again until the display turns off.
4.2 Riding Modes
The QNUT Victor offers three distinct riding modes:
- Pedal Assist Mode (PAS): The motor provides assistance as you pedal. There are multiple levels of assist to choose from.
- Walking Mode: Provides low-speed assistance (typically 3-4 mph) to help you walk the bike.
- Regular Bicycle Mode: The electric assist is off, and the bike functions as a traditional bicycle.
Figure 4.1: Visual representation of the three available riding modes.
4.3 Pedal Assist Levels
Use the '+' and '-' buttons on the LCD display to adjust the pedal assist level from 1 (lowest assist) to 5 (highest assist). Higher levels provide more motor power and less effort from the rider.
4.4 Throttle Use
The e-bike is equipped with a twist throttle on the handlebar. Twist the throttle to engage the motor without pedaling. This can be used for quick acceleration or to navigate inclines with minimal effort. The throttle provides full motor power regardless of the pedal assist level selected.
4.5 Gear Shifting
The QNUT Victor features a 21-speed Shimano gear system (3 front, 7 rear). Use the shifters on the handlebar to change gears. Shift to lower gears for climbing hills and higher gears for flat terrain and speed. Shift smoothly to avoid damaging the drivetrain.

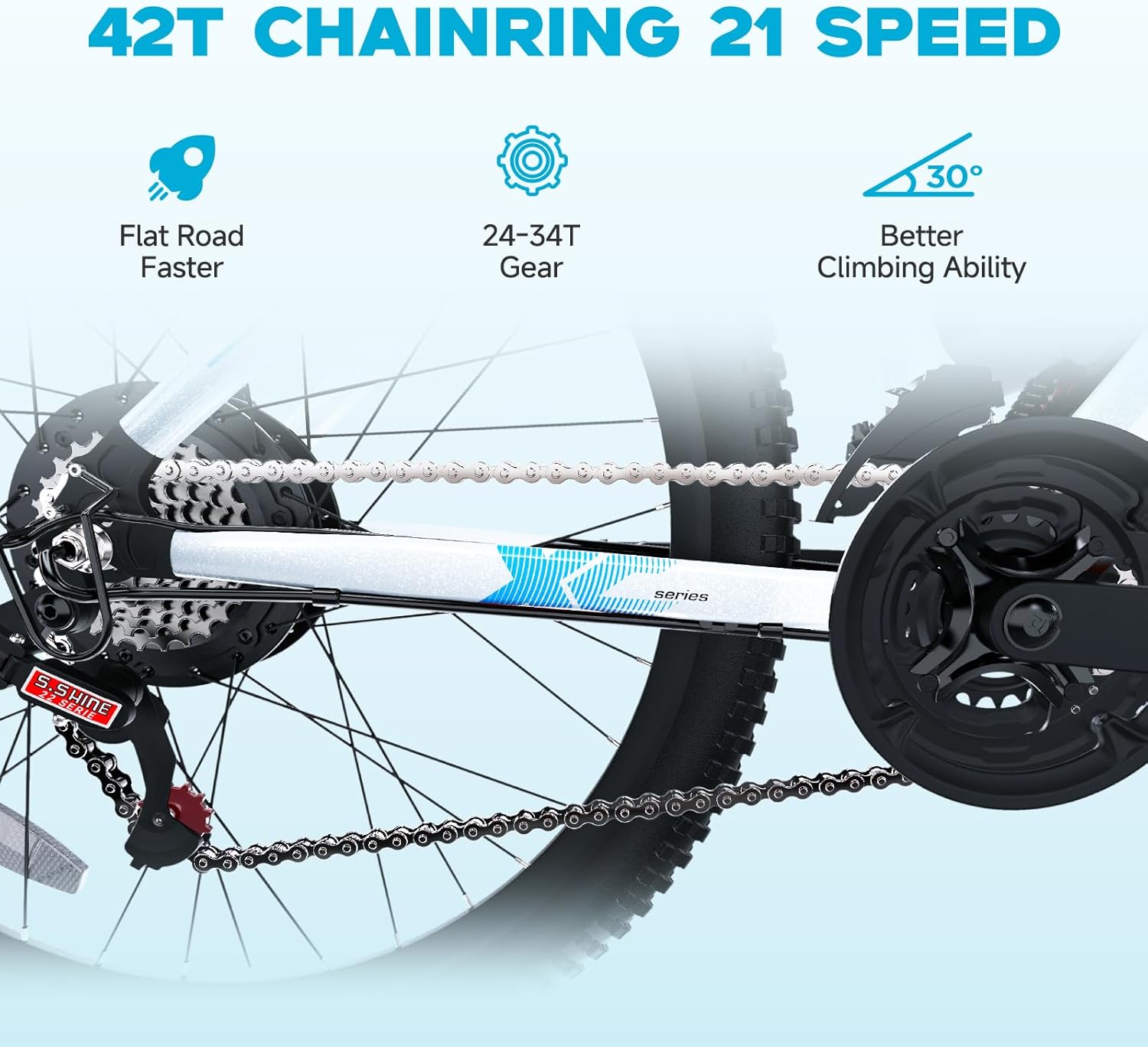

Figure 4.2: Detail of the 21-speed gear system, including the chainring and rear derailleur.
4.6 LCD Display
The smart LCD display provides crucial riding data at a glance:
- Speed: Current riding speed.
- Battery Level: Indicates remaining battery charge.
- Pedal Assist Level: Shows the selected assist level (1-5).
- Odometer/Trip Distance: Tracks total distance or current trip distance.
Figure 4.3: The smart LCD display provides essential riding information.
4.7 Braking
The QNUT Victor is equipped with dual mechanical disc brakes for effective stopping. Apply both brake levers simultaneously for optimal braking performance. Avoid sudden, hard braking, especially at high speeds.
Figure 4.4: Detail of the dual disc brake system for reliable stopping power.
5. Battery Information
5.1 Charging the Battery
The 36V 10.4Ah lithium battery can be charged both on and off the bike. Use only the original charger provided. A full charge typically takes 3-4 hours.
- On-Bike Charging: Connect the charger to the charging port on the battery while it's installed on the bike.
- Off-Bike Charging: Remove the battery from the bike and connect it to the charger.
Figure 5.1: The two convenient charging methods for the removable battery.
5.2 Battery Removal and Installation
To remove the battery, unlock it with the provided key and slide it out of the frame. To install, slide the battery back into the frame until it clicks into place, then lock it with the key. Always ensure the battery is locked before riding.

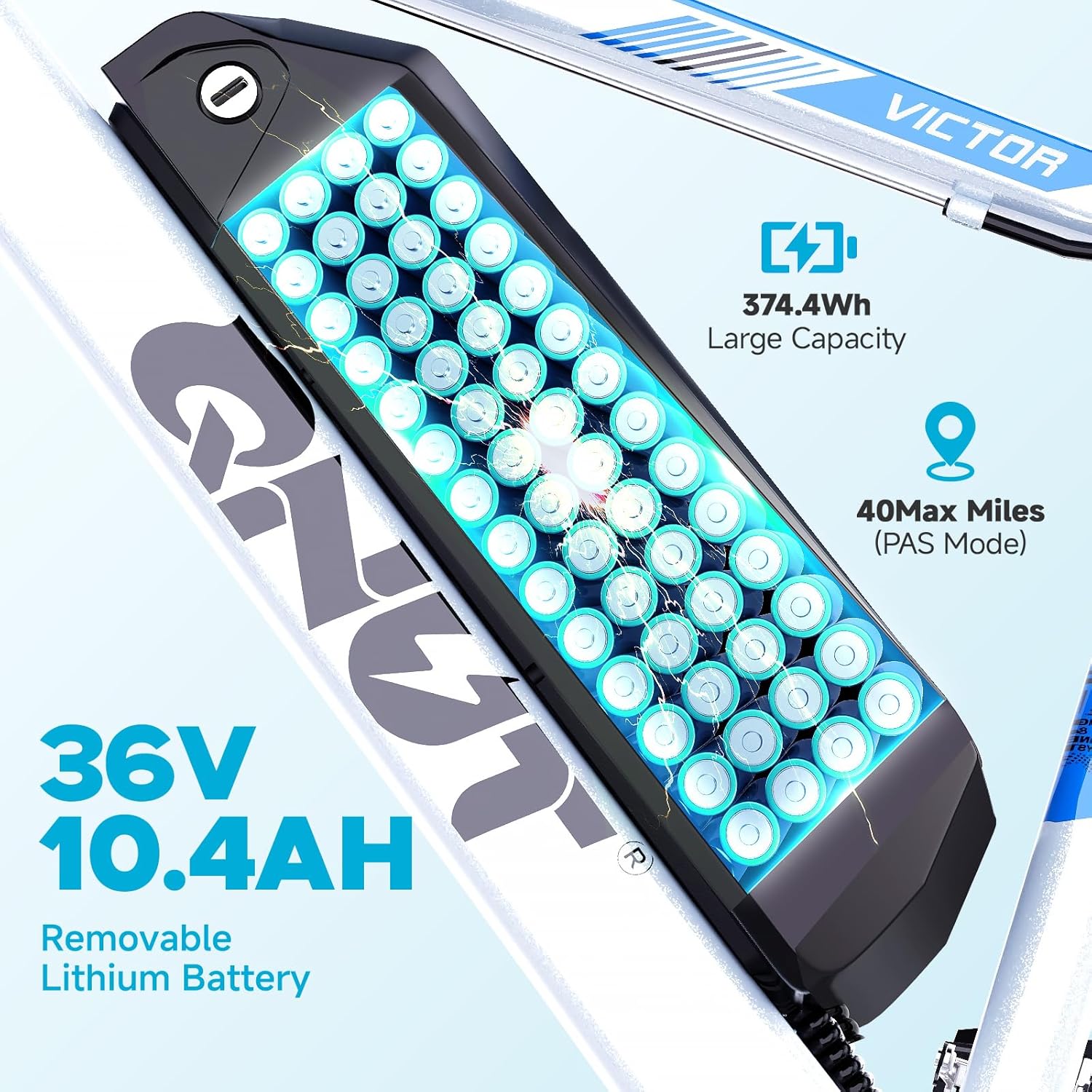

Figure 5.2: The removable 36V 10.4Ah lithium battery with 374.4Wh capacity.
5.3 Range and Performance
The battery provides an estimated range of 20-40 miles, depending on factors such as terrain, rider weight, assist level, and weather conditions. Using higher pedal assist levels or the throttle exclusively will reduce the overall range.
6. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your QNUT Victor e-bike.
6.1 Maintenance Schedule
- Before Each Ride: Check tire pressure, brake function, and battery security.
- Weekly/Every 50 Miles: Inspect chain for wear and lubrication, check bolt tightness, clean the bike.
- Monthly/Every 200 Miles: Check brake pads, gear shifting, and spoke tension.
- Annually/Every 1000 Miles: Professional inspection recommended.
6.2 Cleaning
Clean your e-bike with a damp cloth and mild soap. Avoid high-pressure washing directly on electrical components or bearings.
6.3 Tire Pressure
Maintain tire pressure within the recommended range (typically 30-50 PSI for 26" x 1.95" tires) for optimal performance and safety.
6.4 Brake Adjustment
Ensure brake levers engage smoothly and stop the bike effectively. If brakes feel spongy or too tight, they may need adjustment or pad replacement. Consult a professional if unsure.
6.5 Chain Lubrication
Regularly lubricate the chain to ensure smooth gear changes and prevent wear. Use a bicycle-specific chain lubricant.
7. Troubleshooting
This section addresses common issues you might encounter with your QNUT Victor e-bike.
| Problem | Possible Cause | Solution |
|---|---|---|
| E-bike does not power on. | Battery not charged, battery not installed correctly, power button not pressed correctly. | Charge battery, ensure battery is securely installed and locked, press and hold power button firmly. |
| Motor not assisting. | Pedal assist level is 0, battery low, motor connection loose. | Increase pedal assist level, charge battery, check motor cable connections. |
| Brakes feel weak. | Worn brake pads, loose brake cable, air in hydraulic system (if applicable). | Inspect and replace brake pads, adjust brake cable tension, consult a professional for hydraulic systems. |
| Gears are not shifting smoothly. | Derailleur out of adjustment, dirty/dry chain, bent hanger. | Adjust derailleur, clean and lubricate chain, inspect hanger for damage. |
8. Specifications
Detailed technical specifications for the QNUT Victor 26" Electric Mountain Bike.
| Feature | Detail |
|---|---|
| Bike Type | Electric Mountain Bike |
| Motor | 350W Brushless Hub Motor |
| Battery | 36V 10.4Ah (374.4 Wh) Removable Lithium-ion |
| Max Speed | Up to 20 MPH (with assist) |
| Range | 20-40 Miles (Pedal Assist Mode) |
| Gearing | 21-Speed (3x7) |
| Brakes | Dual Mechanical Disc Brakes |
| Suspension | Front Suspension Fork |
| Wheel Size | 26 Inches |
| Tires | 26" x 1.95" |
| Frame Material | Carbon Steel |
| Max Load Weight | 250 lbs |
| Recommended Rider Height | 4'8" - 5'9" |
Figure 8.1: The 350W brushless hub motor provides efficient power to the rear wheel.
9. Warranty & Customer Support
For warranty information, please refer to the warranty card included with your purchase or visit the official QNUT website. If you have any questions, require technical assistance, or need to report an issue, please contact QNUT customer support.
Customer Support: [Insert Customer Support Contact Information Here, e.g., email, phone, website]
