MDHL XY17 Rechargeable Handheld Percussion Massager User Manual

Introduction

Thank you for choosing the MDHL XY17 Rechargeable Handheld Percussion Massager. This device is designed to provide deep tissue muscle massage, aiding in body relaxation, pain relief, and reducing muscle stiffness in areas such as the neck, shoulders, back, and feet. Please read this manual thoroughly before use to ensure safe and effective operation. Keep this manual for future reference.

Important Safety Information

To reduce the risk of electric shock, fire, and injury, please observe the following safety precautions:

• Do not immerse the device in water or other liquids.
• Do not use the massager on open wounds, swollen areas, or areas with skin irritation.
• Do not use the massager on your head, face, or directly over bones.
• Consult a physician before use if you are pregnant, have a pacemaker, suffer from diabetes, phlebitis, thrombosis, or are at increased risk of blood clots.
• Keep out of reach of children. This device is not a toy.
• Do not operate the device if it has been damaged, dropped, or exposed to water.
• Use only the provided charging cable.
• The device features an auto-off function after 15 minutes of continuous use to prevent overheating. Allow the device to cool down before resuming use.
• Do not block the ventilation openings.
• This device is intended for personal, non-medical use only.

Package Contents

Please check the package to ensure all items are present and in good condition:

• 1 x MDHL XY17 Percussion Massager
• 6 x Interchangeable Massage Heads
• 1 x Type-C Charging Cable
• 1 x User Manual (this document)

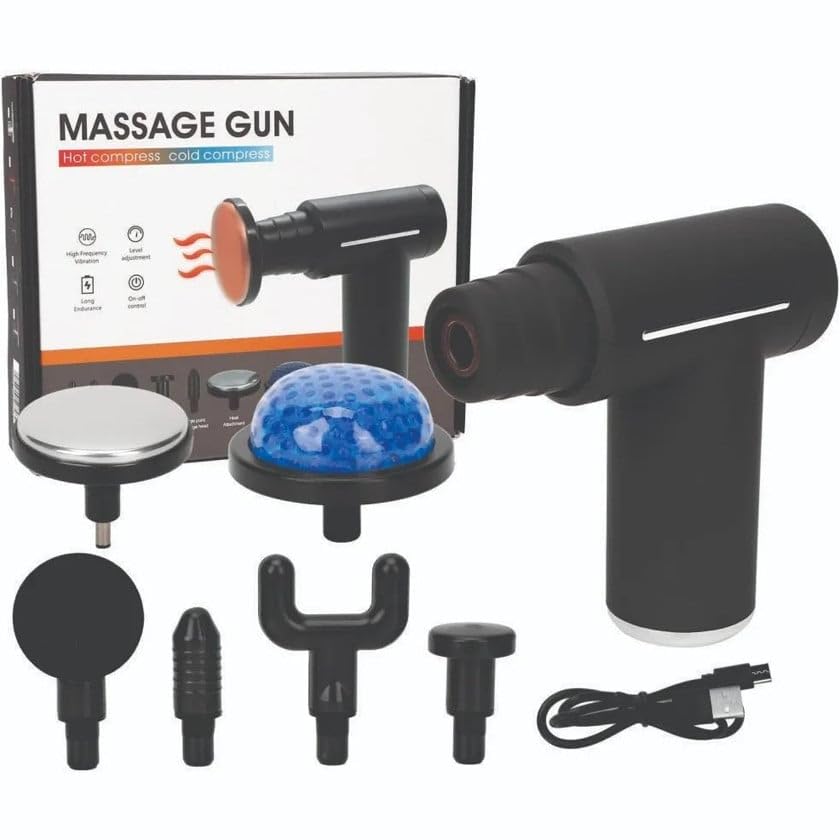

Image: The MDHL XY17 Percussion Massager shown with its main body and a selection of interchangeable massage heads, illustrating the complete package contents.

Setup

1. Initial Charge: Before first use, fully charge the massager for approximately 3-4 hours. Refer to the "Charging the Device" section for detailed instructions.
2. Attach Massage Head: Select the desired massage head. Gently push the stem of the chosen head into the opening at the front of the massager until it is securely seated. To remove, pull the head straight out.

Operating Instructions

1. Power On/Off: Press and hold the power button (usually located at the base or handle) for 2 seconds to turn the device ON or OFF. The device will indicate its status, often with an LED display.
2. Adjust Intensity Levels: Once powered on, short press the power button to cycle through the 6 available intensity levels. Start with the lowest setting and gradually increase to a comfortable level.
3. Hot/Cold Compress Function: If your model includes this feature (as indicated by the product image), activate it by pressing the dedicated button or following specific instructions for your model. This function provides additional therapeutic benefits.
4. Application: Gently apply the massager to the desired muscle group. Move the massager slowly over the area, applying light to moderate pressure. Avoid pressing too hard or staying in one spot for too long.
5. Session Duration: The device has an automatic shut-off feature after 15 minutes of continuous use. This is a safety measure to prevent overheating and conserve battery life. It is recommended to limit each massage session to 15 minutes per muscle group.

Massage Head Guide

The MDHL XY17 comes with 6 interchangeable massage heads, each designed for specific muscle groups and massage types. Experiment to find the best head for your needs.

Image: A close-up view of six distinct massage heads, including U-shaped, round, T-shaped, bullet, flat, and a textured round head, designed for various massage applications.

• U-shaped Head: Ideal for massaging the neck, spine, and Achilles tendon.
• Round Head: Suitable for large muscle groups like arms, back, hips, thighs, and calves.
• T-shaped Head: Good for general body massage and relaxation.
• Bullet Head: Designed for deep tissue massage, trigger points, and small muscle areas like feet and palms.
• Flat Head: Versatile for all body parts, providing a consistent and even massage.
• Textured Round Head: Offers a broader, softer impact, suitable for sensitive areas or general relaxation.

Charging the Device

The MDHL XY17 massager is equipped with a Type-C Lithium rechargeable battery.

1. Ensure the device is turned OFF before charging.
2. Connect the Type-C charging cable to the charging port on the massager.
3. Plug the other end of the USB cable into a compatible USB power adapter (not included) or a computer USB port.
4. The charging indicator light (if present) will illuminate to show charging status.
5. A full charge typically takes 3-4 hours. The indicator light will change or turn off when charging is complete.
6. A fully charged battery provides approximately 90-150 minutes of working time, depending on the intensity level used.

Maintenance

• Cleaning: After each use, wipe the massager body and massage heads with a slightly damp cloth. Do not use abrasive cleaners or immerse the device in water. Ensure the device is completely dry before storing.
• Storage: Store the massager in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it away from children.
• Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge the device regularly, even if not used for extended periods.

Troubleshooting

Specifications

Warranty and Support

For warranty information, technical support, or any questions regarding your MDHL XY17 Percussion Massager, please contact the retailer or manufacturer's customer service. Please retain your proof of purchase for warranty claims.

Manufacturer: Nureca Limited

Contact Information (Packer): Office No. 101, 1st Floor, Udyog Bhavan Sonawala Lane, Goregaon East, Mumbai, Maharashtra - 400063
