LEAGOO Heated Massage Office Chair User Manual

1. Important Safety Information

Please read and understand all safety warnings before assembly and use. Failure to follow these instructions may result in injury or product damage.

• This product is not a toy. Children are prohibited from climbing, hanging, or playing with this product to prevent accidental injury.
• Ensure all screws and bolts are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not stand on the chair.
• Do not use the chair if any parts are damaged or missing. Contact customer support for replacement parts.
• Keep hands and fingers clear of moving parts during adjustment.

2. Product Overview

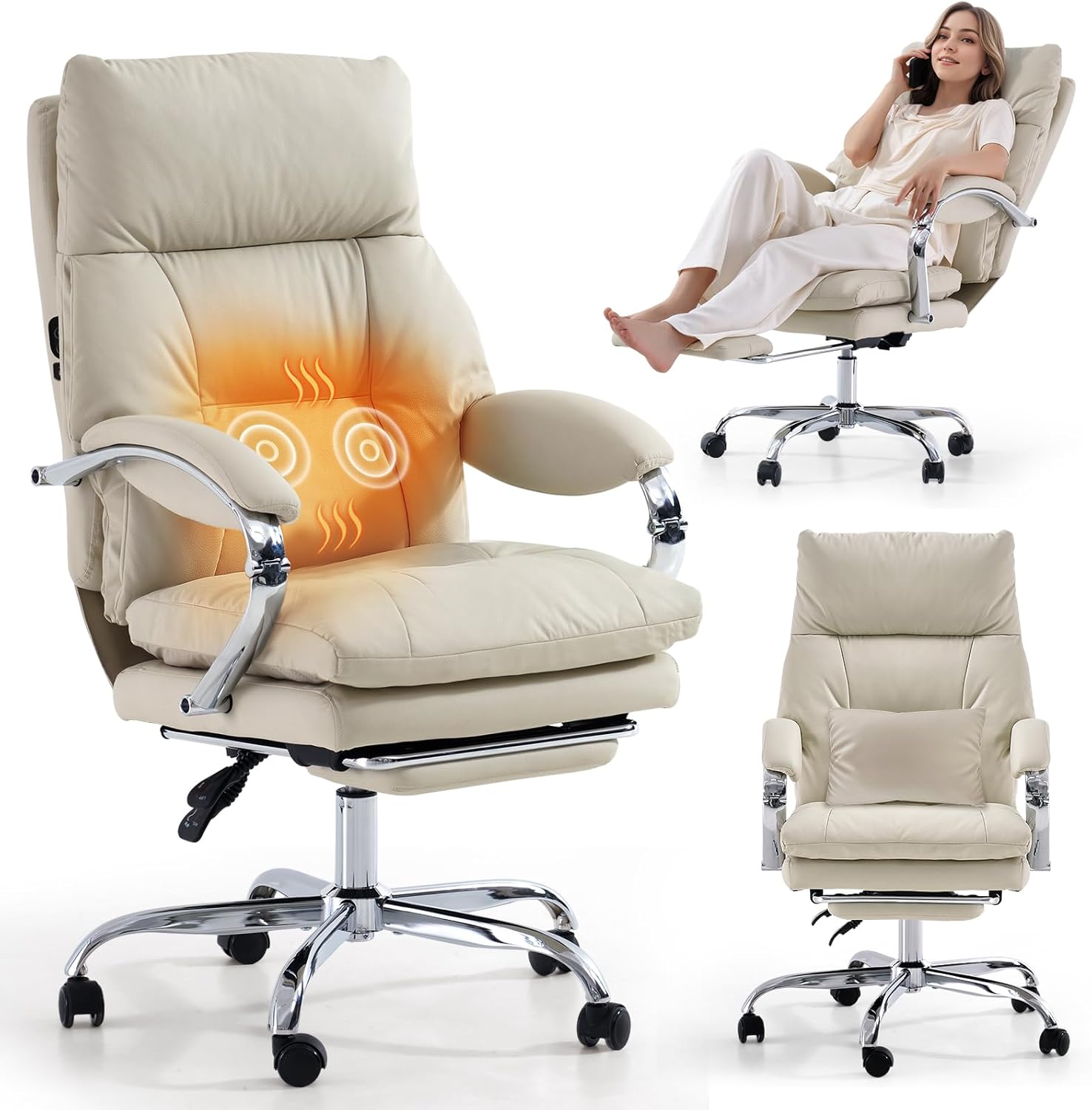

The LEAGOO YMX-C570 office chair is designed to provide optimal comfort and support for extended periods of sitting. Key features include:

• Heated Massage Function: Integrated vibration points and adjustable warmth for lower back comfort.
• 155° Reclining: Adjustable backrest from 90° to 155° for various activities.
• Retractable Footrest: Conveniently extends for leg support and relaxation.
• Ergonomic Design: Contours to the body with comfortable neck, lumbar, and hip support.
• High-Quality Materials: Durable PU leather, high-density sponge, and a sturdy metal base.

3. Assembly Instructions

Follow these steps carefully to assemble your LEAGOO office chair. It is recommended to have a second person assist with some steps.

3.1 Assembly Video Guide

3.2 Step-by-Step Assembly

1. Assemble the Chair Base: Attach the five-star foot pieces to the central hub and secure them with the provided screws. Insert the casters into each leg.
2. Install the Gas Lift: Place the dust cover over the gas lift cylinder and insert the gas lift into the center hole of the assembled chair base.
3. Attach the Butterfly Plate to the Seat Cushion: Align the butterfly plate (mechanism with levers) to the underside of the seat cushion. Secure it using the appropriate screws. Ensure the front of the plate aligns with the front of the cushion.
4. Assemble the Footrest: Attach the footrest cushion to its metal frame using the designated screws. Thread the footrest assembly under the seat cushion, securing it with the rubber ring to prevent it from pulling out.
5. Connect the Backrest to the Seat: Attach the back plate to the underside of the backrest using the specified screws. Then, align the backrest with the seat cushion and secure it using the remaining screws.
6. Attach the Armrests: Secure the armrests to both sides of the seat cushion and backrest using the provided screws and washers. Ensure they are firmly attached.
7. Final Assembly: Carefully place the assembled seat and backrest onto the gas lift cylinder. Press down firmly to ensure it is securely seated.

4. Operating Instructions

Familiarize yourself with the chair's adjustable features for personalized comfort.

4.1 Seat Height Adjustment

• To raise the seat: While seated, pull the 'LIFT' lever upwards and lift your weight slightly off the seat. The seat will rise. Release the lever at the desired height.
• To lower the seat: While seated, pull the 'LIFT' lever upwards and apply your weight to the seat. The seat will lower. Release the lever at the desired height.

4.2 Backrest Reclining Function

• To recline: Pull the 'RCL' lever outwards. Lean back to the desired angle (between 90° and 155°). Push the lever inwards to lock the backrest in position.
• To return to upright: While the backrest is locked, pull the 'RCL' lever outwards and lean forward. The backrest will return to its upright position. Push the lever inwards to lock.

4.3 Retractable Footrest

• To extend the footrest: Pull the footrest assembly out from underneath the seat cushion. Flip up the padded section.
• To retract the footrest: Flip down the padded section. Push the footrest assembly back underneath the seat cushion until it is fully hidden.

4.4 Heated Massage Function

The chair features two lower-back vibration points and adjustable warmth. The controls are located on the side of the chair.

• Massage Button: Press to cycle through multiple vibration patterns. Short press to adjust massage intensity (Blue: Low, Green: Medium, Red: High).
• Heating Button: Press to activate and adjust the gentle warmth function (3 adjustable levels).

5. Maintenance

Proper care will extend the life and appearance of your office chair.

• Cleaning: For general cleaning, wipe the PU leather with a damp cloth. For tougher stains, use a mild soap solution and dry thoroughly. Avoid harsh chemicals or abrasive cleaners.
• Inspection: Periodically check all screws and bolts to ensure they are tight. Re-tighten as needed to maintain stability and prevent squeaking.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause the PU leather to fade or crack.
• Weight Capacity: Do not exceed the maximum weight recommendation of 300 pounds.

6. Troubleshooting

If you encounter any issues with your chair, refer to the following common solutions:

• Chair Leans to One Side: This can often be resolved by loosening the screws that hold the backrest to the seat, adjusting the backrest to be straight, and then re-tightening the screws firmly.
• Squeaking or Creaking Noises: Check all assembly points, especially where metal parts connect, and ensure all screws are tightened. Applying a small amount of silicone lubricant to moving metal joints (e.g., the tilt mechanism or gas lift connection) may help.
• Armrests Feel Loose: Regularly check and tighten the screws securing the armrests to the chair frame.
• Seat Cushion Feels Flat: While the chair uses high-density foam, prolonged heavy use can compress padding. Ensure you are within the recommended weight limit.

If the problem persists after attempting these solutions, please contact LEAGOO customer support.

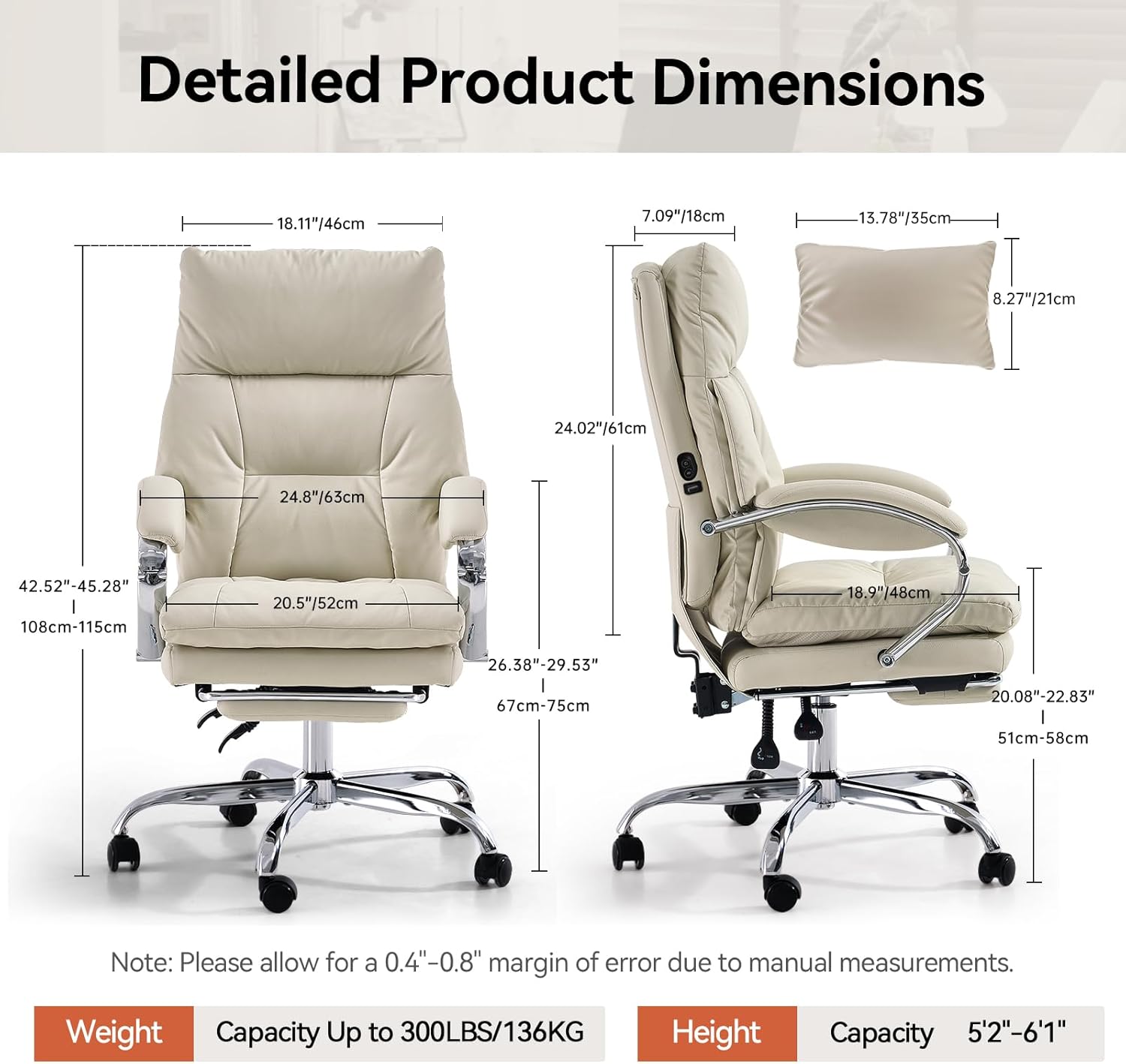

7. Specifications

Detailed product specifications for the LEAGOO YMX-C570 office chair:

8. Warranty and Support

LEAGOO is committed to customer satisfaction. For customers who purchase the computer desk chair from the LEAGOO furniture store, we provide one year after-service support.

Our dedicated customer service team is available to assist you with any pre-sales or after-sales inquiries. Please do not hesitate to send an email to us for assistance.

For further assistance or to report issues, please visit the LEAGOO Store on Amazon.
